SKU:AGT-DM12-C

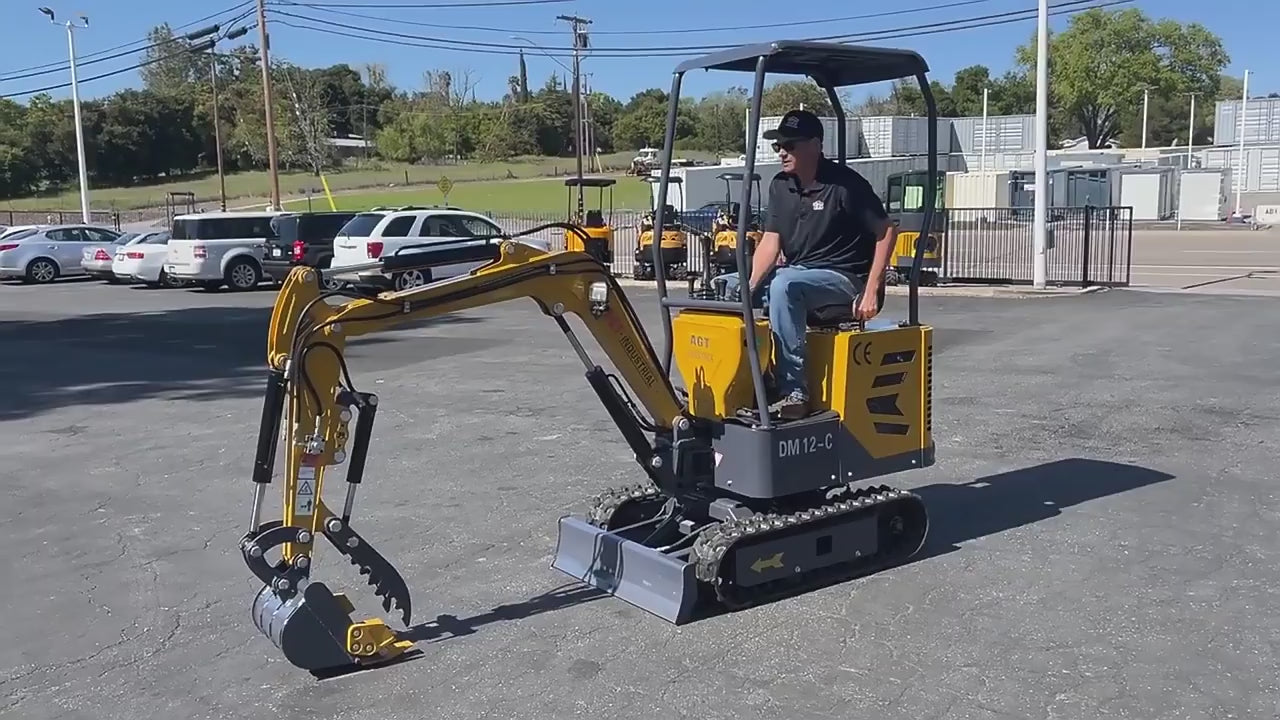

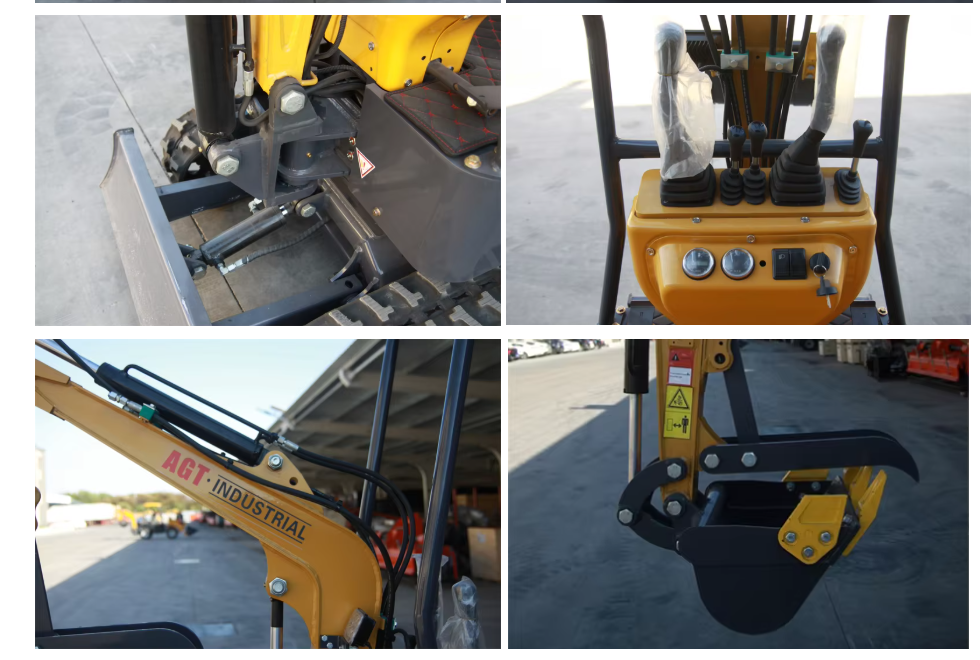

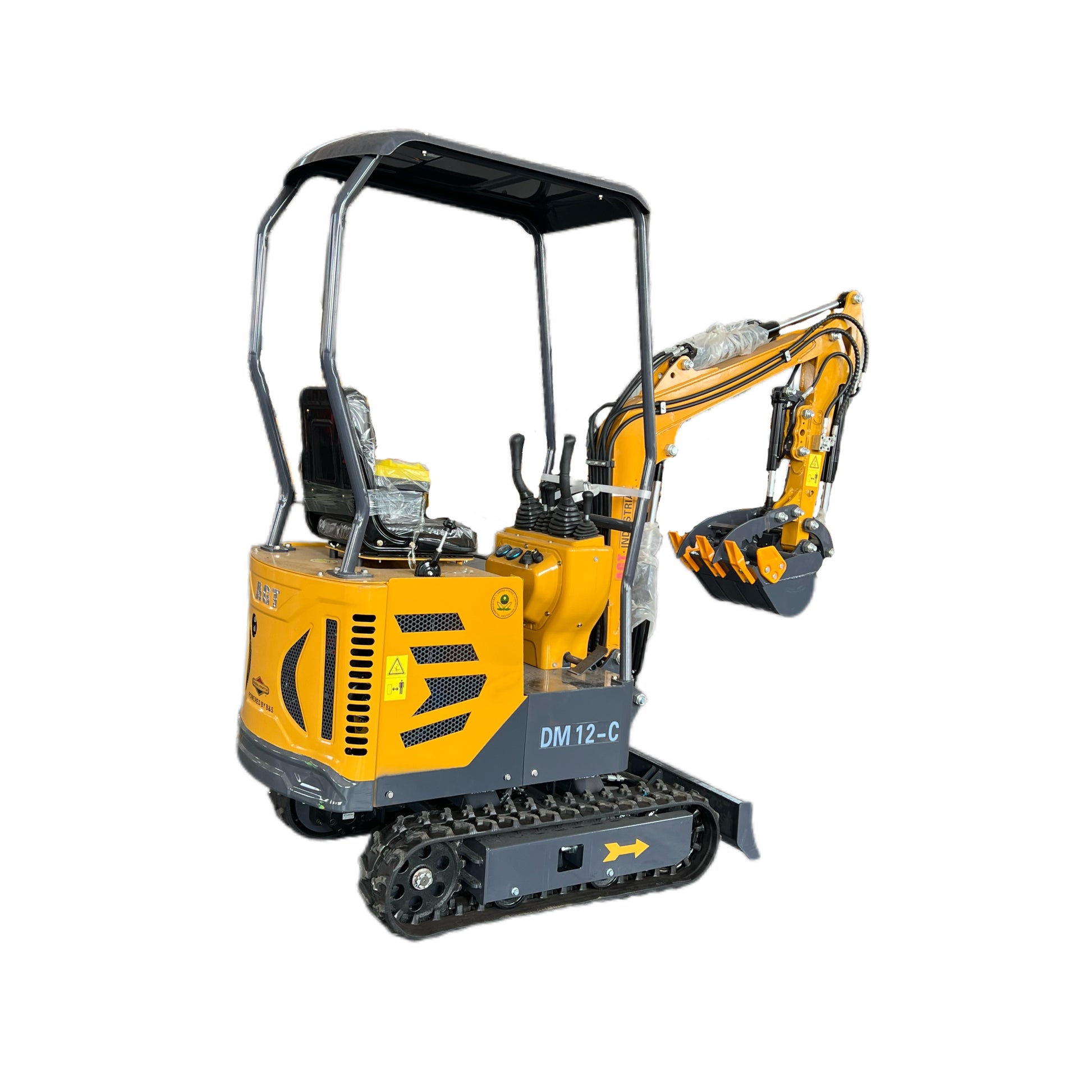

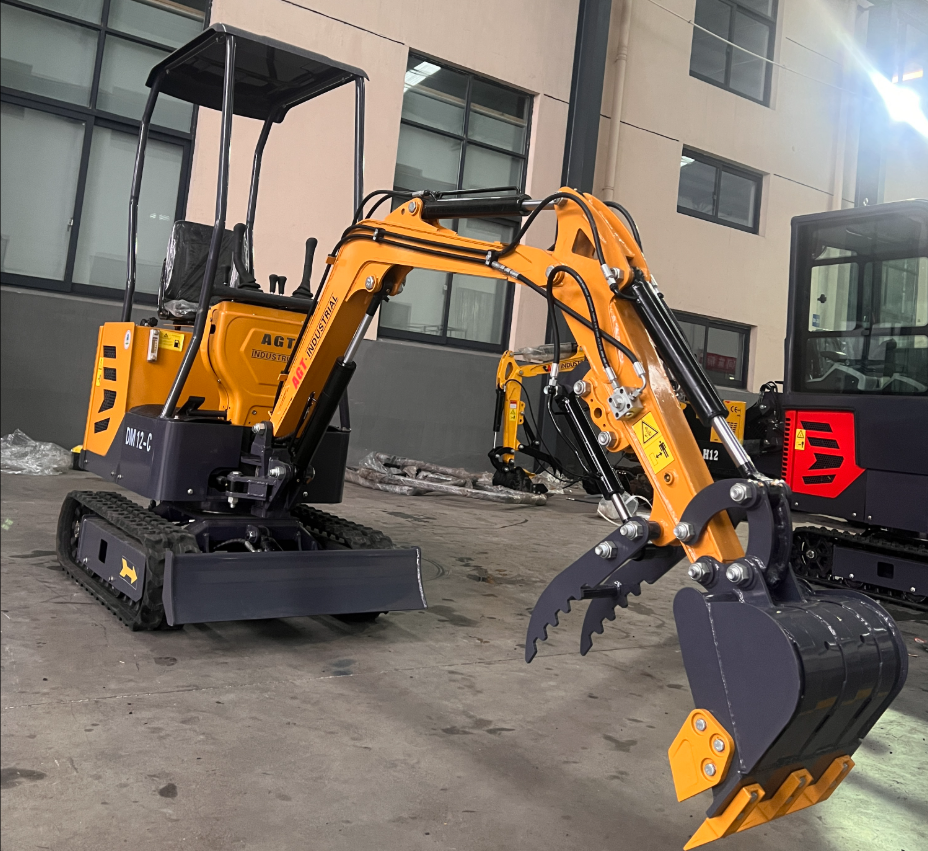

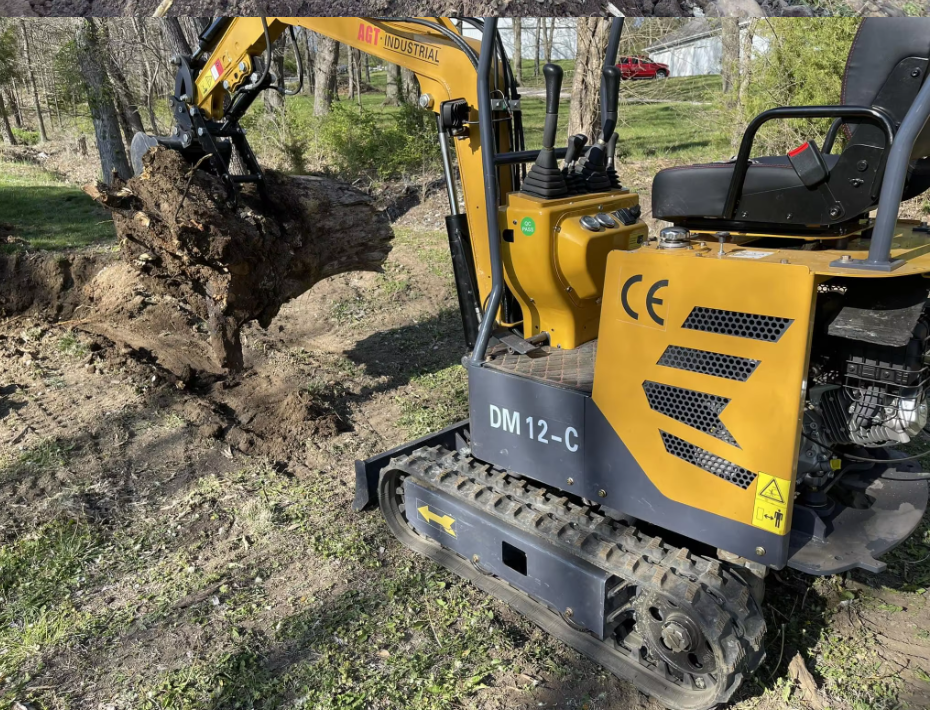

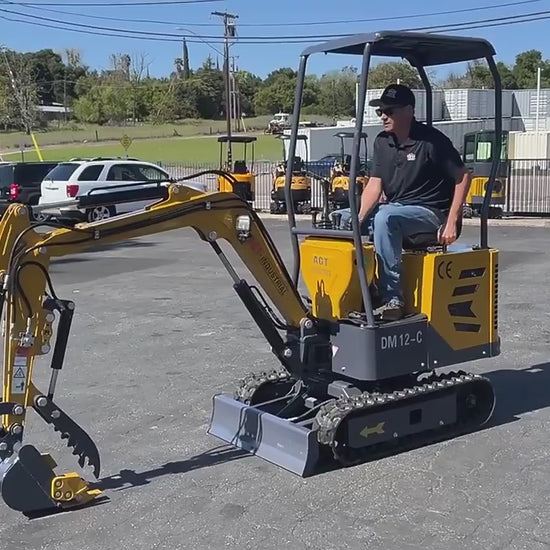

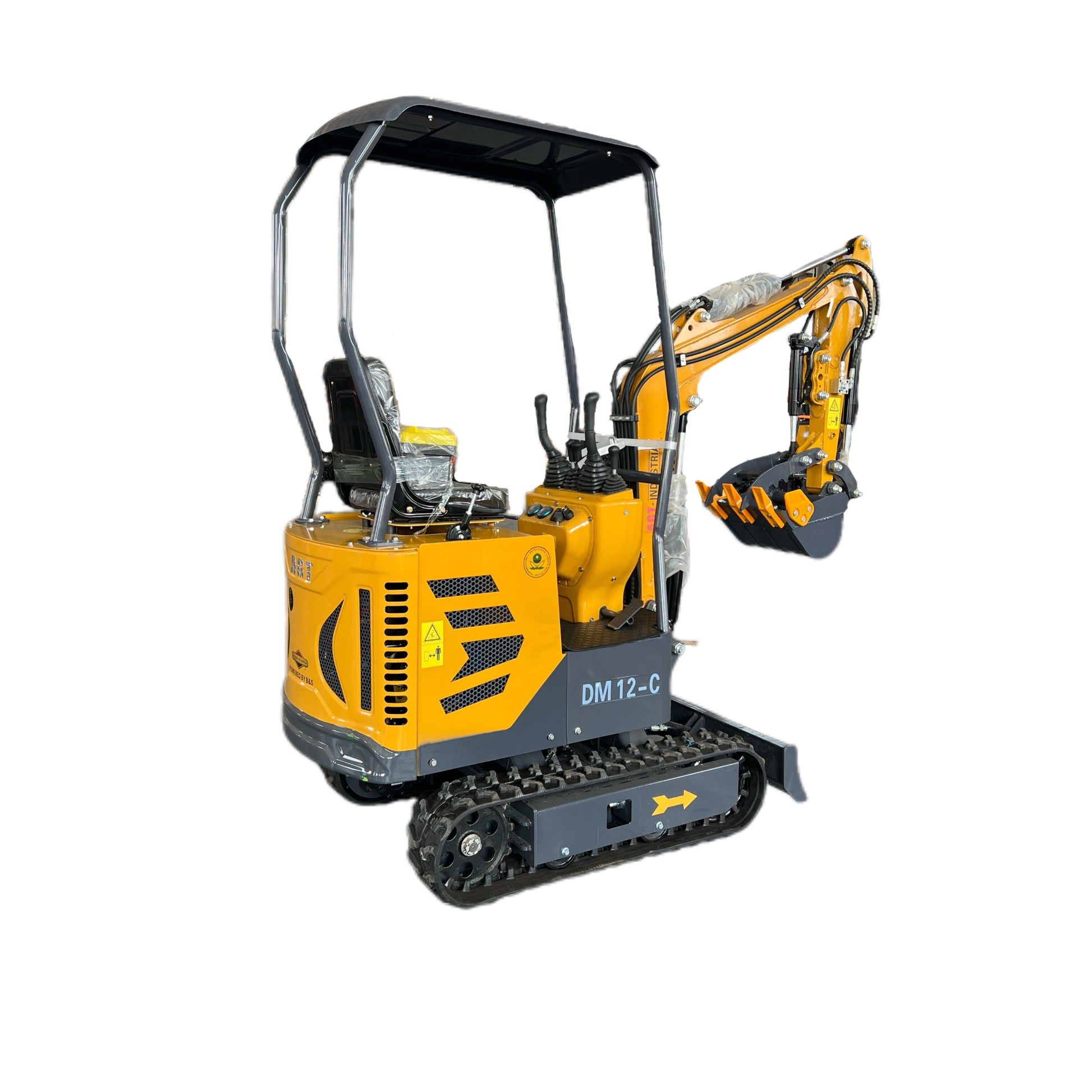

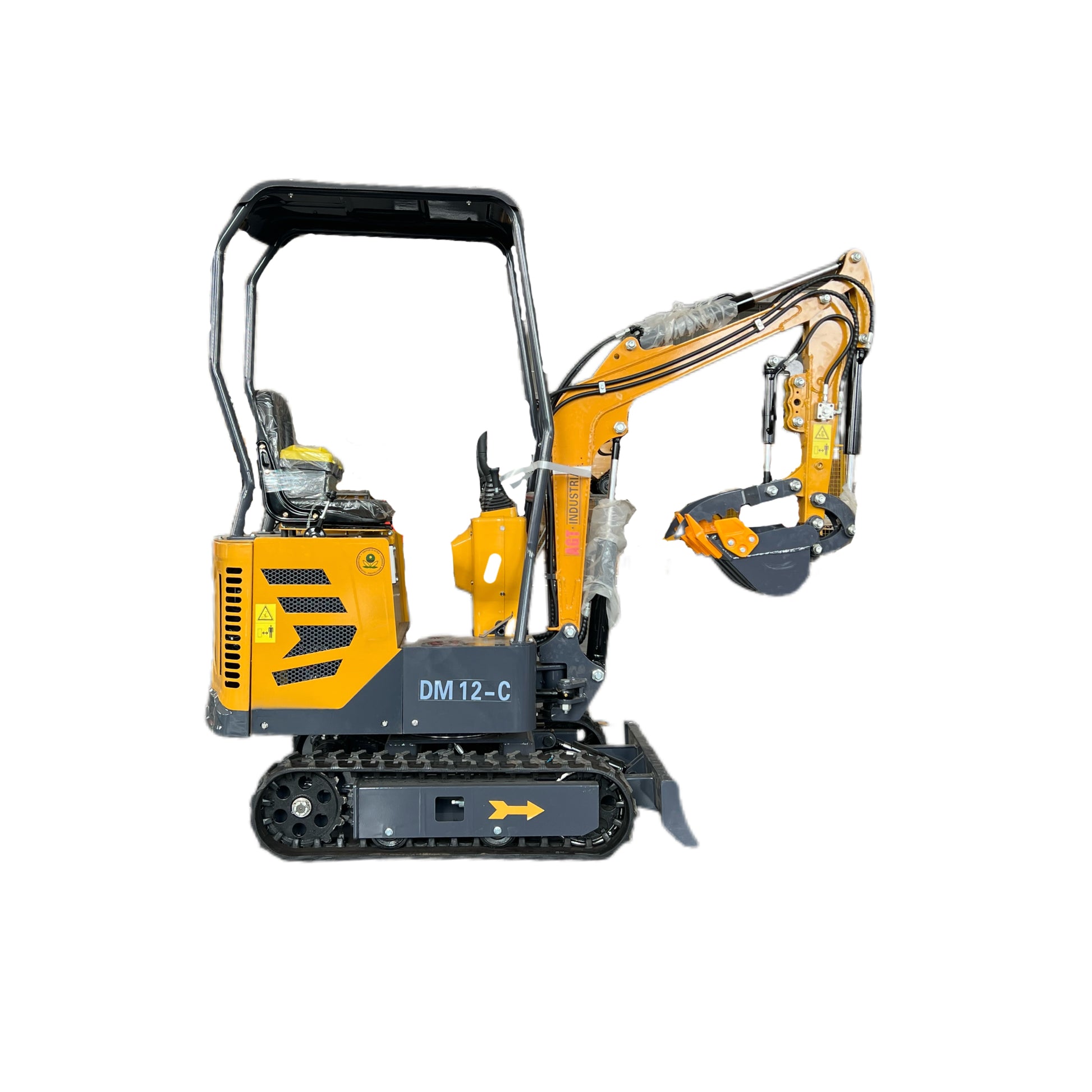

1 Ton, 13.5 HP Gasoline Engine (B&S) Epa/Ce Mini Hydraulic Digger Excavator With Side Swing | AGT-DM12-C

1 Ton, 13.5 HP Gasoline Engine (B&S) Epa/Ce Mini Hydraulic Digger Excavator With Side Swing | AGT-DM12-C

1 7
$6,899.00
$6,899.00 Sold out
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Delivery in 5 - 15 Business Days
Details

Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Payment:
832-993-8676Sales Contact Number
yuanxin01@cfgindustrial.comSales Contact Email
View full details

Product Overview

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Equipped with a hydraulic thumb and side swing boom.

Product manual (PDF) DM12-C_manual.pdf

Product Features

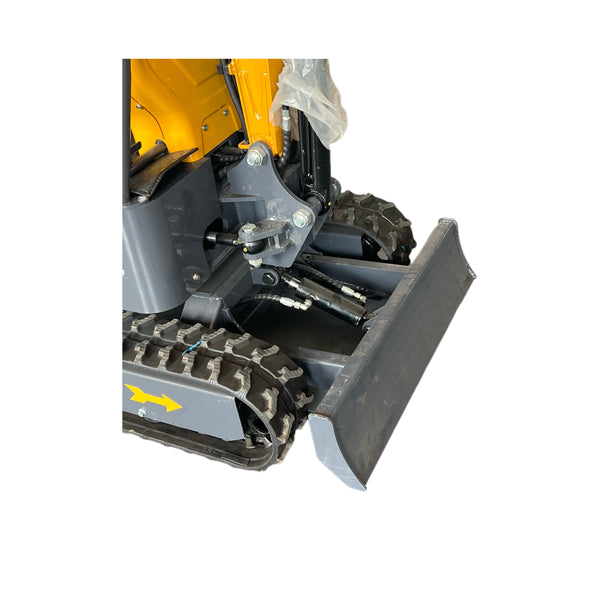

The backhoe

The backhoe

The excavator's backhoe excavates, mines, dredges, demolishes, and handles materials.

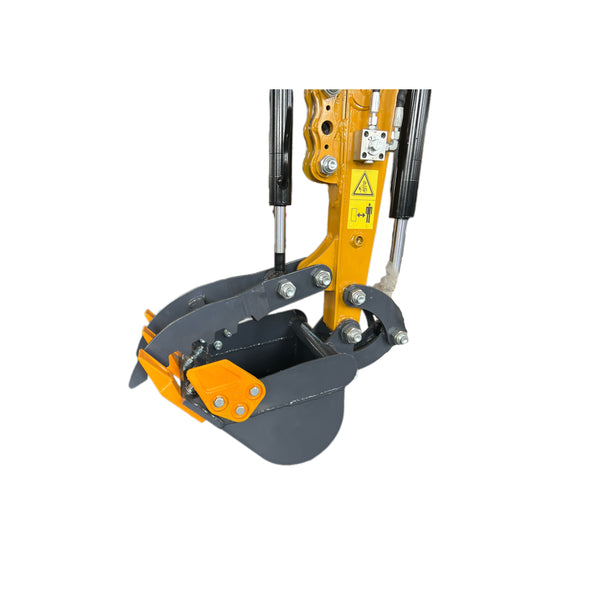

Hydraulic Thumb

Hydraulic Thumb

Grabs, lifts, and secures materials with ease, making every job more efficient

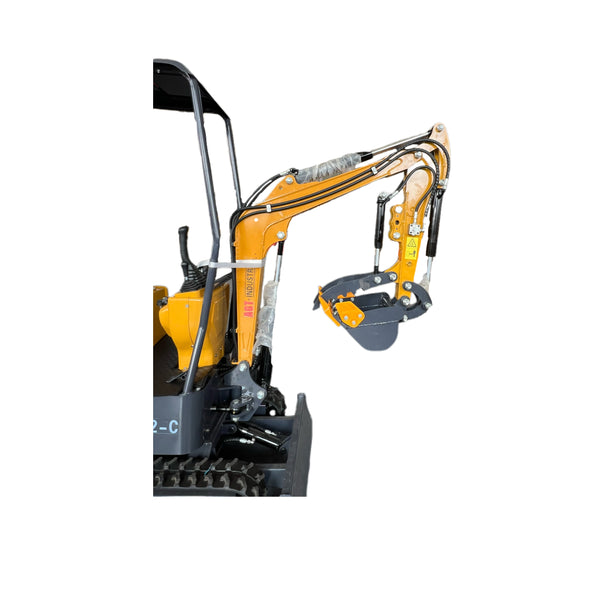

Side Swing Boom

Side Swing Boom

Works tight against walls and obstacles for maximum versatility at any jobsite.

Product Warranty

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

html 预览
DIMENSION
Operating Weight 0.9 Ton 1,985 lbs
Overall Length 2,260 mm 89 in
Overall Width 958 mm 37.7 in
Overall Height 2,200 mm 86.5 in
Track Size 180*72*37 (Width*Pitch Length*Link)
WORKING RANGE
Max Digging Depth 1,764 mm 69.5 in
Max Digging Height 2,670 mm 105 in
Max Dumping Height 1,900 mm 75 in
Max Reach at Ground 3,400 mm 134 in
Dozer Blade Width 910 mm 36 in
Dozer Blade Height 200 mm 8 in
ENGINE
Engine Brand B&S
Fuel Type Gasoline
Model XR
Rated Power 10.5 kW 13.5 HP
Displacement 420cc
Fuel Capacity 6.6 L 1.7 gal
Fuel Consumption 0.5-1.2 L/hr
Hydraulic Flow Rate 21.6 L/min 5.7 GPM
Hydraulic Pressure 16 MPa 2300 PSI
Hydraulic Tank Capacity 18 L 4.8 gal
Traveling Hydraulic Motor Type BM6-310
Rotary Hydraulic Motor Type BM2-250
Battery 12V, 45-60Ah
