SKU:MX12-CRPLUS

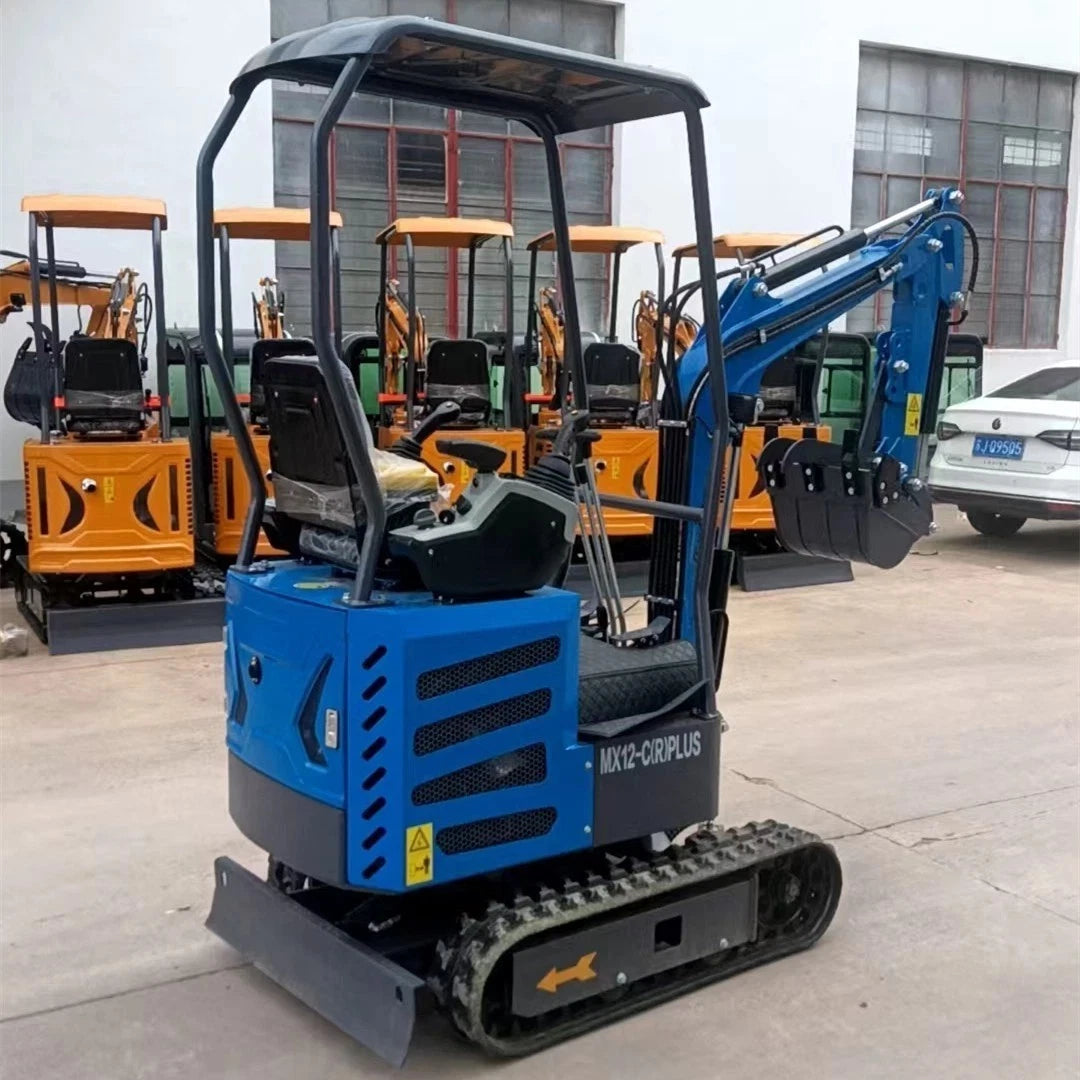

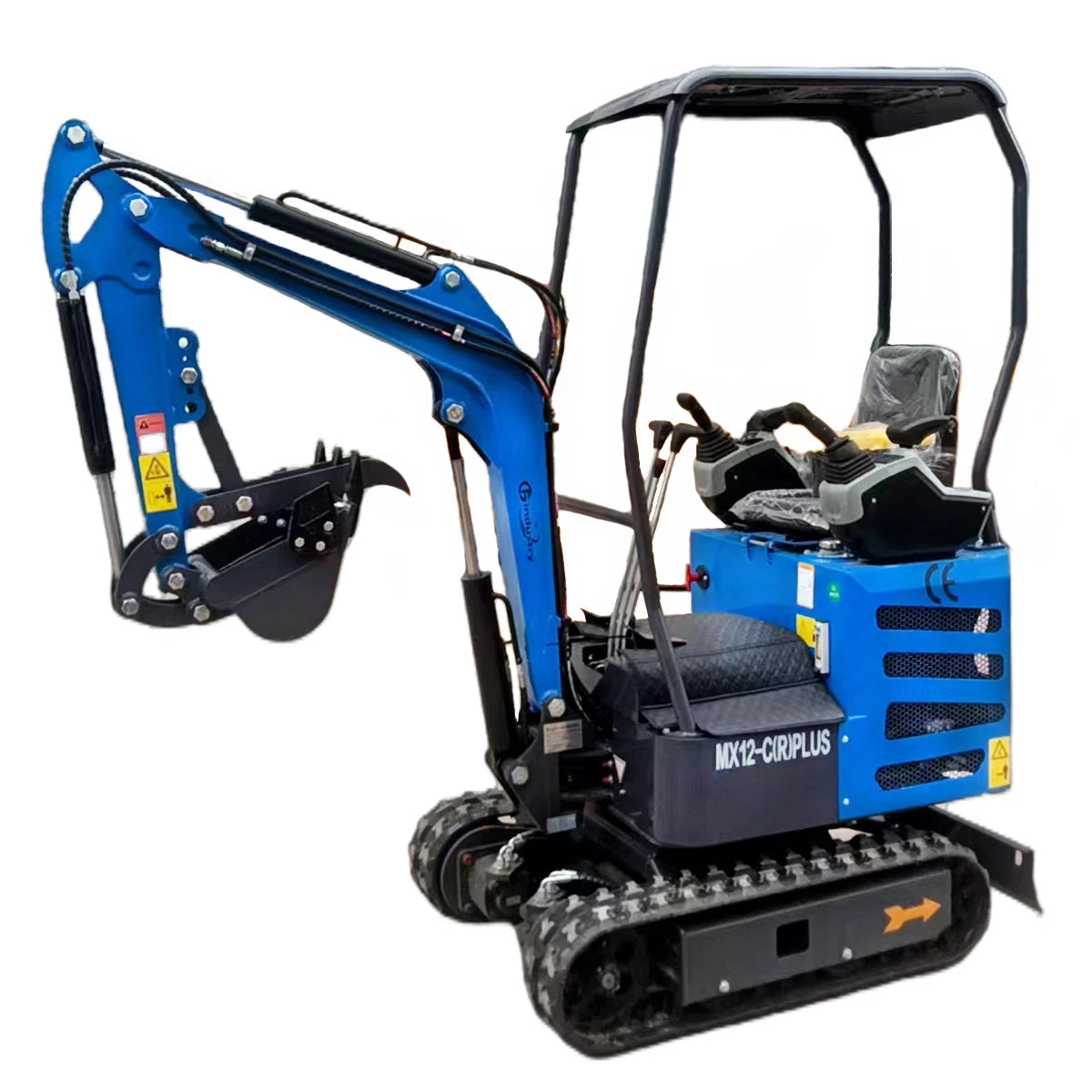

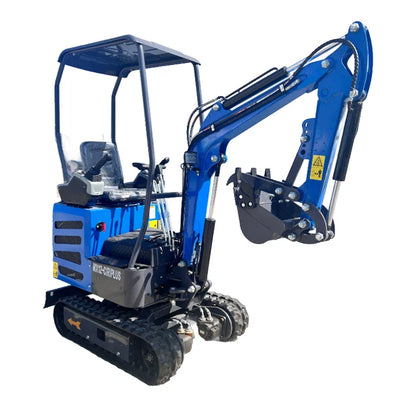

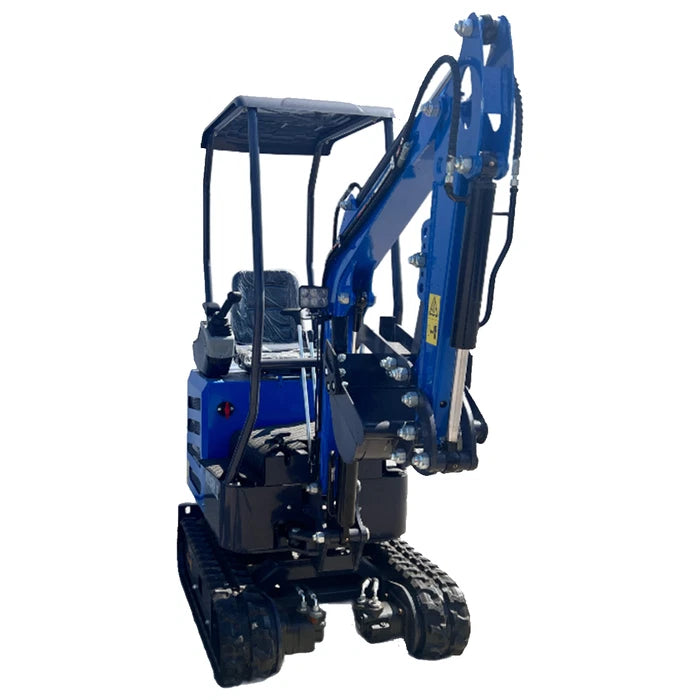

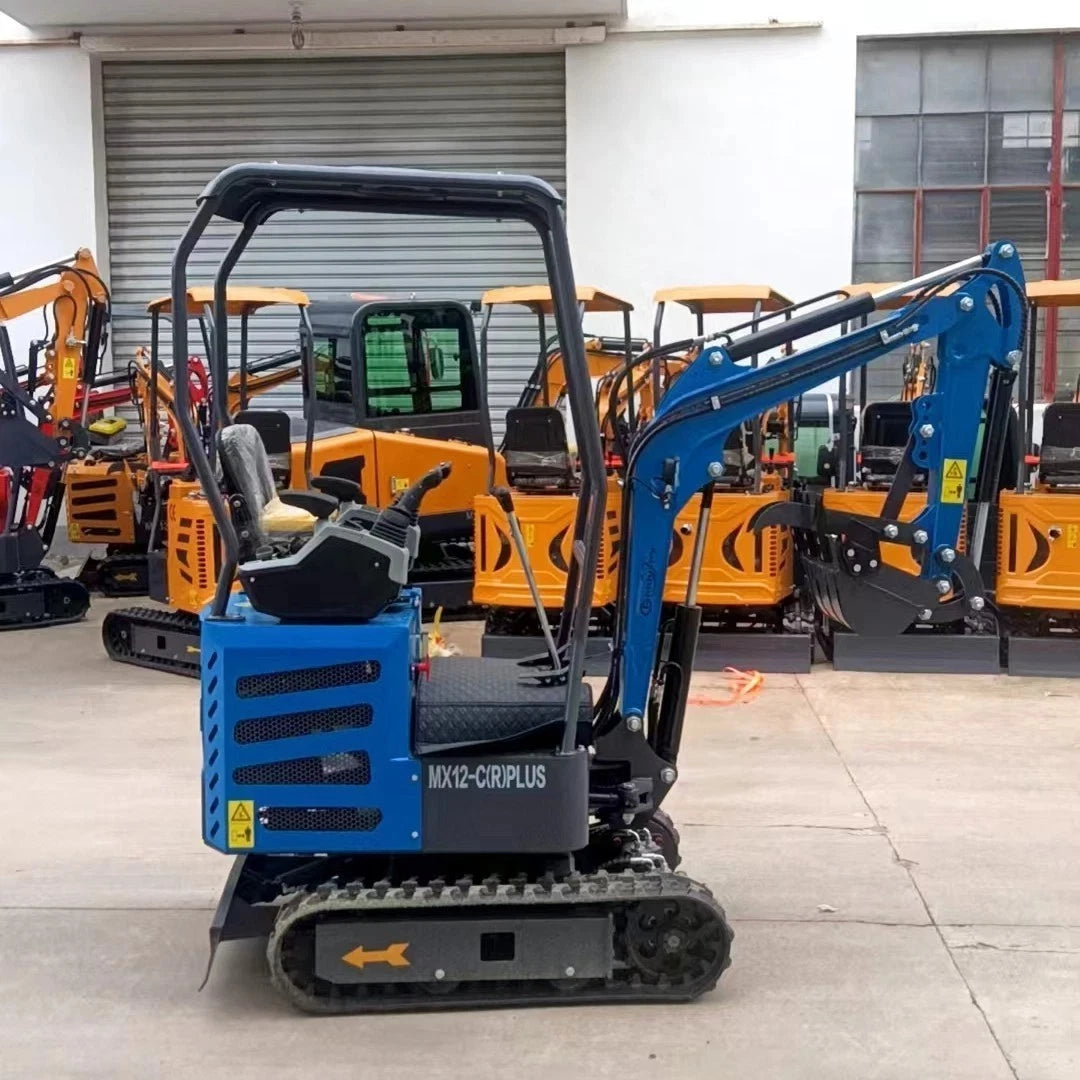

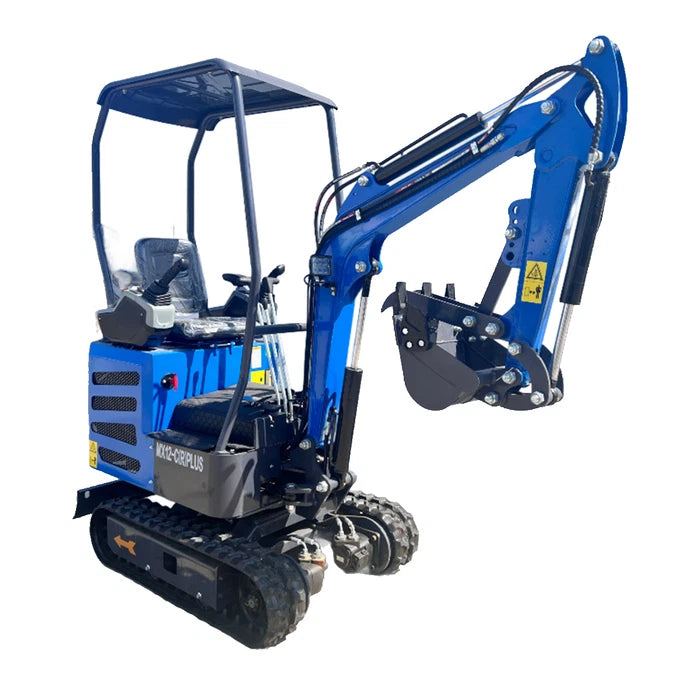

1-Ton Mini Excavator Tracked 13.5 HP RATO Gas Engine w/Pilot Control& Swing Boom | MX12-CRPLUS

1-Ton Mini Excavator Tracked 13.5 HP RATO Gas Engine w/Pilot Control& Swing Boom | MX12-CRPLUS

1 7
$5,666.57
Sold out
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Delivery in 5 - 15 Business Days
Details

Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Payment:
832-993-8676Sales Contact Number
yuanxin01@cfgindustrial.comSales Contact Email
View full details

Product Overview

The MX12-CRPLus is a compact crawler mini excavator designed for light construction, landscaping, and utility work, With its efficient engine, hydraulic system and reinforced structure, it delivers dependable performance while remaining highly maneuverable. lts retractable undercarriage allows access to narrow job sites, making it ideal for urban and residential applications.

Product manual (PDF) MX12-C_R_PLUS-manual.pdf

Product Features

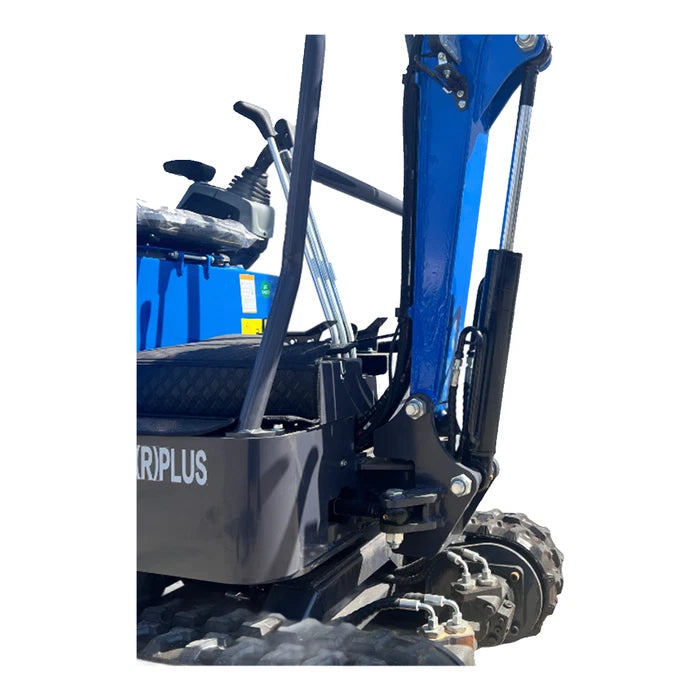

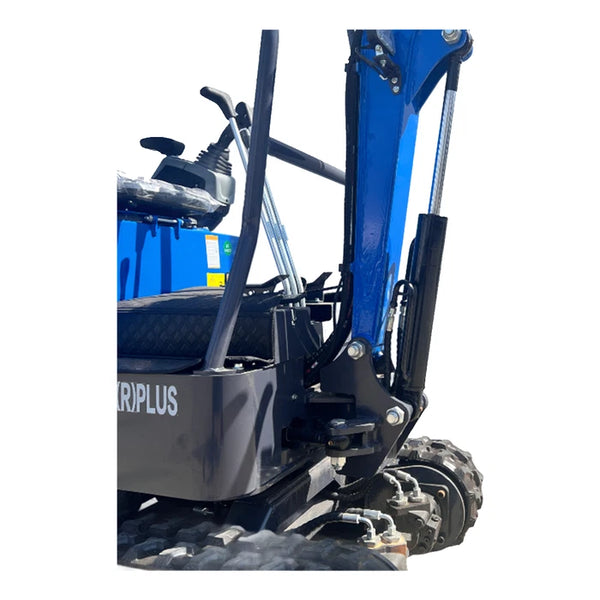

SIDE SWING BOOM AND PILOT CONTROL

SIDE SWING BOOM AND PILOT CONTROL

Works tight against walls and obstacles for maximum versatility on the jobsite. and Smooth, precise joystick operation for easier handling and less operator fatigue.

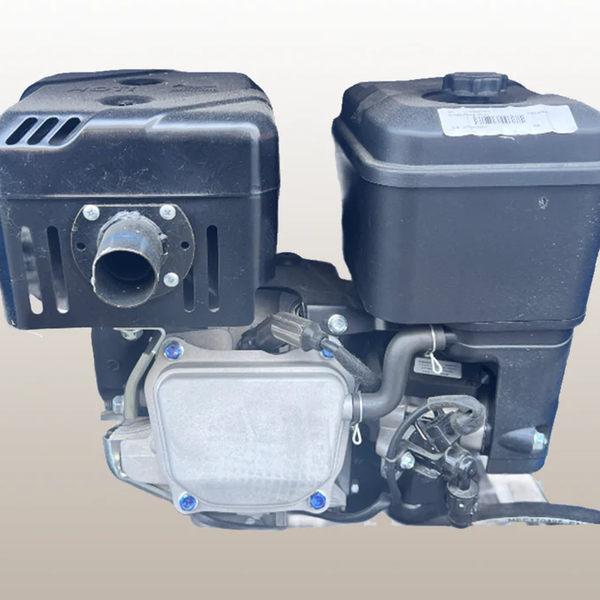

DIRECT FUELINJECTION ENGINE

DIRECT FUELINJECTION ENGINE

Delivers stronger power, better fuel efficiency, and reliable cold starts

Product Warranty

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

DIMENSION
Operating Weight 0.8 Ton 1,600 lbs
Overall Length 2,800 mm 110 in
Overall Width 965 mm 38 in
Overall Height 2,210 mm 87 in
Track Size 180*72*37 (Width*Pitch Length*Links)
WORKING RANGE
Max Digging Depth 1,760 mm 69 in
Max Digging Height 2,590 mm 102 in
Max Dumping Height 1,790 mm 70.5 in
Max Reach at Ground 2,600 mm 102.5 in
Blade Width 900 mm 35 in
Blade Height 180 mm 7 in
Blade Max Lifting Height 380 mm 15 in
Blade Max Drop Depth 170 mm -
ENGINE
Engine Brand Rato
Fuel Type Gasoline
Model R420D
Rated Power 10.5 kW 13.5 HP
Displacement 420 cc
Hydraulic Flow Rate 21.6 L/min 5.7 GPM
Hydraulic Pressure 16 MPa 2,320 PSI
Hydraulic Tank Capacity 18 L 3.7 gal
