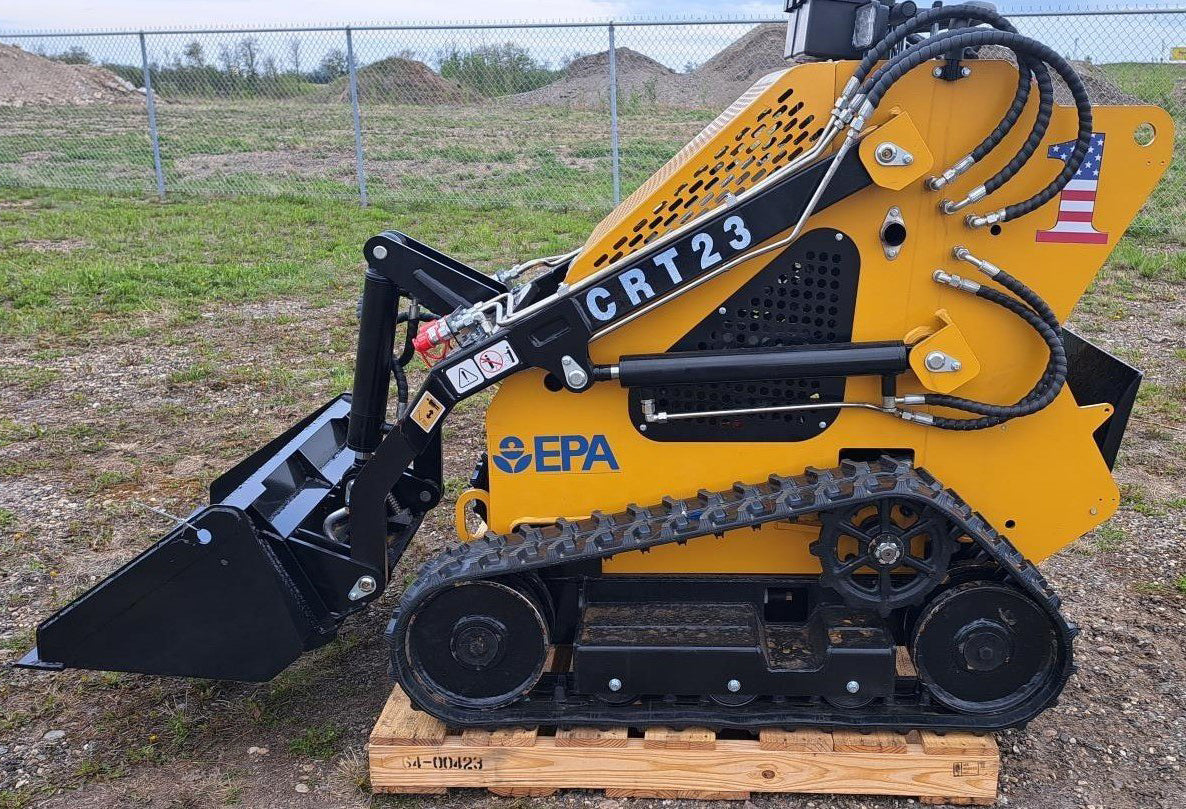

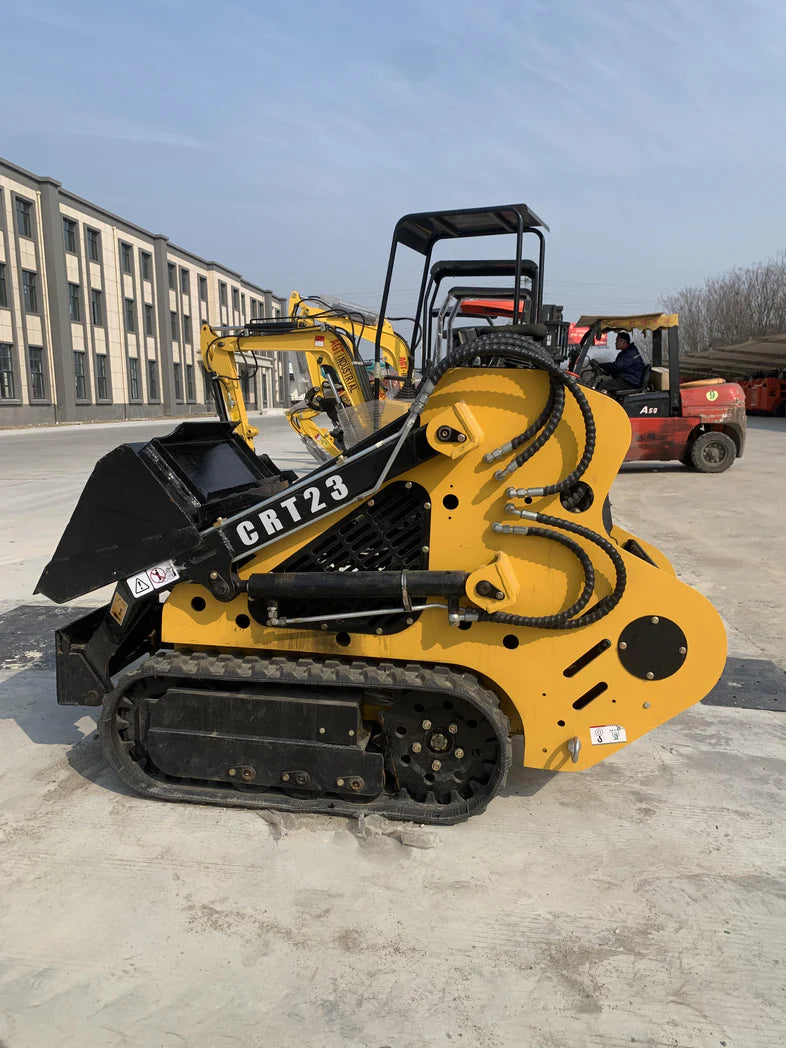

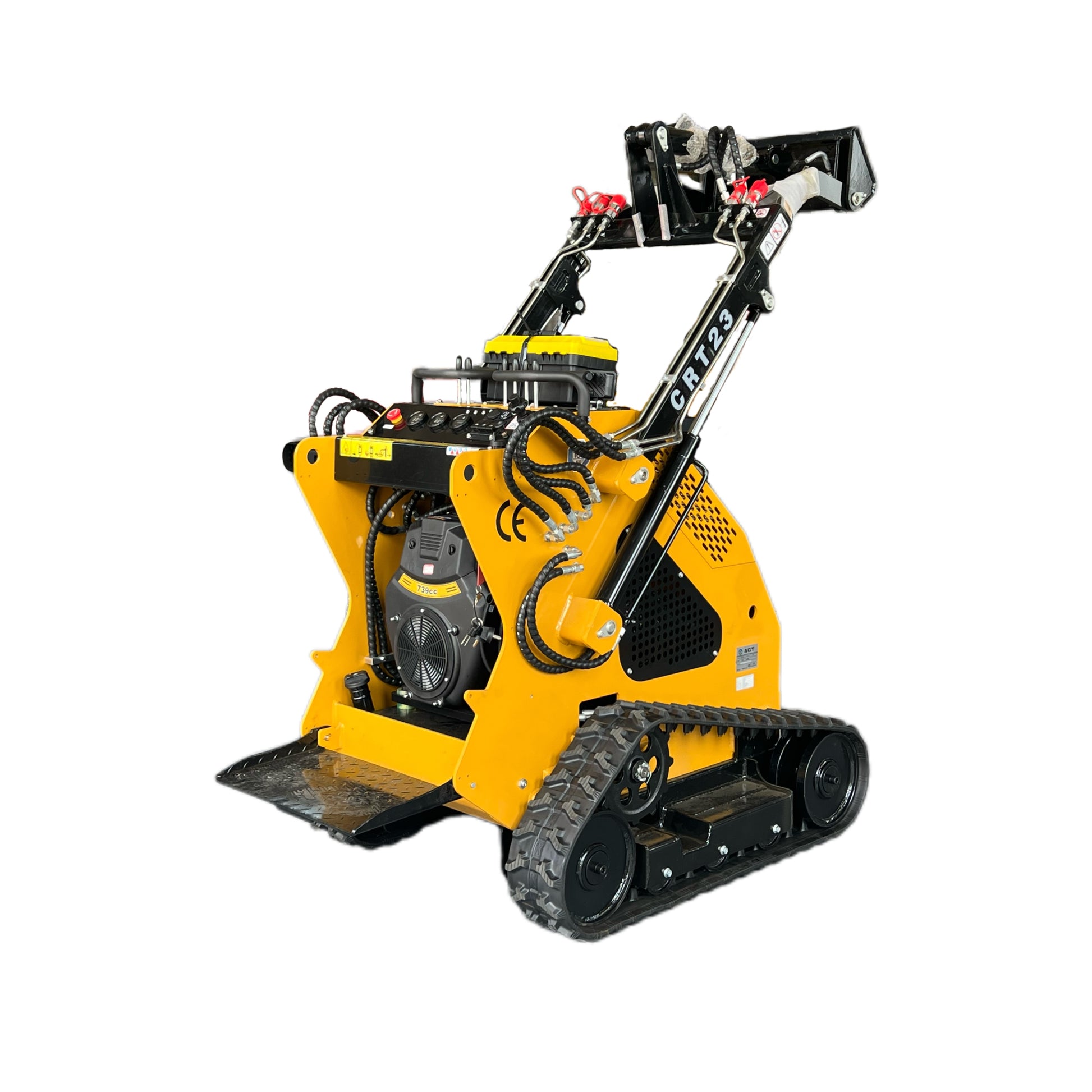

1 Ton Mini Crawler Skid Steer Compact Track Loader 23hp Gas RATO EPA Engine| CRT23

Name: 1 Ton Mini Crawler Skid Steer Compact Track Loader 23hp Gas RATO EPA Engine| CRT23
Brand: Kelis Machinery
SKU: CRT23
Price: 7699.00 USD
Availability: OutOfStock

1 23

$7,699.00

Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

832-993-8676Sales Contact Number

yuanxin01@cfgindustrial.comSales Contact Email

View full details

Product Overview

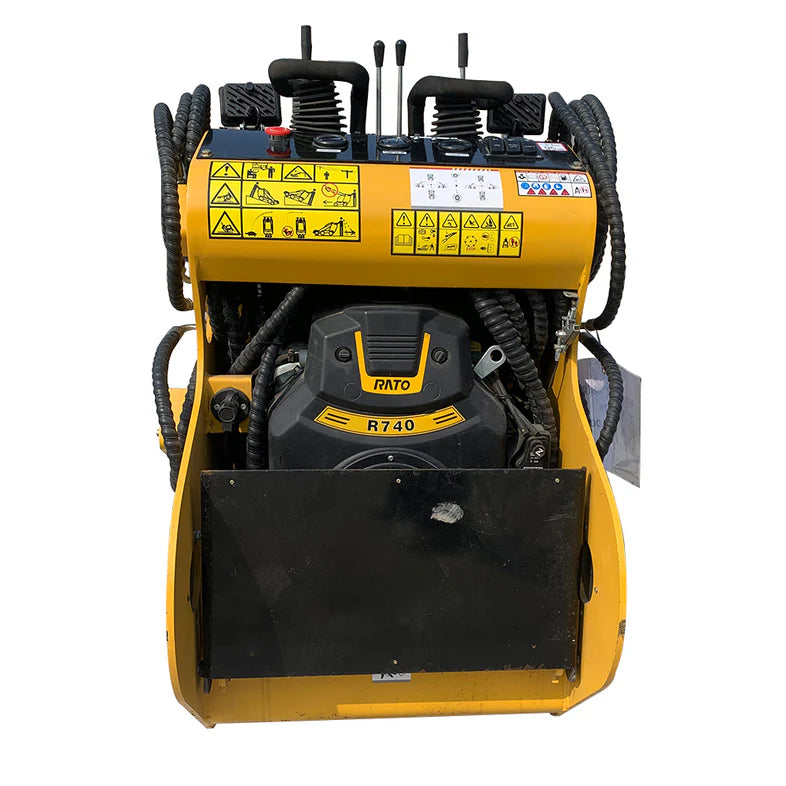

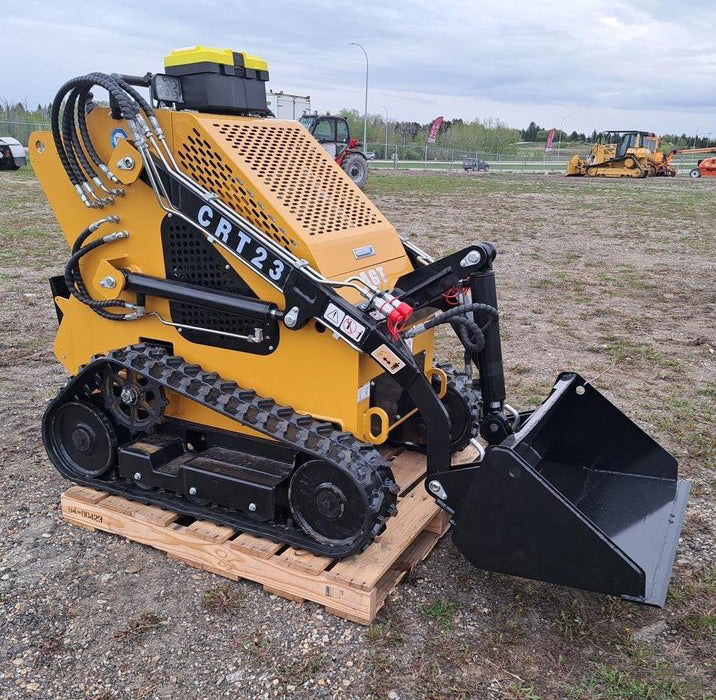

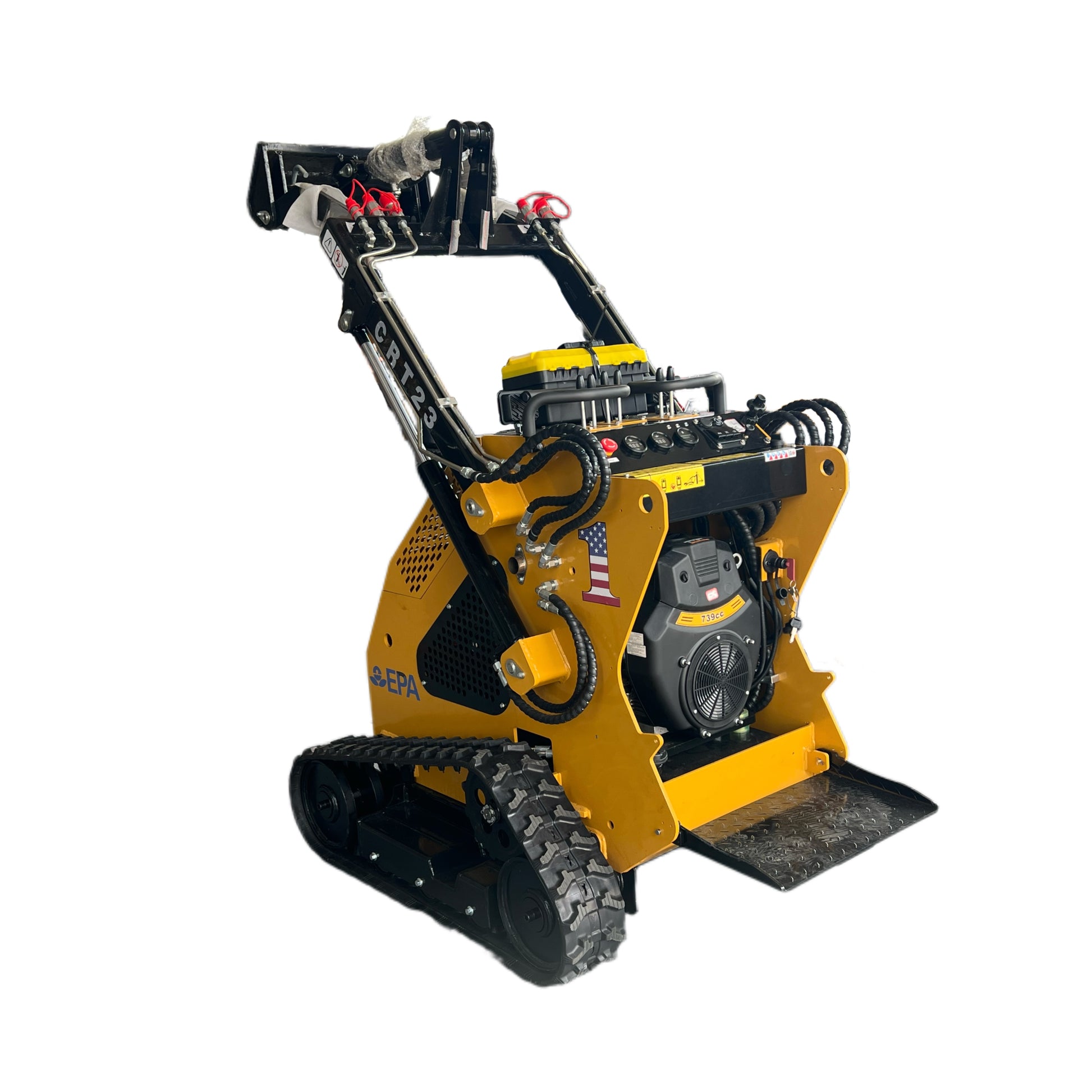

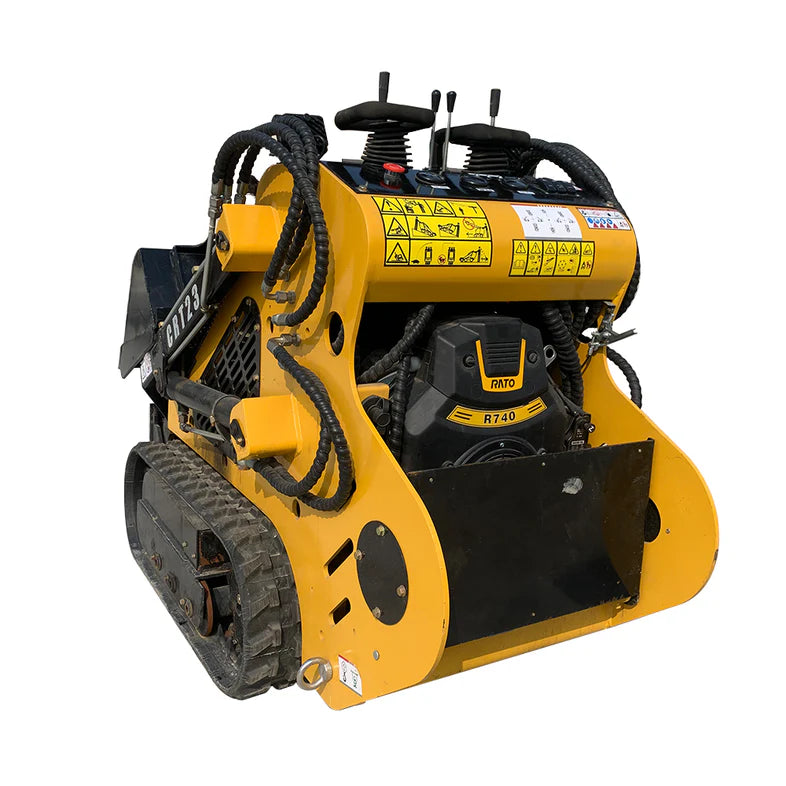

The Agrotk Mini Tracked Skid Steer Loader is a compact and versatile piece of heavy equipment perfect for businesses and industrial projects. With a powerful 23hp RATO R740 EPA engine, this loader provides a maximum lifting force of 200kg and a maximum unloading height of 1612mm. The skid-steer design makes it easy to maneuver in tight spaces, and the tracked mounting style ensures stability on various terrains. The compact dimensions and lightweight design make it easy to transport and use in a variety of settings, making it a valuable addition to any construction site or industrial project.

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Basic Performance Parameters
Working Weight(kg)	950

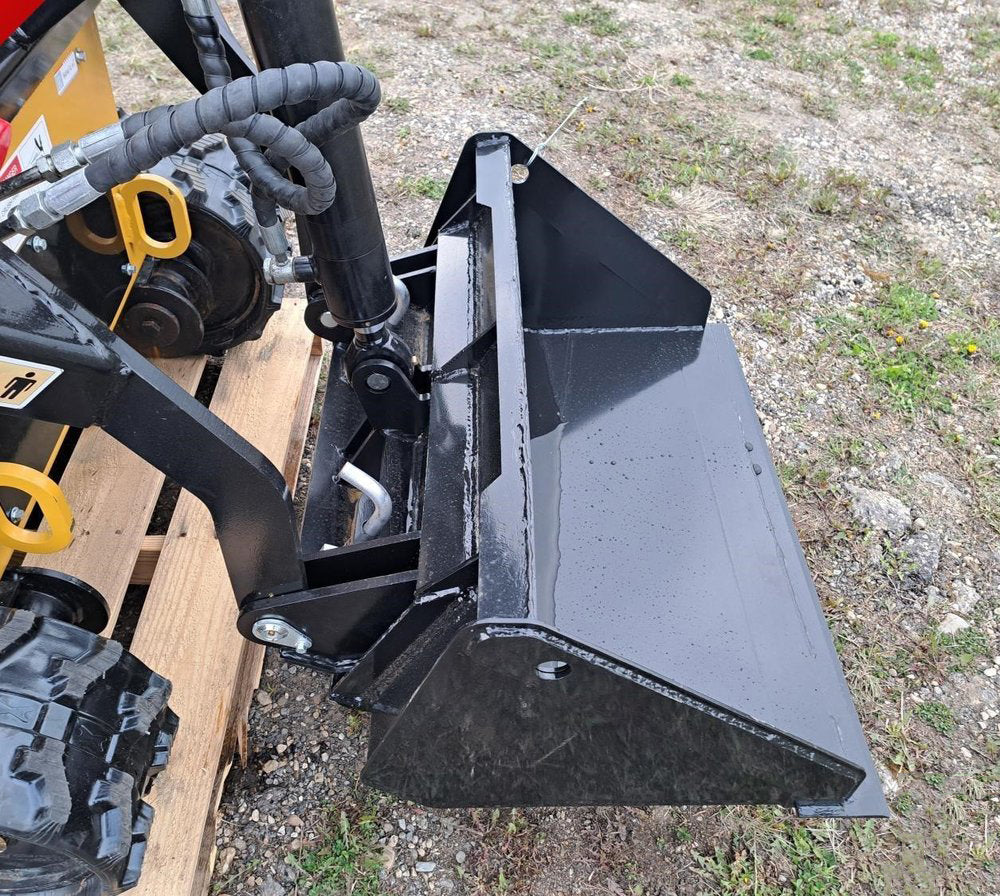

Bucket capacity(m³)	0.1
Travel speed low/high speed(Km/h)	4
Maximum lifting force (Kg)	200
C Maximum working height(mm)	2323
B Maximum pin height (mm)	2007
A Maximum unloading height(mm)	1612
G Loading distance at maximum unloading height (mm).	611
H Wheelbase(mm)	965
F Ground clearance(mm)	203
L Bucket discharge angle	23°
Equipment Body
E Bucket width(mm)	1120
J/K Overall Length(mm)	2435
Overall Width(mm)	1120
D Overall Height(mm)	1383
Body width(mm)	826
M Slewing radius(mm)	1500

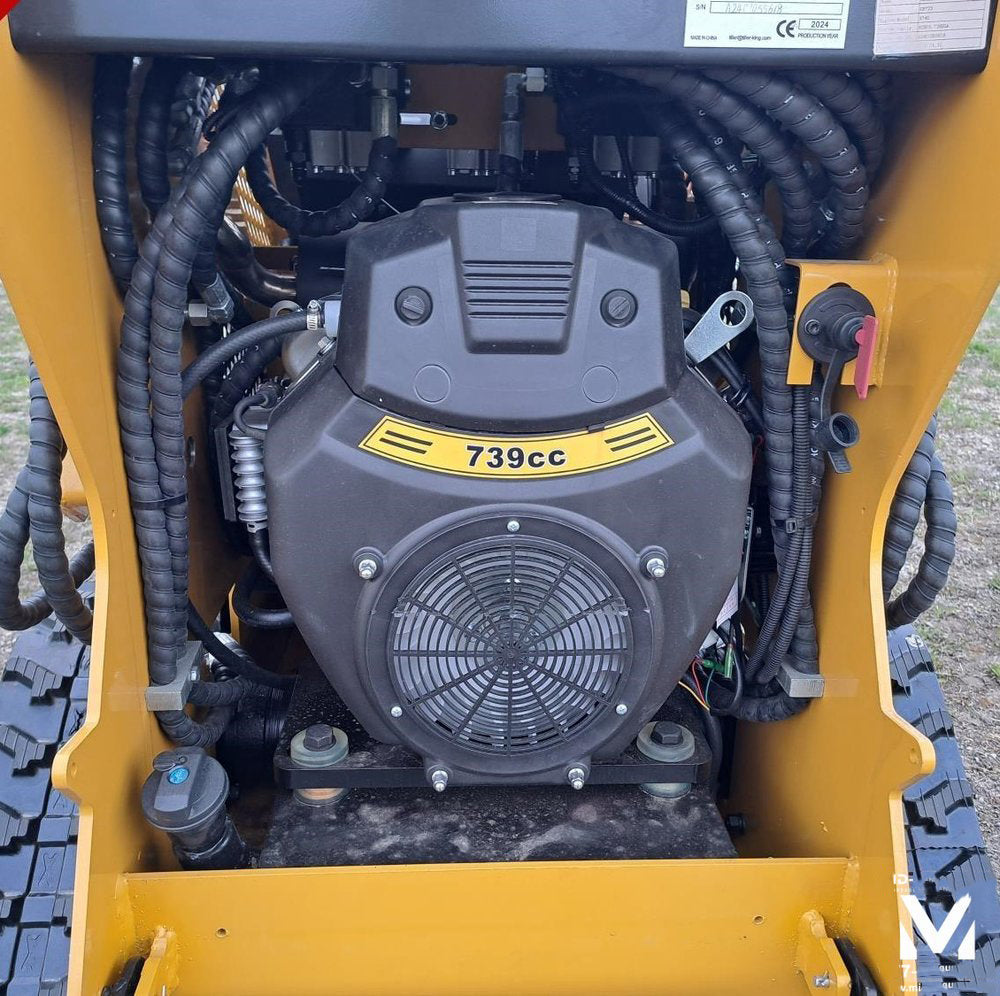

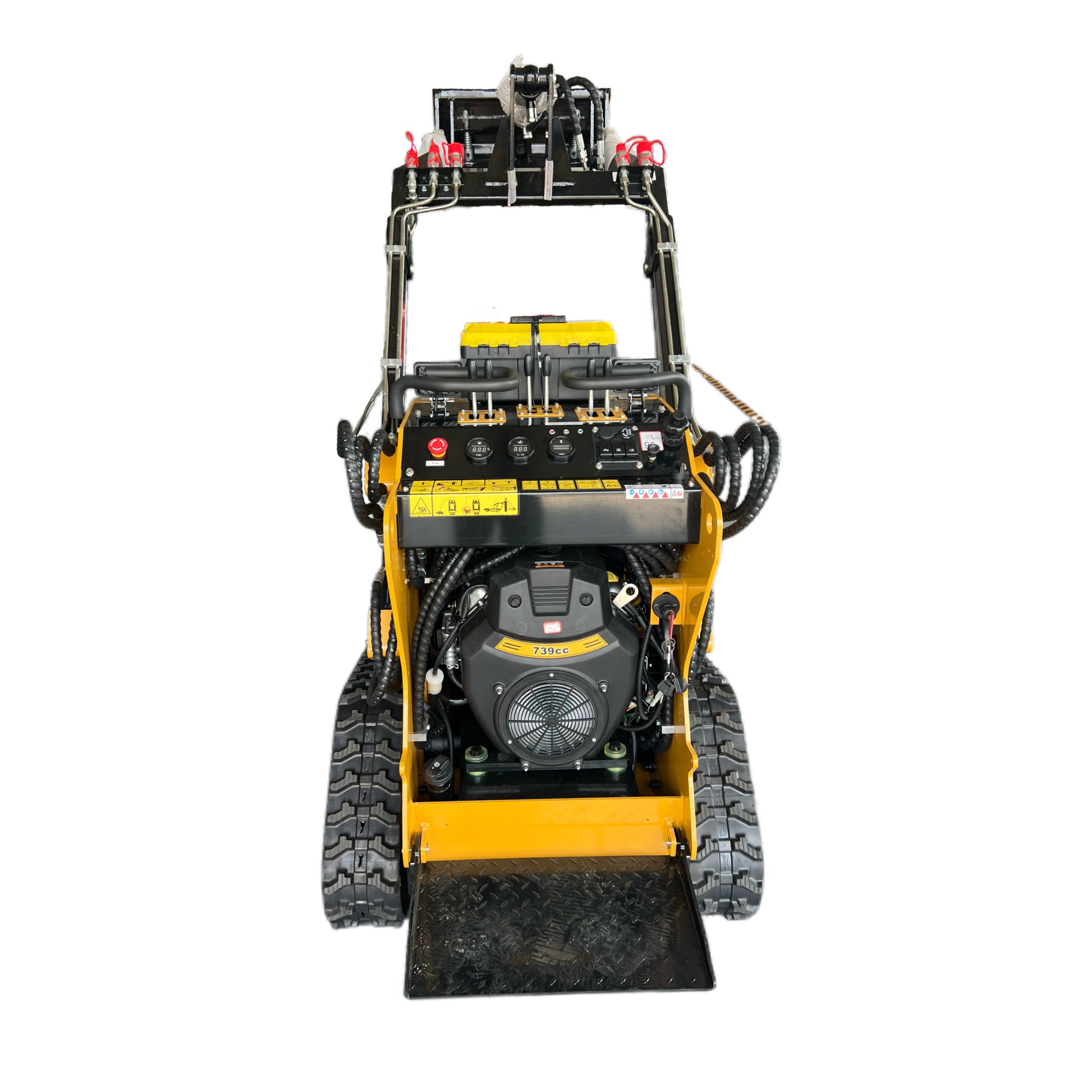

Engine
Engine Brand	Rato
Maximum power(Kw)	16.8
Cooling method	Fan cooling
Fuel Type	Gasoline

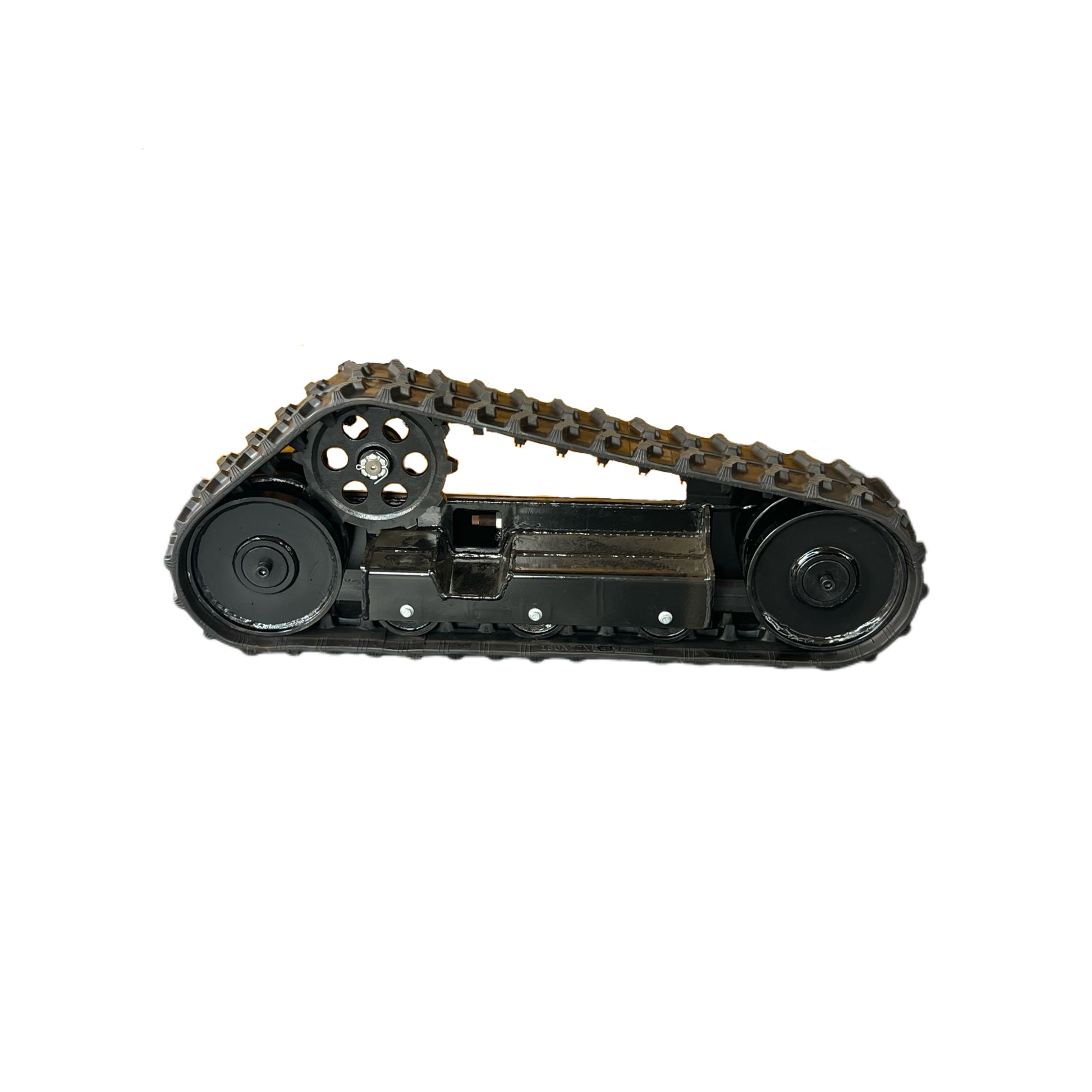

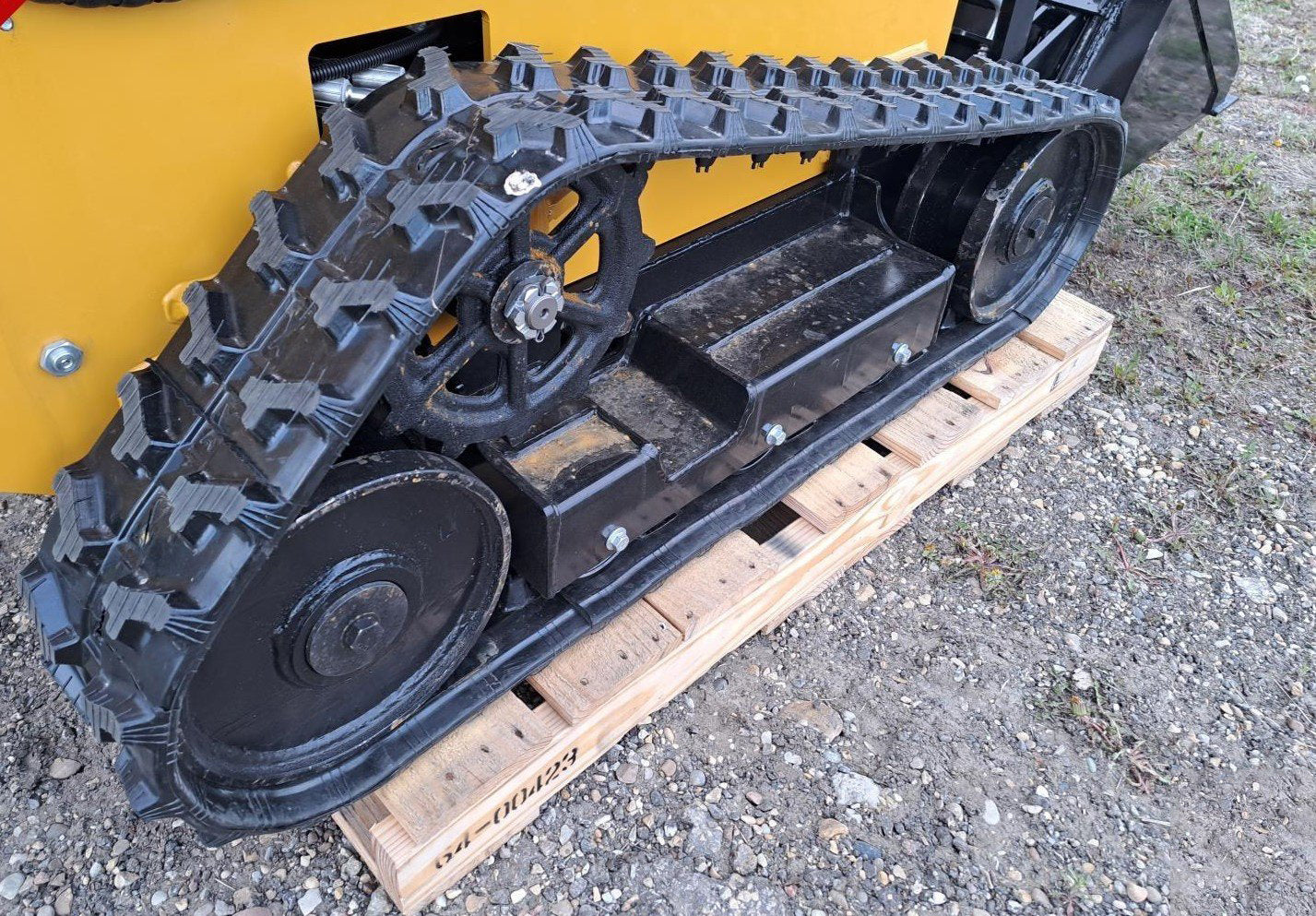

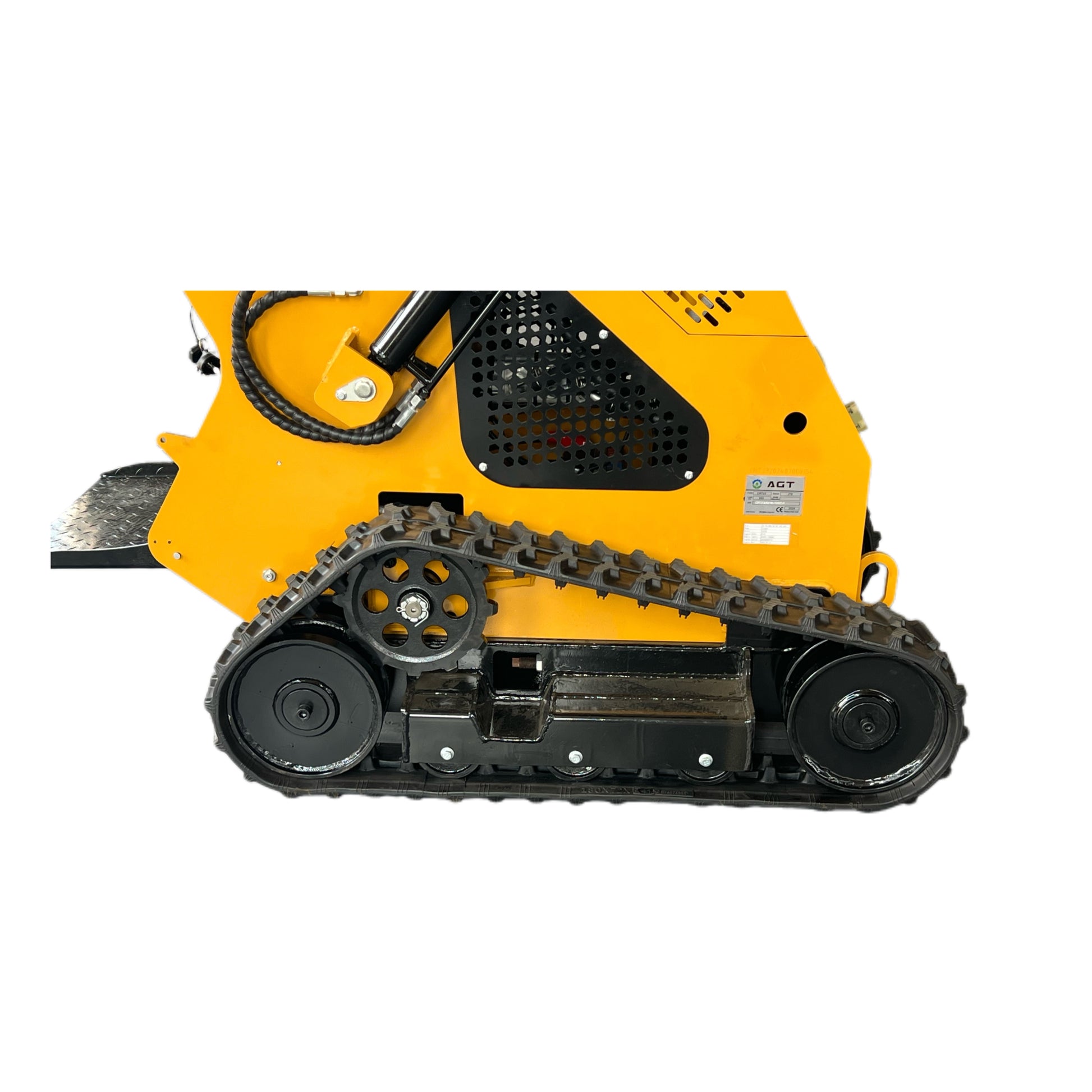

Tracks
△-Rubber (bandwidthpitchnumber of sections)	1807241
Fuel tank
Fuel tank(L)	31
Hydraulic oil tank(L)	33
