Product Overview

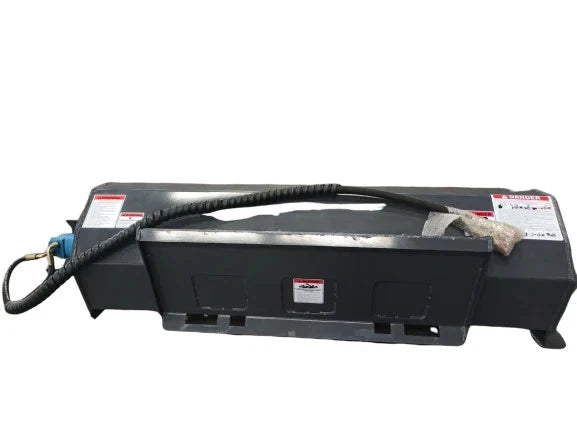

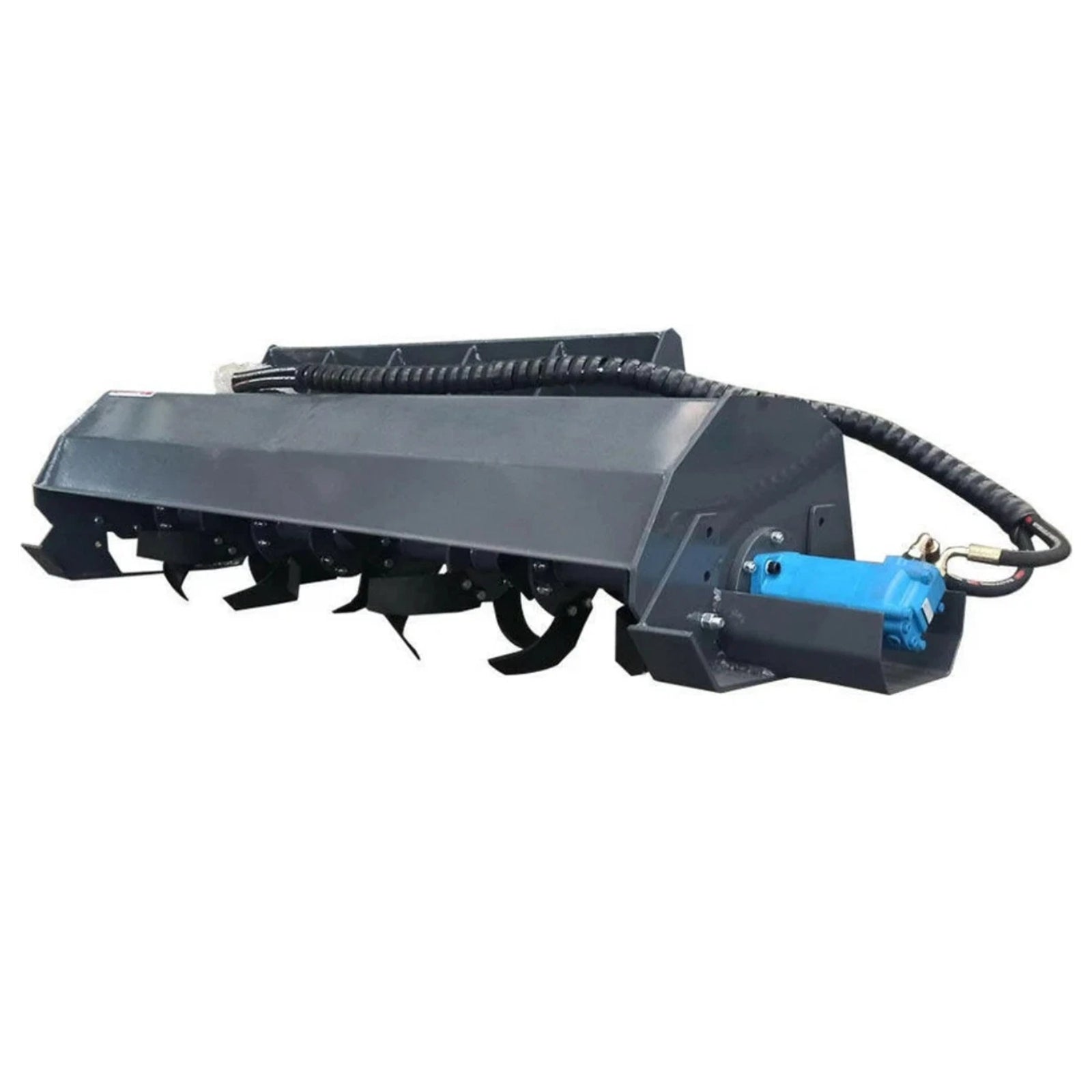

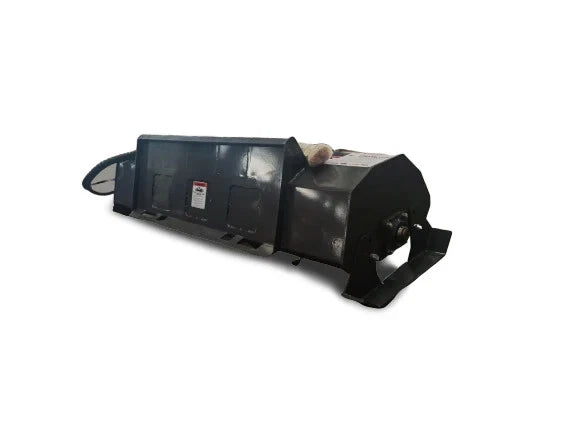

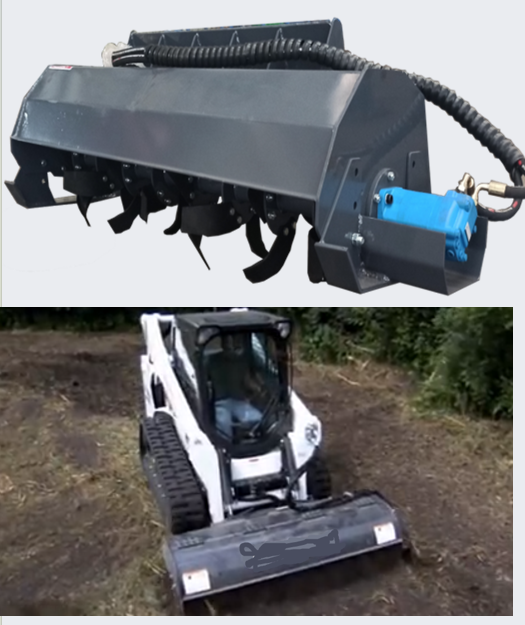

The AGT-ECSSTR072 hydraulic tiller is a heavy-duty soil preparation attachment engineered for skid steer loaders, With a 72-inch working width and 32 heat-treated lines, this tiller efficiently breaks up compacted soil, mixes compost, and prepares seedbeds for planting or landscaping. Powered by a high-torque hydraulic motor, it's built to handle demanding ground-conditioning tasks while delivering consistent,uniform results.
KEY FEATURES:
72" hydraulic tiller for standard-flow skid steer loaders

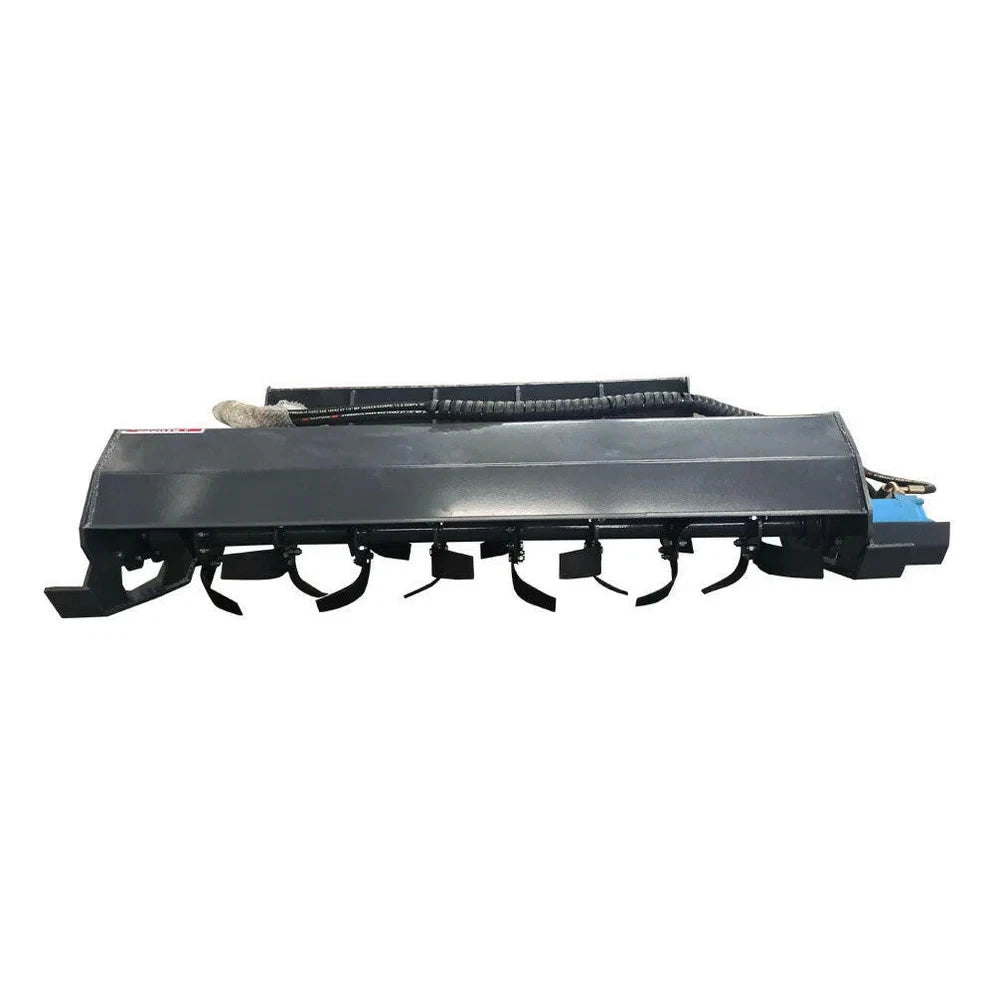

Equipped with 32 heavy-duty, replaceable tiller blades

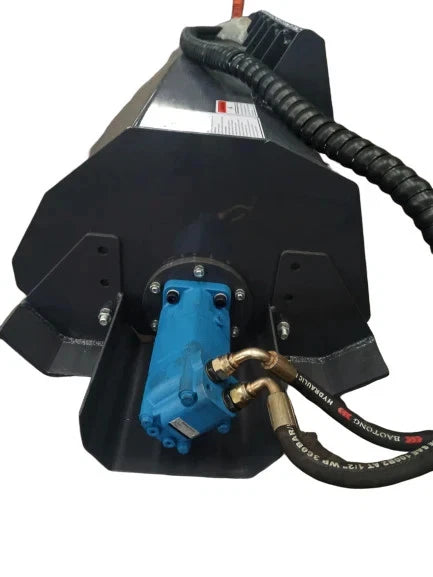

Hydraulic drive motor provides smooth and consistent torque
.Adjustable tilling depth for precise soil conditioning Reinforced steel housing for durability in tough ground conditions

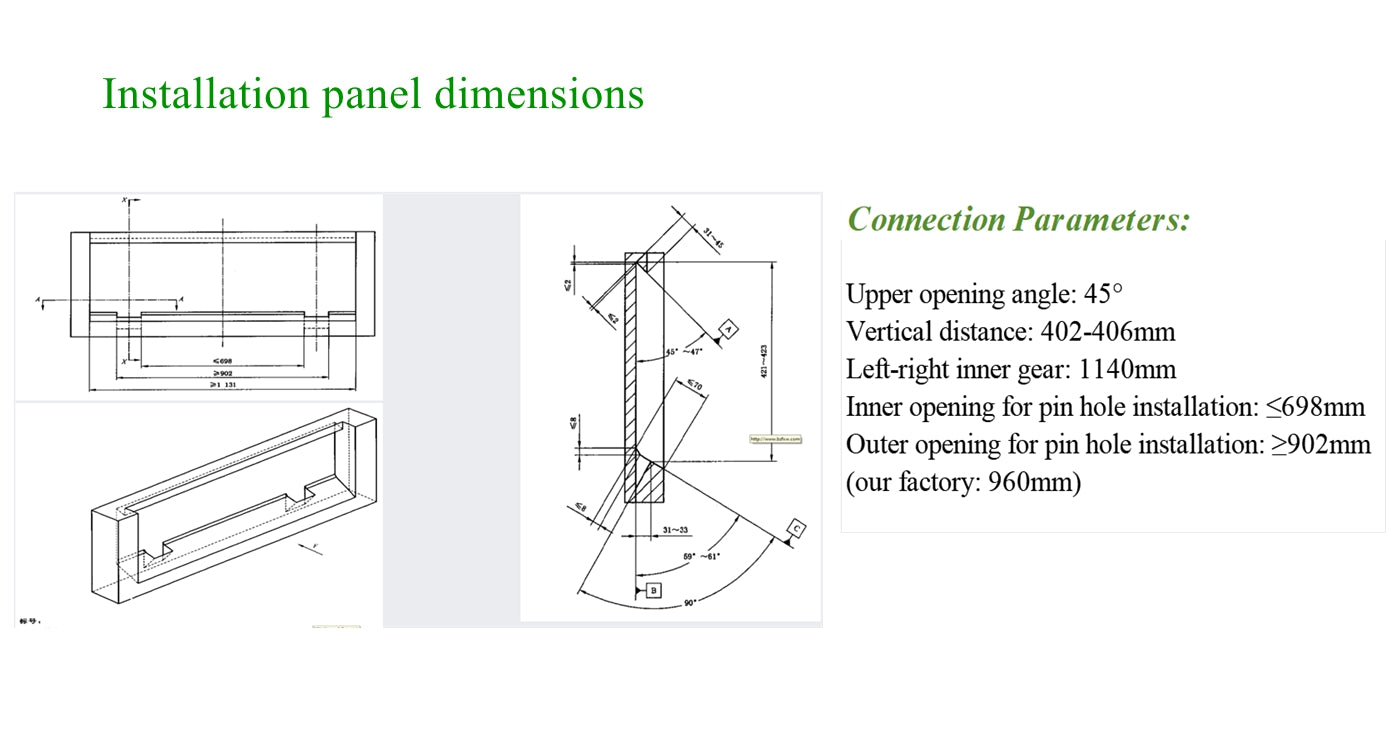

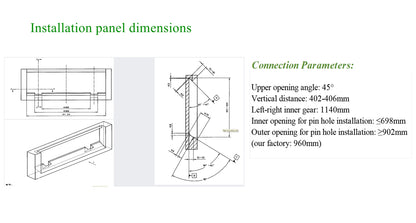

Universal skid steer quick-attach mount
Includes hydraulic hoses and flat-face couplers for quick installation
BENEFITS:
Prepares soil quickly and evenly for landscaping and agriculture projects
Reduces manual labor and speeds up ground-breaking operations Delivers consistent soil texture for planting and grading work Designed for long service life and easy maintenance
Expands the versatility of your skid steer loader for seasonal or daily use
APPLICATIONS:
Compatible with standard-flow skid steers
ldeal for landscaping, gardening, site prep, and agricultural tilling Suitable for farms, nurseries, property maintenance, and construction sites。Fits Universal Standard Skid Steer Mounting Plate 45 x 19'
This skid steer tiller is suitable for the machine with working pressure between 32-60MPa, Hydraulic Flow Rate is 23 GPM
Product Warranty
Specifications
| Technical Specifications | |
|---|---|
| Working Width | 72" |
| Total Width | 74.80" |
| Working Depth | 7.08" |
| Flanges | 9 |
| Blade per flanges | 4 |
| Total Blade(PCS) | 32 |
| Tube Assembly | 86.61" |
| Hydraulic Motor | BM5-400 Square 4-hole output shaft 6-φ30*φ |
| Measurement | 86.61" × 31.49" × 25.59" |
| Weight | 601.86 lbs |
| Working Pressure(MPa) | 32-60 |
| Flow (gal / m) | 23 |
