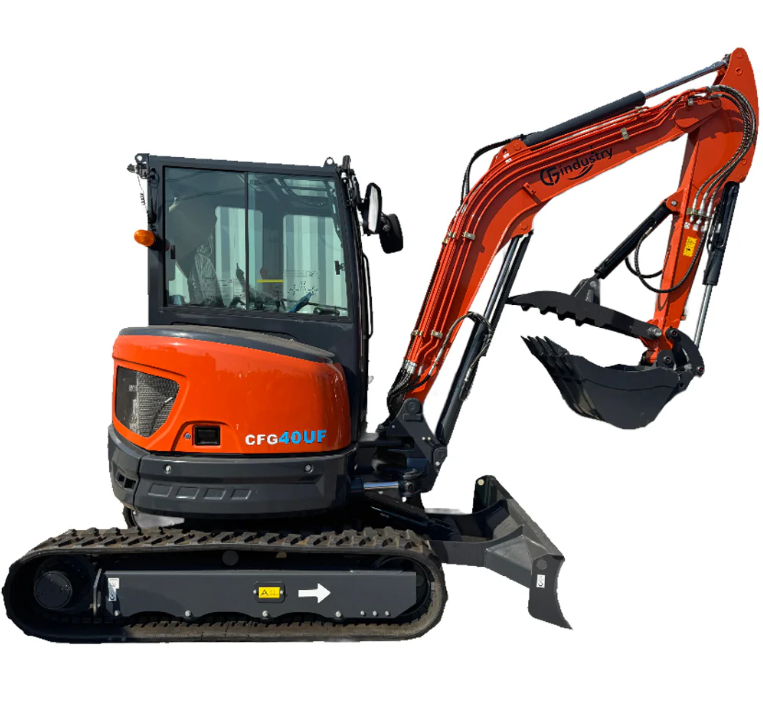

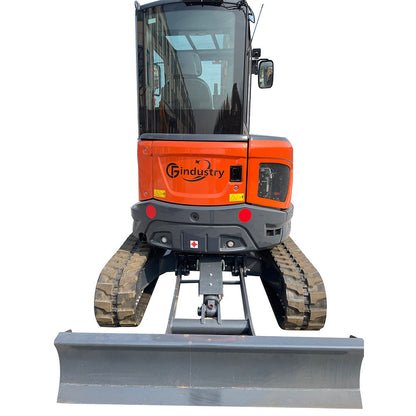

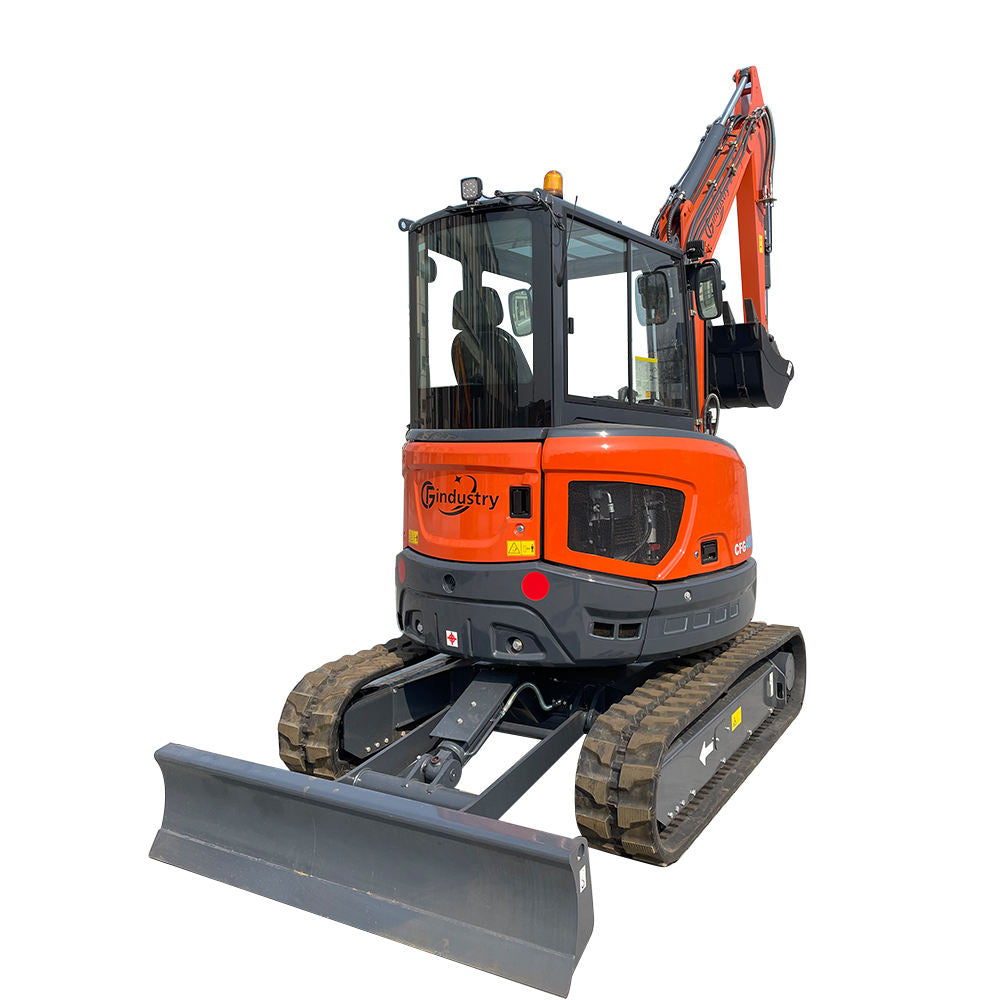

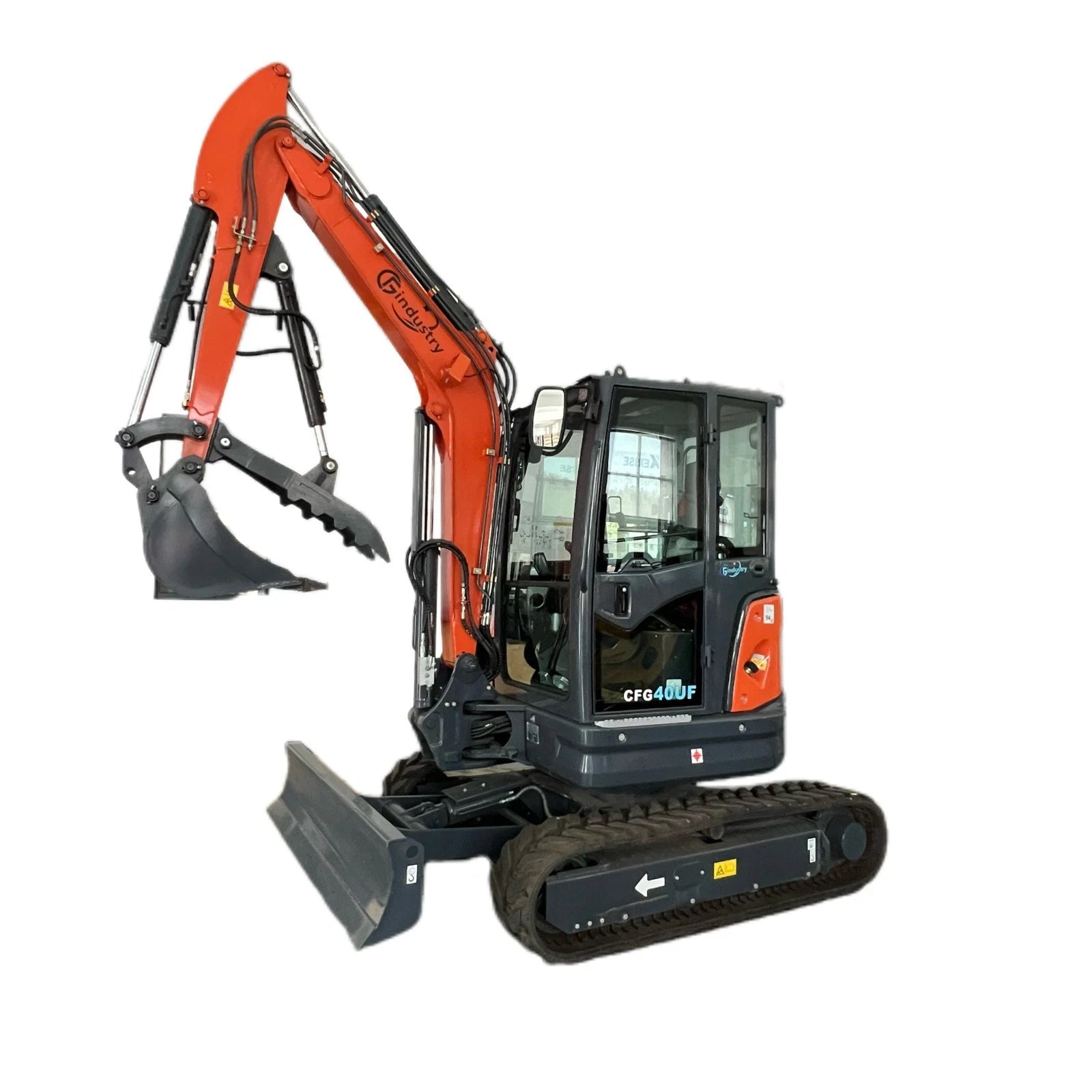

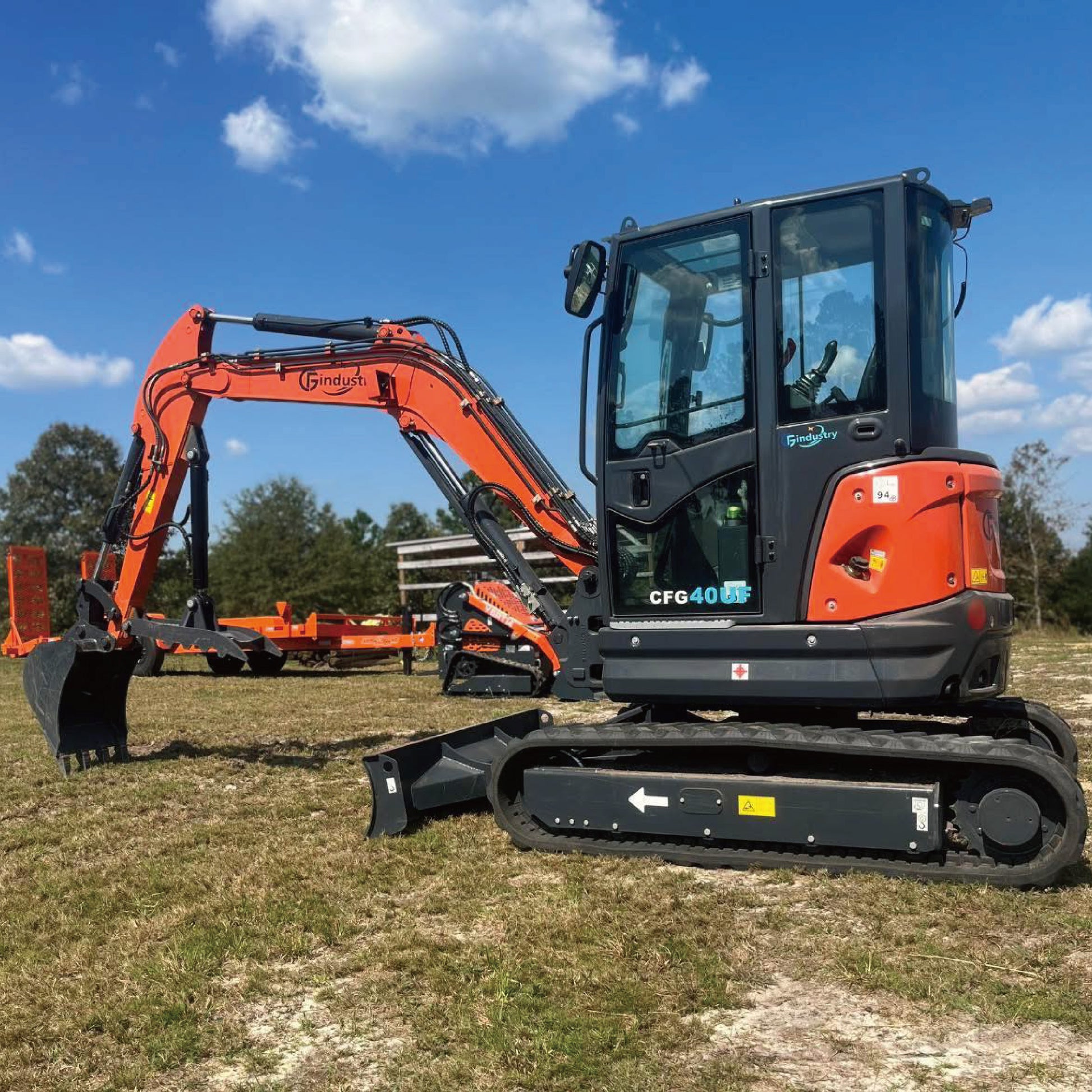

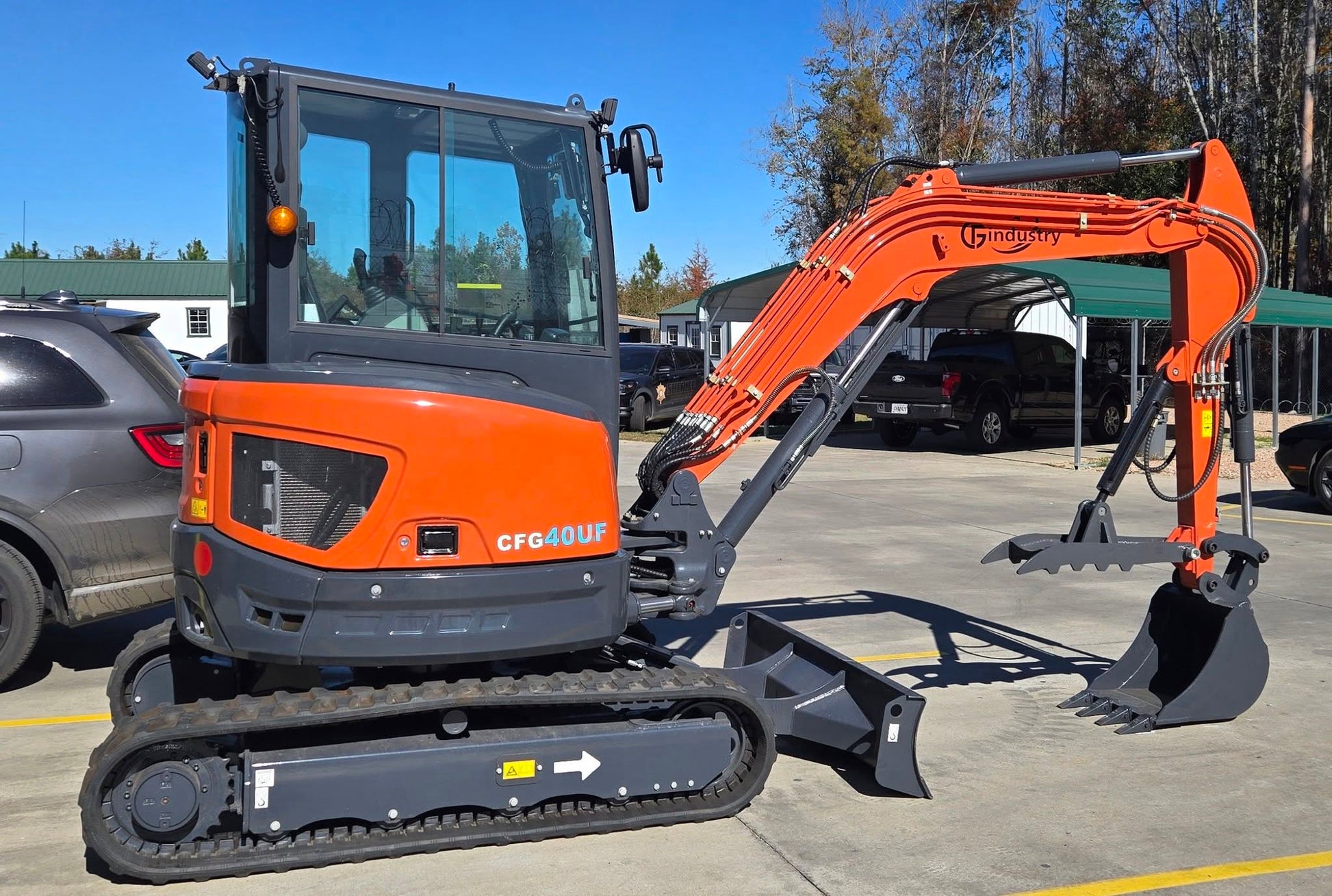

4 Ton Mini Excavator with Kubota Diesel Engine, Cabin/Canopy, Hydraulic Thumb | CFG-40UF

Name: 4 Ton Mini Excavator with Kubota Diesel Engine, Cabin/Canopy, Hydraulic Thumb | CFG-40UF
Brand: kmxindustrial
SKU: CFG-40UF
Price: 31732.99 USD
Availability: InStock

1 20

$31,732.99

Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

832-993-8676Sales Contact Number

yuanxin01@cfgindustrial.comSales Contact Email

View full details

Product Overview

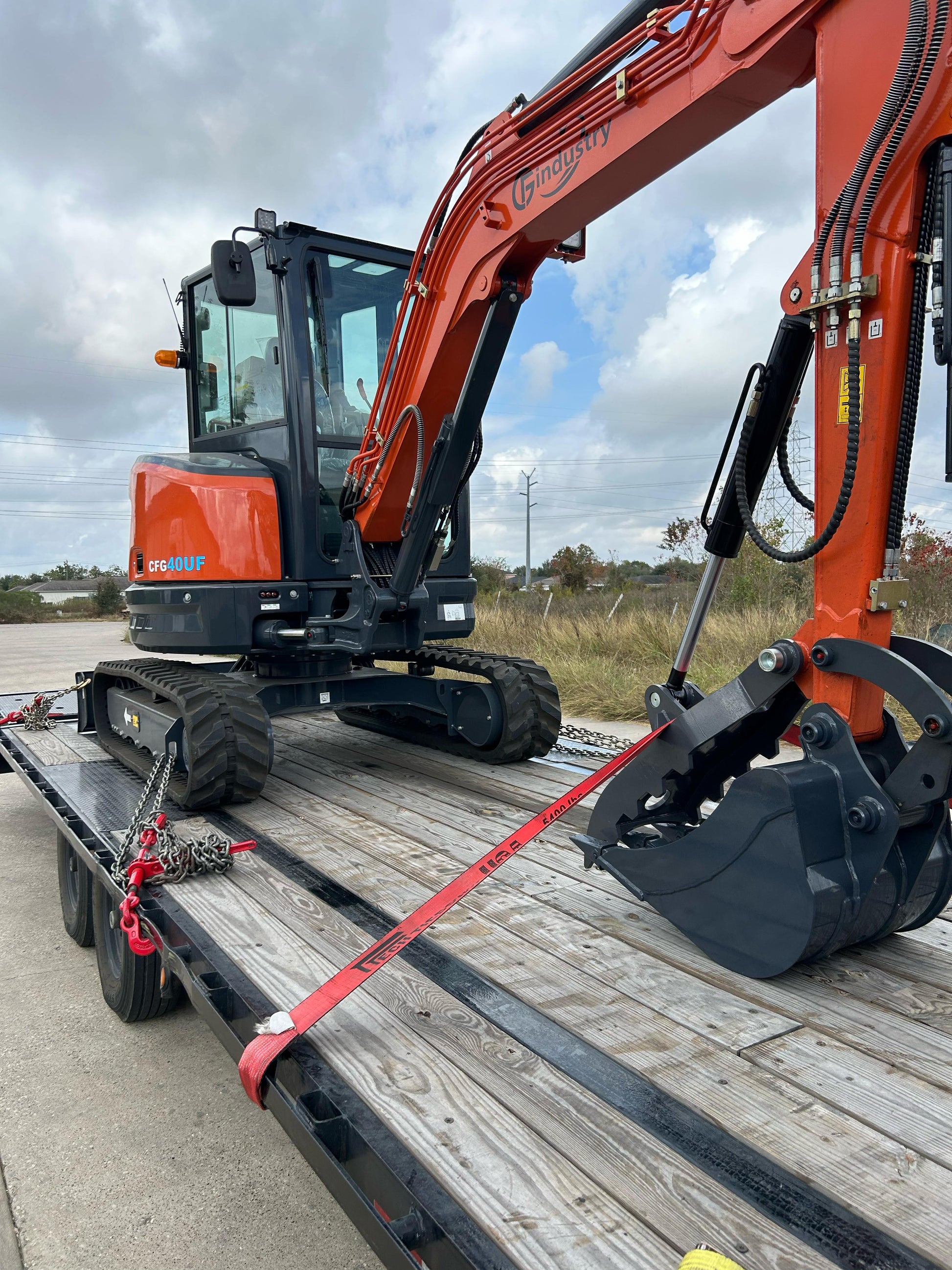

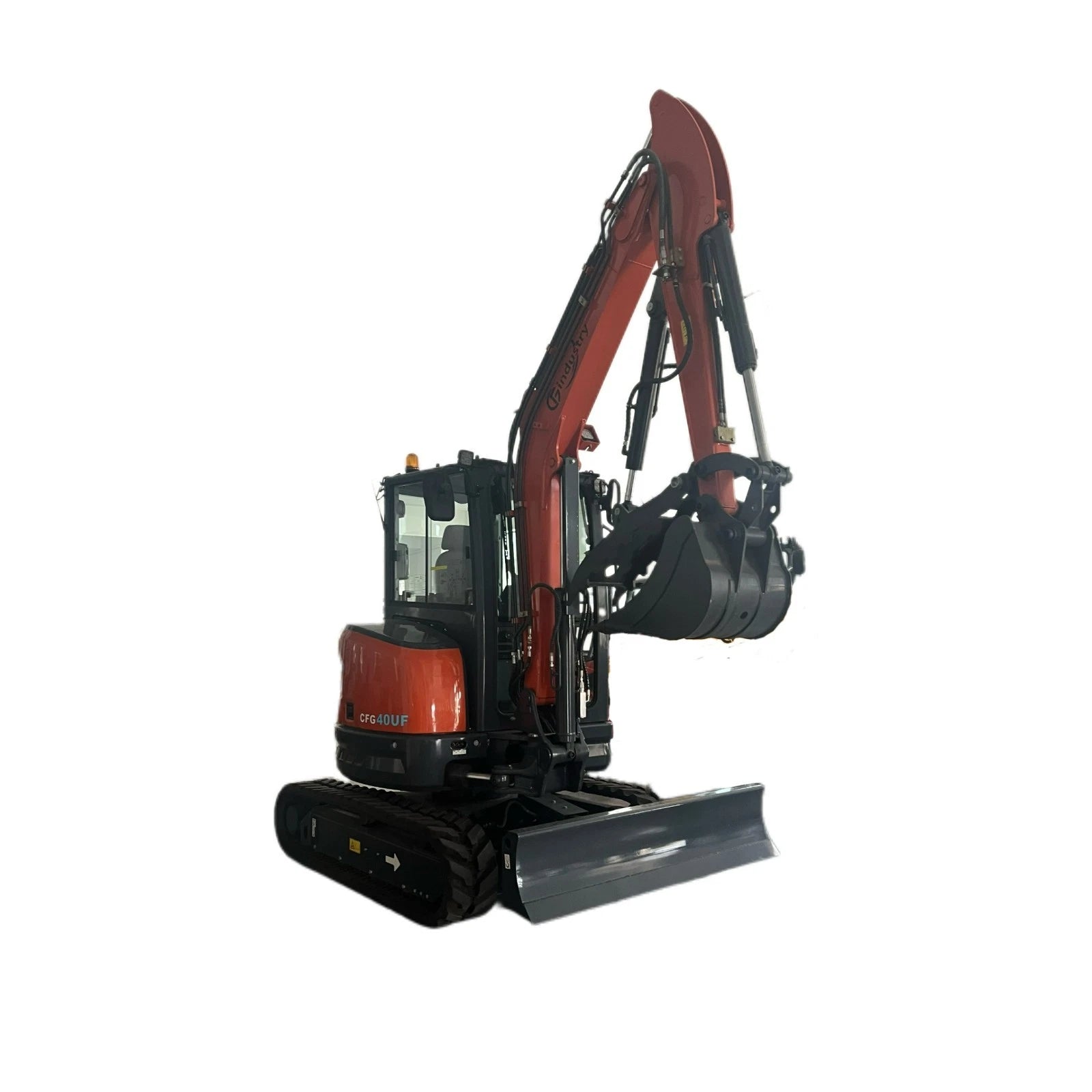

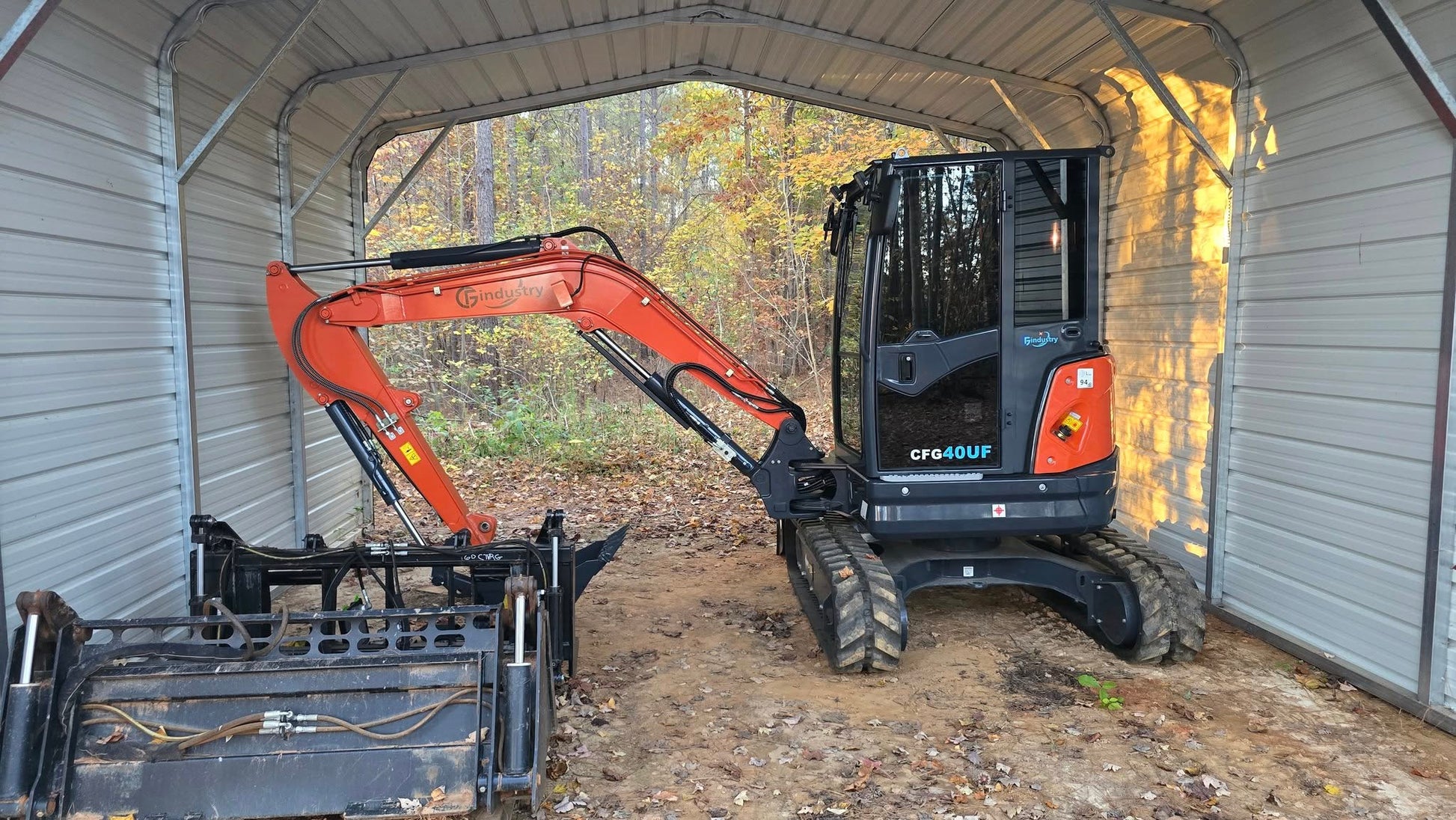

High-performance 4-ton mini excavator powered by a reliable Kubota D1703-E4B-SWD-1 diesel engine. This versatile digger features a 0.11m³ bucket capacity, 130.7" max digging depth, and a powerful 31.8 kN digging force. Equipped with a hydraulic thumb for superior material handling. Available with cabin or canopy options and your choice of rubber or steel tracks. Ideal for precision construction, landscaping, and heavy-duty utility work. Easy to maneuver and maintain.

Uses 35 mm pin attachments. Replaced Radio with Hydraulic Thumb.

High performance Power Engine Systemand Hydraulic System

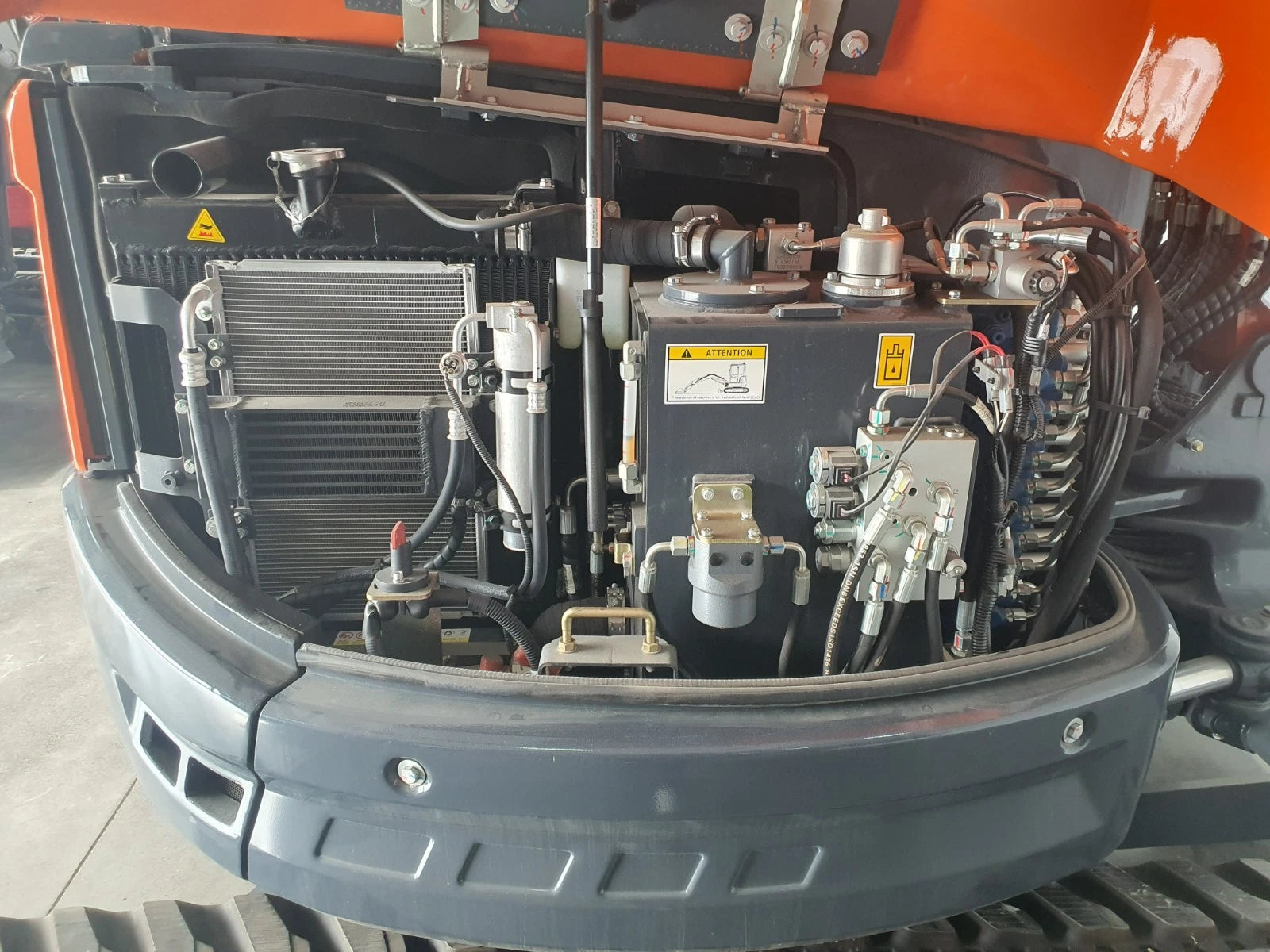

It is equipped with the KUBOTA engine in conformity with T4F and Stage V emission standards, providing strong power. It is equipped with a high-performance hydraulic system and relevant elements. The composite actions of boom, arm, bucket and swing motor are harmonic and smooth. It has the highest perfommance among all excavators with the same weight.

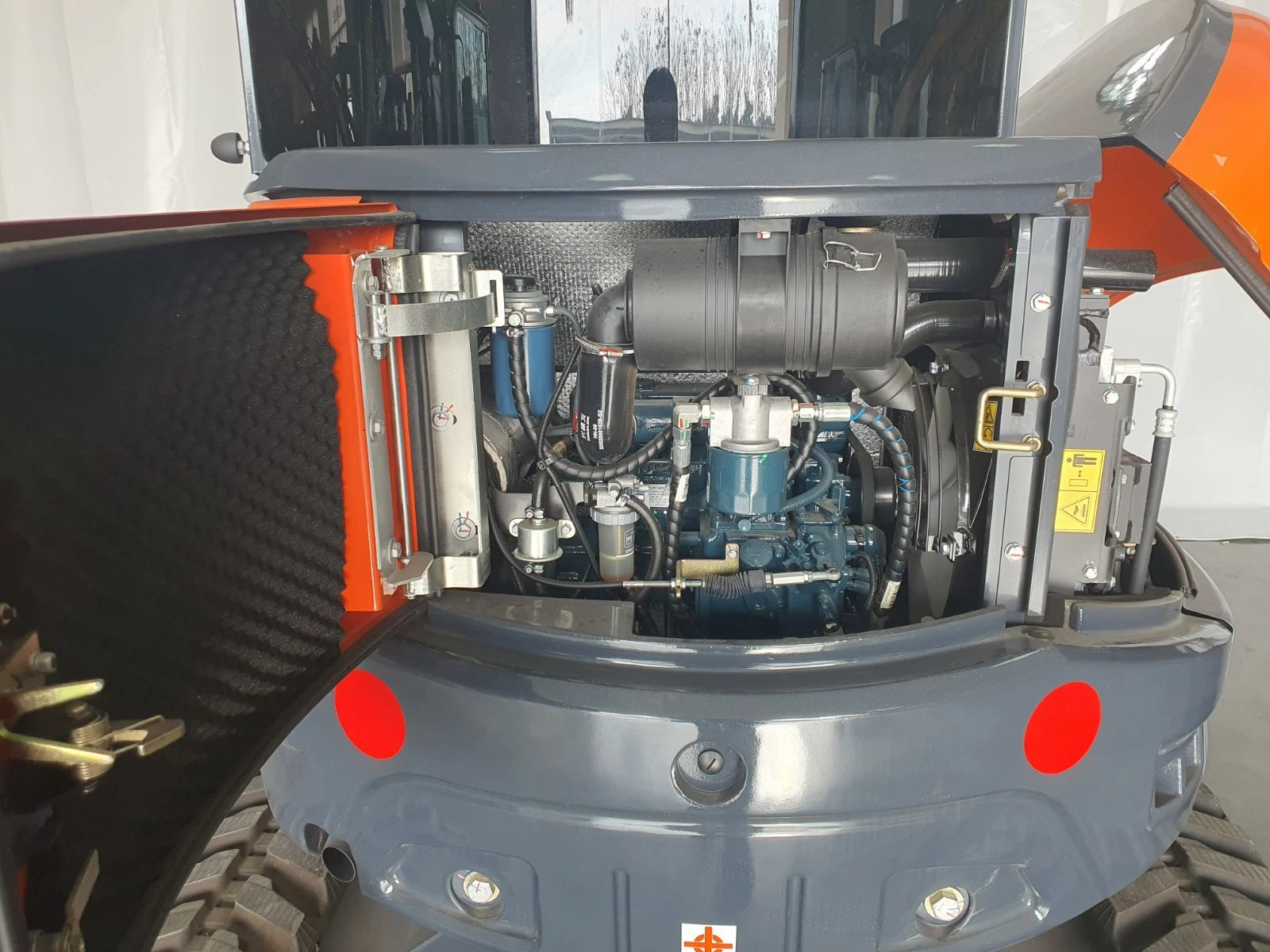

KUBOTA engine

It simultaneously meets the emission standards of Stage V (Europe), T4F (North America), and obtains relevant certificates. It can provide strong and environmentally friendly power.

Excellent precisely Operation

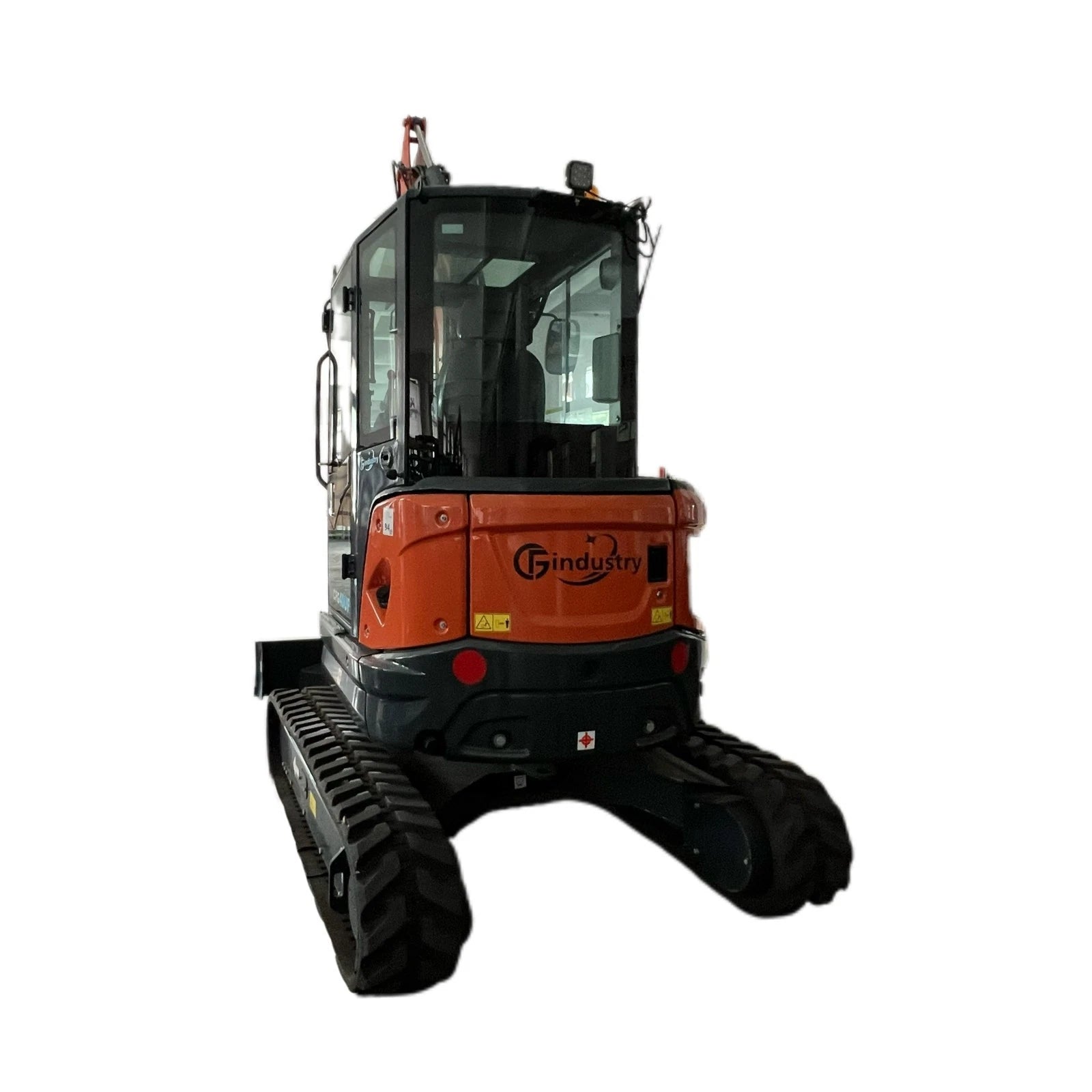

Zero-tail swing

The combination of zero-tail swing and arm deviation is designed for narrow and complicated working scenarios. When it works near a wallfoot, it can conduct the excavation directly, free from frequent movement and featuring flexible construction.

Flat ground operation

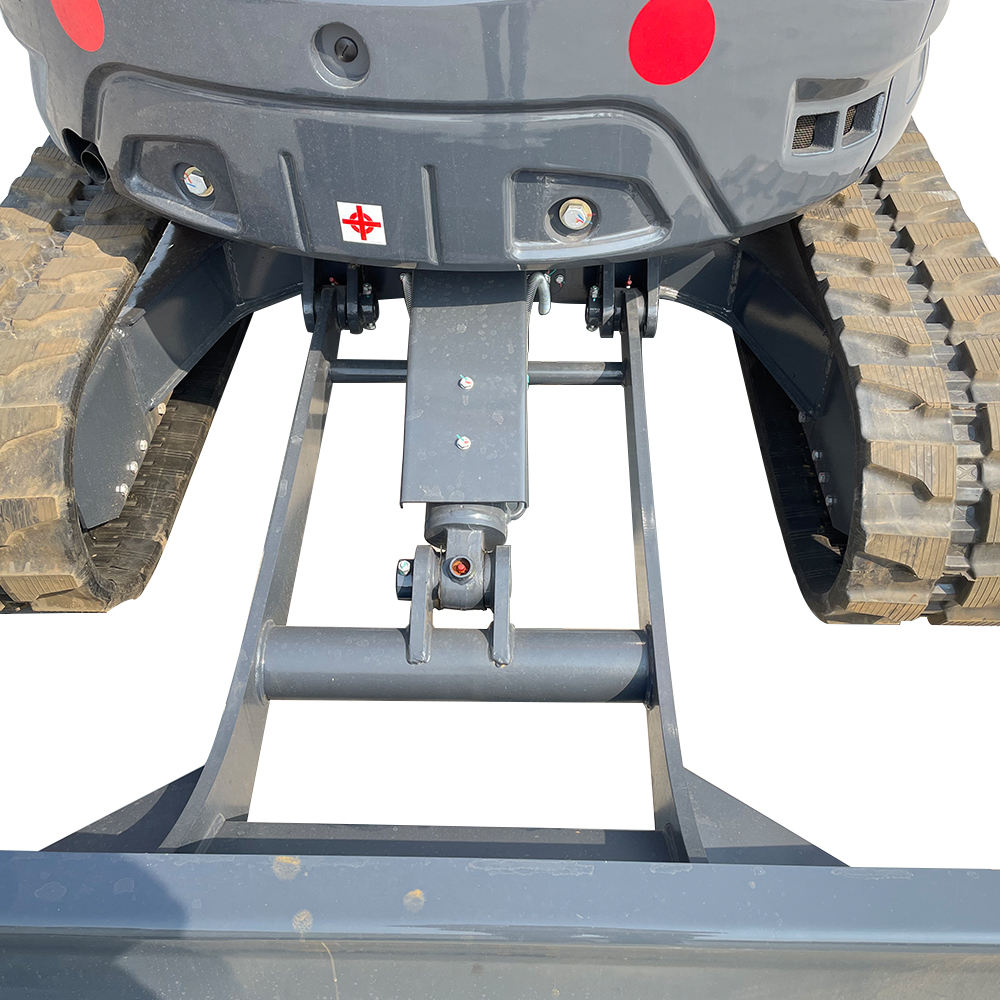

The flat ground operation is conducted more smoothly in combination of superstructure swing, boom deviation, dozer blade rising and falling, long and short arms, and collaborative operation between bucket and dozer blade.

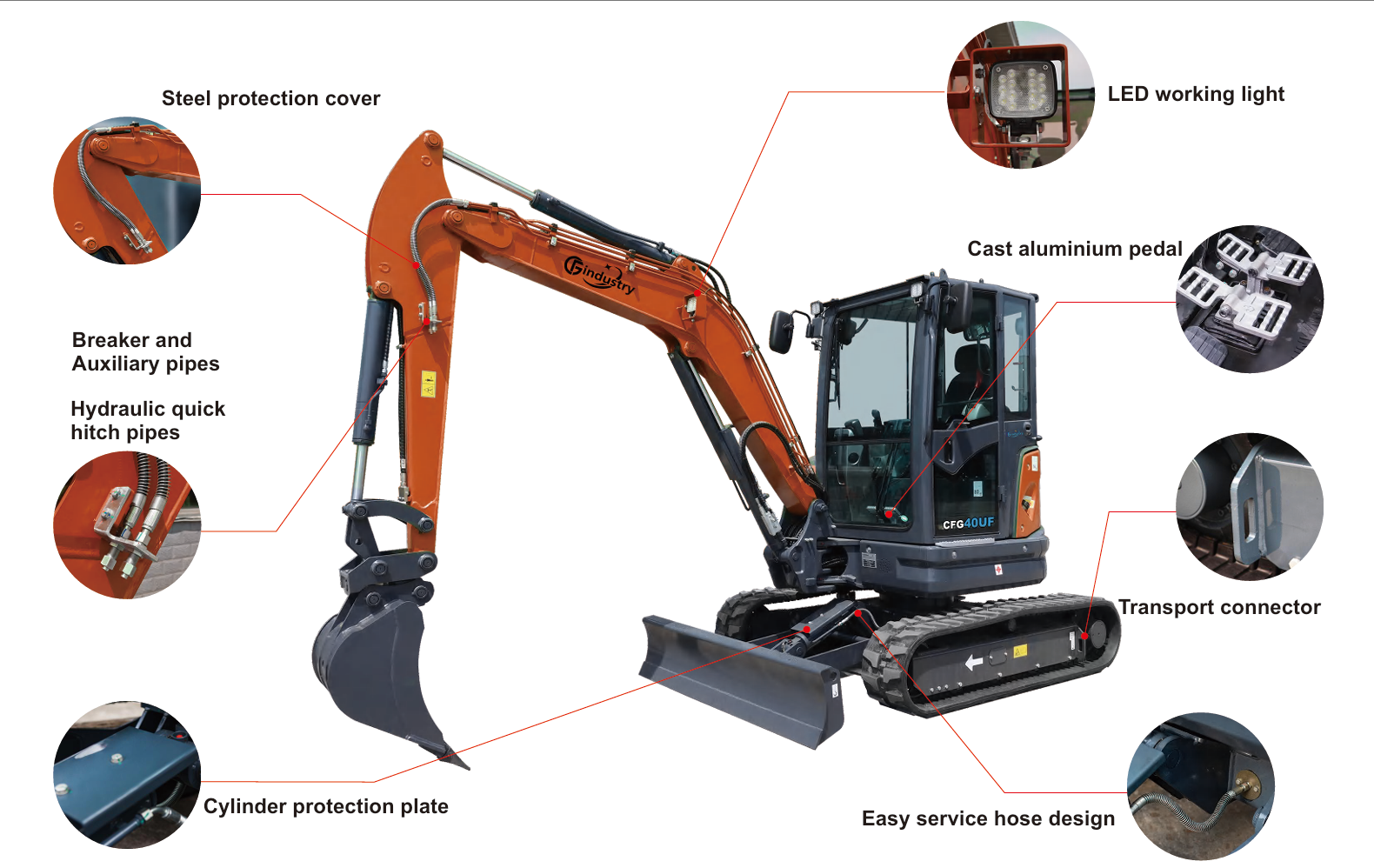

Multi-functional auxiliary tools

This excavator is equipped with breaker pipeline (standard) and auxiliary pipeline and hydraulic quick hitch pipeline (optional) instead of hand labor to meet various construction requirements.

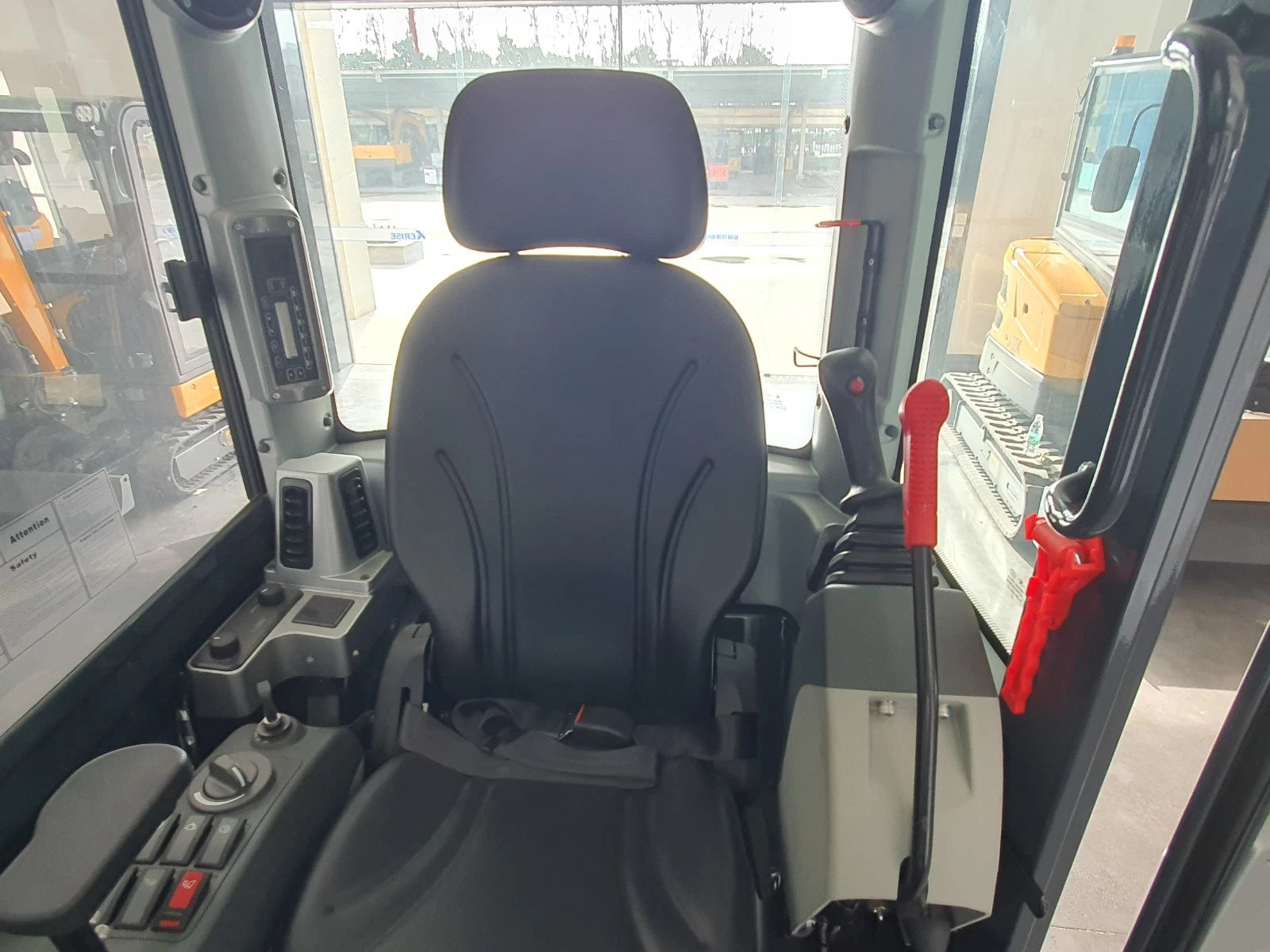

Comfortable cab

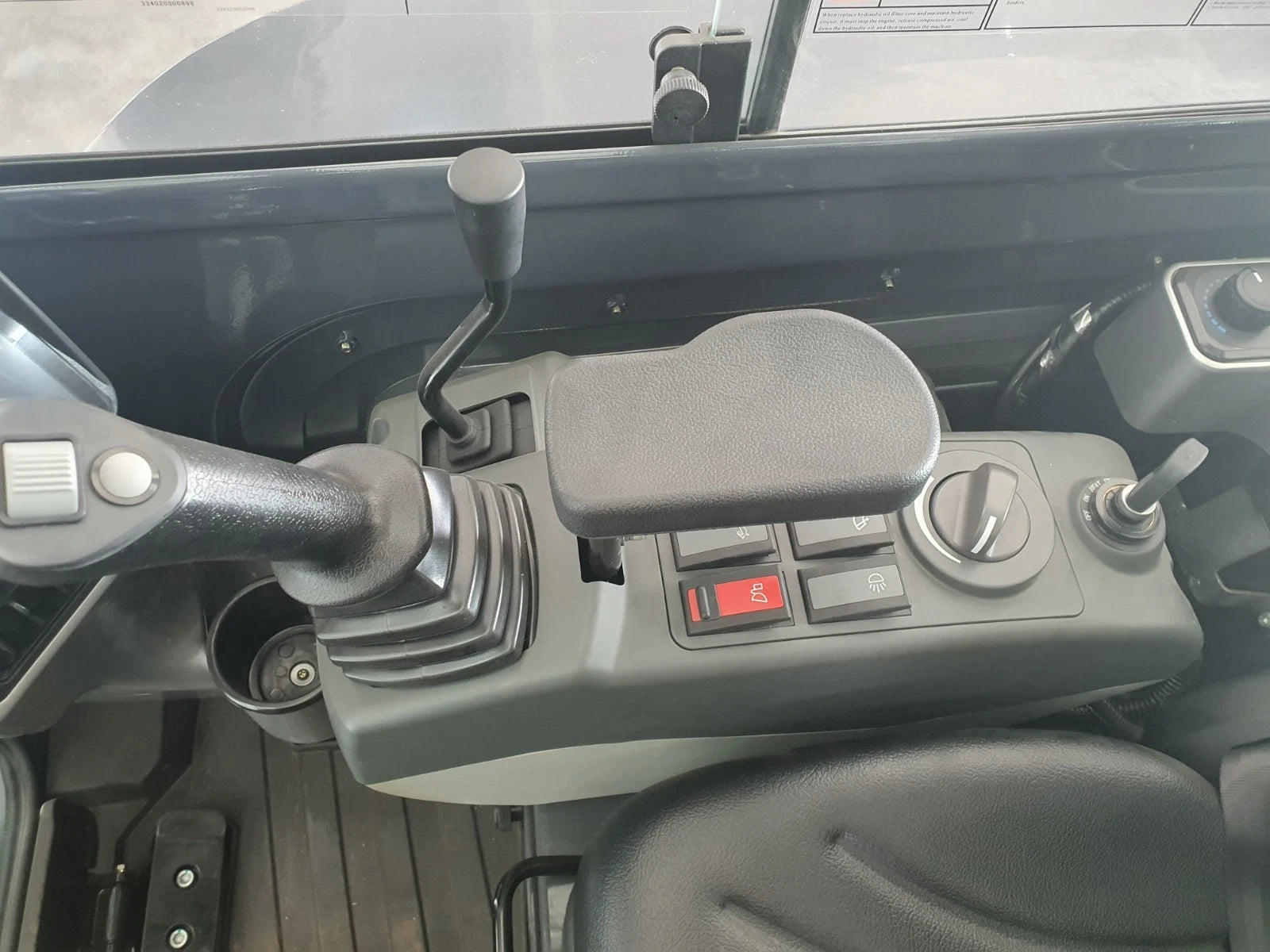

Comfortable operation environment

Wider space and view are provided by enlarged front windscreen and sunroof. In addition, an air conditioner (standard configuration), a floating shock absorber seat, a touch radio and stereo acoustics are also provided to ensure a comfortable driving experience.

Safe driving space

A frame supported cab with Fops/Tops safety certificate and a top protective frame (standard configuration) are provided to effectively protect the safety of drivers. In addition, the standard configuration items also include hidden seat belt, safety hammer, pilot locking lever, swing parking brake, traveling parking brake, and engine safety start system.

Dimension

Operating Weight: 3.8 Ton (8,377 lb)
Overall Length: 4,890 mm (192.5 in)
Overall Width: 1,700 mm (67 in)
Overall Height: 2,555 mm (100.5 in)
Track Size: 300*55*84 (W*P*L)

Working Range

Max Digging Depth: 3,320 mm (131 in)
Max Digging Height: 5,045 mm (198 in)
Max Dumping Height: 3,520 mm (138 in)
Max Reach at Ground: 5,575 mm (219 in)
Dozer Blade Width: 1,700 mm (67 in)
Dozer Blade Height: 366 mm (14 in)
Blade Max Lifting Height: 336 mm (13 in)
Blade Max Drop Depth: 336 mm (13 in)

Engine

Engine Brand: Kubota
Fuel Type: Diesel
Model: D1703-E4B
Rated Power: 18.2 kW (24.4 HP)
Displacement: 1,647 cc
Fuel Capacity: 40L (10.6 gal)
Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
Hydraulic Pressure: 24.5 MPa (3,553 psi)
Hydraulic Tank Capacity: 41 L (10.8 gal)
Battery: 12V

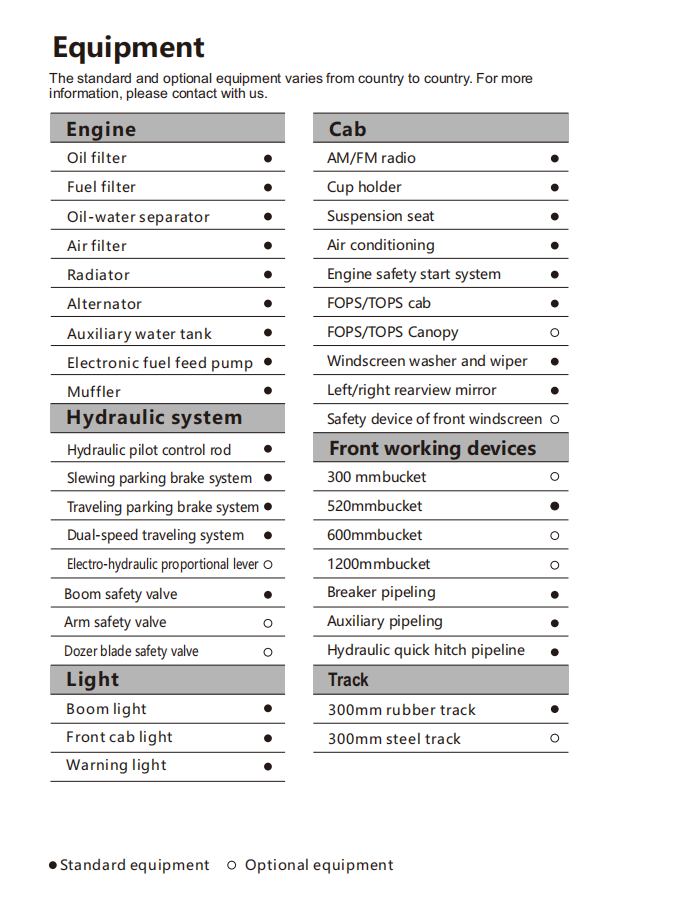

Features

Enclosed Cab
LED Lights
AM/FM Radio
AC
Rearview Mirror
Pilot Control
Side Swing Boom

Product manual (PDF) CFG40UF_MANUAL.pdf

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

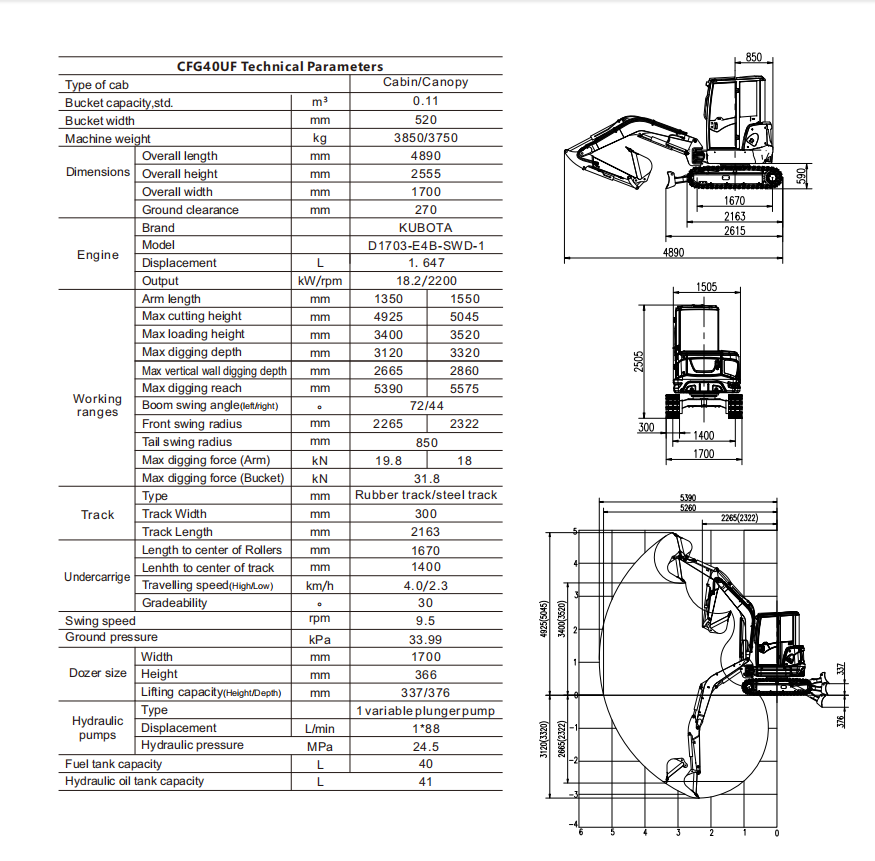

Specifications

DIMENSION
Operating Weight	3.8 Ton	8377 lb
Overall Length	4890 mm	192.5 in
Overall Width	1700 mm	67 in
Overall Height	2555 mm	100.5 in
Track Size	3005584 (WPL)
WORKING RANGE
Max Digging Depth	3320 mm	131 in
Max Digging Height	5045 mm	198 in
Max Dumping Height	3520 mm	138 in
Max Reach at Ground	5575 mm	219 in
Dozer Blade Width	1700 mm	67 in
Dozer Blade Height	366 mm	14 in
Blade Max Lifting Height	336 mm	13 in
Blade Max Drop Depth	336 mm	13 in
ENGINE
Engine Brand	Kubota
Fuel Type	Diesel
Model	D1703-E4B
Rated Power	18.2 kW	24.4 HP
Displacement	1647 cc
Fuel Capacity	40 L	10.6 gal
Hydraulic Flow Rate	67.2 L/min	17.75 gal/min
Hydraulic Pressure	24.5 MPa	3553 psi
Hydraulic Tank Capacity	41 L	10.8 gal
Battery	12V
