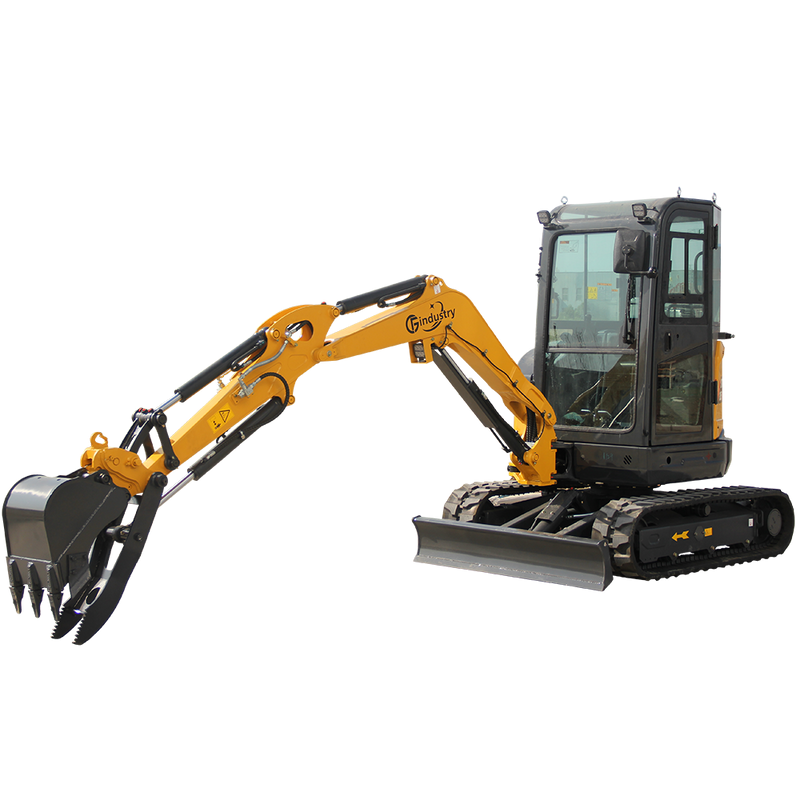

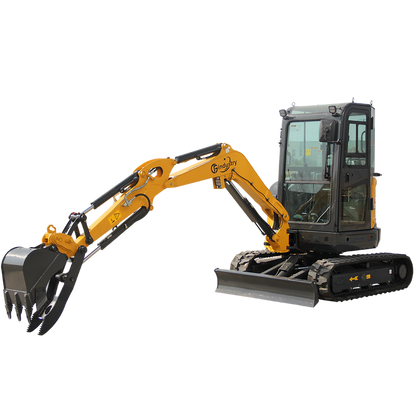

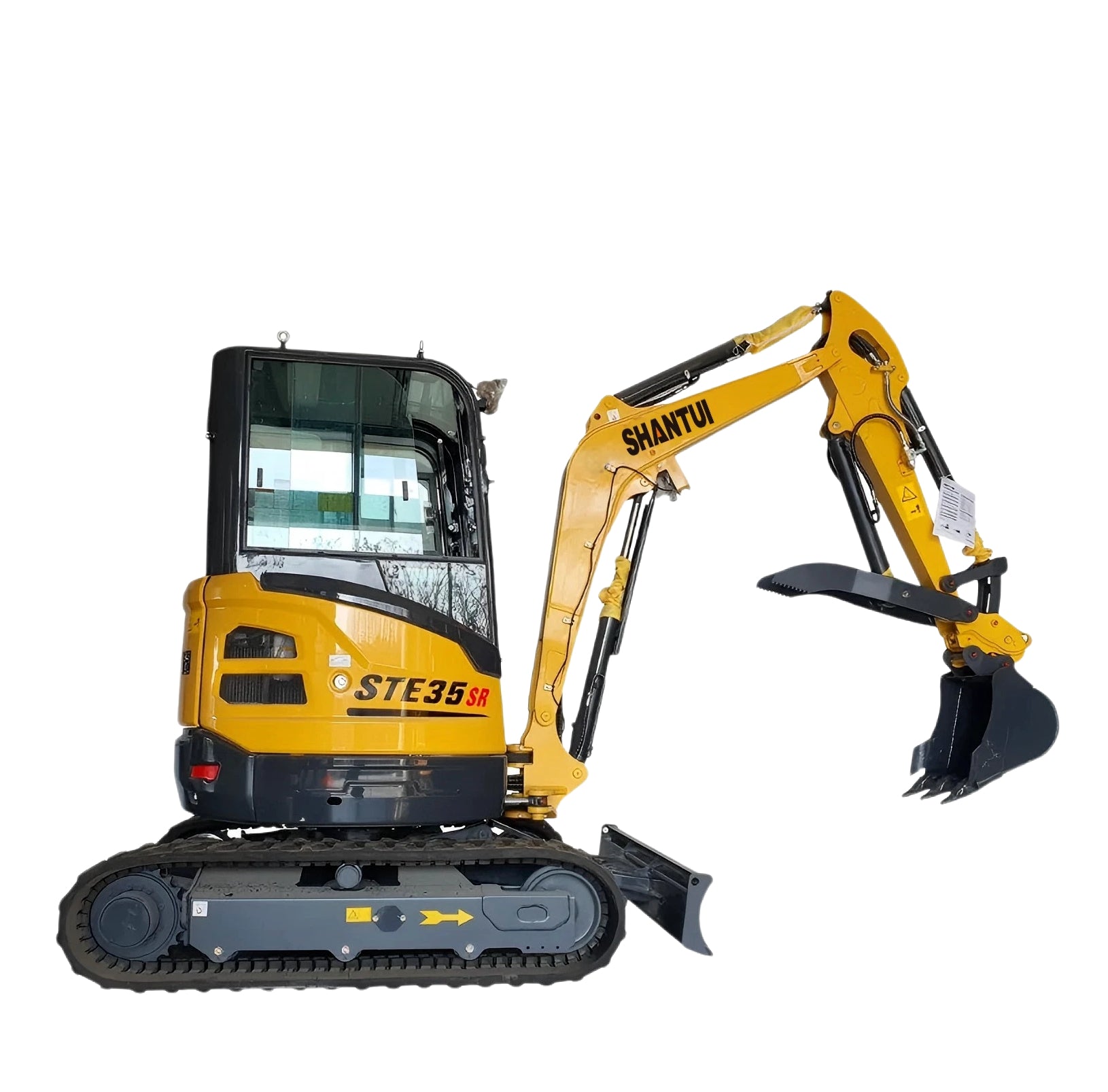

2.8 Ton Yanmar Diesel Engine Mini Excavator W/ Hydraulic Thumb CFG-STE35SR

Name: 2.8 Ton Yanmar Diesel Engine Mini Excavator W/ Hydraulic Thumb CFG-STE35SR
Brand: Kelis Machinery
SKU: STE35SR
Price: 26108.00 USD
Availability: InStock

1 18

$26,108.00

~~$35,765.00~~ Save$9,657.00 Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

832-993-8676Sales Contact Number

yuanxin01@cfgindustrial.comSales Contact Email

View full details

Product Overview

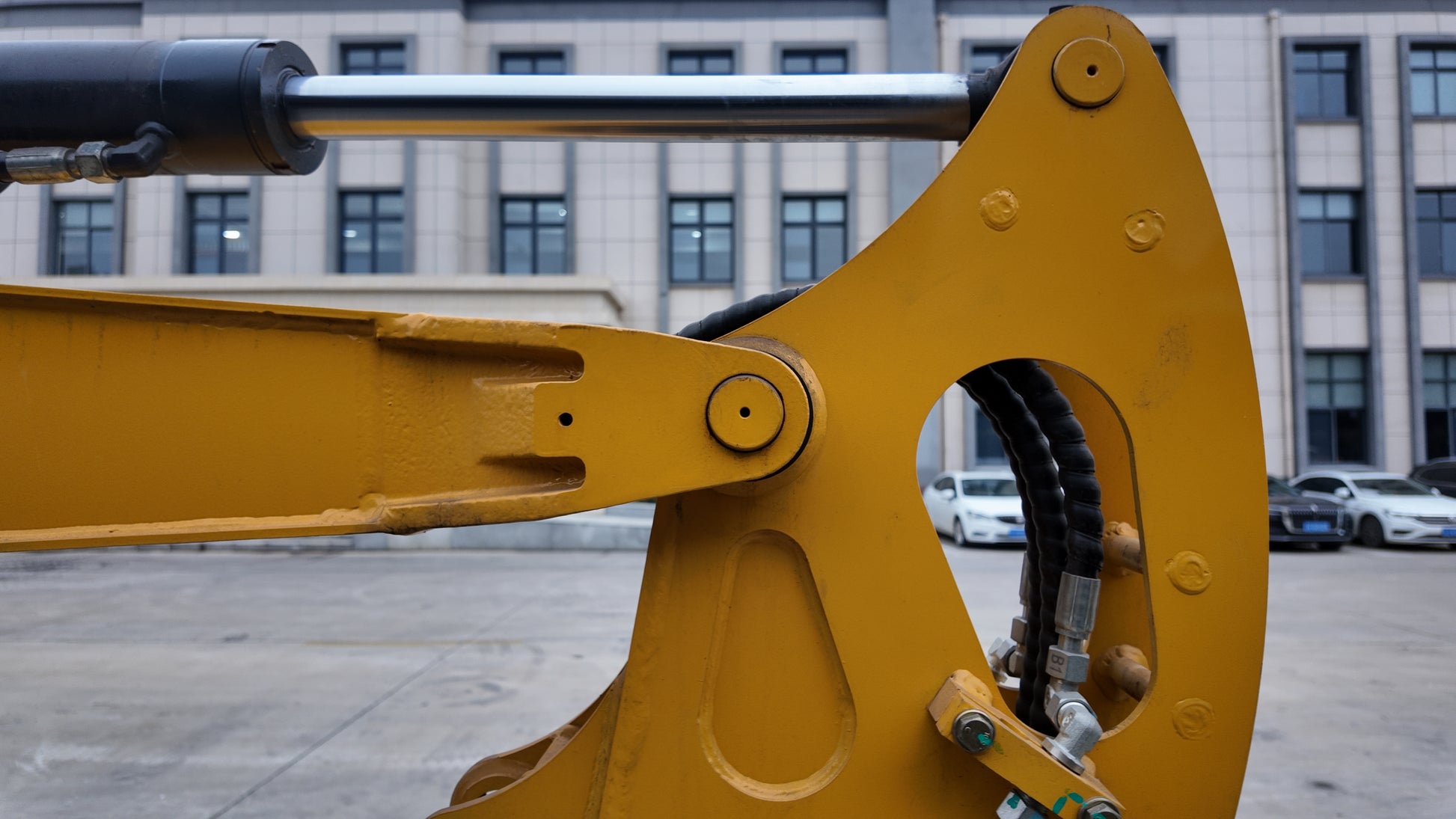

This 2.8-ton mini excavator combines compact design with powerful performance featuring a 9.19-foot maximum digging depth for efficient work in tight spaces like driveways, backyards, and gardens. Equipped with a hydraulic thumb, internal hydraulic hoses for added safety, and rear-opening compartments for easy maintenance, it's built for reliability and convenience.
Uses 35 mm pin attachments

Product manual (PDF) STE35SR_-compressed.pdf

Product Features

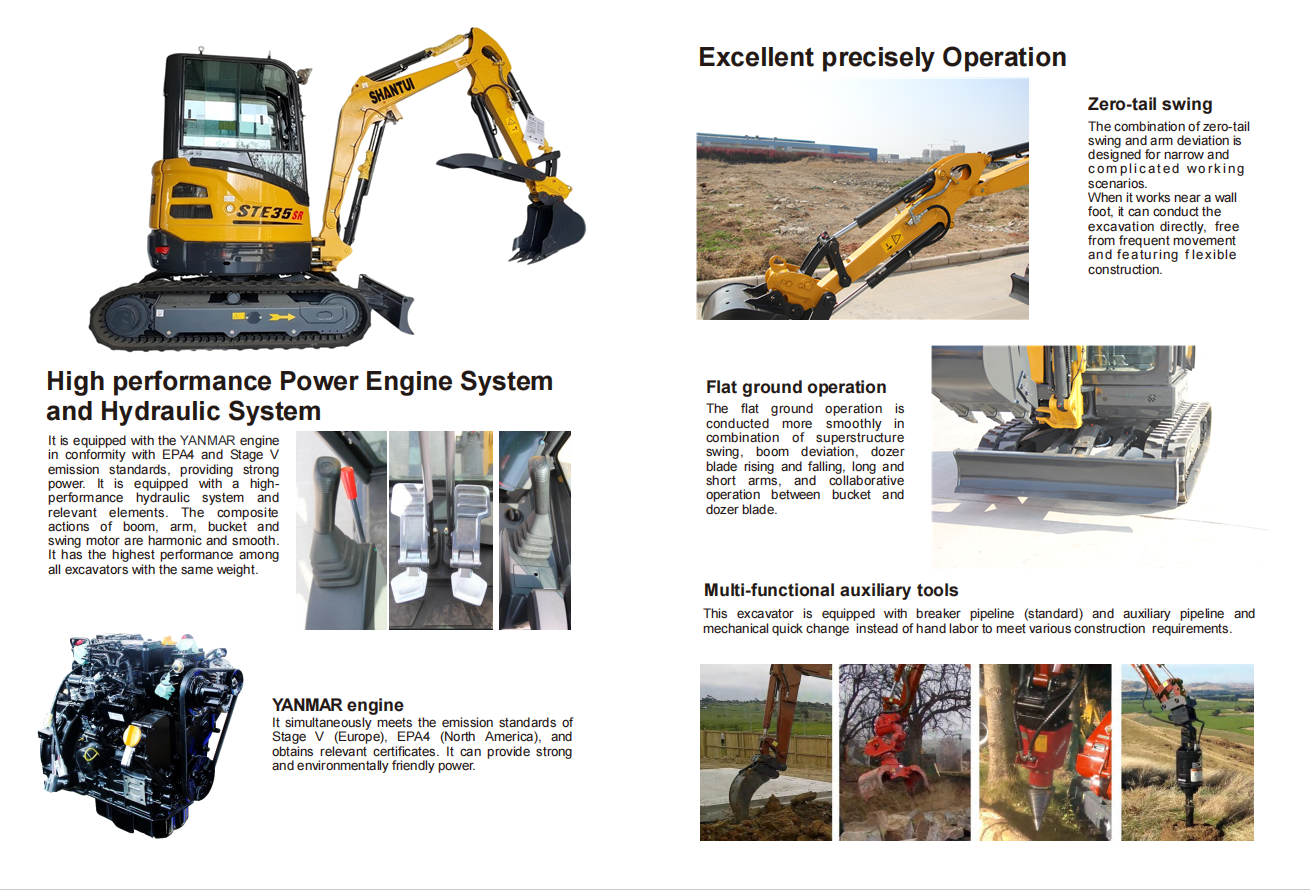

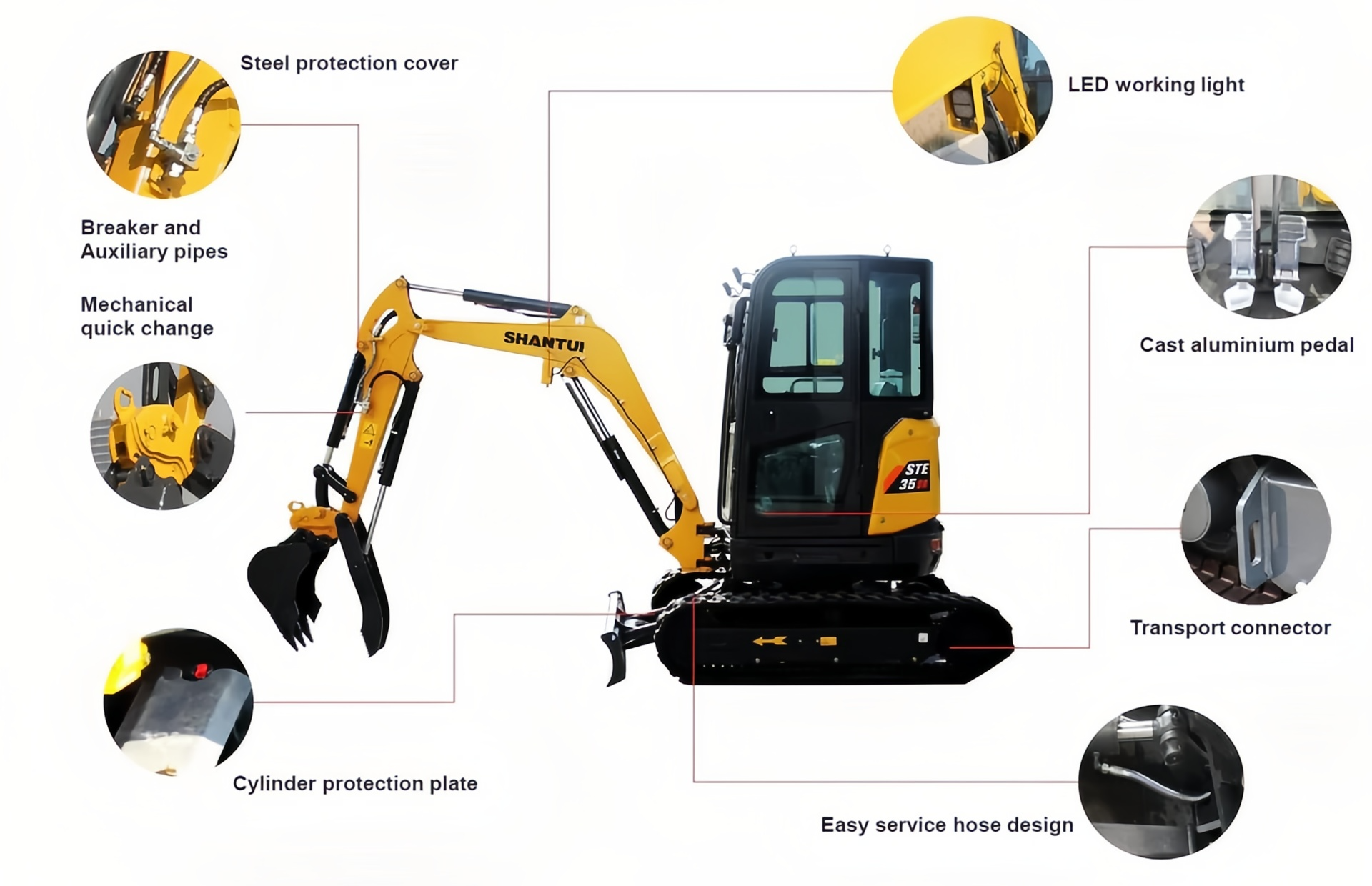

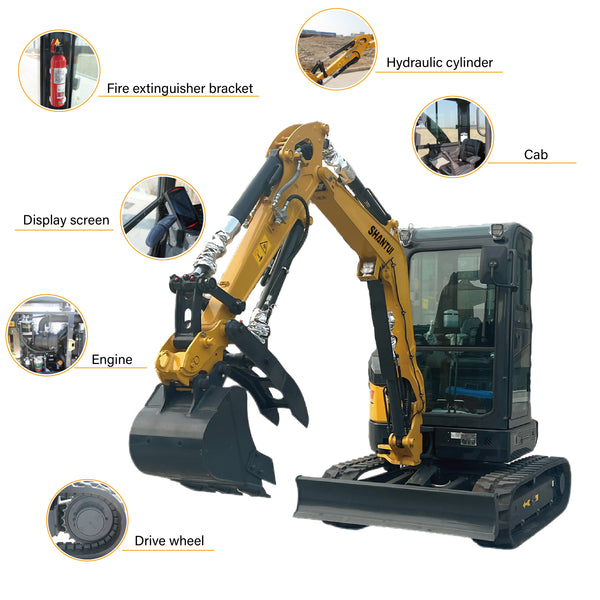

Detailed drawings of excavator components

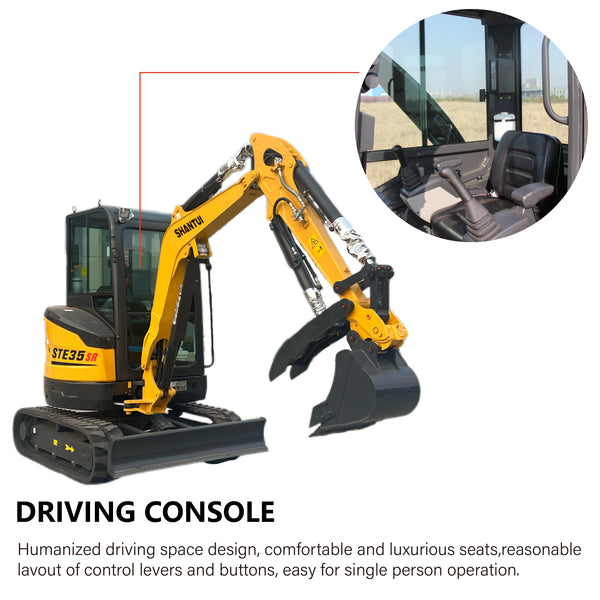

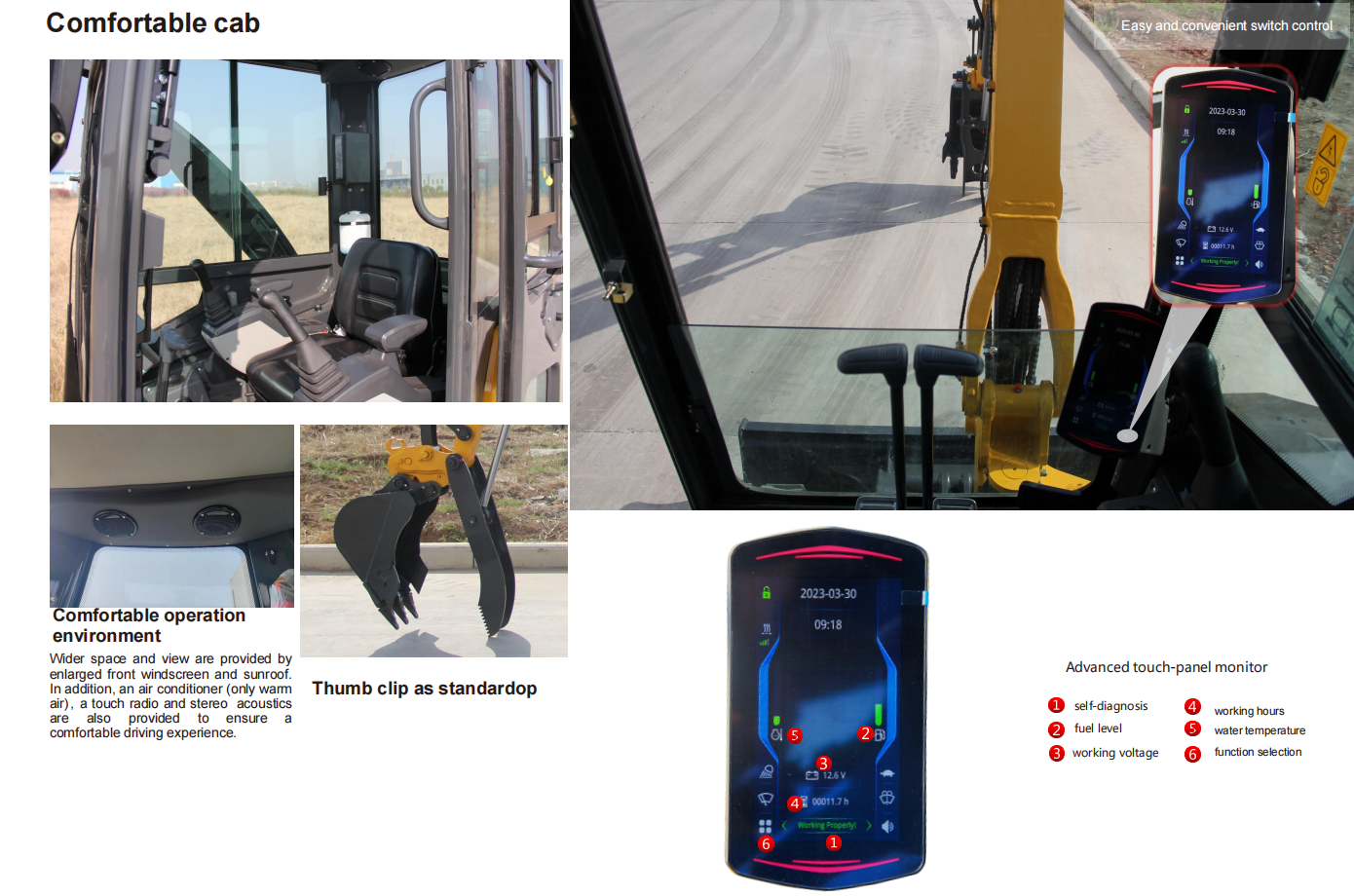

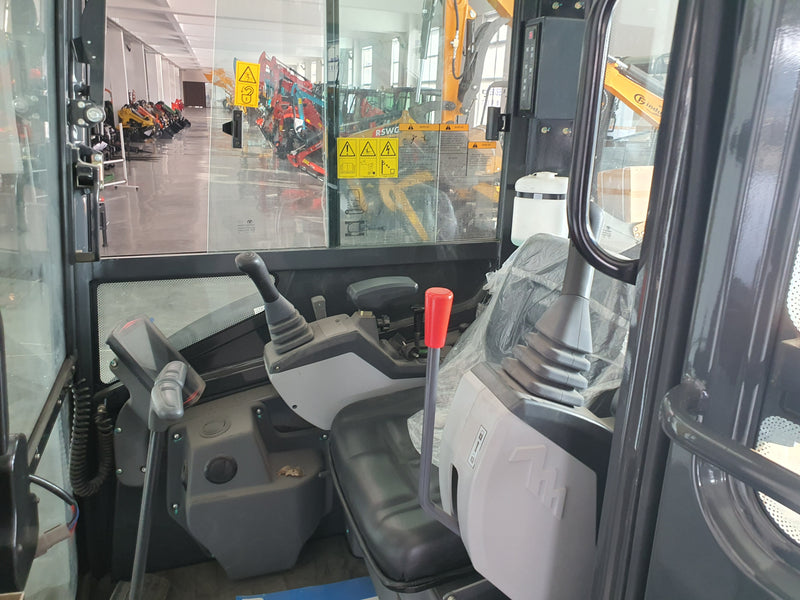

Cab

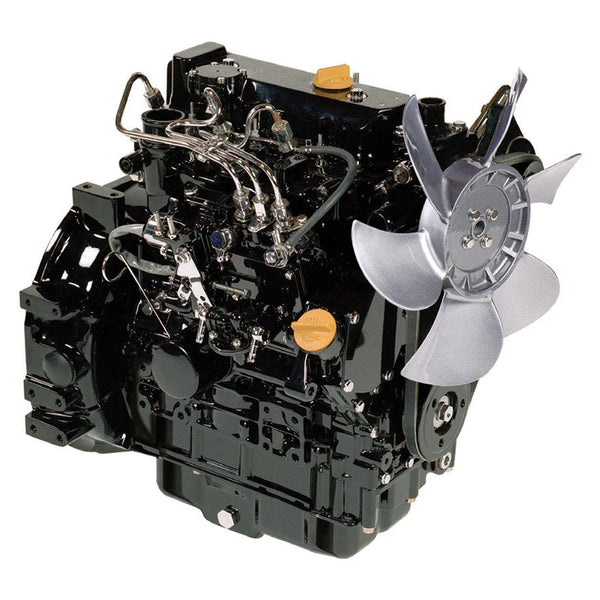

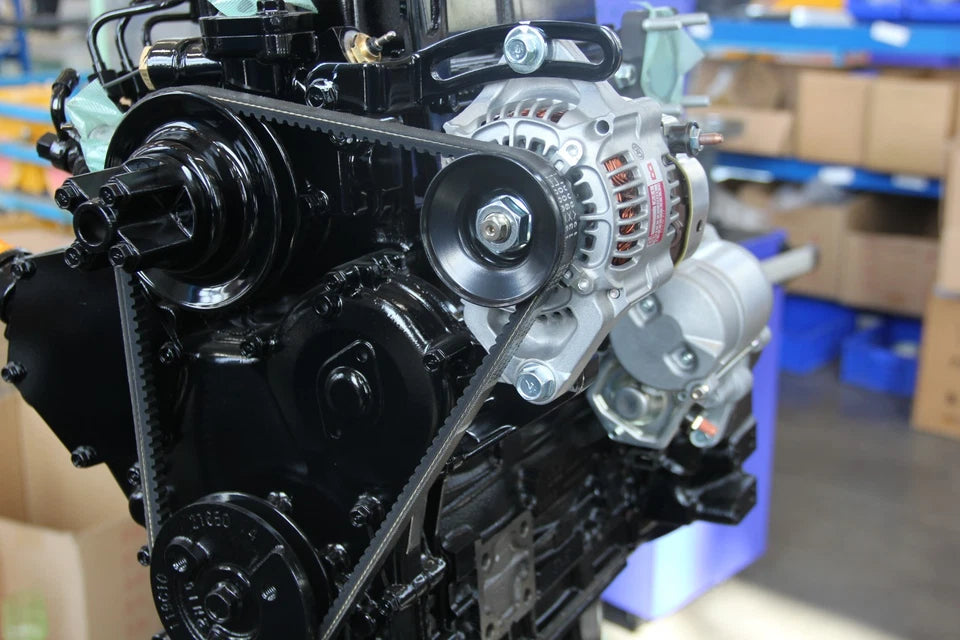

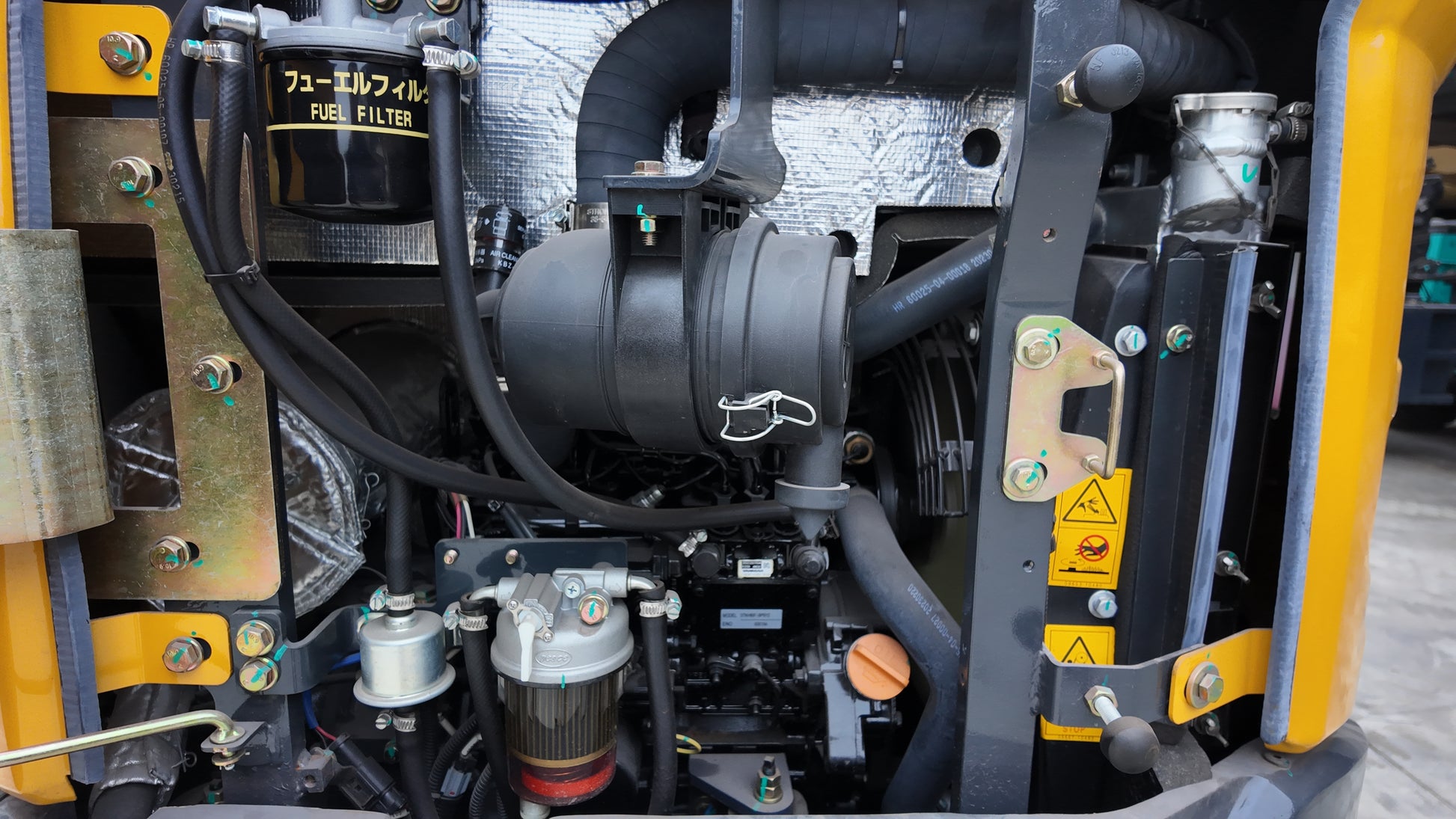

Powerful Yanmar 3TNV80F

The CFG-STE35SR is equipped with the reliable Yanmar 3TNV80F diesel engine, delivering a maximum output of 17.8 kW (23.9 HP). Fully compliant with Final Tier 4 emissions standards, this water-cooled engine offers strong performance, low noise, clean emissions, and long-term durability. Plus, replacement parts are widely available, ensuring easy maintenance and low downtime.

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

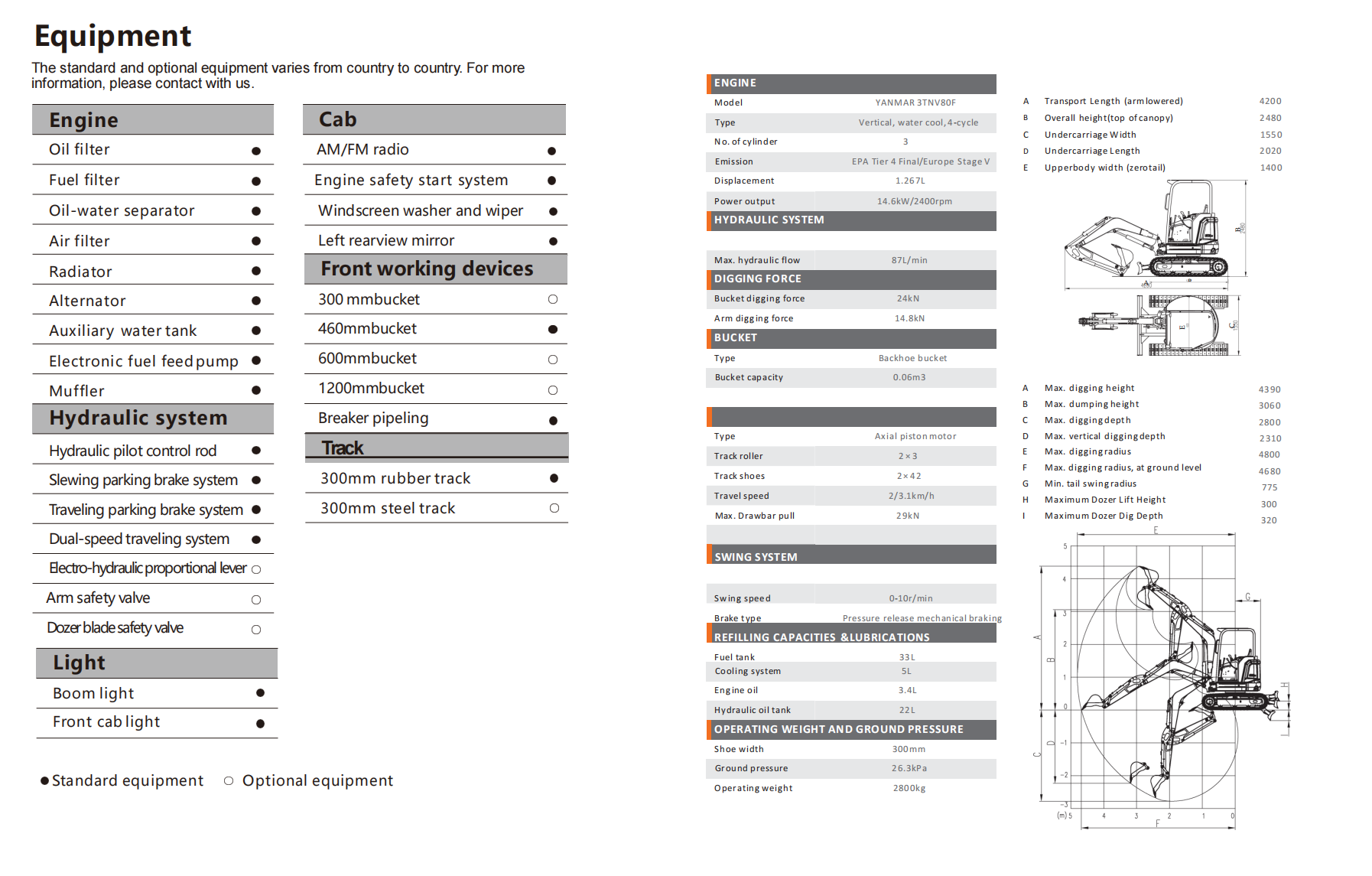

Specifications

Equipment Technical Specifications
DIMENSION
Operating weight	2.6 Ton (6,173 lbs)
Overall length	4.880 mm (192 in)
Overall width	1.740 mm (68.5 in)
Overall height	2.550 mm (100 in)

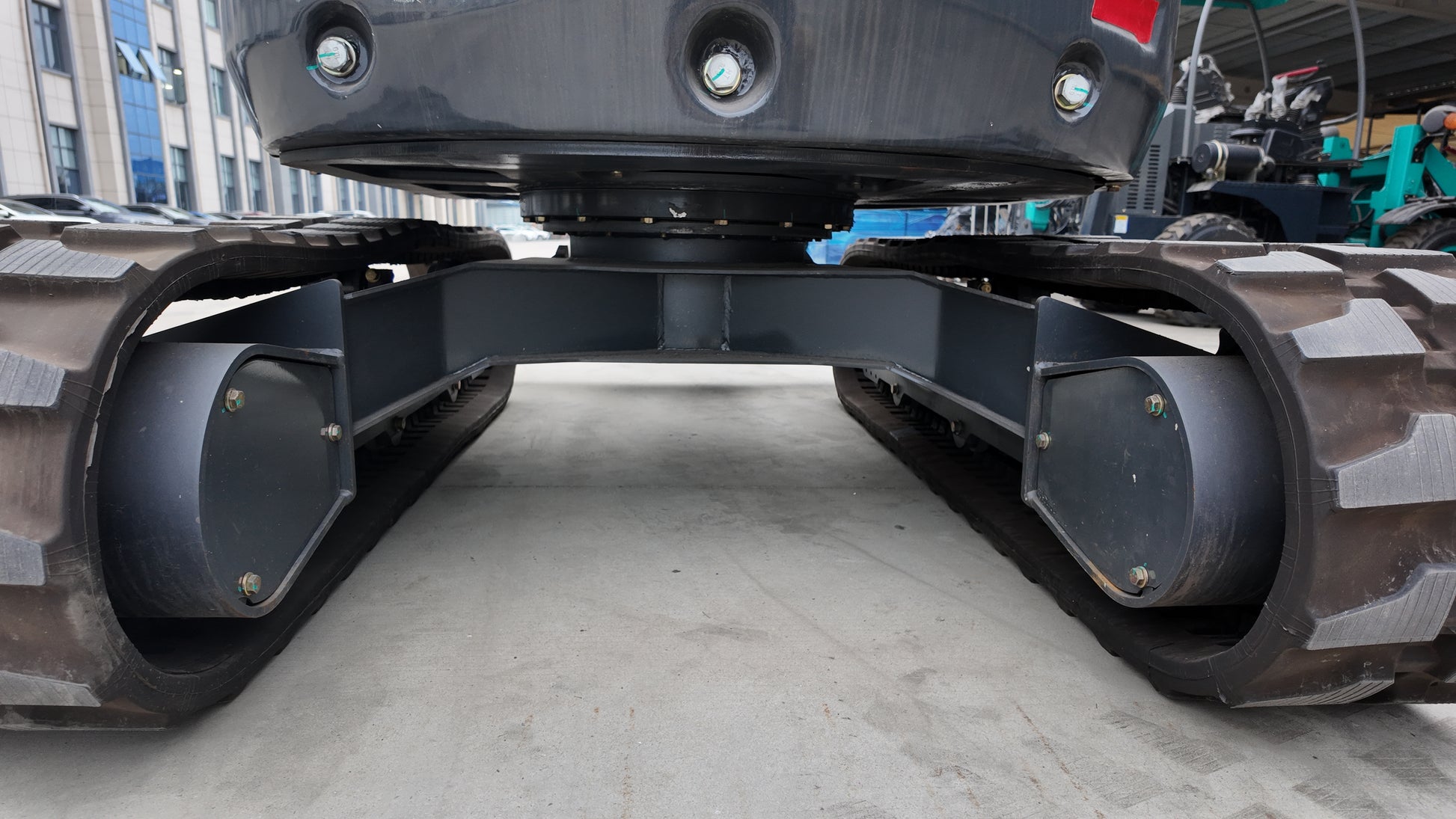

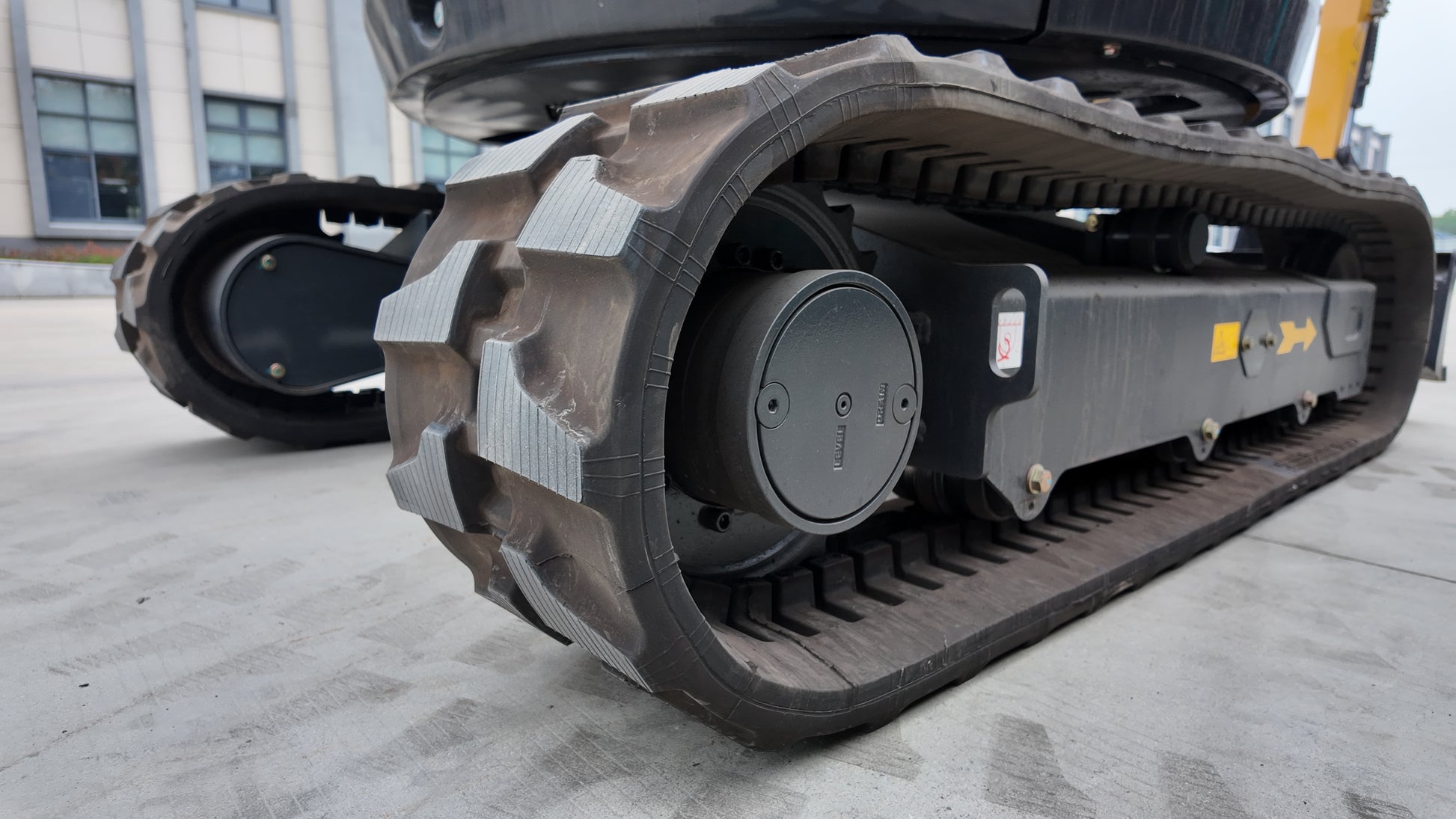

Track Size	300580 mm (WidthPitch Length*Links)
Ground clearance	295 mm (11.6 in)
Tail swing radius	3.360 mm (132 in)
Undercarriage length	3.360 mm (132 in)
Track gauge	~1.350 mm (53.1 in)
Track rollers per side	4
WORKING RANGE
Max digging depth	2.800 mm (110 in)
Max digging height	5.100 mm (200 in)
Max dumping height	3.600 mm (142 in)
Max reach at ground level	4.680 mm (184 in)

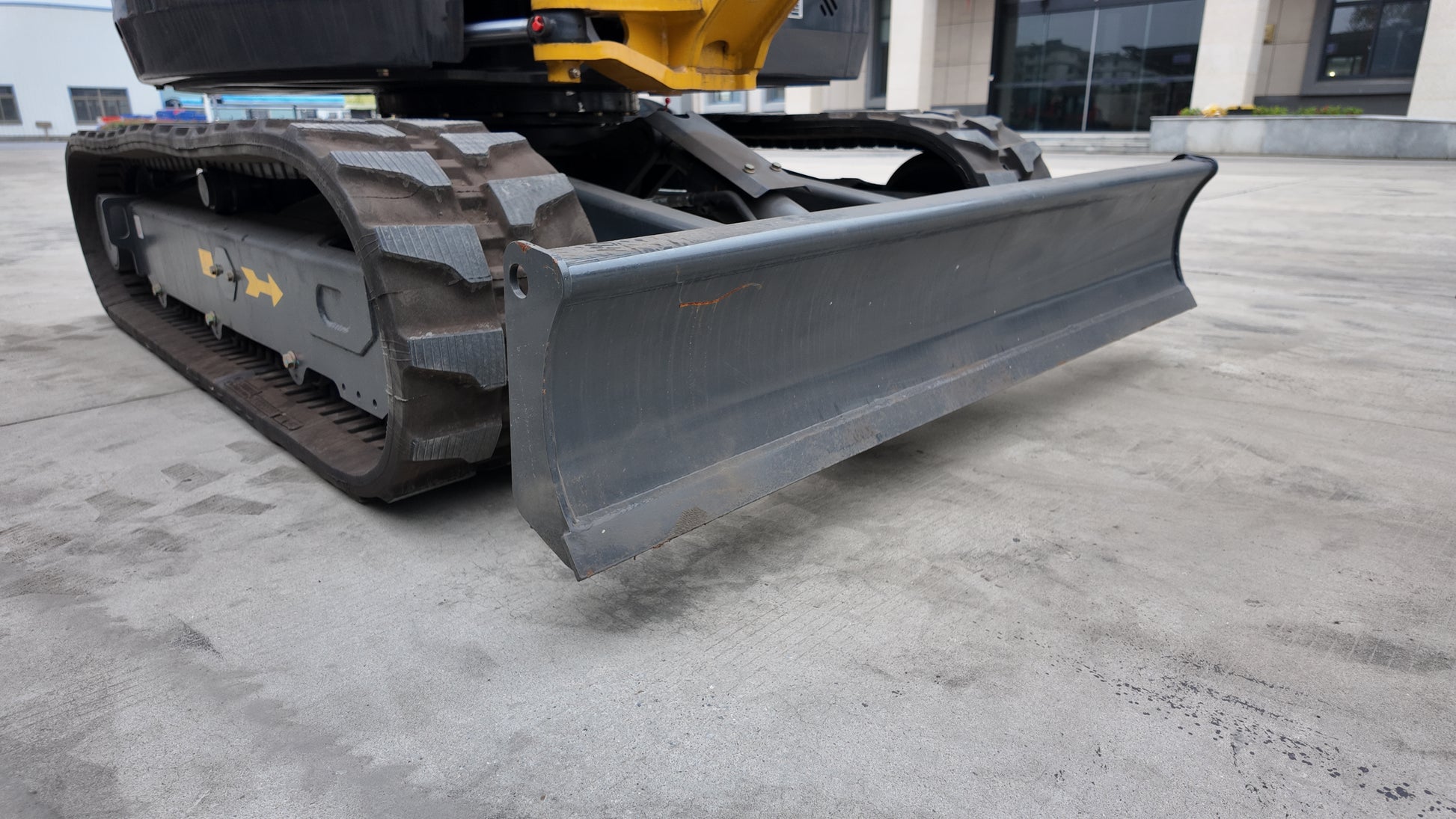

Dozer Blade Width	1.530 mm (60 in)
Dozer Blade Height	300 mm (12 in)
Blade Max Lifting Height	300 mm (12 in)
Blade Max Drop Depth	320 mm (12.5 in)
Bucket breakout force	24.5 kN (5,400 lbf)
Arm digging force	14.8 kN (3,330 lbf)
ENGINE
Brand	Yanmar
Fuel type	Diesel
Model	3TNV80F
Type	3-cylinder, water-cooled, diesel
Rated power	18.2 kW (25 hp)
Displacement	1642 cc
Fuel capacity	50 L (13.2 gal)
Hydraulic Tank Capacity	21 L (5.8 gal)
Cooling	Liquid-cooled radiator
Max torque	77 Nm @ 1.500 RPM
Emission standard	Tier 4 Final / EU Stage V
FEATURES
Enclosed Cabin	Standard
Pilot Control	Standard

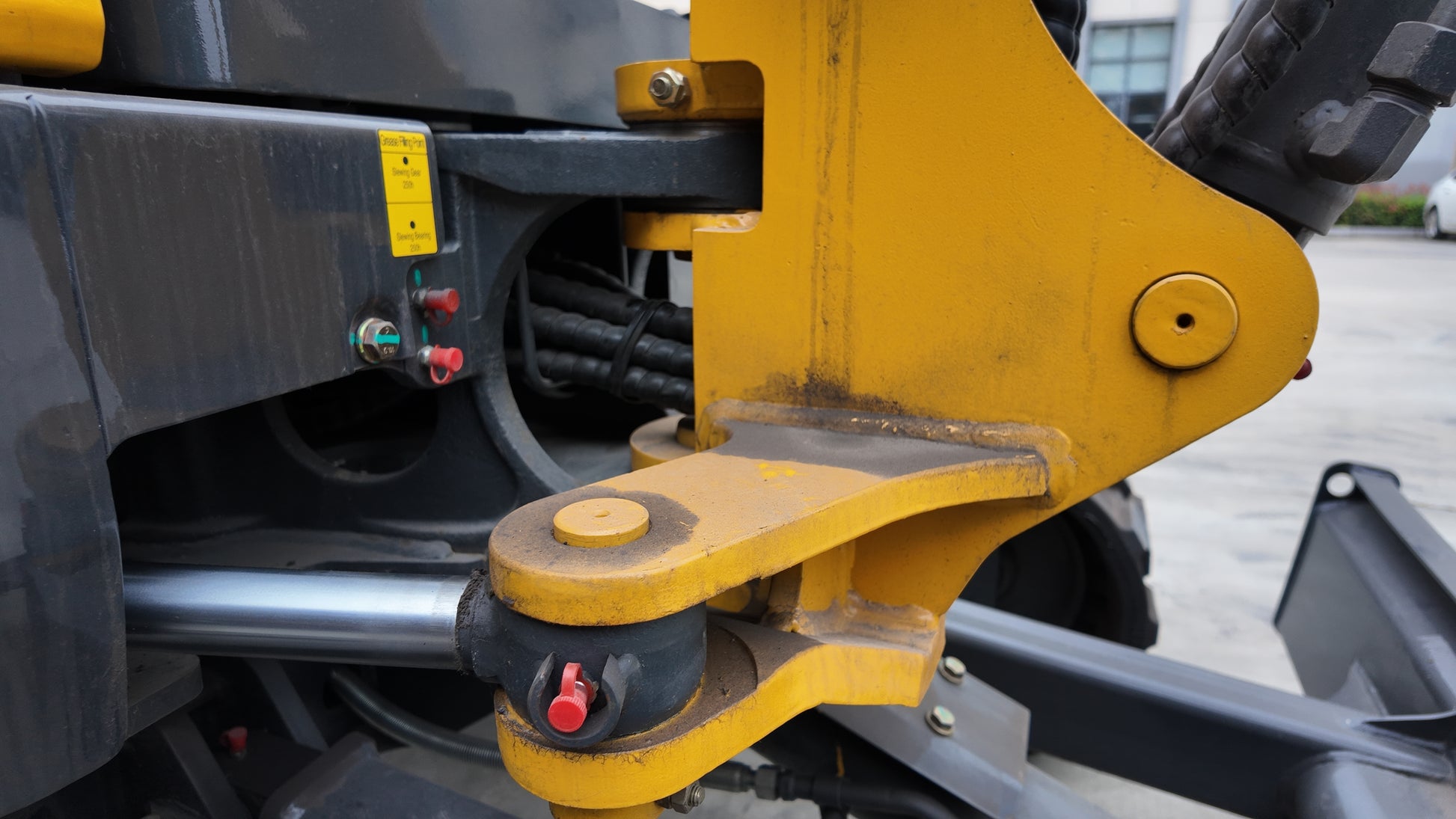

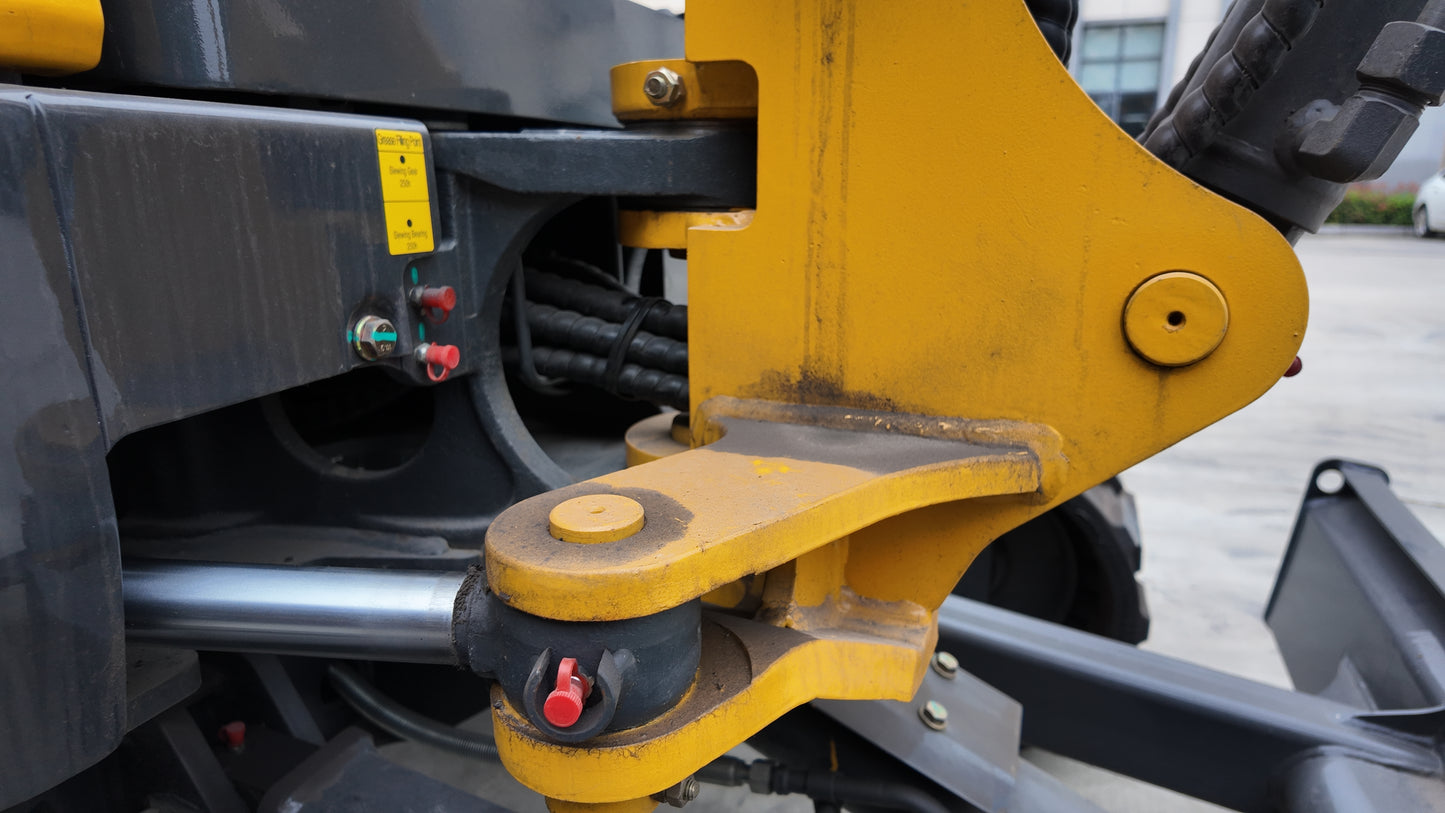

Side Swing Boom	Standard
Hydraulic Thumb	Standard
LED Lights	Standard
Rearview Mirror	Standard
Bucket sizes	0.1 - 0.15 m³ (3.5 - 5.3 ft³)
Auger	Compatible, flow matched up to 25 GPM
Breaker	Compatible, flow matched
Grapple	Compatible
Quick coupler	Optional pin-on type

Customer Reviews

ste35sr
This CFG-STE35SR is very well made, with areat fit and finish, comparable to my Kubota equipmentSofaraoolt15 noUrs of usa0eandlcan sayit dls qreat and has lowfuel usage, GREAT QUALITY BUlLD, well worth the price.
was skeptical to pav the ful rice upfront. My wife and fiends thoughtl was crazy to make this purchase with so much trust. lost some siep worying but no money.lreceived the eouioment about 6 weeks from pavment. AGT was good about answering e-malls for updates when asked. Couldn't be happier

About 2.8 Ton, Yanmar Diesel Engine Mini Excavator w/ Hydraulic Thumb | CFG-STE35SR

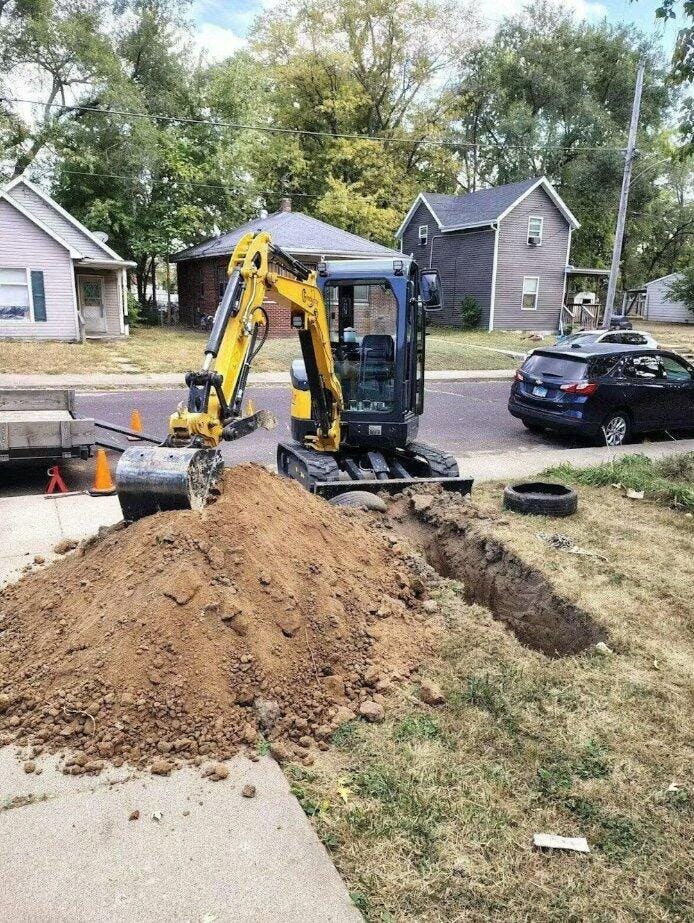

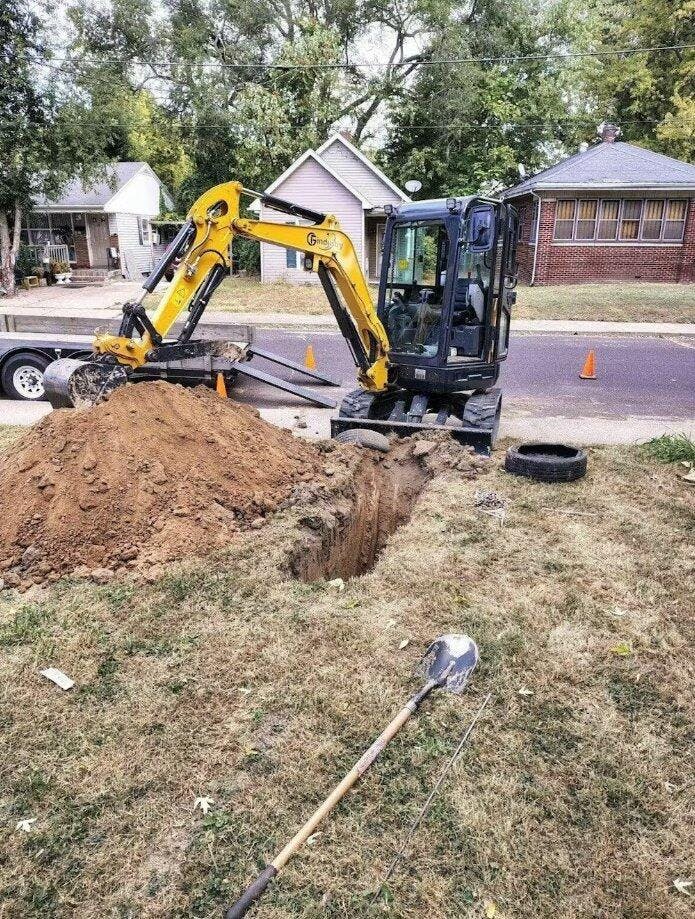

This machine is great and we have no complaints. We use this mostly for waterline and sewer/septic work. It is a very good quality machine for the price. We are actually looking to upgrade tomthe next size larger machine that AGT offers.
