Product Overview

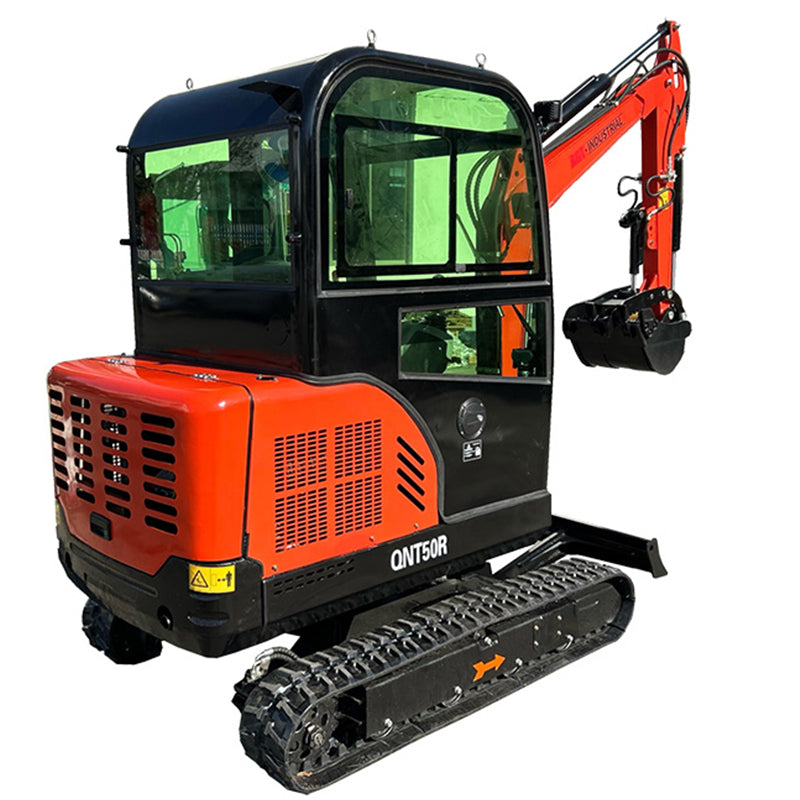

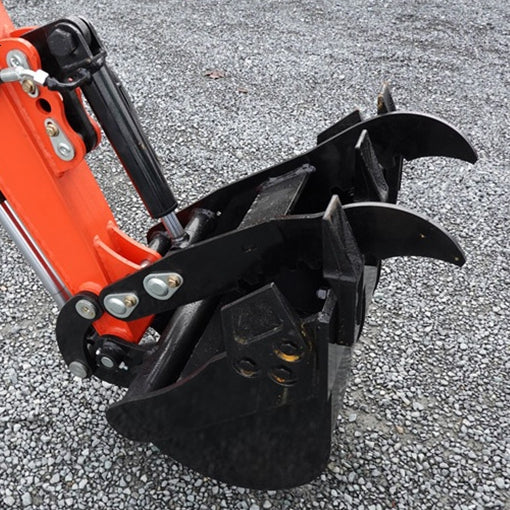

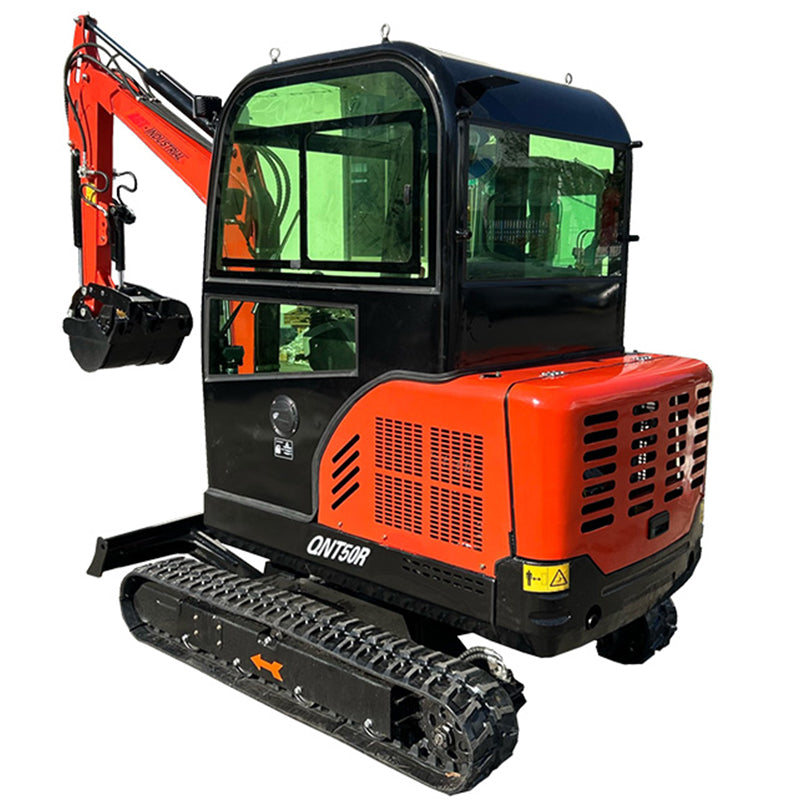

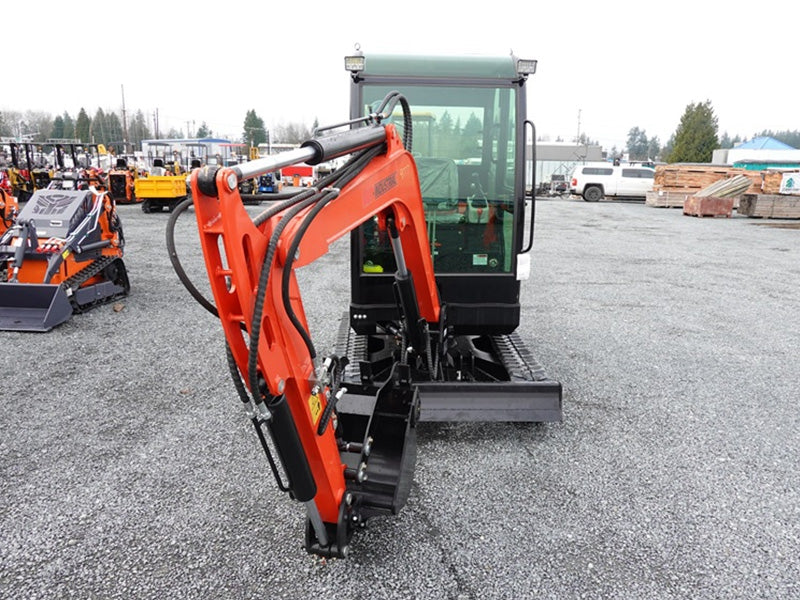

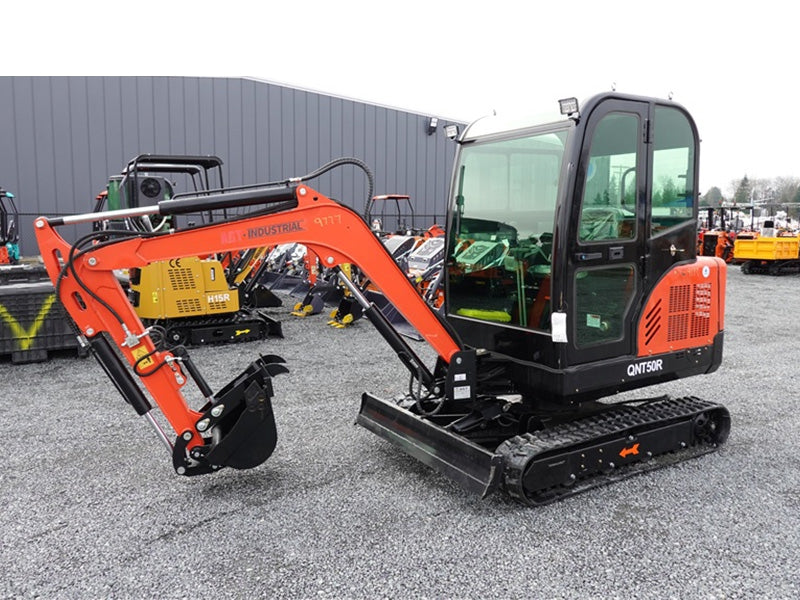

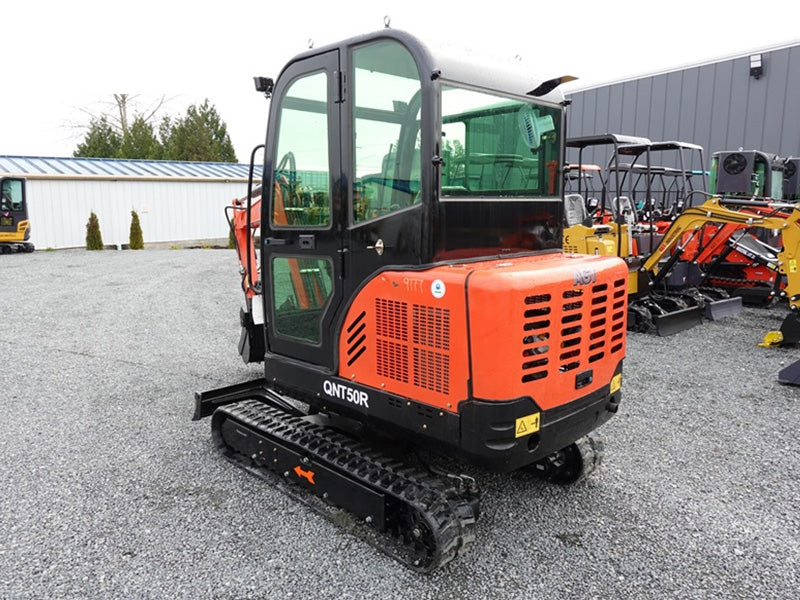

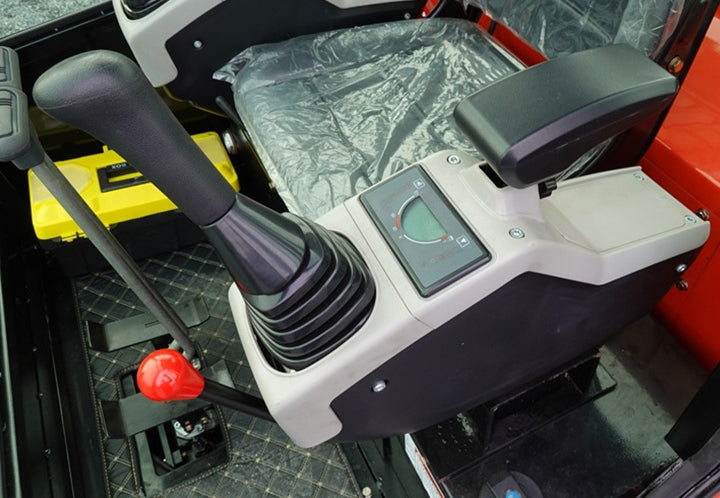

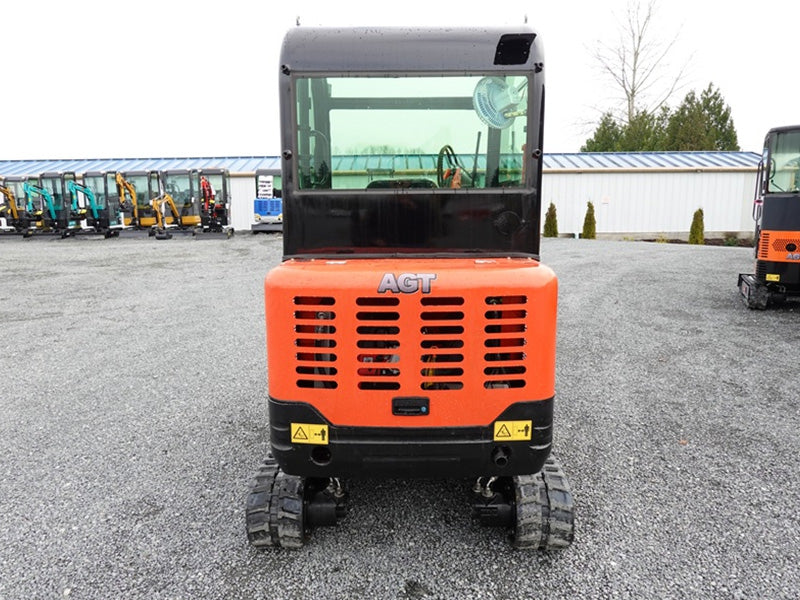

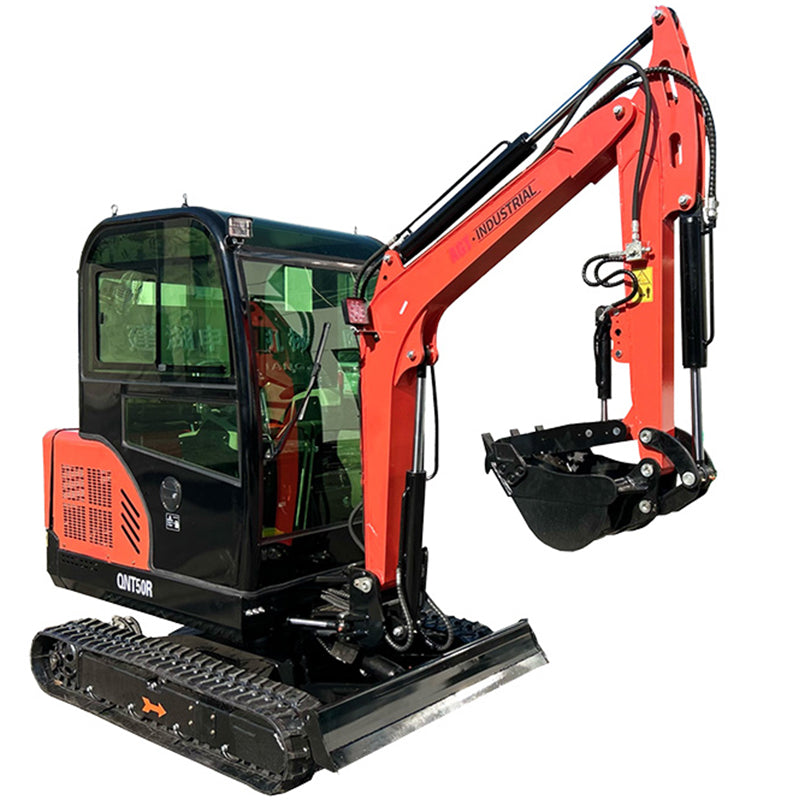

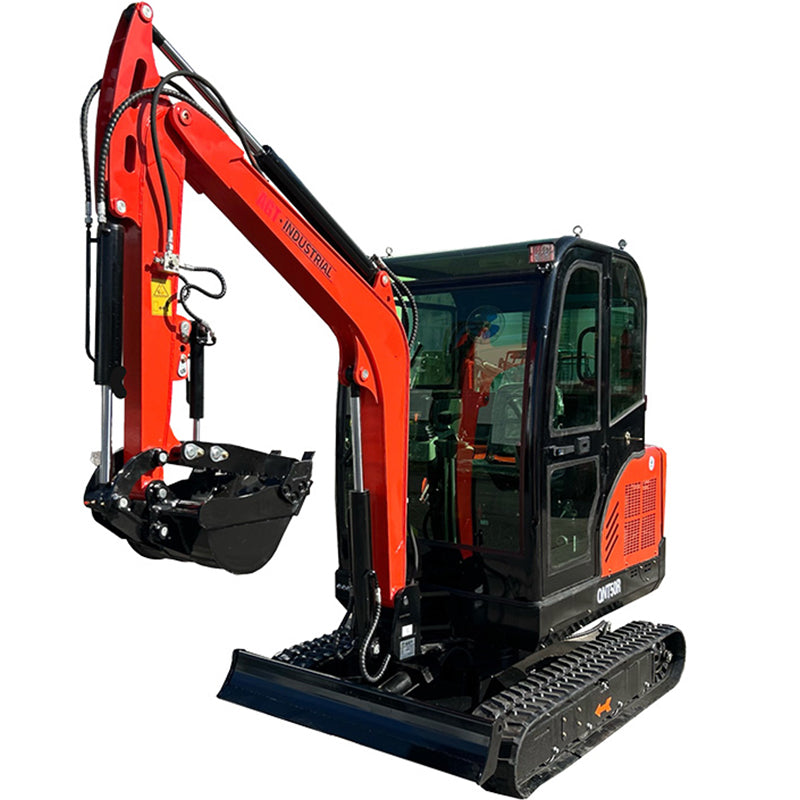

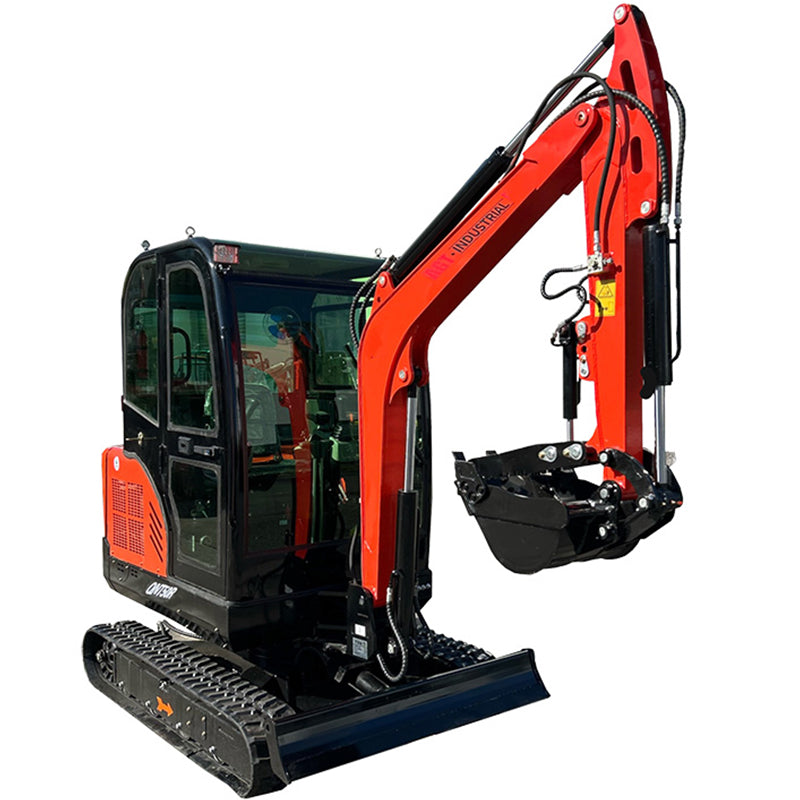

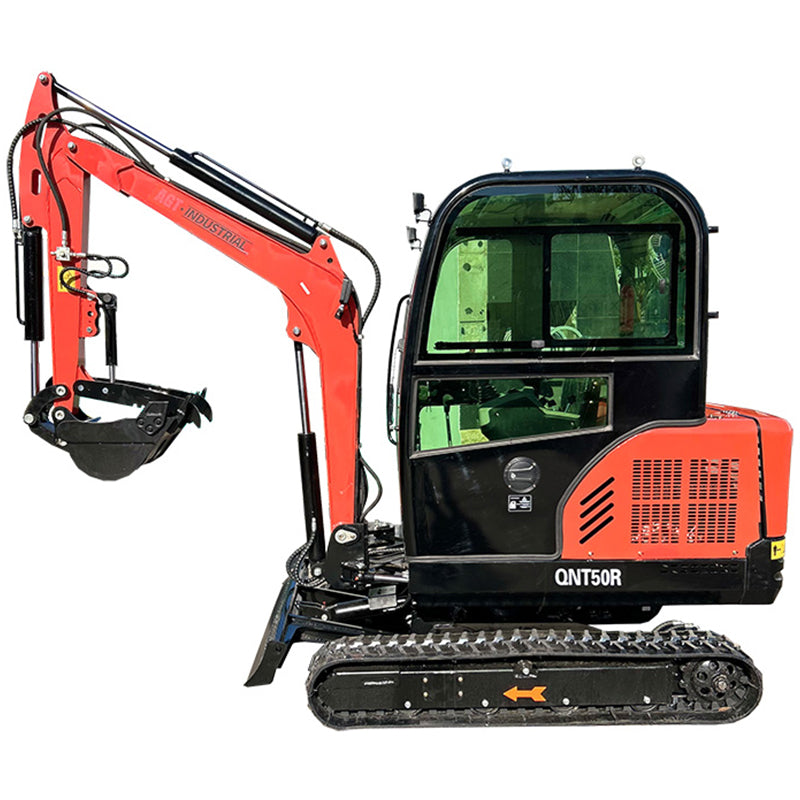

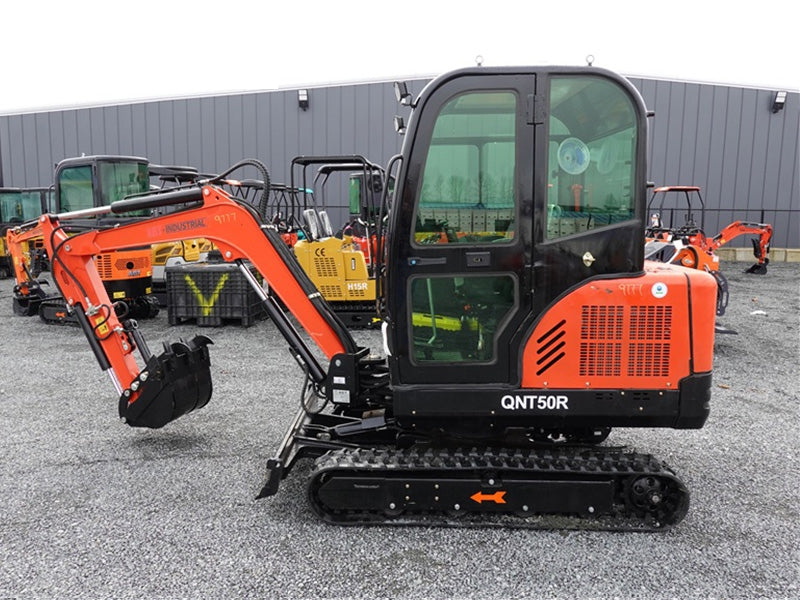

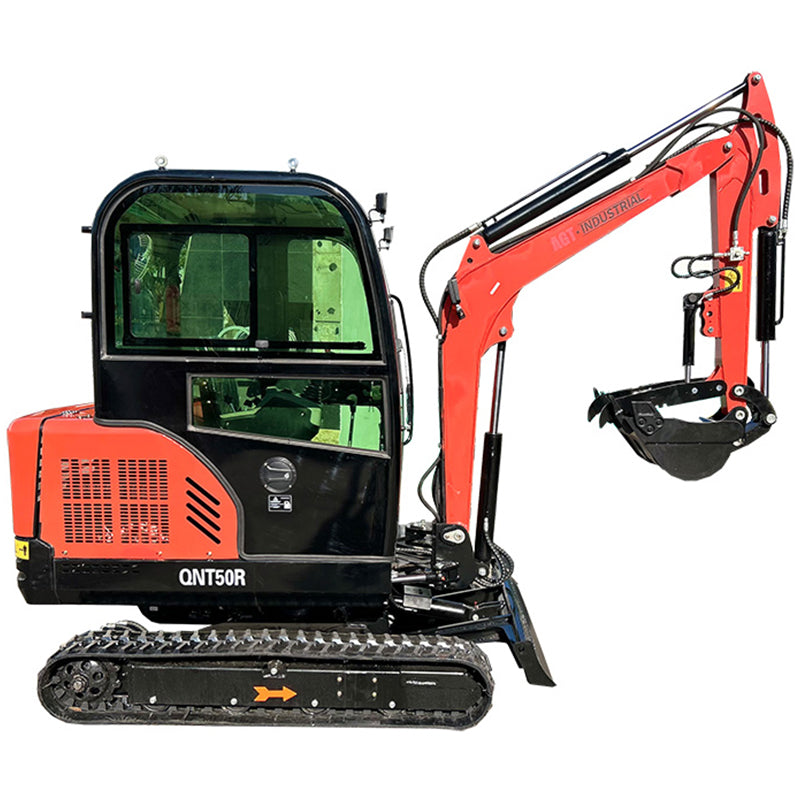

The AGTQNT50R is a professional-grade mini excavator designed for tight jobsitework. Powered by a robust RATO825 gasoline engine (20.5 kW / ~28 HP), it features a hydraulic thumb, pilot-controlled joysticks, side-swing boom, and rubber tracks.Equipped with a fully enclosed cab (LED lights, fans, mirrors), a 54-inch blade, and auxiliary hydraulics, it's engineered for high performance, versatility, and operator comfort in landscaping, utility, and construction environments.

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Model Information
Configuration Status	√Standard, △Optional, ×None
Model	QNT50R
Basic Performance Parameters
Bucket Capacity (m³)	0.08
Walking Speed (Km/h)	0–1.8
Gradeability (%)	11
Maximum Excavation Height (mm)	3600
Maximum Unloading Height (mm)	2400
Maximum Digging Radius (mm)	4200
Minimum Radius of Gyration (mm)	2050
Minimum Gyration Radius of Tail (mm)	1200
Maximum Lifting Height of Bulldozer	170
Maximum Digging Height of Bulldozer	300
Size
Total Length (mm)	5400
Total Width (mm)	1300
Total Height (mm)	2200
Tread Width (mm)	1500
Track Gauge (mm)	1070

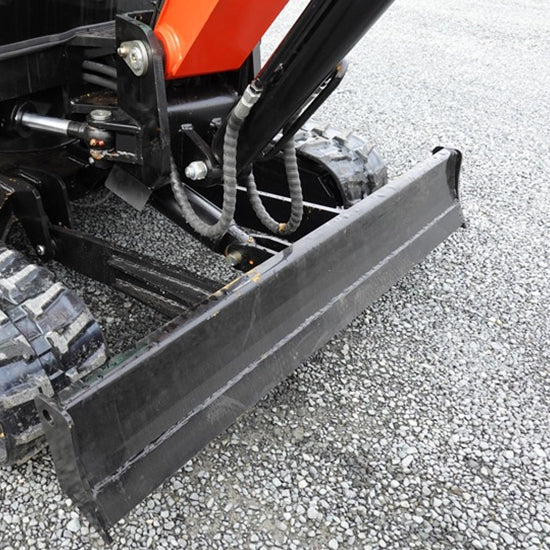

Bulldozer Width / Height (mm)	1300 / 230

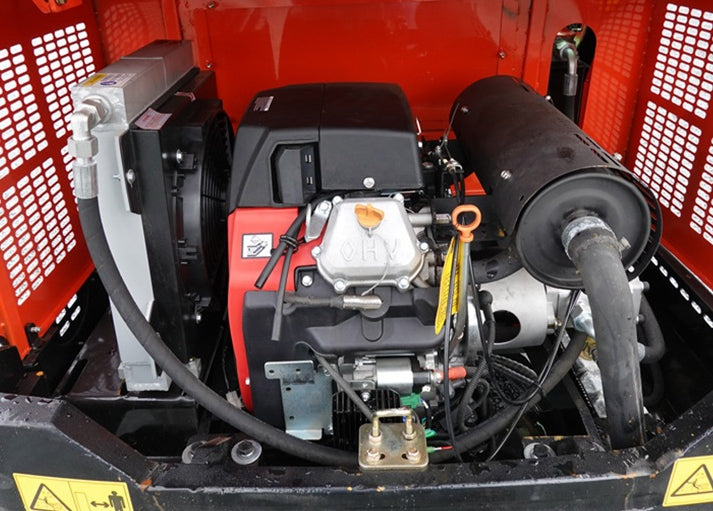

Engine
Engine Brand	RATO
Engine Model	825
Maximum Power (kW)	20.5
Maximum Rotation Speed (rpm)	3600
Number of Cylinders	2
Cooling Method	Air Cooling
Engine Oil Change Volume (L)	1.6
Fuel Type	Gasoline
Fuel Label	92#
Theoretical Fuel Consumption (L/h)	0.82
Hydraulic System
Main Pump Type / Model	GP5183
Main Pump Brand	Tianjin Walking
Rated Set Pressure (Mpa)	16.8
Max. Flow Rate of Main Pump (L/min)	21.6
Multi-way Valve	4 Mechanical + 4 Hydraulic Control
Multi-way Valve Brand	Taiheng
Rated Set Pressure (Mpa)	16.3
Walking Hydraulic Motor Type	BM6-390
Walking Motor Brand	Ken / Liyuan
Motor Displacement	390
Rotary Hydraulic Motor Type	2.5K
Displacement	400
Track
Rubber (Track Width × Pitch × Number of Sections)	230 × 72 × 54
