SKU:JK-KRW232

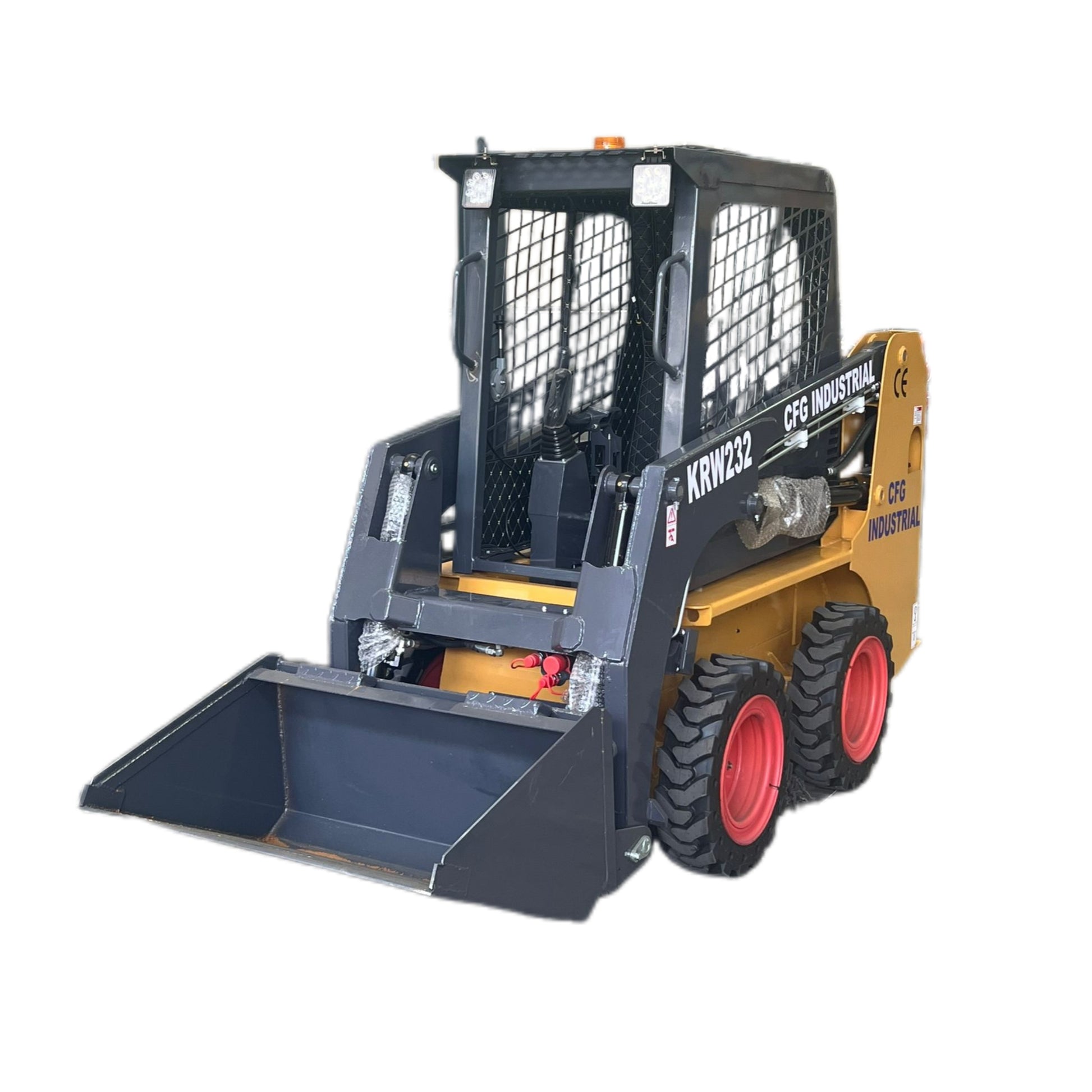

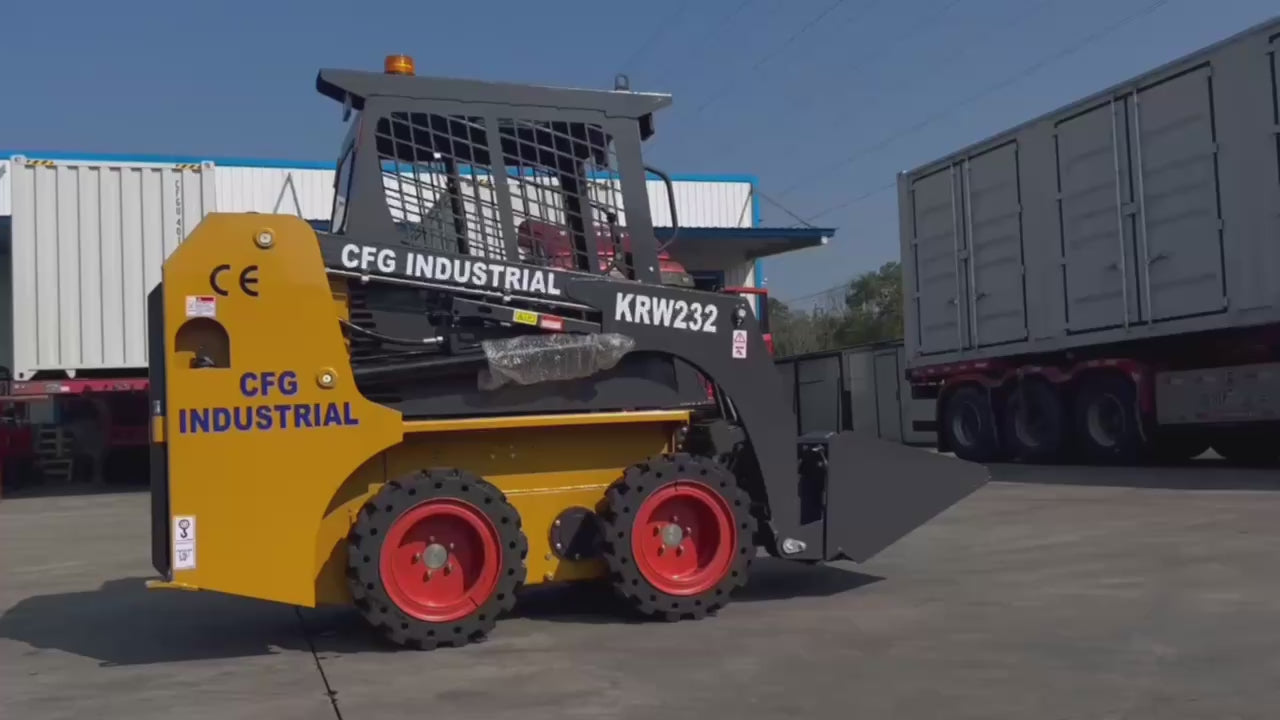

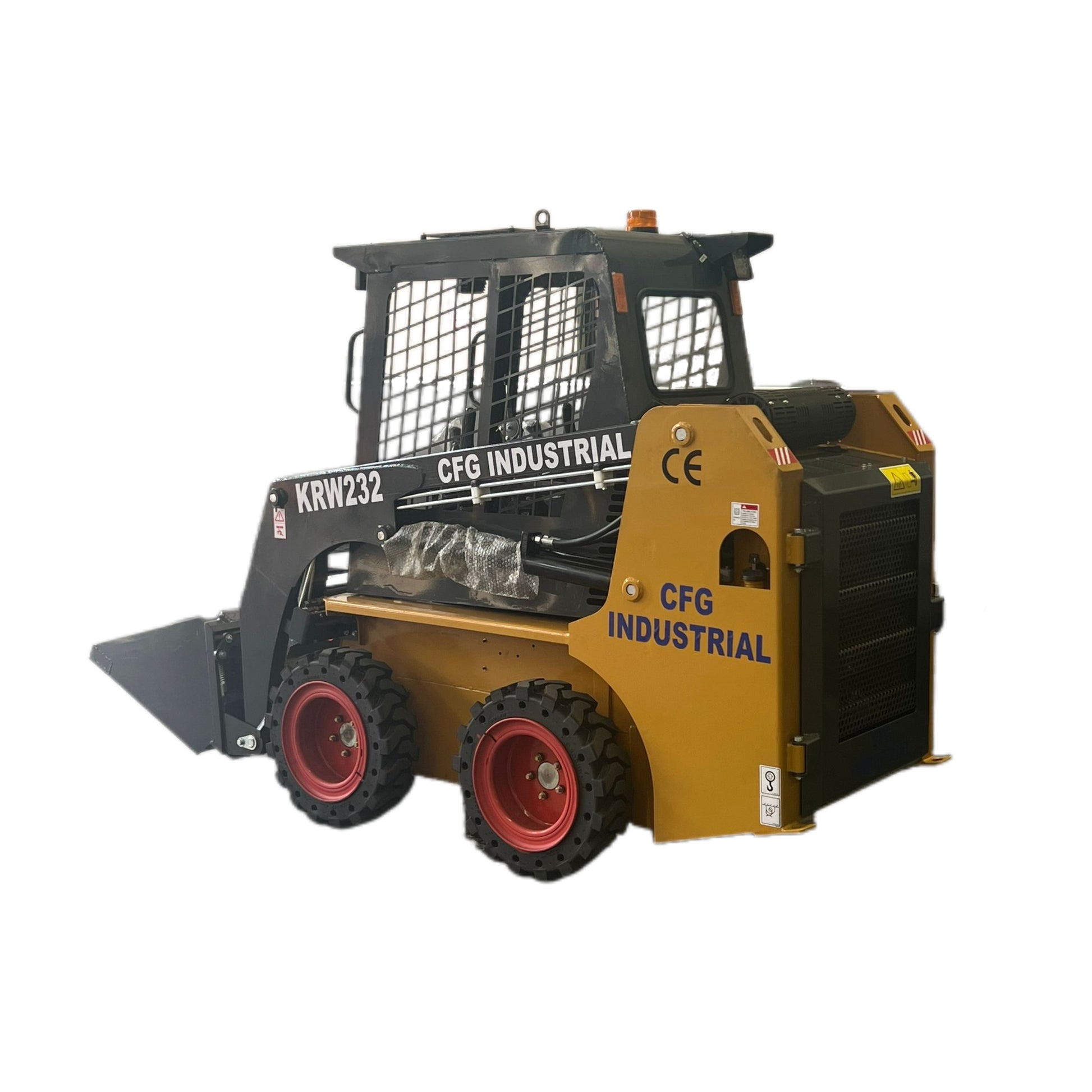

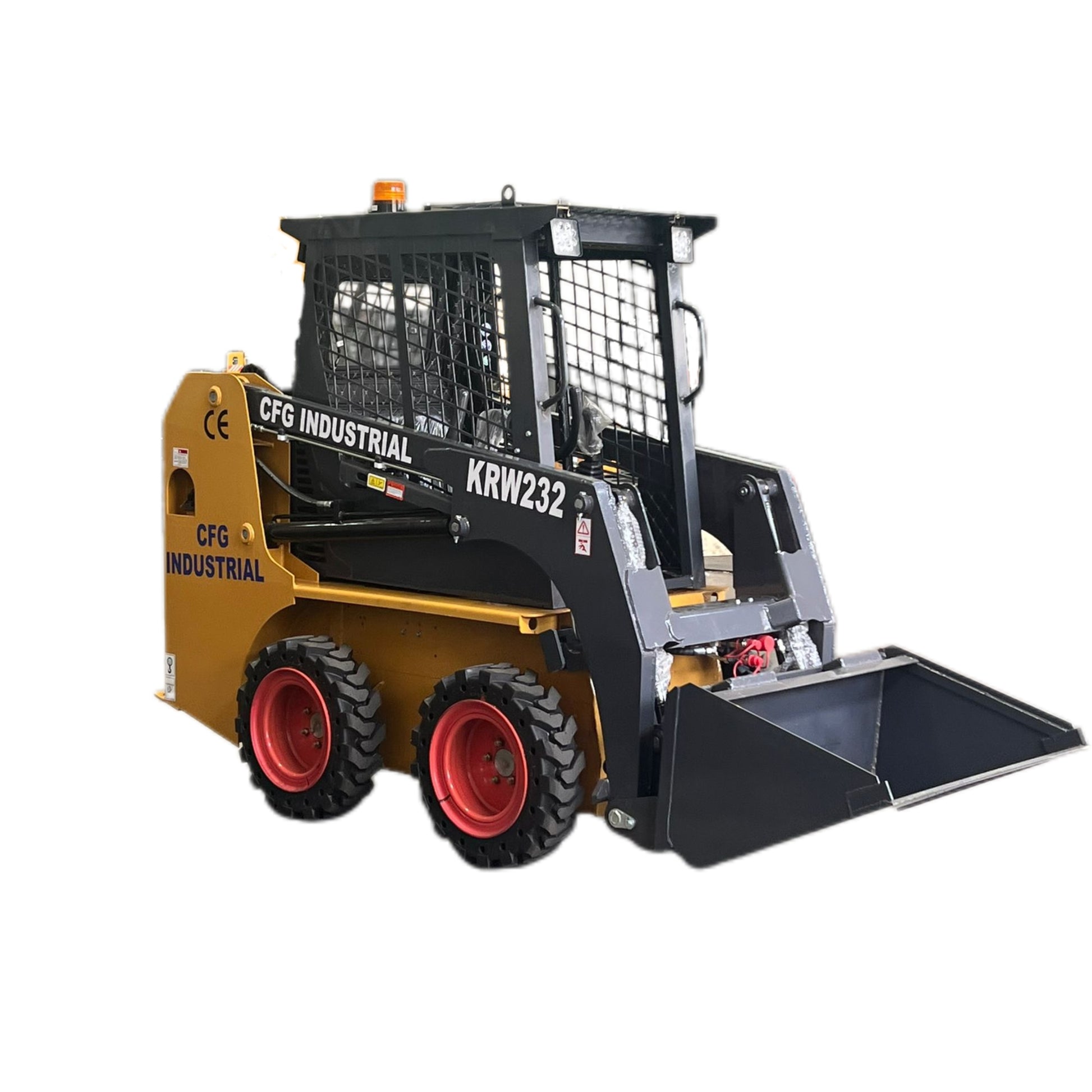

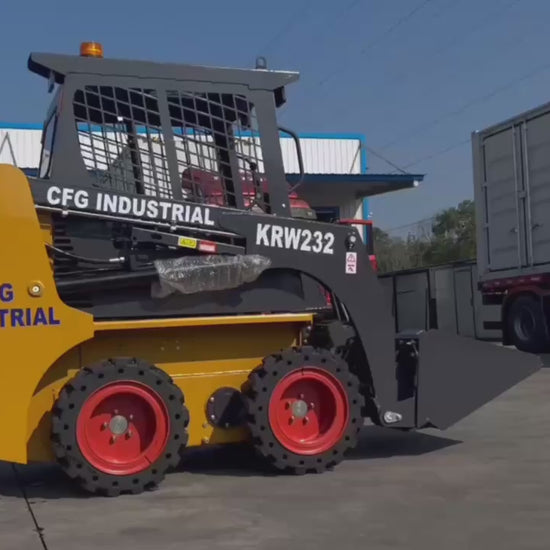

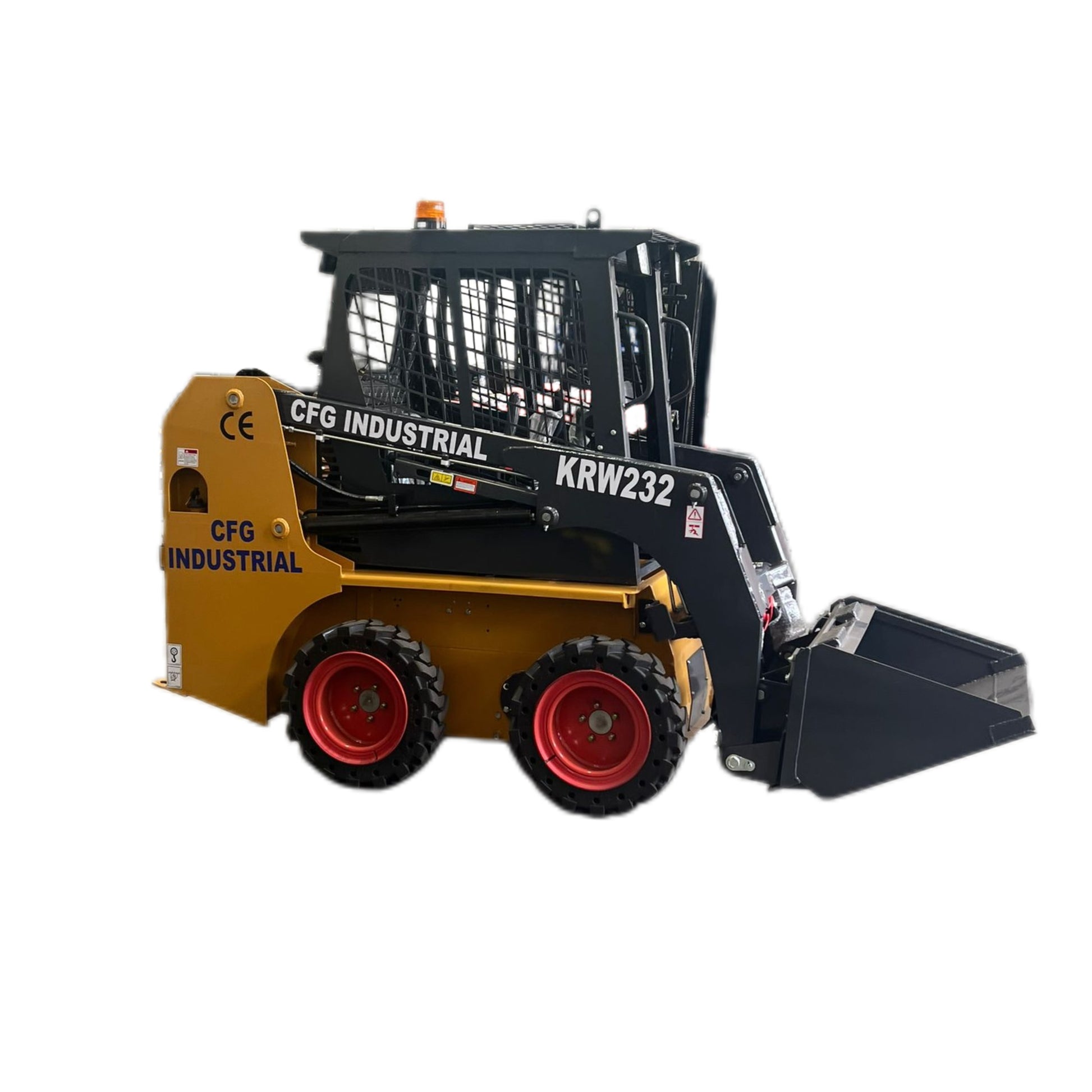

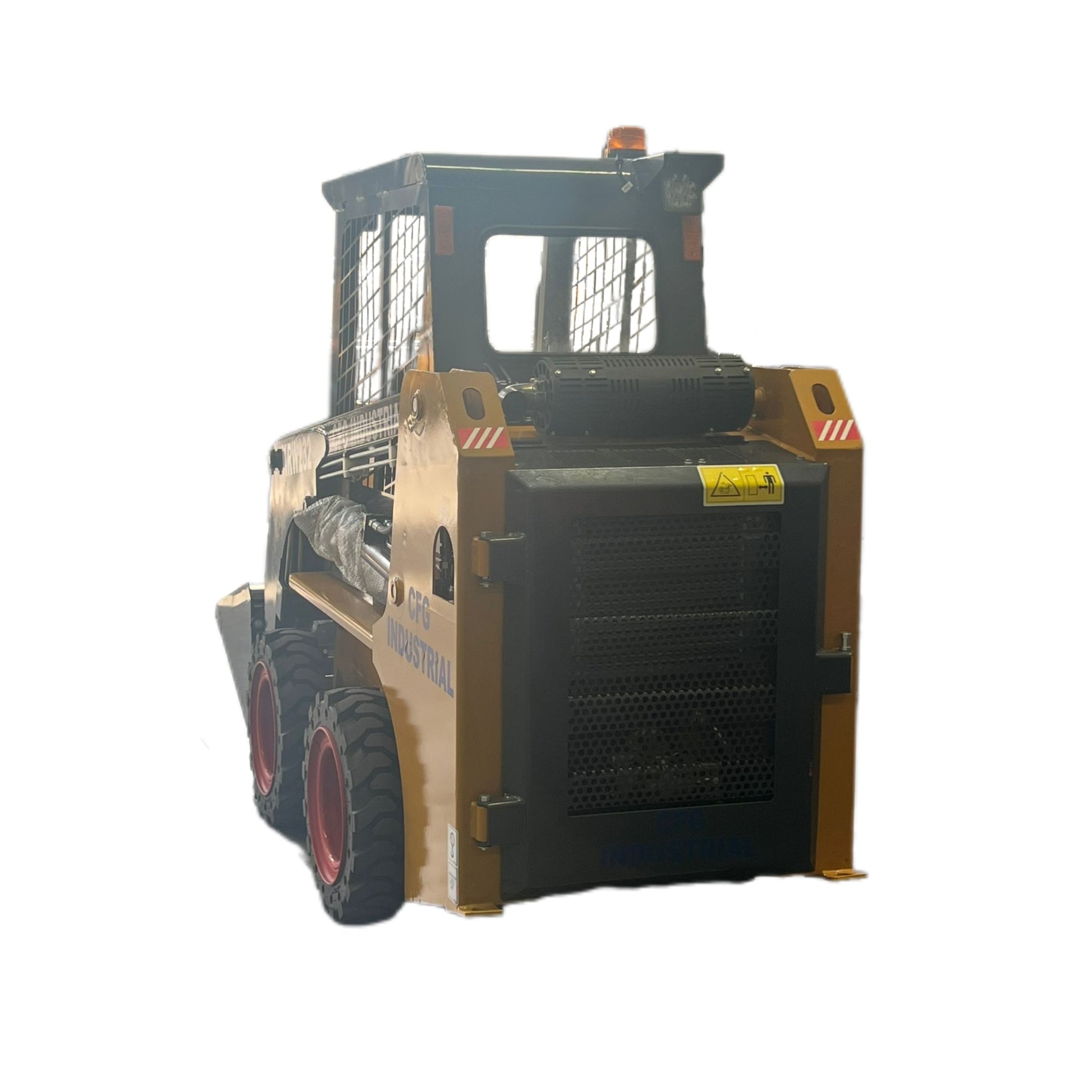

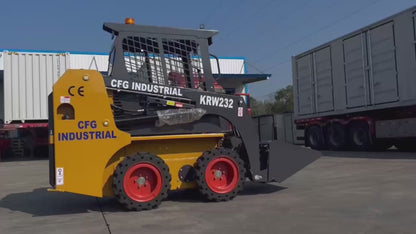

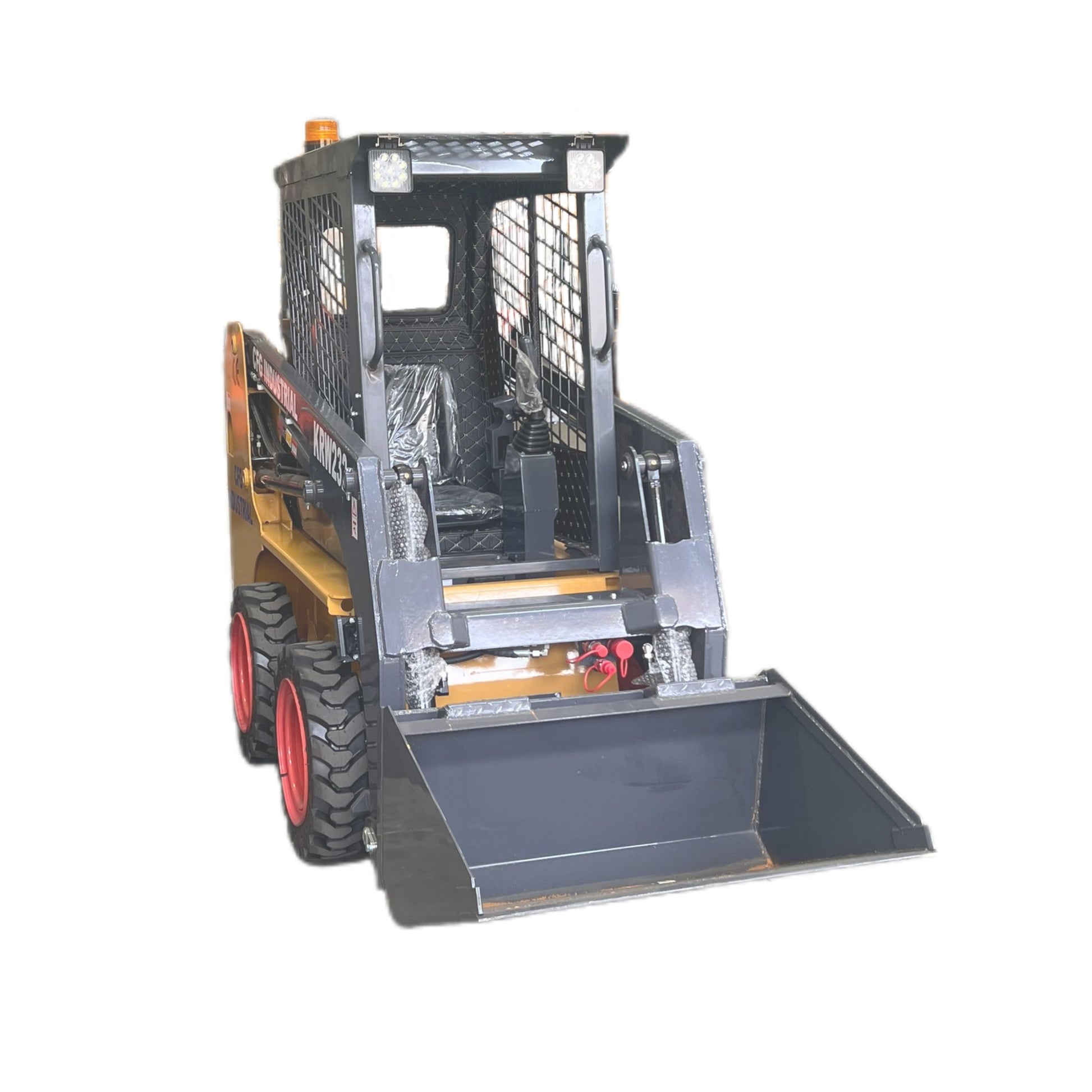

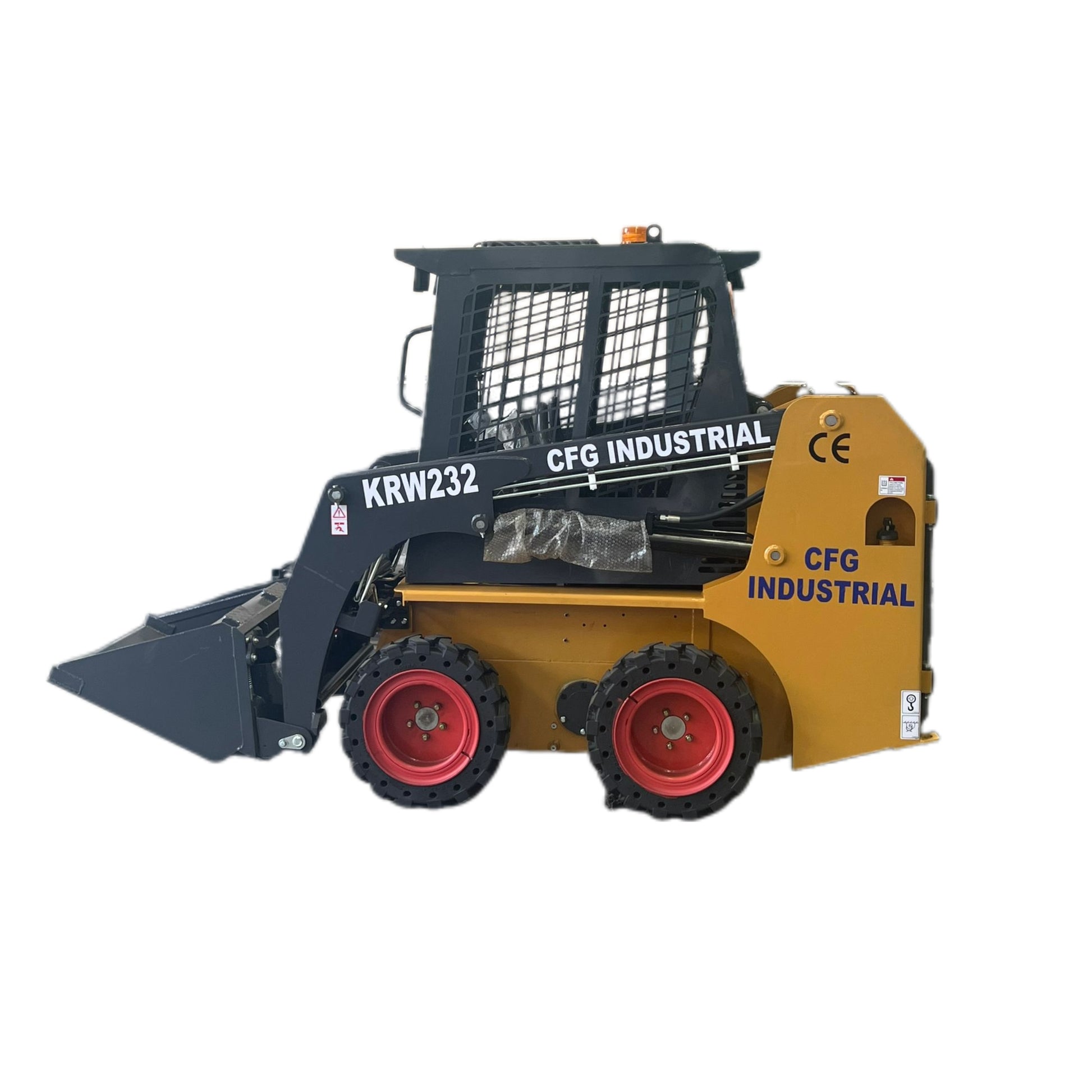

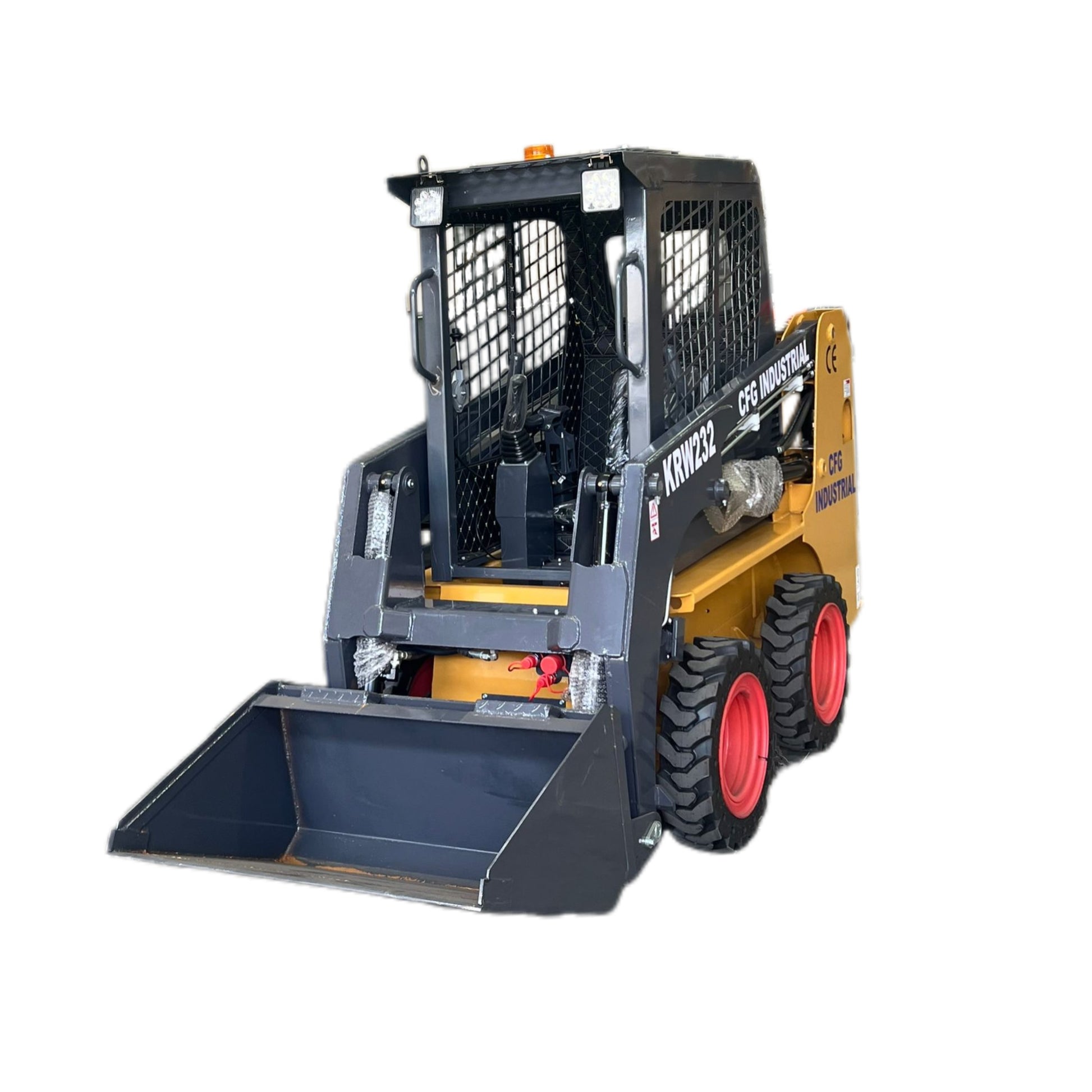

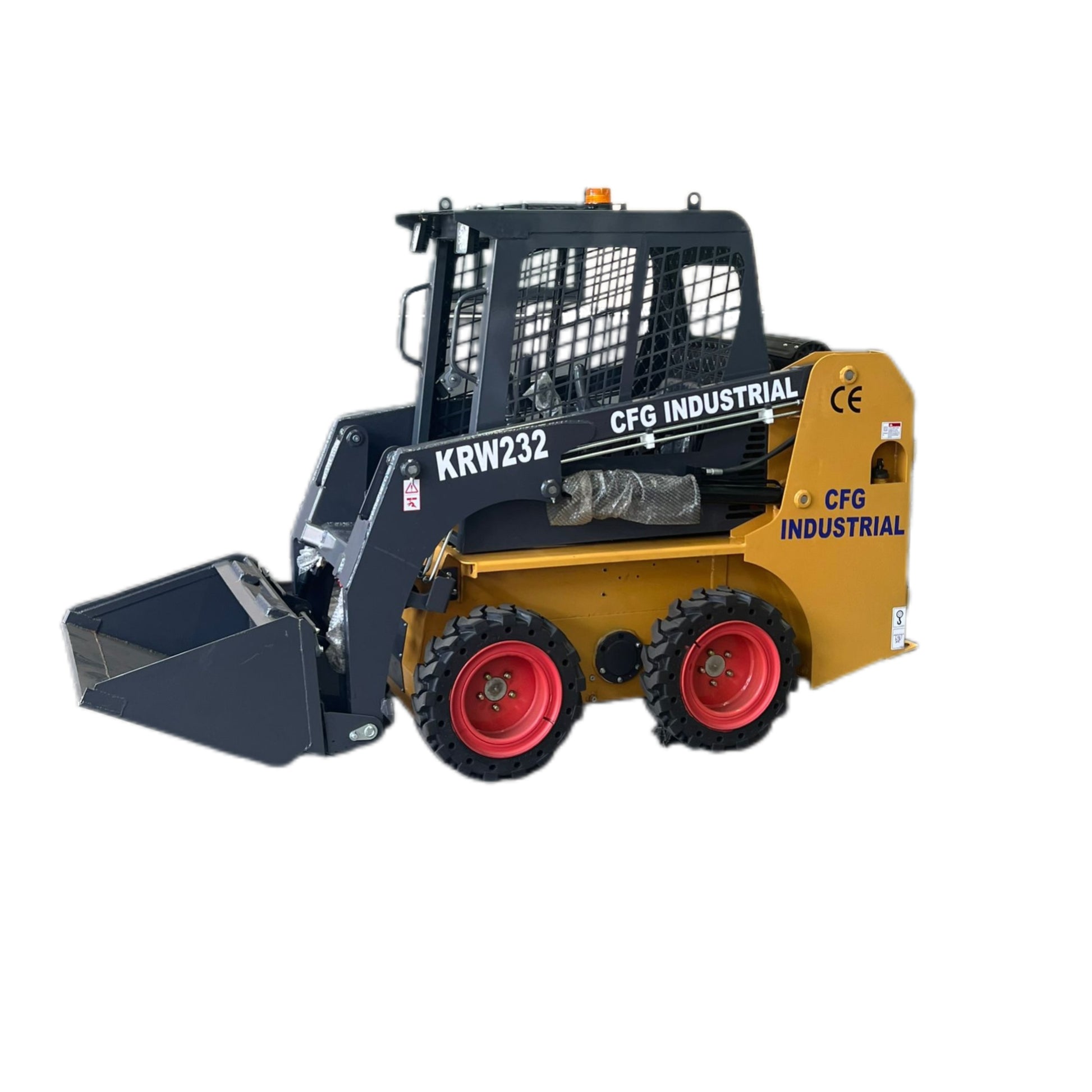

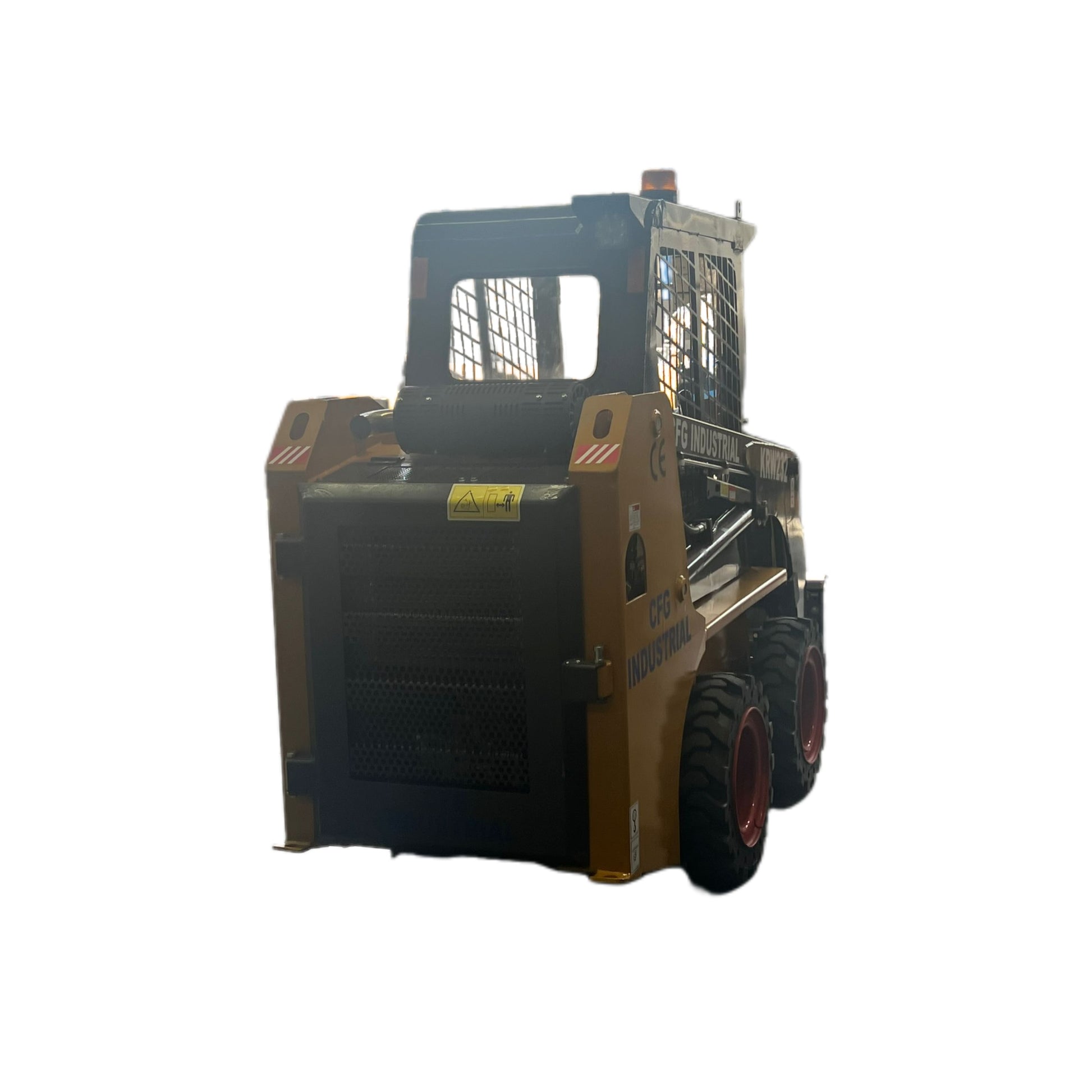

1.25 Ton Rato Engine Mini Skid Steer JK-KRW232

Name: 1.25 Ton Rato Engine Mini Skid Steer JK-KRW232
Brand: Kelis Machinery
SKU: JK-KRW232
Price: 13000.00 USD
Availability: InStock

1 14

$13,000.00

Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

832-993-8676Sales Contact Number

yuanxin01@cfgindustrial.comSales Contact Email

View full details

Product Overview

The JK-KRW232 is a compact yet powerful loader designed for demanding tasks onfarms, construction sites, and industrial yards. With a working weight of 1100 kg and astrong 380 kg lifting force, this machine offers reliable performance in a maneuverablepackage.
It features a robust Rato air-cooled gasoline engine delivering 33 HP, supported by ahigh-capacity hydraulic system with a 70 L/min flow rate ideal for fast cycle times andefficient operation. The JK-KRW232 also boasts a tight 900 mm width and a 40° bucket discharge angle, making it perfect for tight-access tasks and quick loading jobs.

Product manual (PDF) JK-KRW232_12.07.docx

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Model Information
Configuration Status	√Standard, △Optional, ×None
Model	KRW232
Basic Performance Parameters
Working Weight (kg)	1100

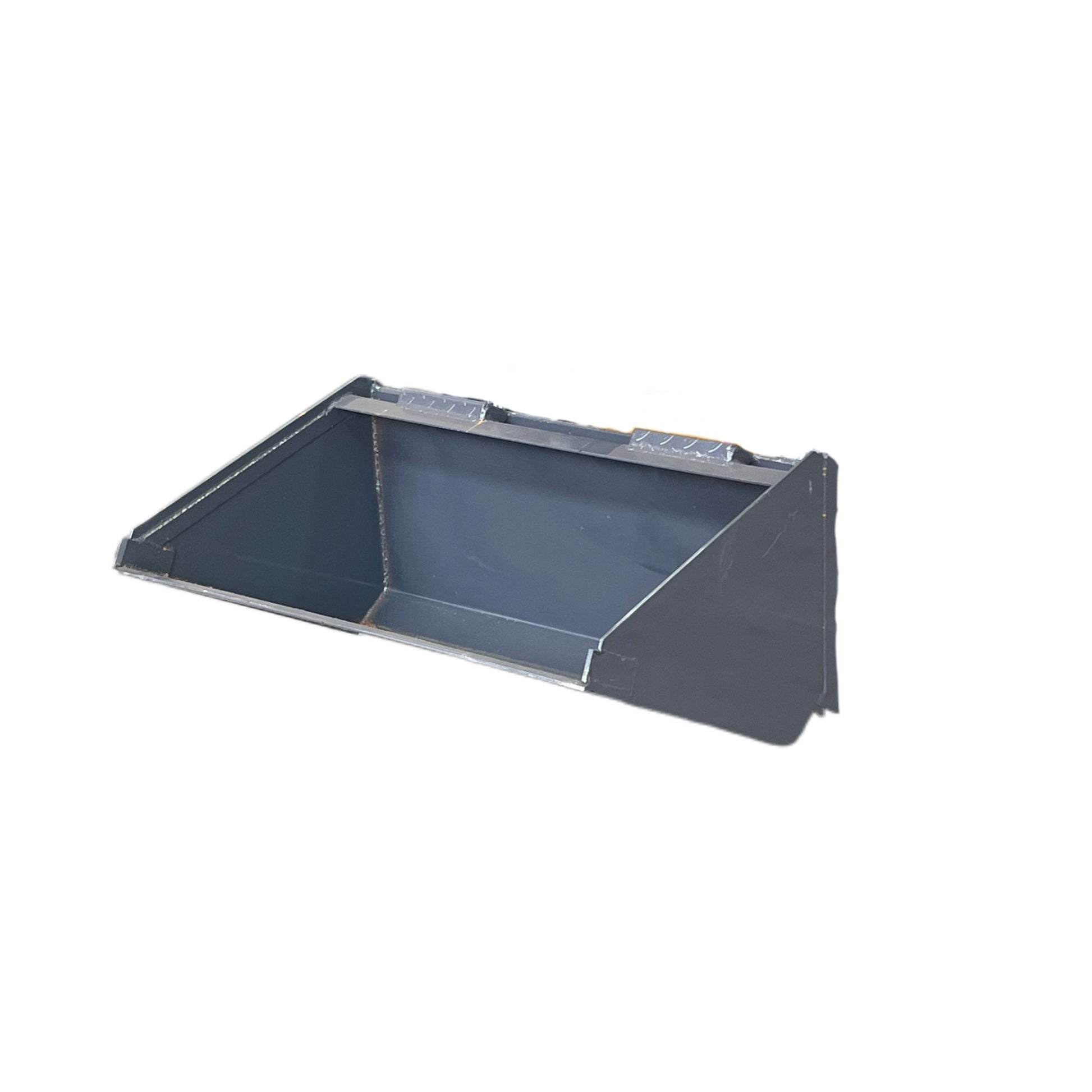

Bucket capacity (m³)	0.16
Travel high speed (Km/h)	4.5
Maximum lifting force (Kg)	380
A Maximum working height (mm)	3590
H Unloading height (mm)	1820
L Wheelbase (mm)	801
G Max. height unloading angle (°)	40
Equipment Body
F Overall Length (mm)	2580
E Overall Length (mm) (without bucket)	1945
T Overall Width (mm)	900
C Overall Height (mm)	1820
Engine
Engine Brand	Rato
Max. Horsepower (HP)	33
Cooling method	Air-cooled
Fuel Type	Gasoline
Fuel Grade	92#
Theoretical fuel consumption (L/h)	10
Hydraulic System
Main pump model	PGP532B62
Max. flow rate of main pump (L/min)	70
Tracks

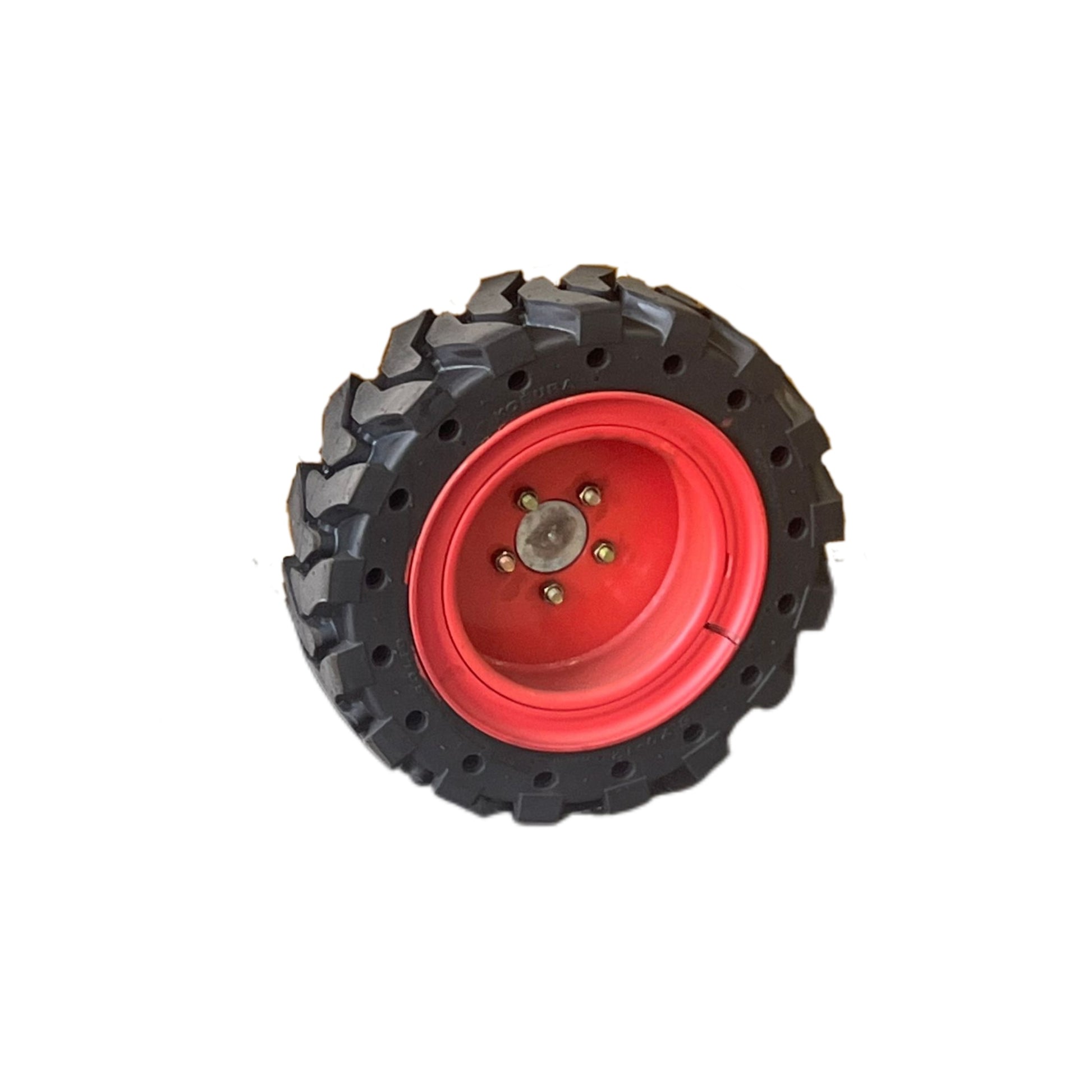

Wheels	570×16
Fuel Tank
Fuel tank (L)	40
Hydraulic oil tank (L)	40
