SKU:AGT-KH16R

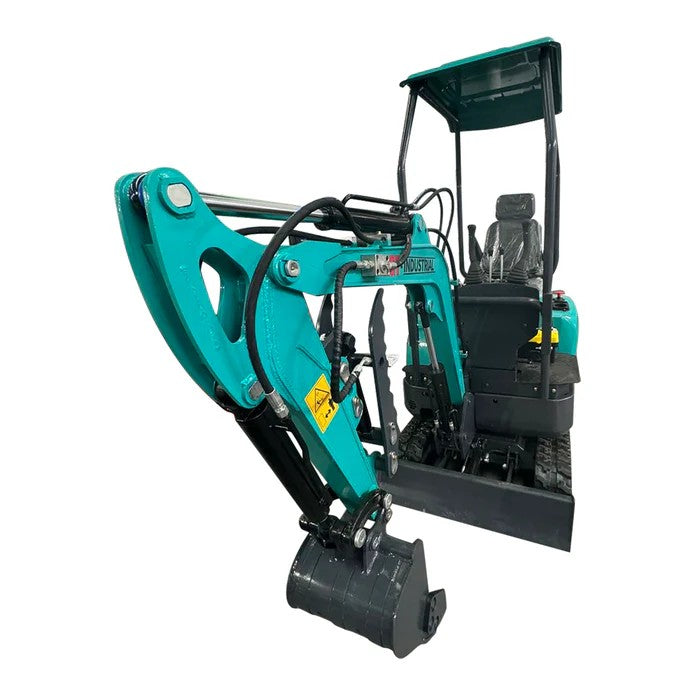

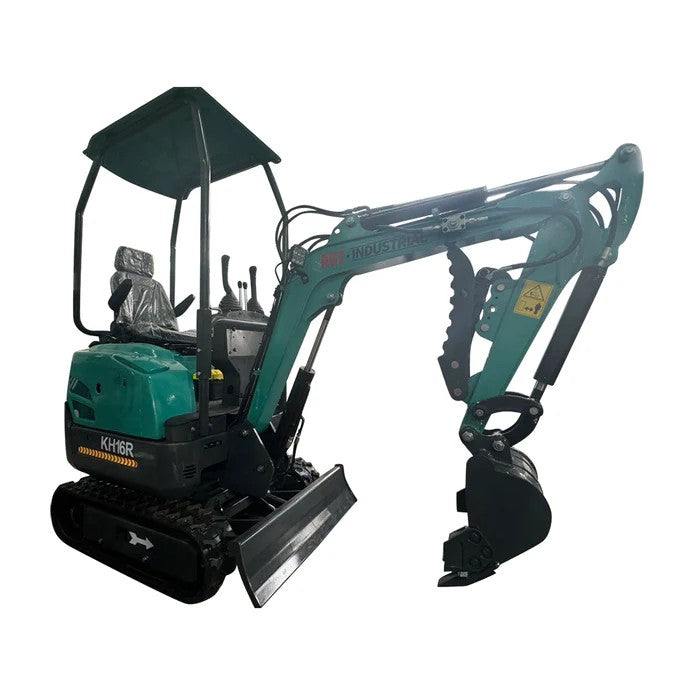

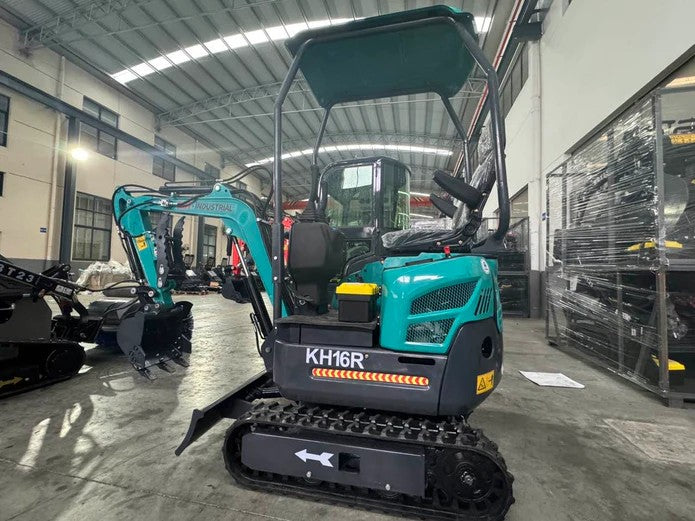

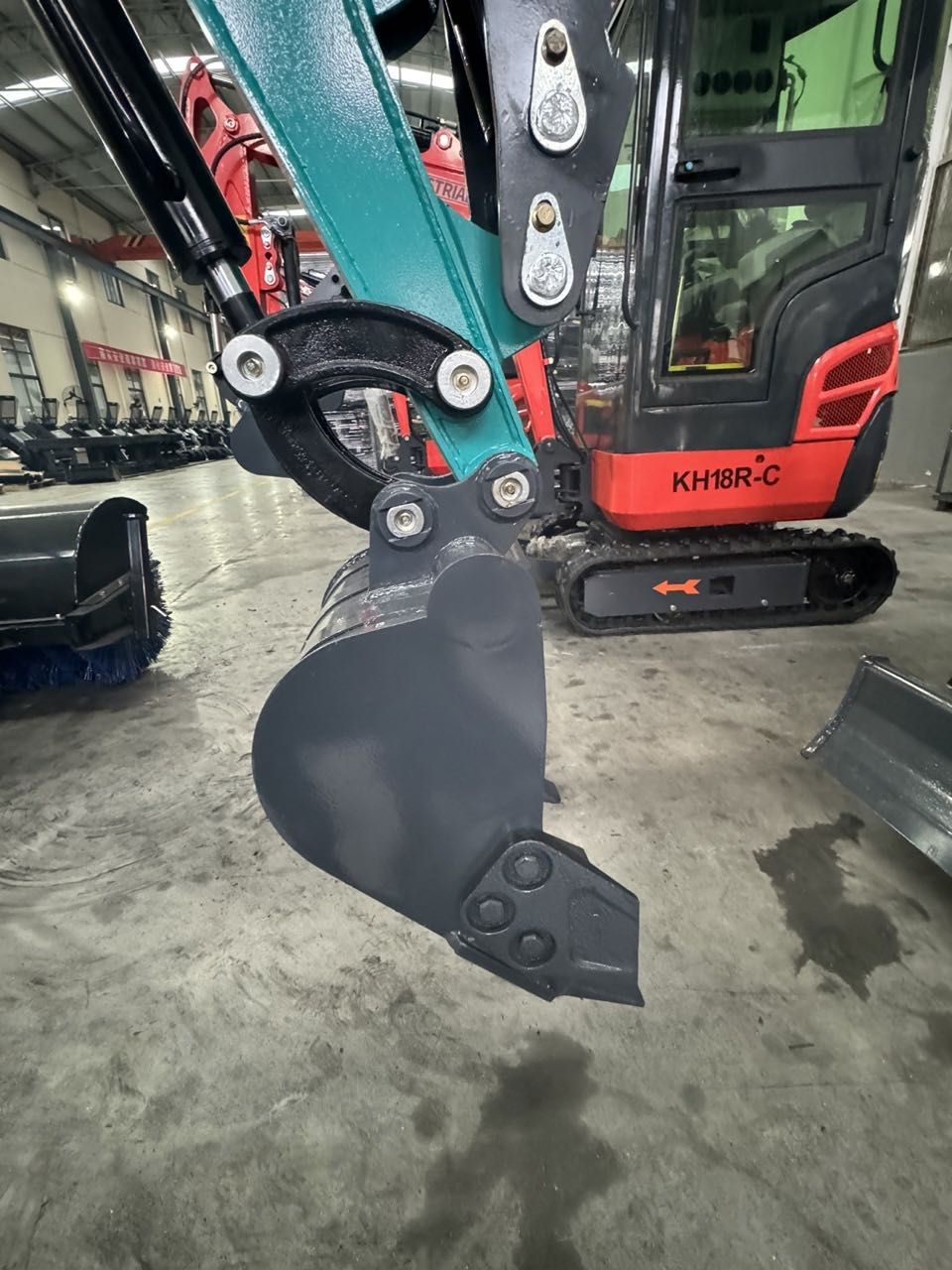

1 Ton Mini Excavator with Hydraulic Thumb Gasoline RATO Engine KH16R

Name: 1 Ton Mini Excavator with Hydraulic Thumb Gasoline RATO Engine KH16R
Brand: Kelis Machinery
SKU: AGT-KH16R
Price: 8415.00 USD
Availability: InStock

1 11

$8,415.00

Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

832-993-8676Sales Contact Number

yuanxin01@cfgindustrial.comSales Contact Email

View full details

Product Overview

The AGT-KH16R is a compact and versatile 1-ton mini excavator designed for various
excavation tasks.

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Basic Performance Parameters
Model	KH16R
Working Weight (kg)	900
Bucket Capacity (m³)	0.016
Travel Speed Low/High (Km/h)	0–1.8
A: Maximum Digging Height (mm)	2400
B: Maximum Unloading Height (mm)	1960
C: Maximum Digging Depth (mm)	1670
E: Maximum Digging Radius (mm)	3060
Body
Model	QK16R
J: Overall Length (mm)	2870
K: Overall Width (mm)	910
L: Overall Height (mm)	2283
Bulldozer Width / Height (mm)	907 / 210
Engine
Engine Brand	RATO
Engine Model	R420D
Max. Power (kW)	8.6
Max. Speed (rpm)	3600
Cylinders	1
Cooling Method	Fan Cooling
Engine Oil Change Quantity (L)	1.1
Fuel Type	92# Gasoline
Theoretical Fuel Consumption (L/h)	0.5–1.2
Hydraulic System
Main Pump Type / Model	Gear Pump / 06
Main Pump Brand	Tianjin Xingzou
Rated Set Pressure (Mpa)	23.5
Max. Flow Rate of Main Pump (L/min)	21.6

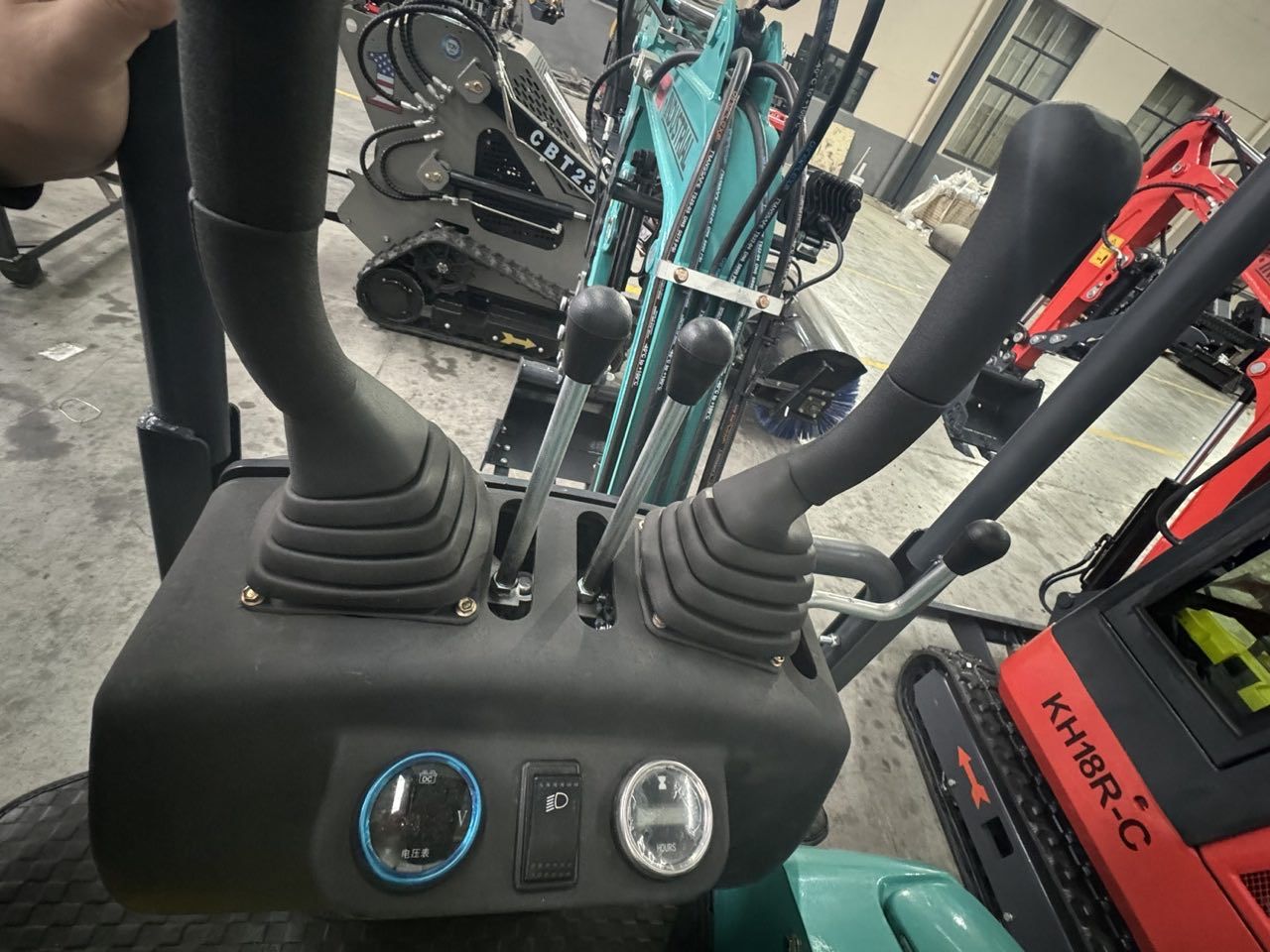

Multi-way Valve	8 manually operated multi-way valves
Brand of Multi-way Valve	Hua Sheng
Rated Set Pressure (Mpa)	16
Hydraulic Linear Motor Type	BM6-310
Linear Motor Brand	Li Yuan
Hydraulic Servo Motor Type	BM2-250
