SKU:MX-MRT14

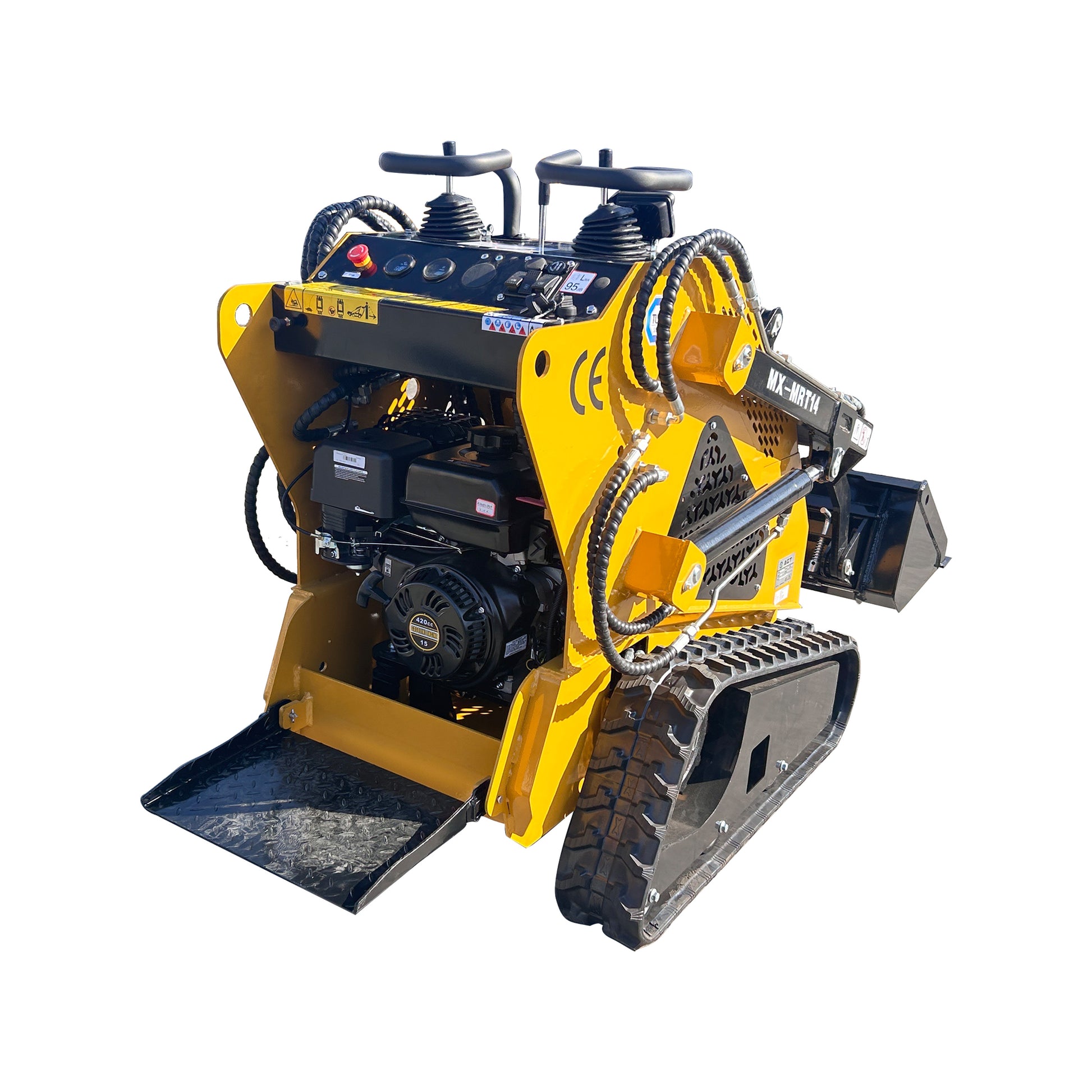

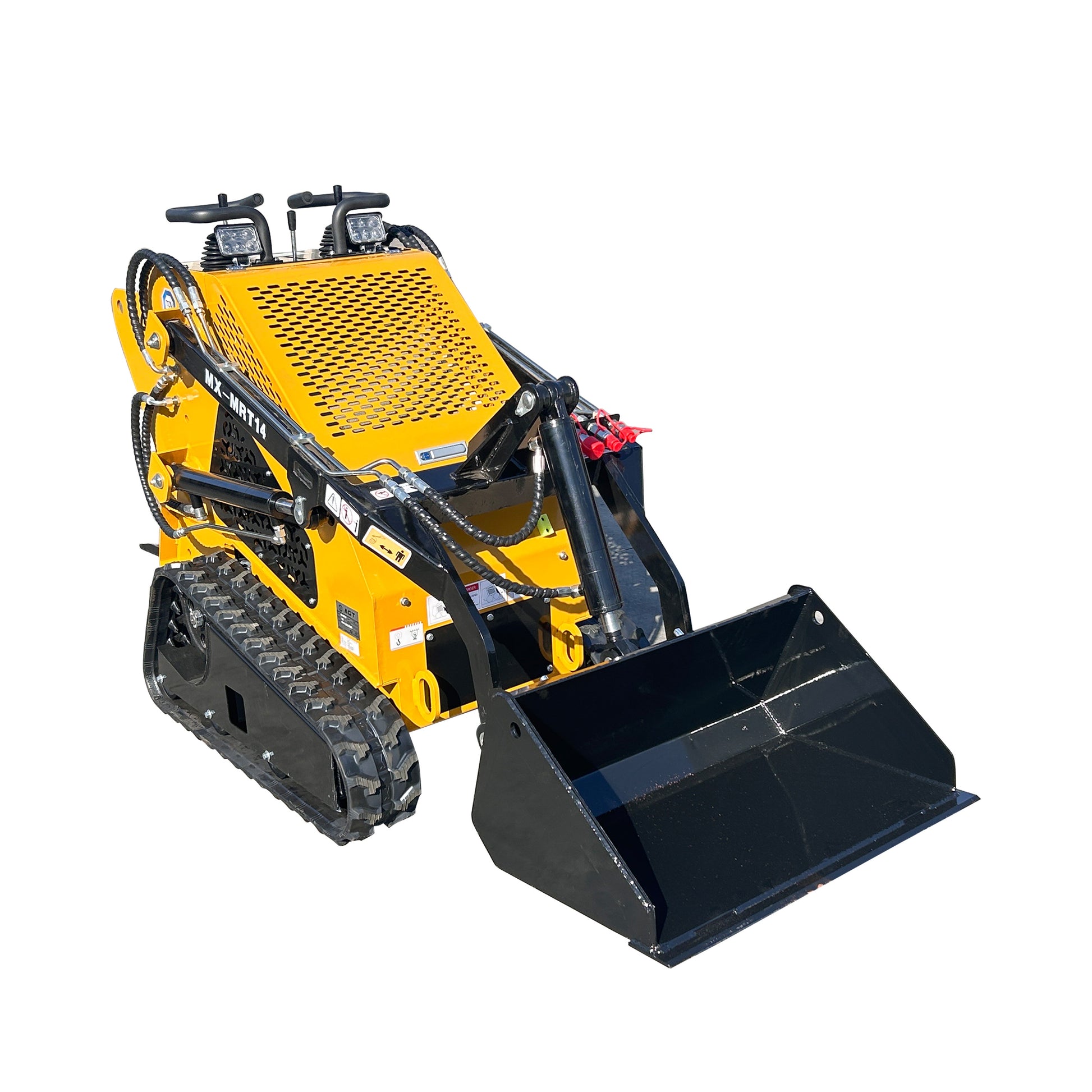

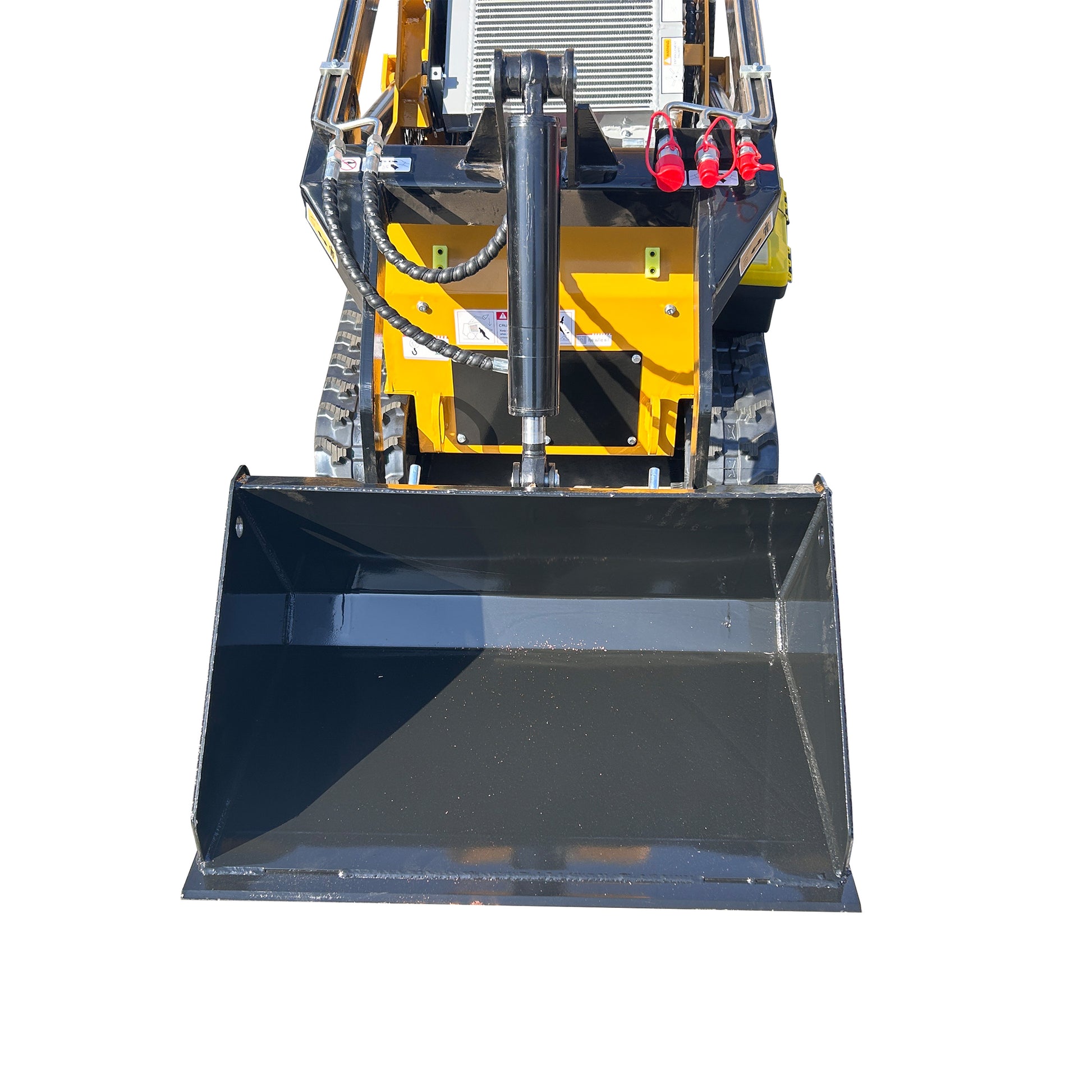

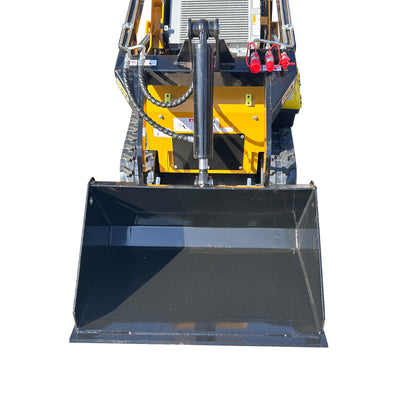

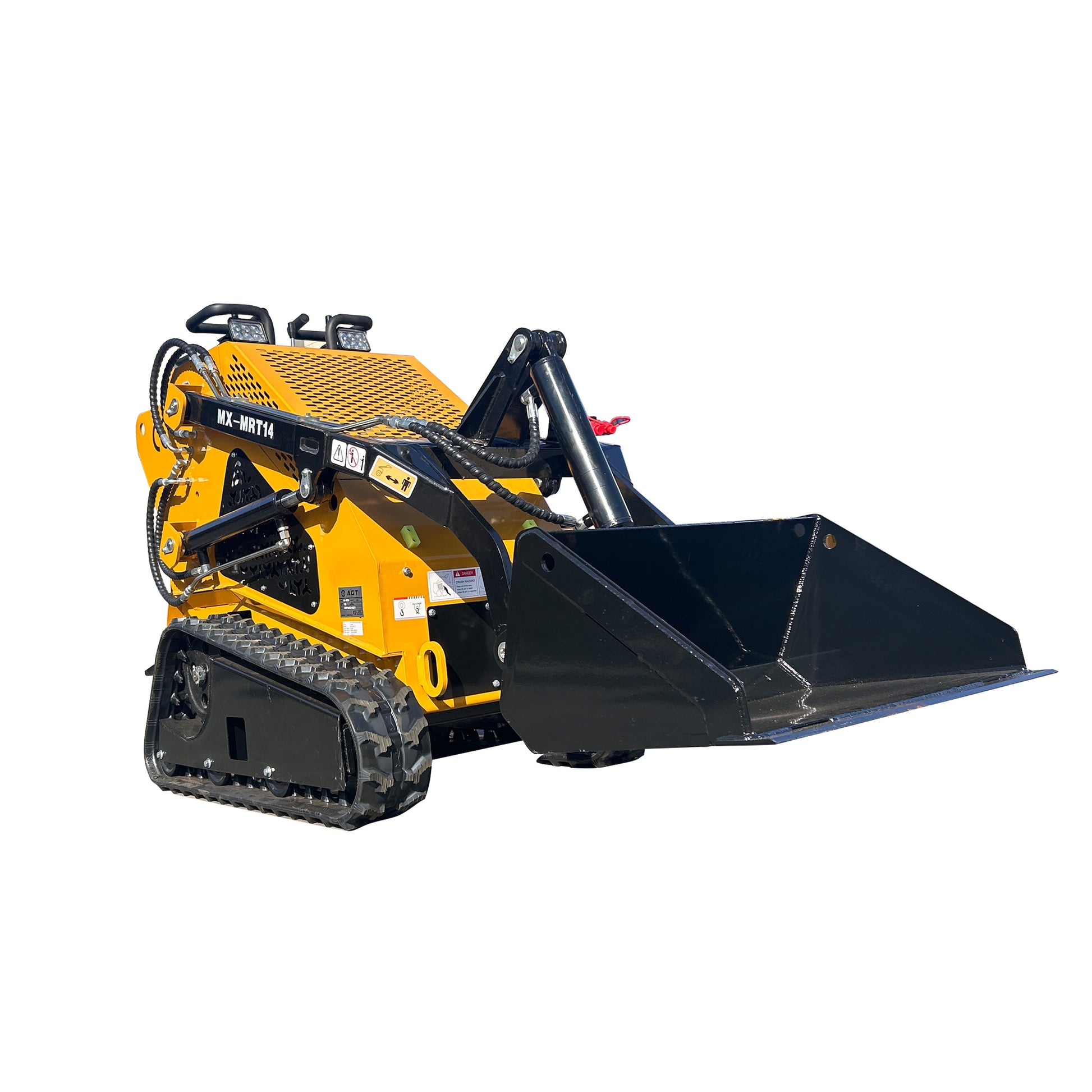

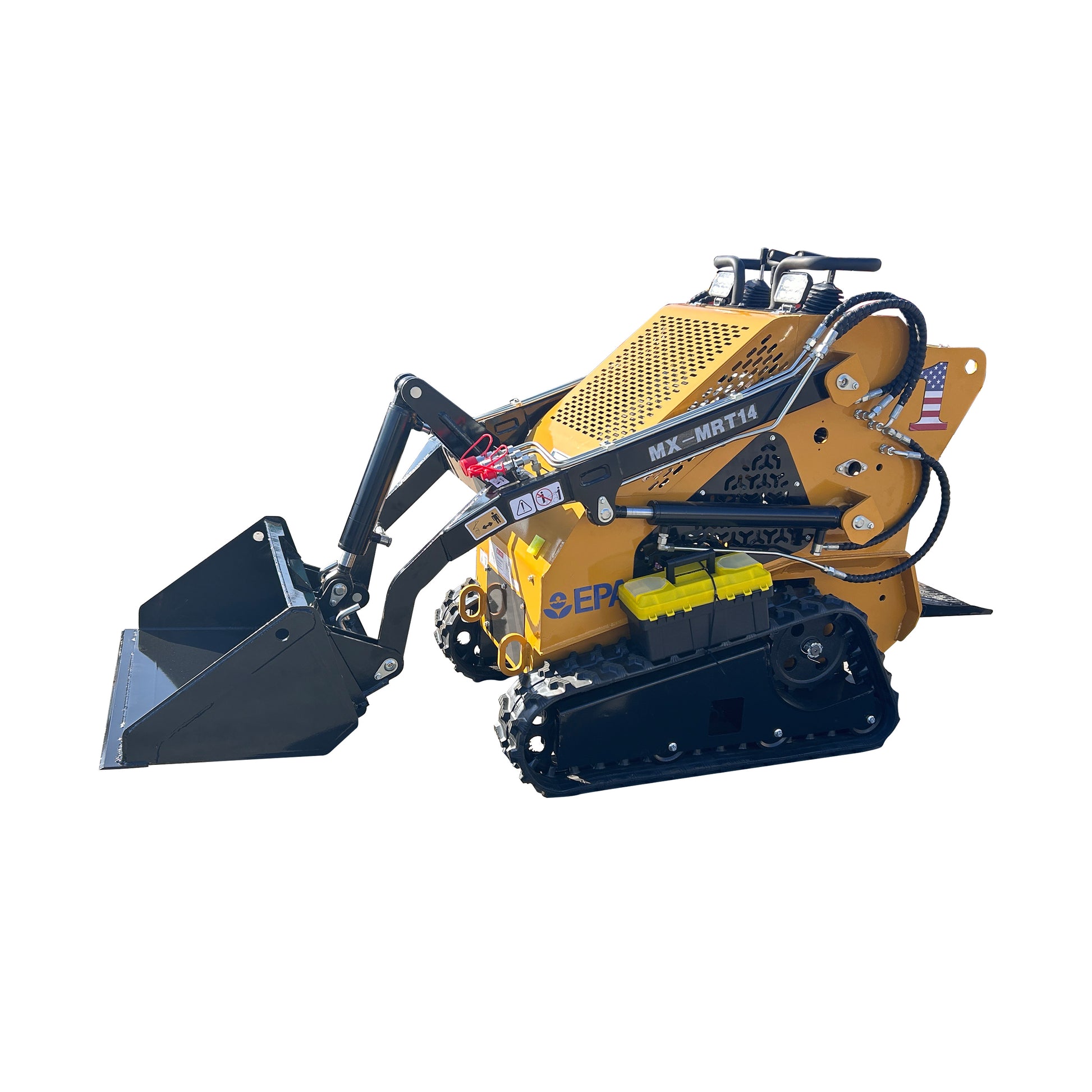

1Ton, 13.5HP Mini Skid steer Loaders Crawler Track Rato Engine | MX-MRT14
1Ton, 13.5HP Mini Skid steer Loaders Crawler Track Rato Engine | MX-MRT14
Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).
Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Couldn't load pickup availability
Product Overview

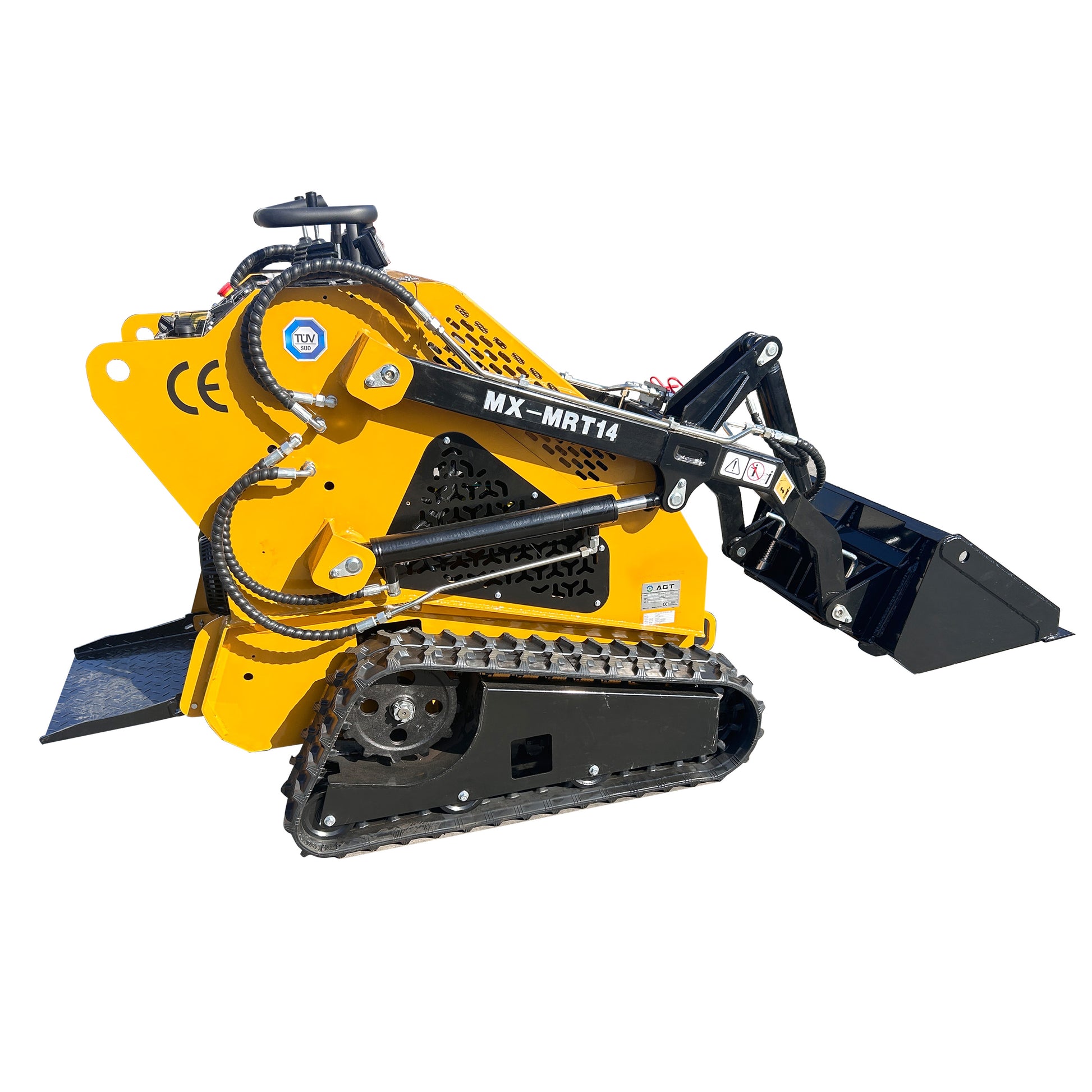

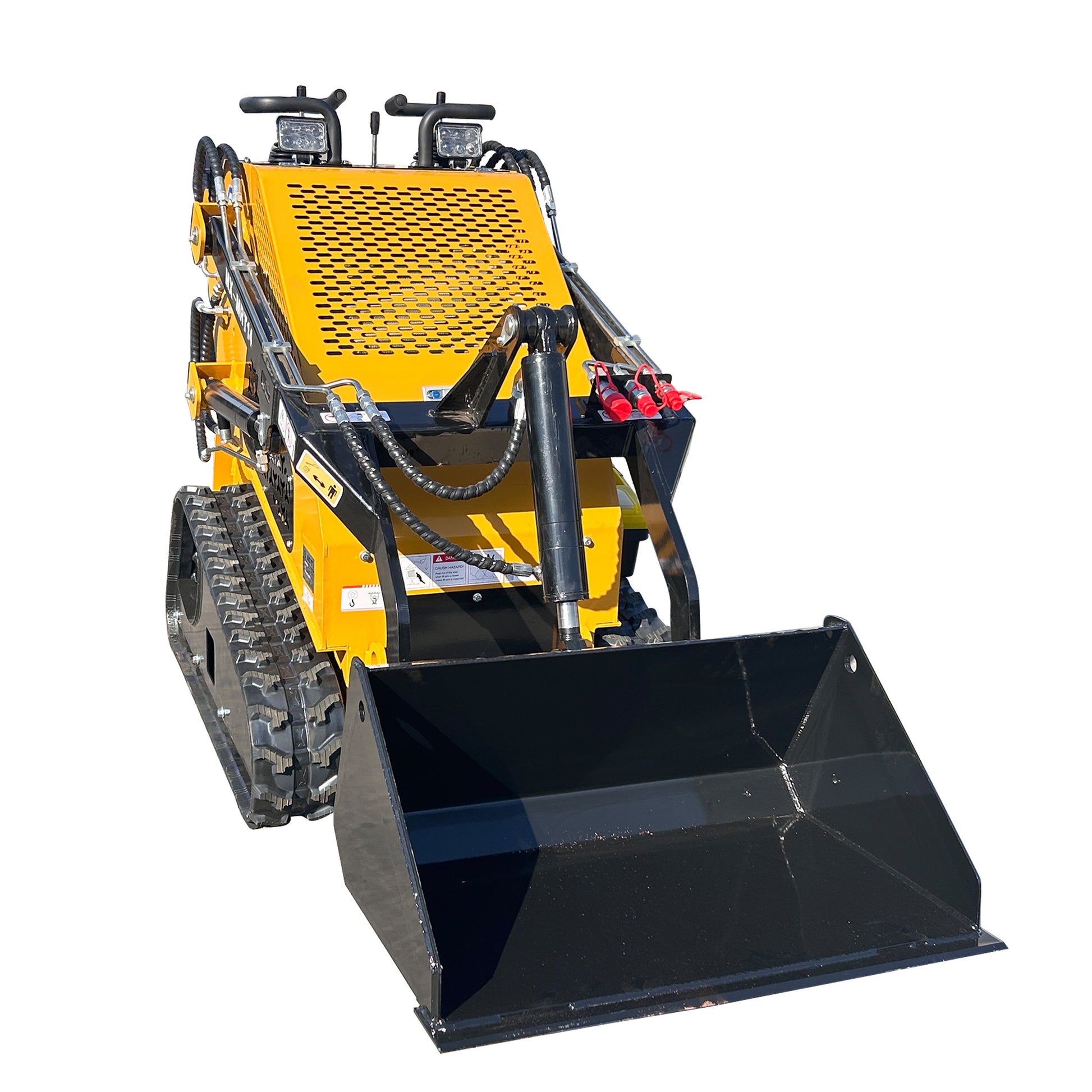

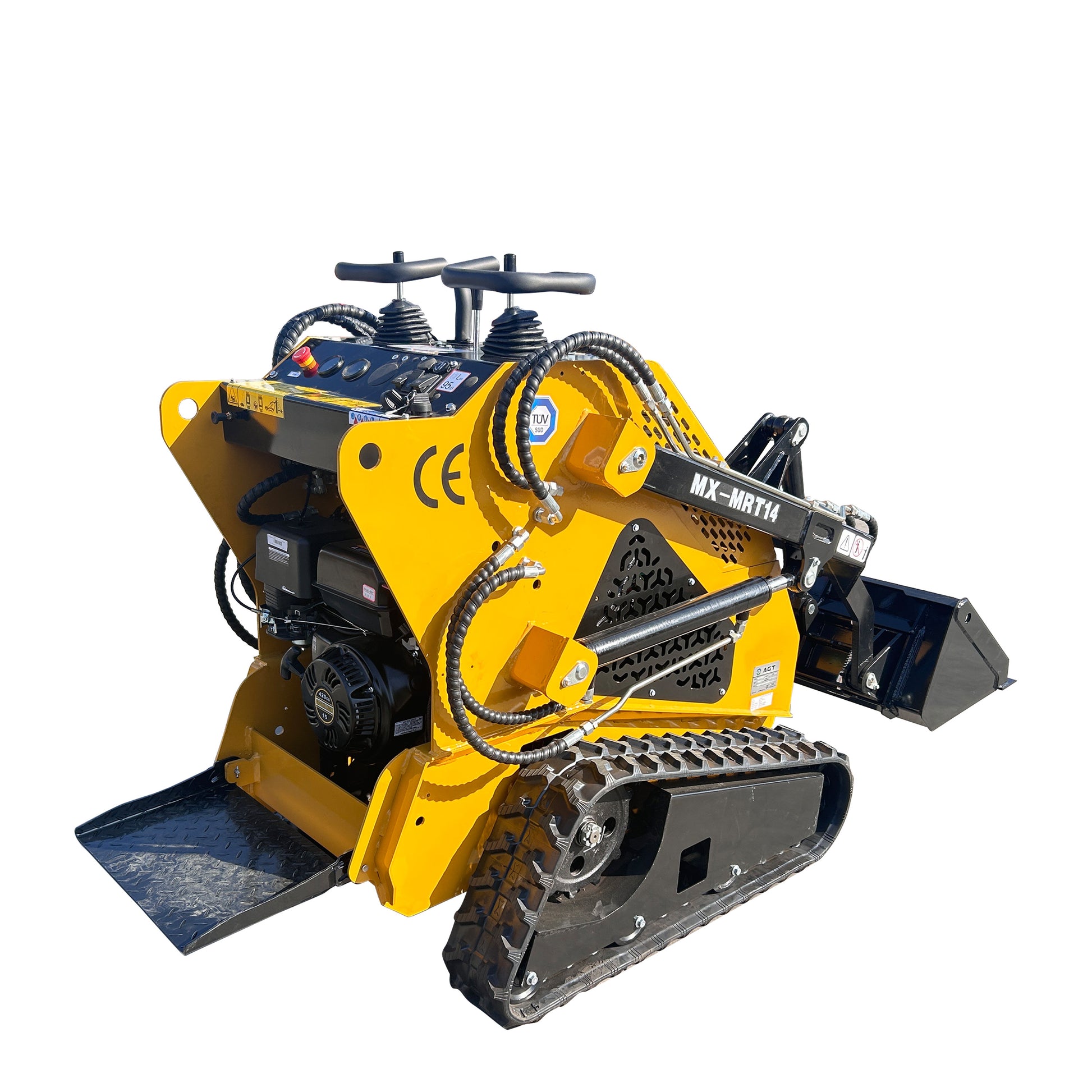

The MX-MRT14 is a lightweight and compact loader designed for efficient operation insmall construction sites, farms, and landscaping projects. Despite its compact profile,it delivers reliable performance with a 700 kg working weight and a maximum liftingforce of 200 kg, making it ideal for light-duty material handling and confinedworkspaces.

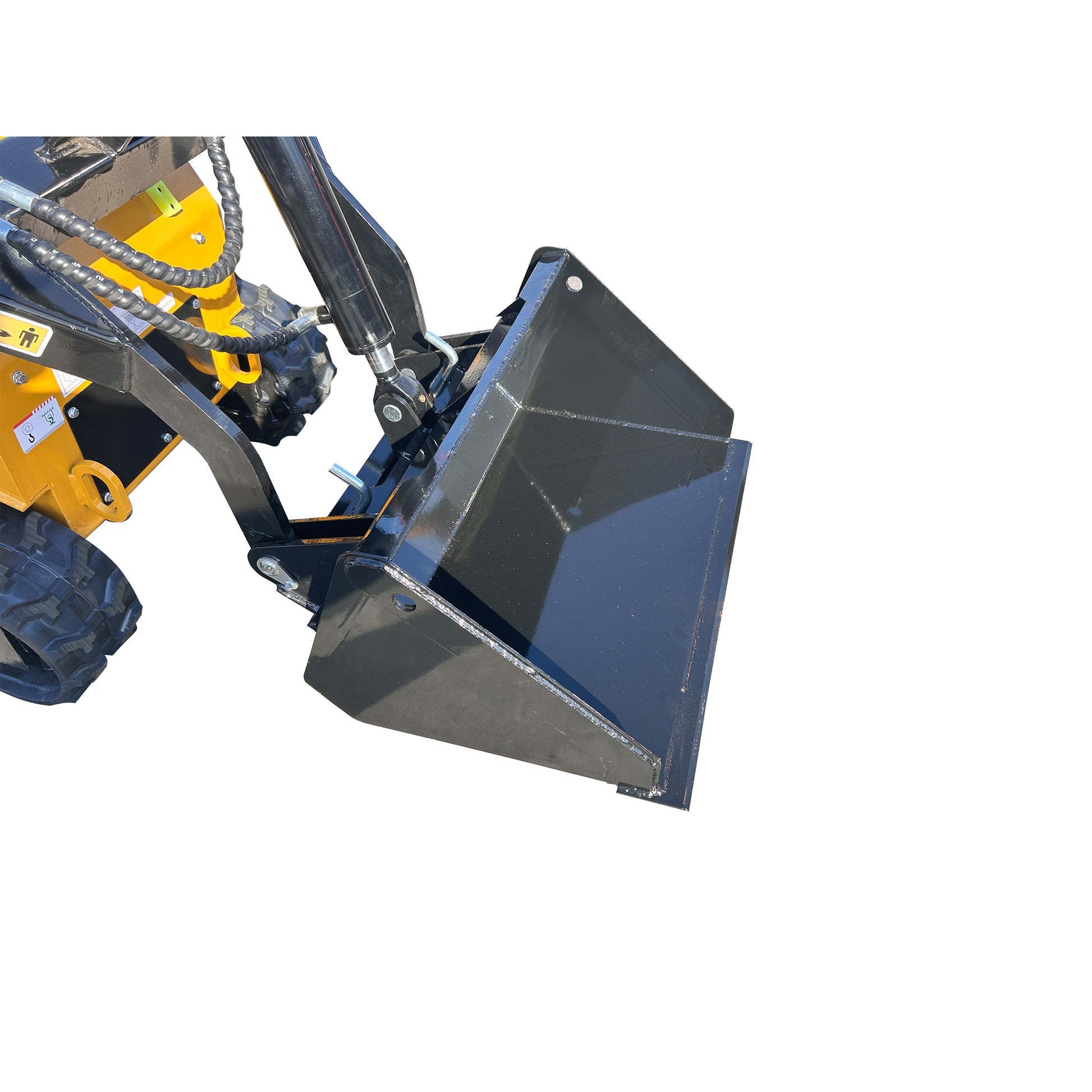

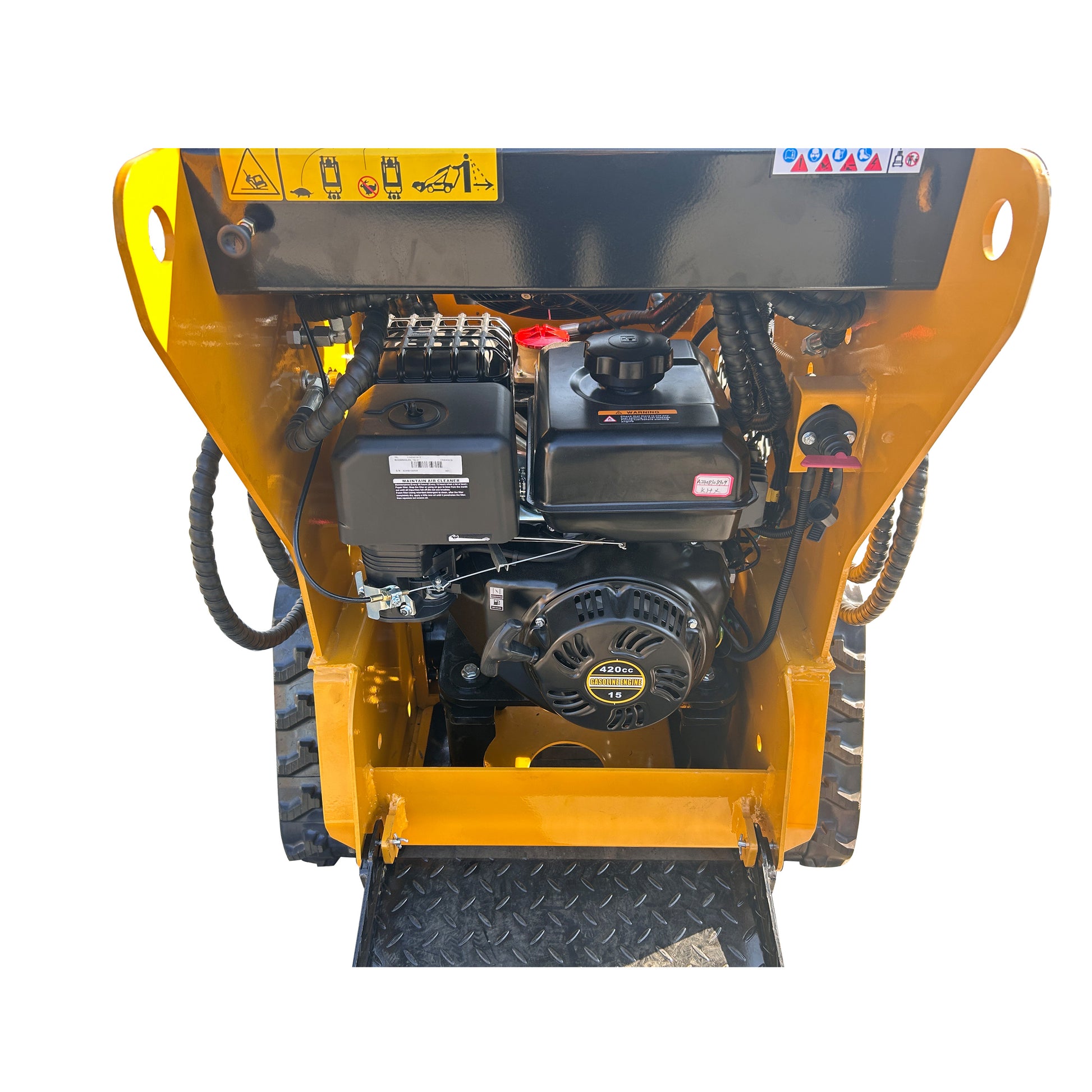

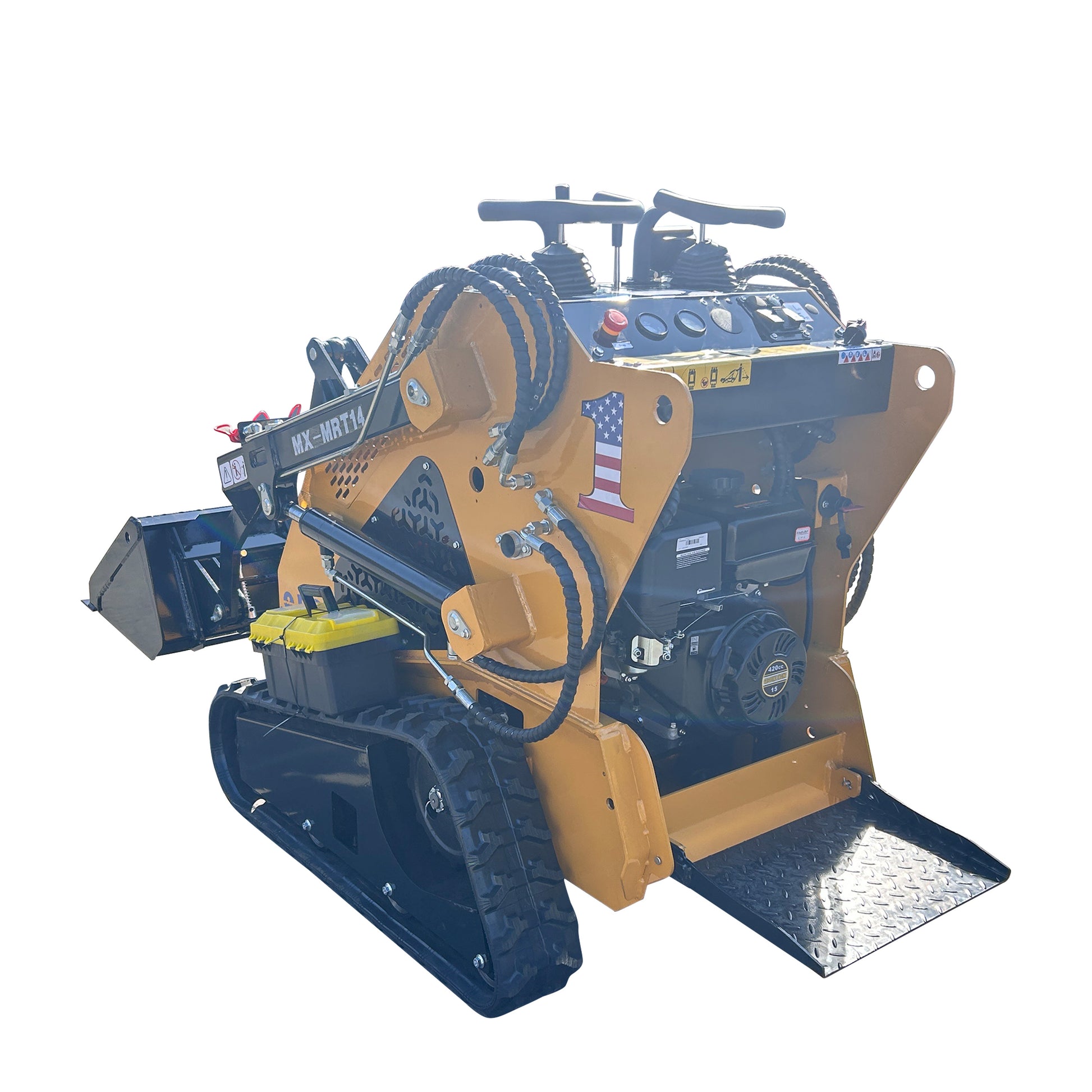

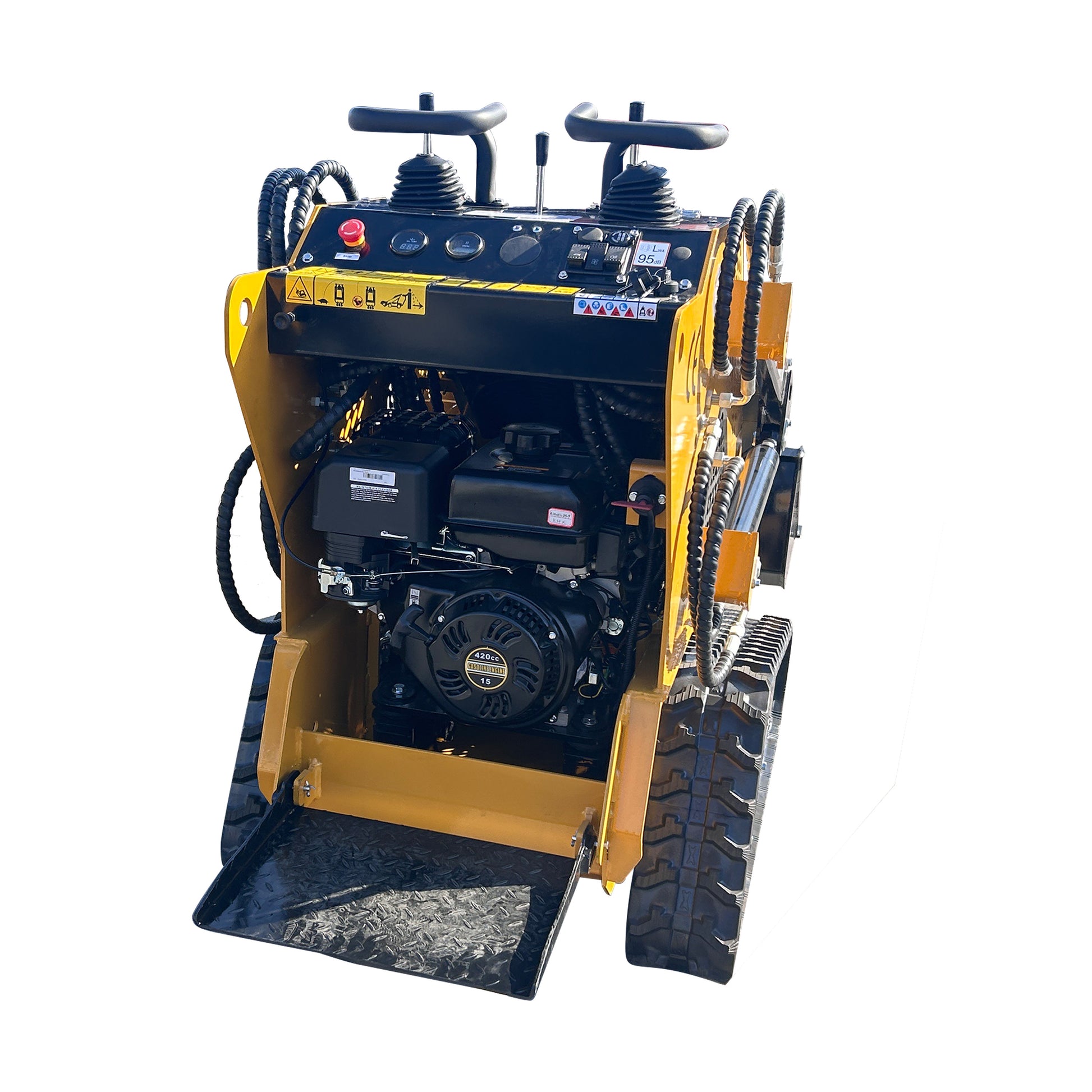

Equipped with a Rato R420D gasoline engine, this model produces 13.5 HP and features fan cooling for consistent operation. lts 0.1 m³ bucket capacity, 4 km/h travel speed, and 23° bucket discharge angle offer excellent control and versatility for various loading tasks.
Product Warranty
Specifications
| TECHNICAL DATA | ||
|---|---|---|
| Operating Weight | 700 kg | 1,543 lbs |
| Bucket Capacity | 0.1 m³ | 0.13 cubic yards |
| Travel Speed | Up to 4 km/h | 2.49 mph |
| Max Lifting Force | 200 kg | 440.9 lbs |
| Max Pin Height | 1967 mm | 6.46 feet |
| Loading Distance at Max Height | 661 mm | 2.17 feet |
| Wheelbase | 905 mm | 2.97 feet |
| Ground Clearance | 163 mm | 6.42 inches |
| Bucket Discharge Angle | 23° | |
| DIMENSION | ||
| Operating Weight | 0.7 Ton | 1,400 lb |
| Overall Length | 2,432 mm | 96 in |
| Overall Width | 904 mm | 35.5 in |
| Overall Height | 1,364 mm | 53.5 in |
| Bucket Width | 1,120 mm | 44 in |
| Bucket Capacity | 100 L | 26.5 gal |
| Tracks Size | 180*72*37 (W*P*L) | |
| WORKING RANGE | ||
| Max Working Height | 2,285 mm | 90 in |
| Max Unloading Height | 1,575 mm | 62 in |
| Max Lifting Force | 200 kg | 441 lb |
| Travel Speed | 4 km/h | 2.5 mph |
| ENGINE | ||
| Brand / Model | Rato R420D | |
| Fuel Type | Gasoline | |
| Max Power | 10 kW | 13.5 HP |
| Displacement | 420 cc | |
| Fuel Tank Capacity | 6.6 L | 1.7 gal |
| Hydraulic Tank Capacity | 33 L | 8.7 gal |
