SKU:AGT-KTT23

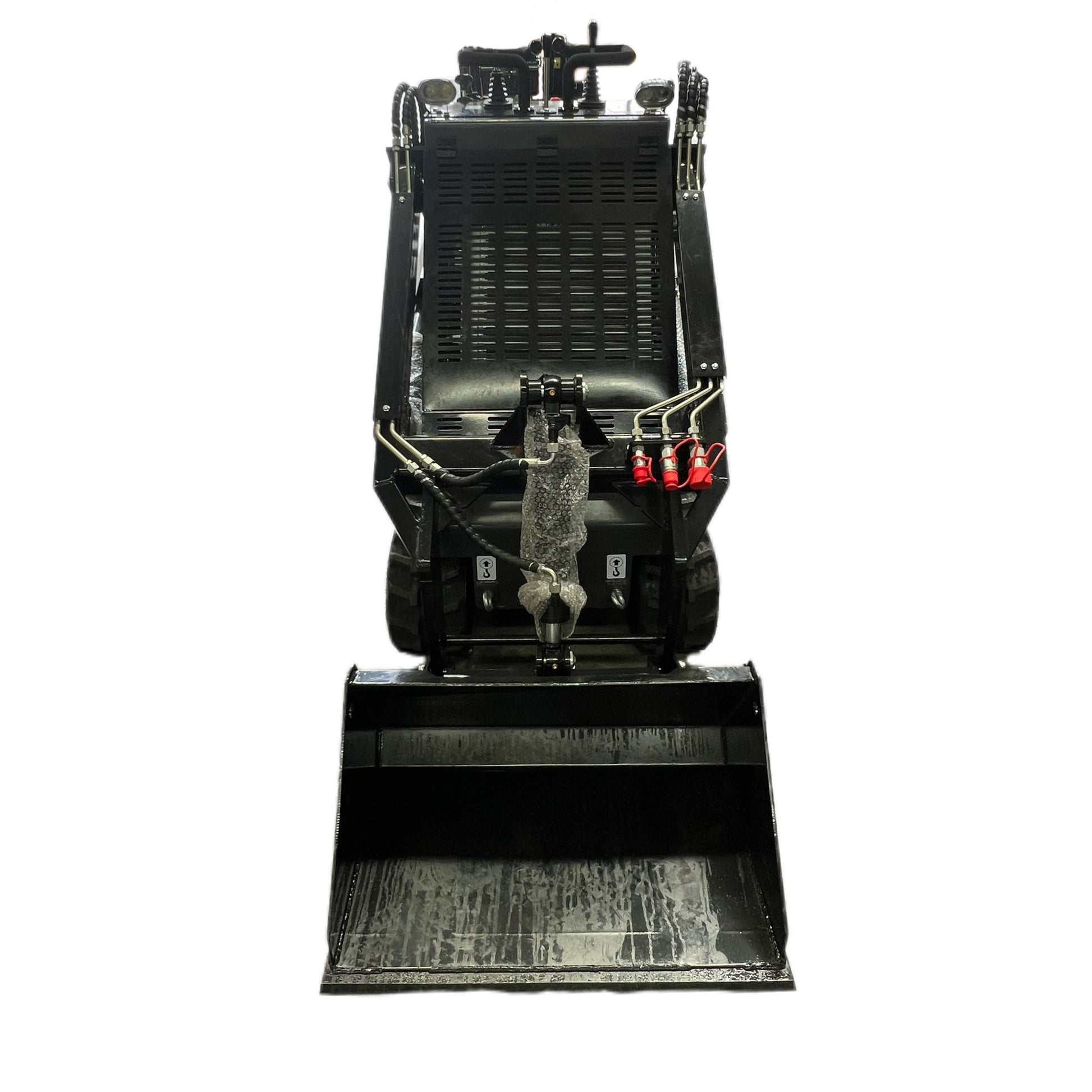

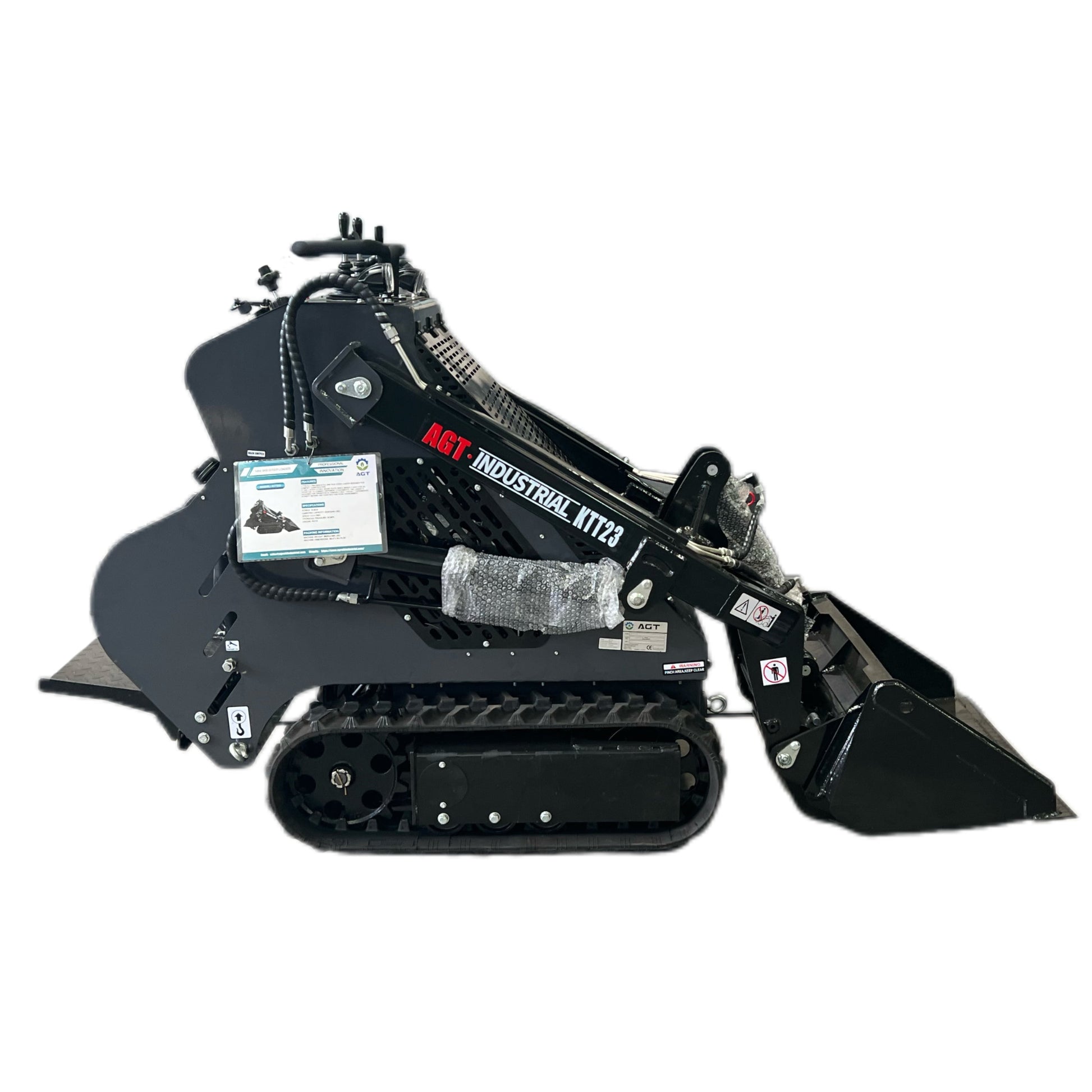

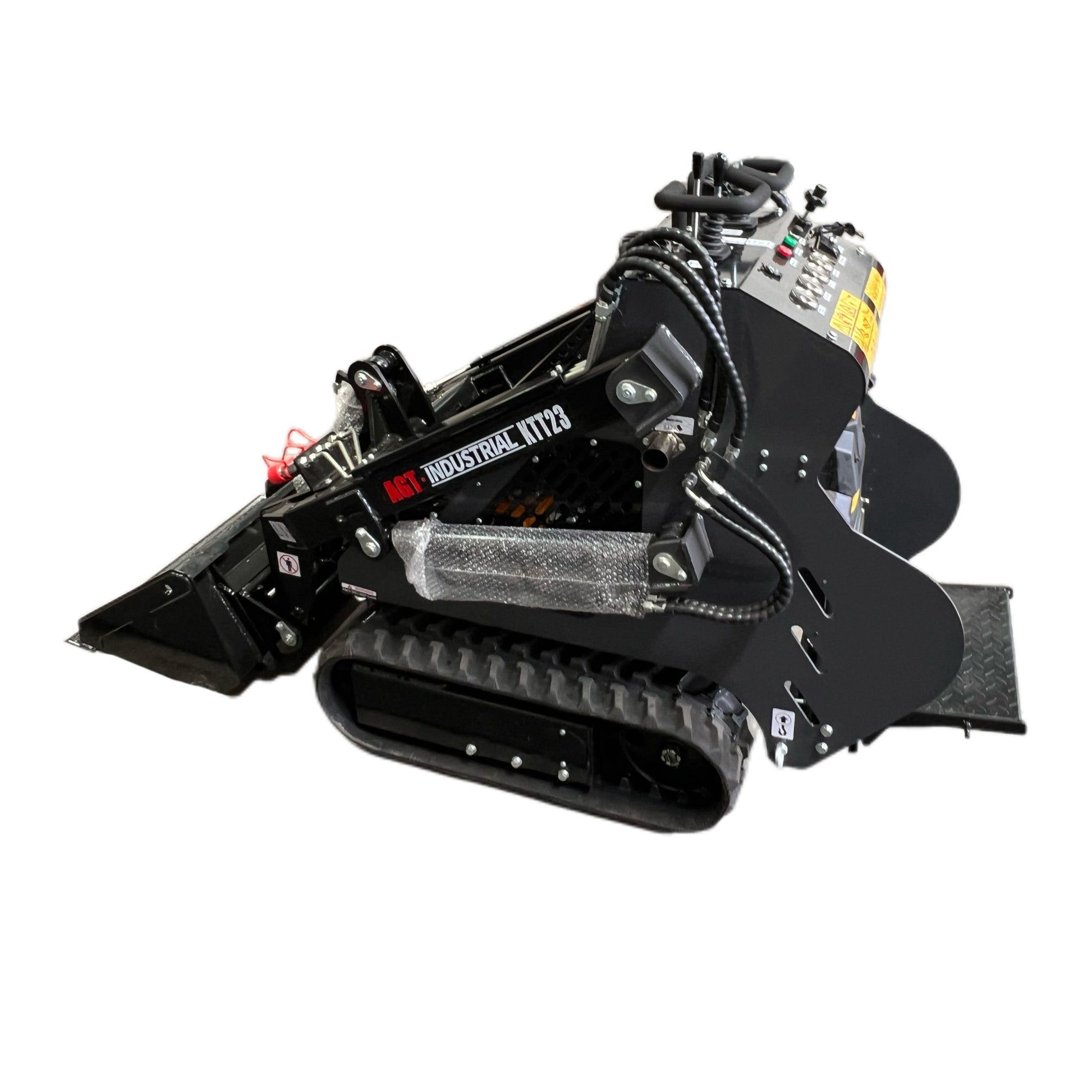

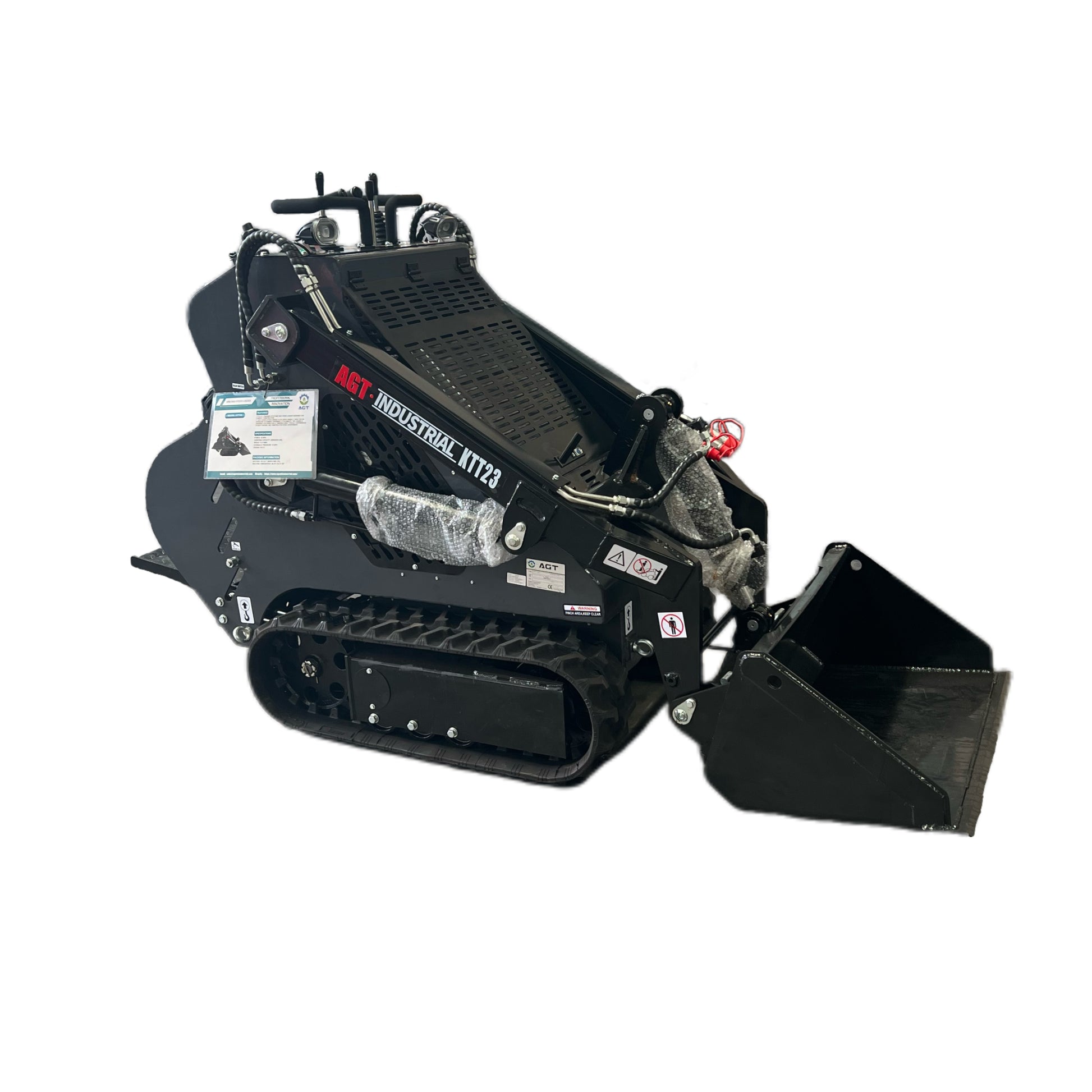

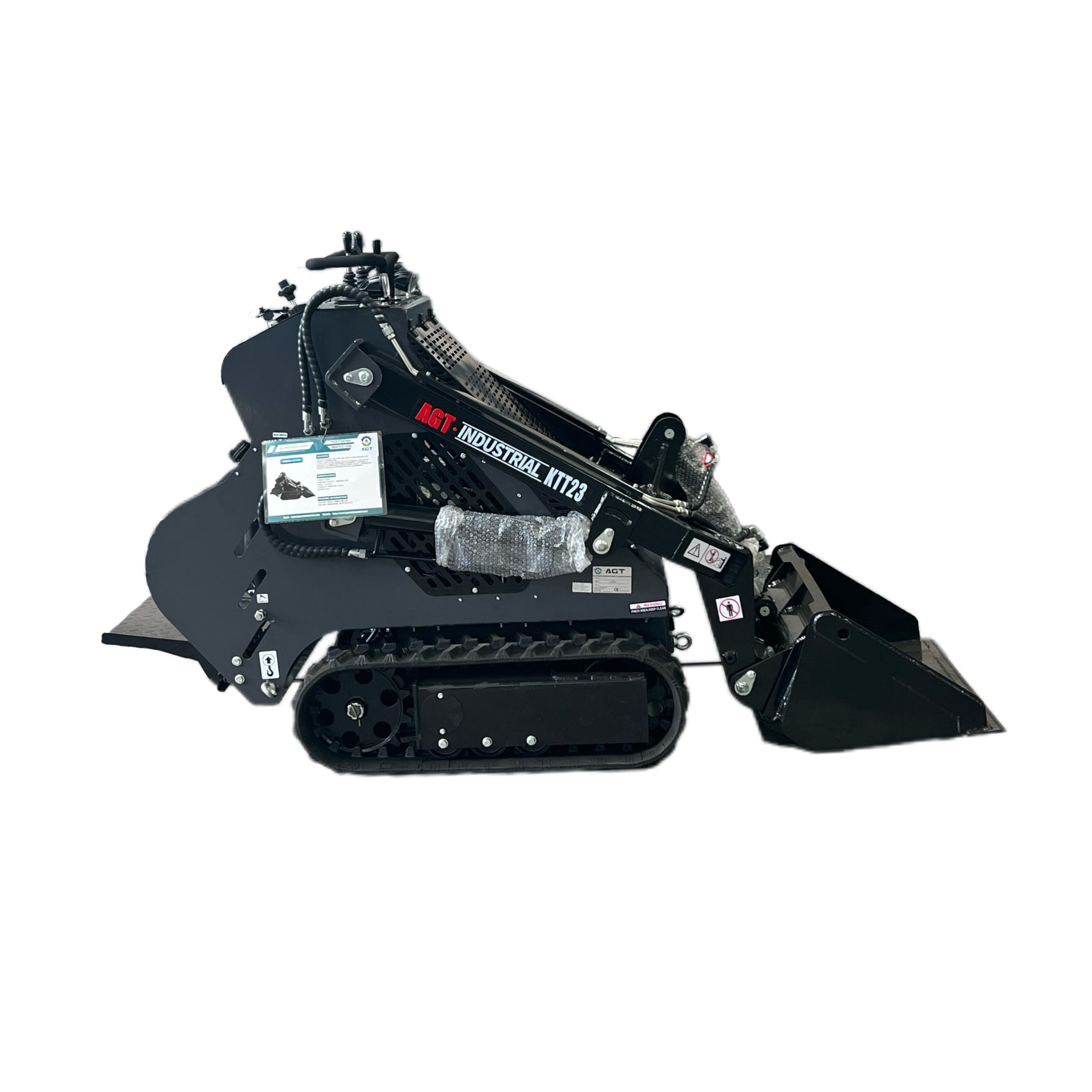

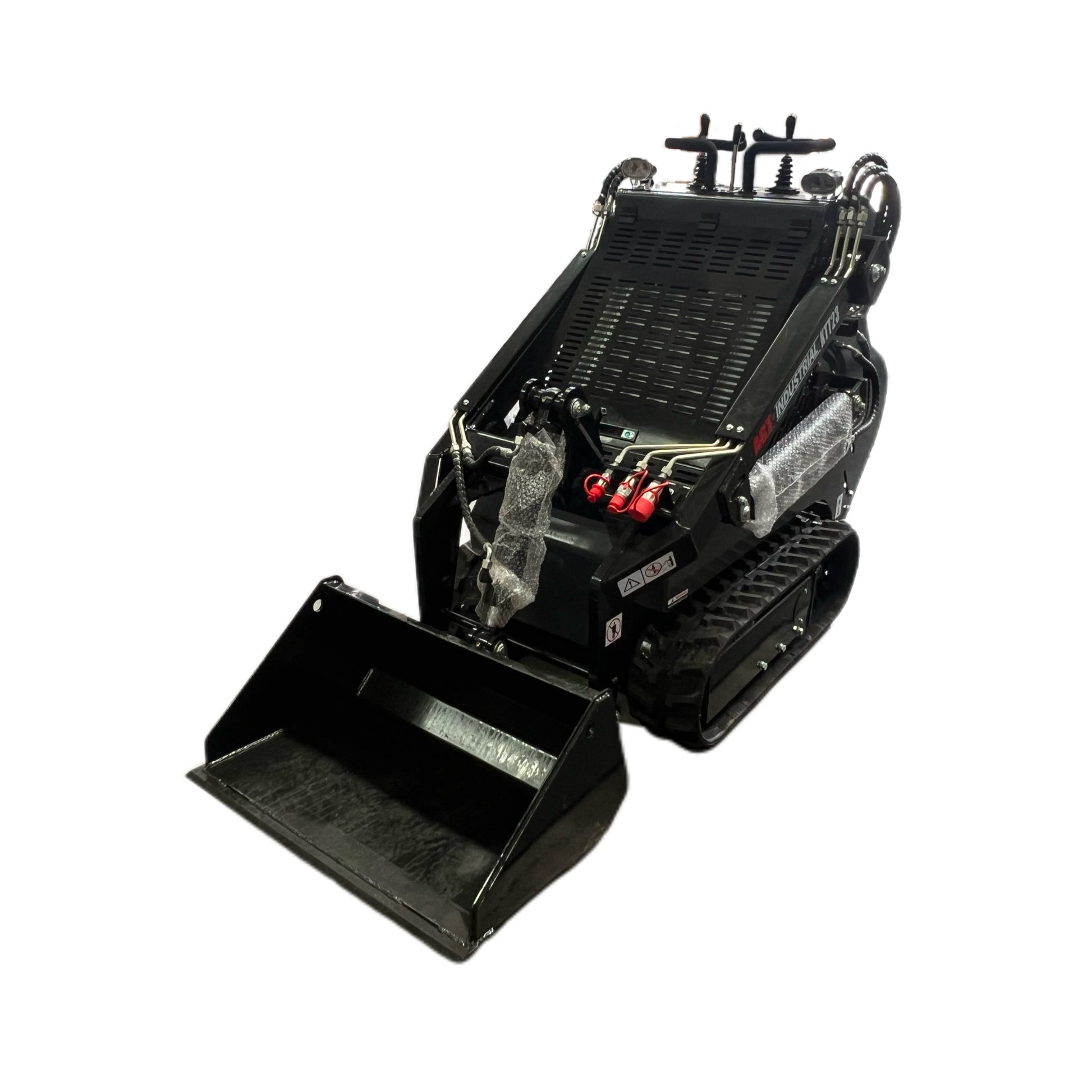

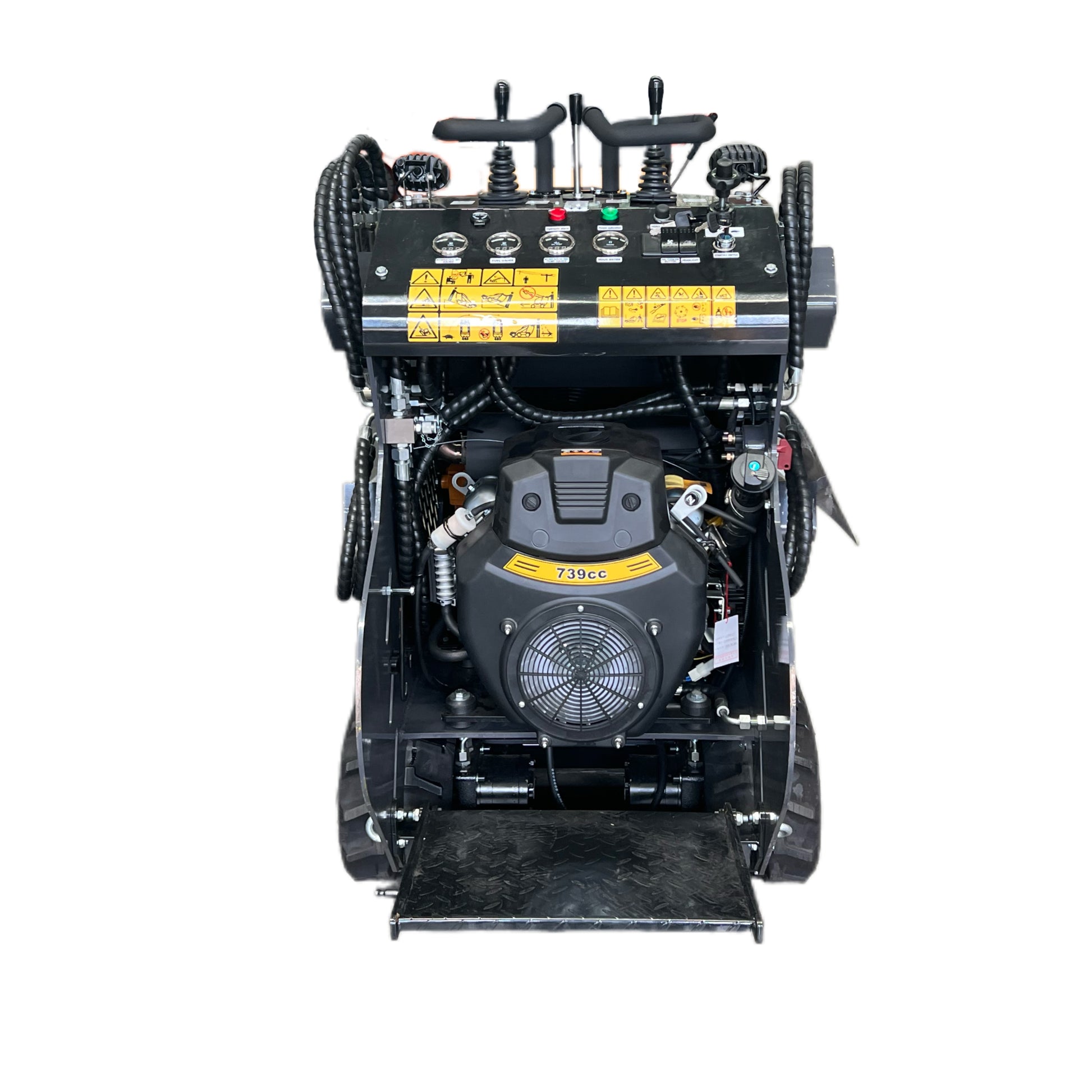

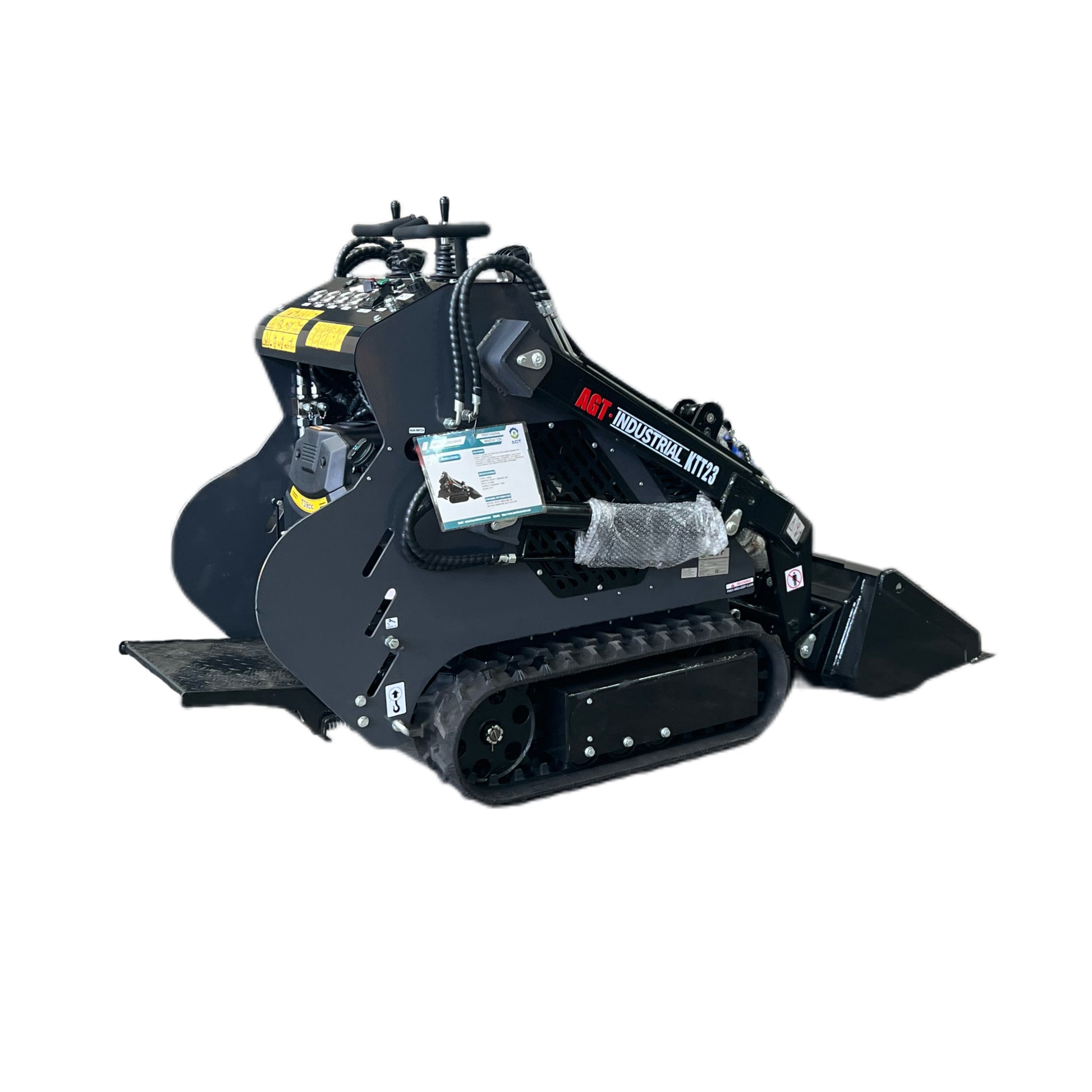

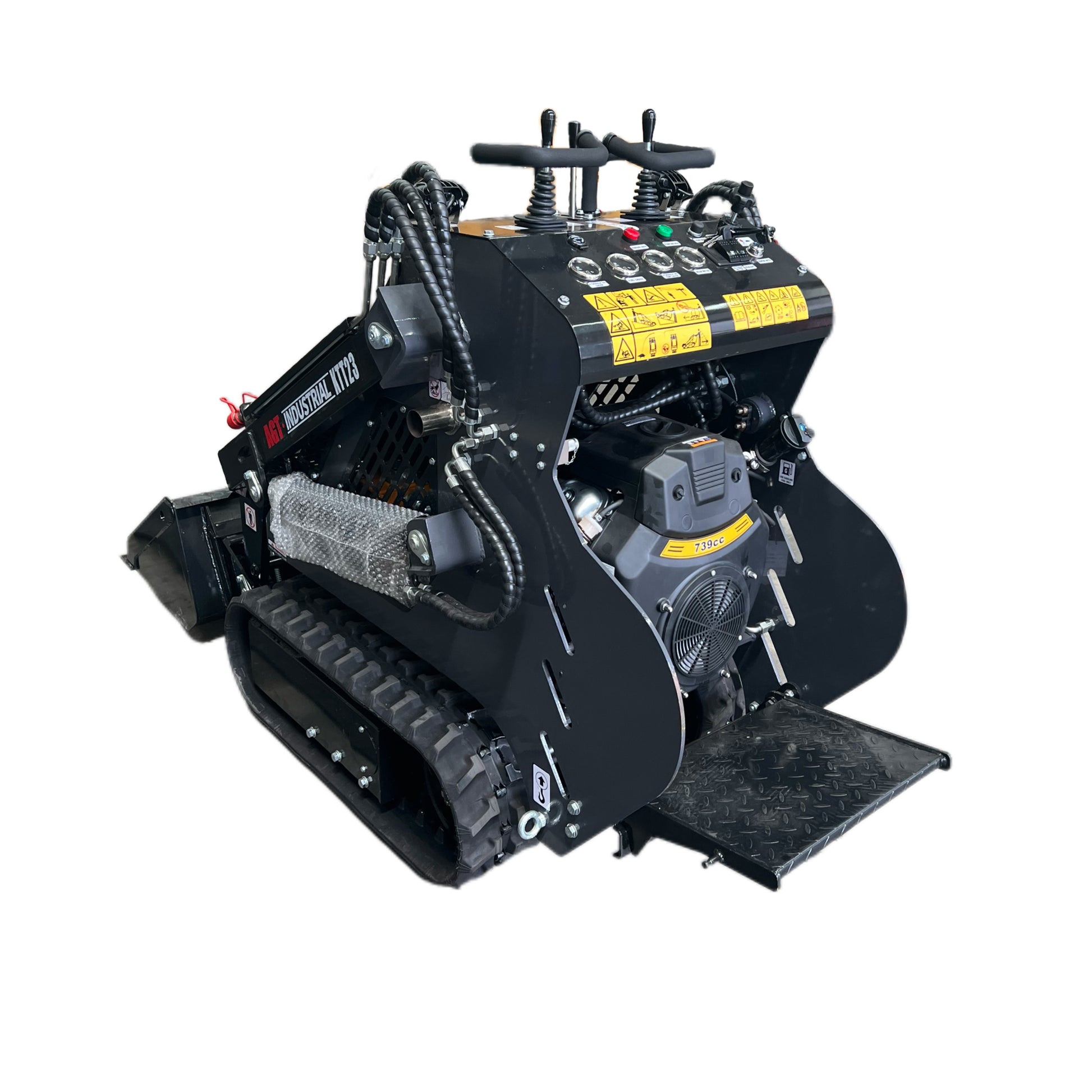

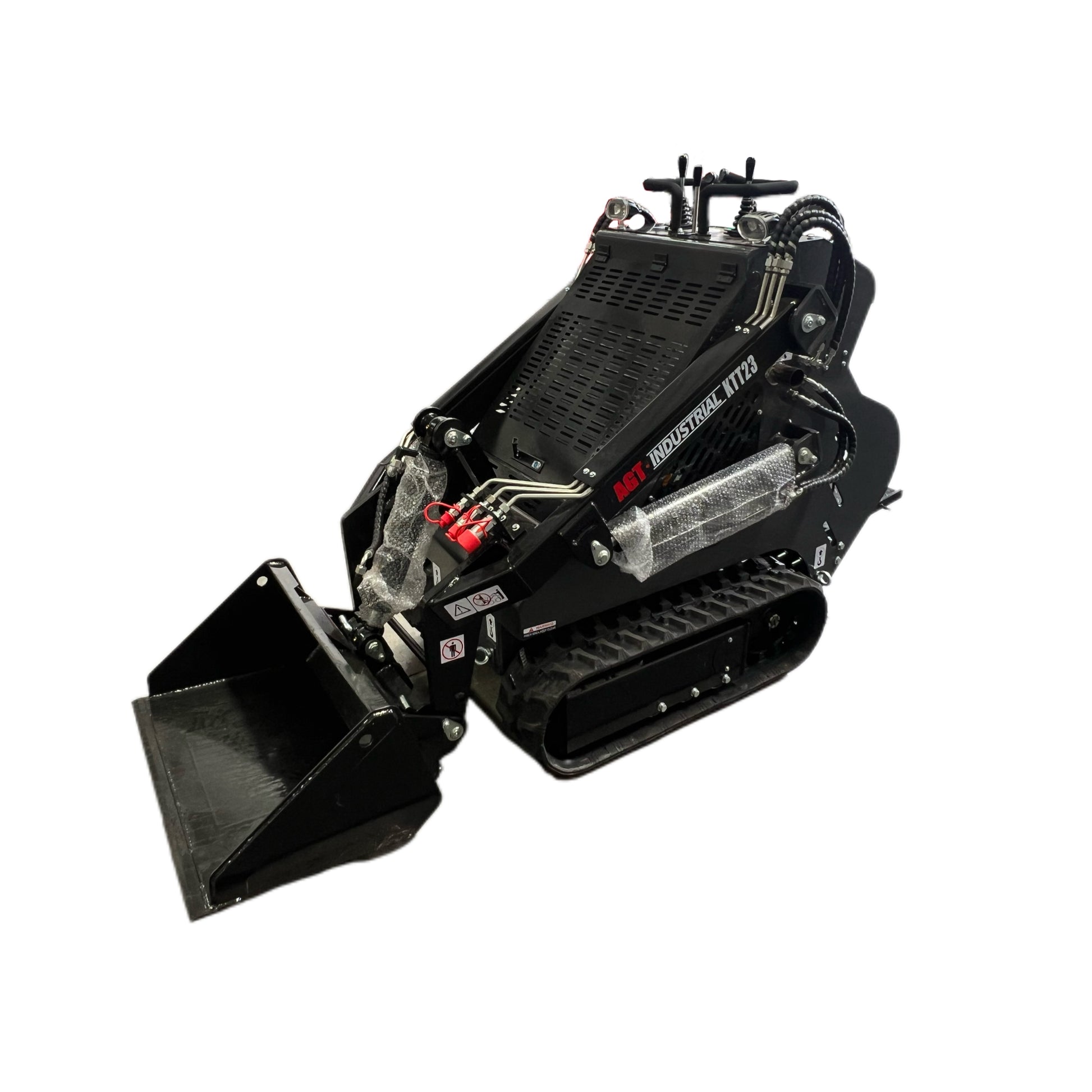

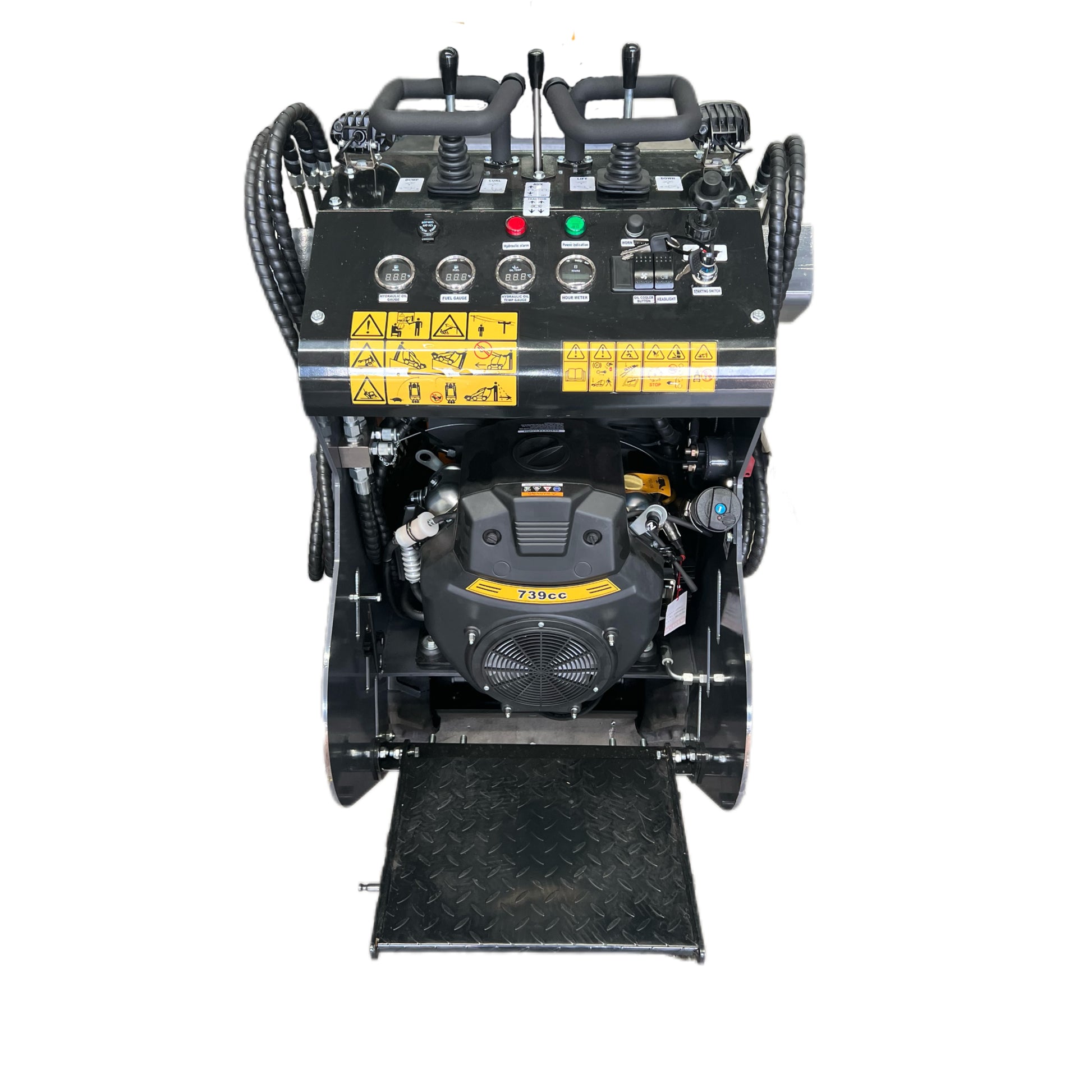

1 Ton Rato Engine Mini Stand On Skid Steer Track Loader AGT-KTT23

Name: 1 Ton Rato Engine Mini Stand On Skid Steer Track Loader AGT-KTT23
Brand: Kelis Machinery
SKU: AGT-KTT23
Price: 6598.00 USD
Availability: InStock

1 15

$6,598.00

Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

832-993-8676Sales Contact Number

yuanxin01@cfgindustrial.comSales Contact Email

View full details

Product Overview

The compact and powerful skid steer features a maximum load capacity of 220 kg, a bucket capacity of 0.15 m³, and a RATO gasoline engine with 16.8KW output power.

Video

AGT KTT23 Mini Compact Track Loader

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Model Information
Configuration Status	√Standard, △Optional, ×None
Model	KTT23
Basic Performance Parameters
Working Weight (kg)	905
Bucket capacity (m³)	0.12
Travel speed low/high speed (Km/h)	3
Maximum lifting force (Kg)	220
C Maximum working height (mm)	2450
B Maximum pin height (mm)	1800
A Maximum unloading height (mm)	1350
G Loading distance at maximum unloading height (mm)	840
H Wheelbase (mm)	690
F Ground clearance (mm)	120
L Bucket discharge angle	20°
Equipment Body
E Bucket width (mm)	812
J/K Overall Length (mm)	2330
Overall Width (mm)	820
Body width (mm)	810
D Overall Height (mm)	1420
M Slewing radius (mm)	1400

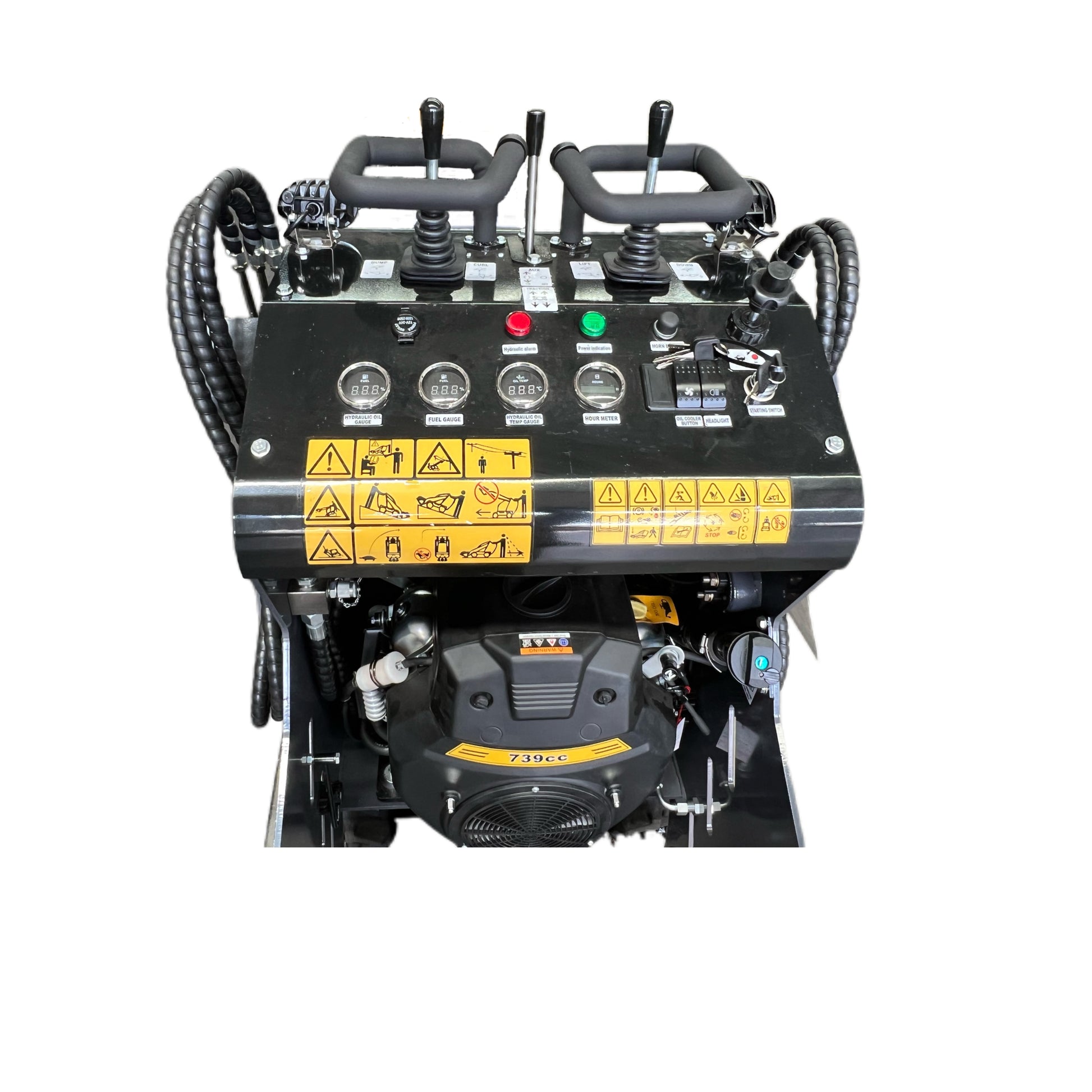

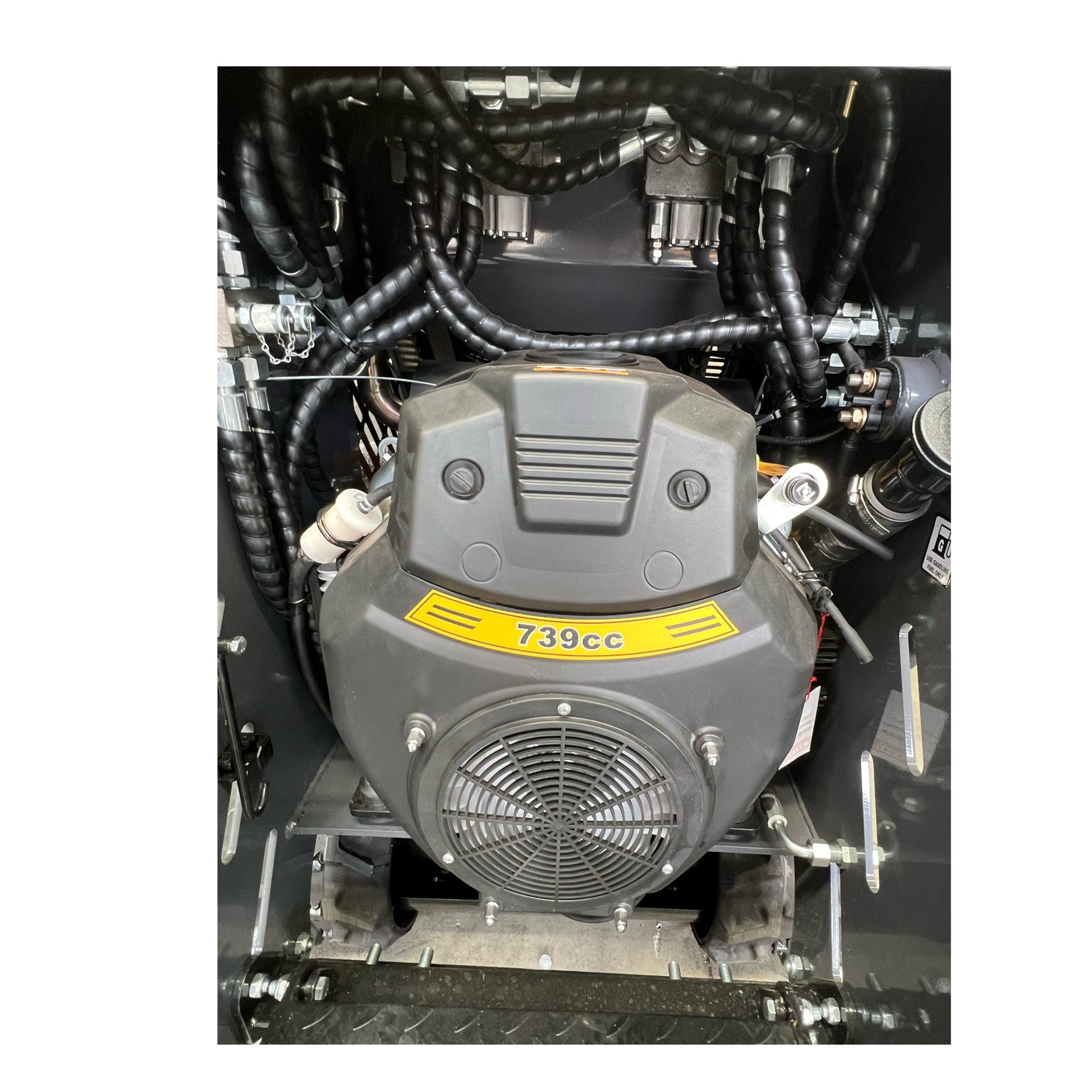

Engine
Engine Brand	Rato
Maximum power (kW)	16.8
Max. speed (rpm)	3600
Cooling method	Fan cooling
Engine oil change quantity (L)	1.7
Fuel Type	Gasoline
Fuel Grade	92#

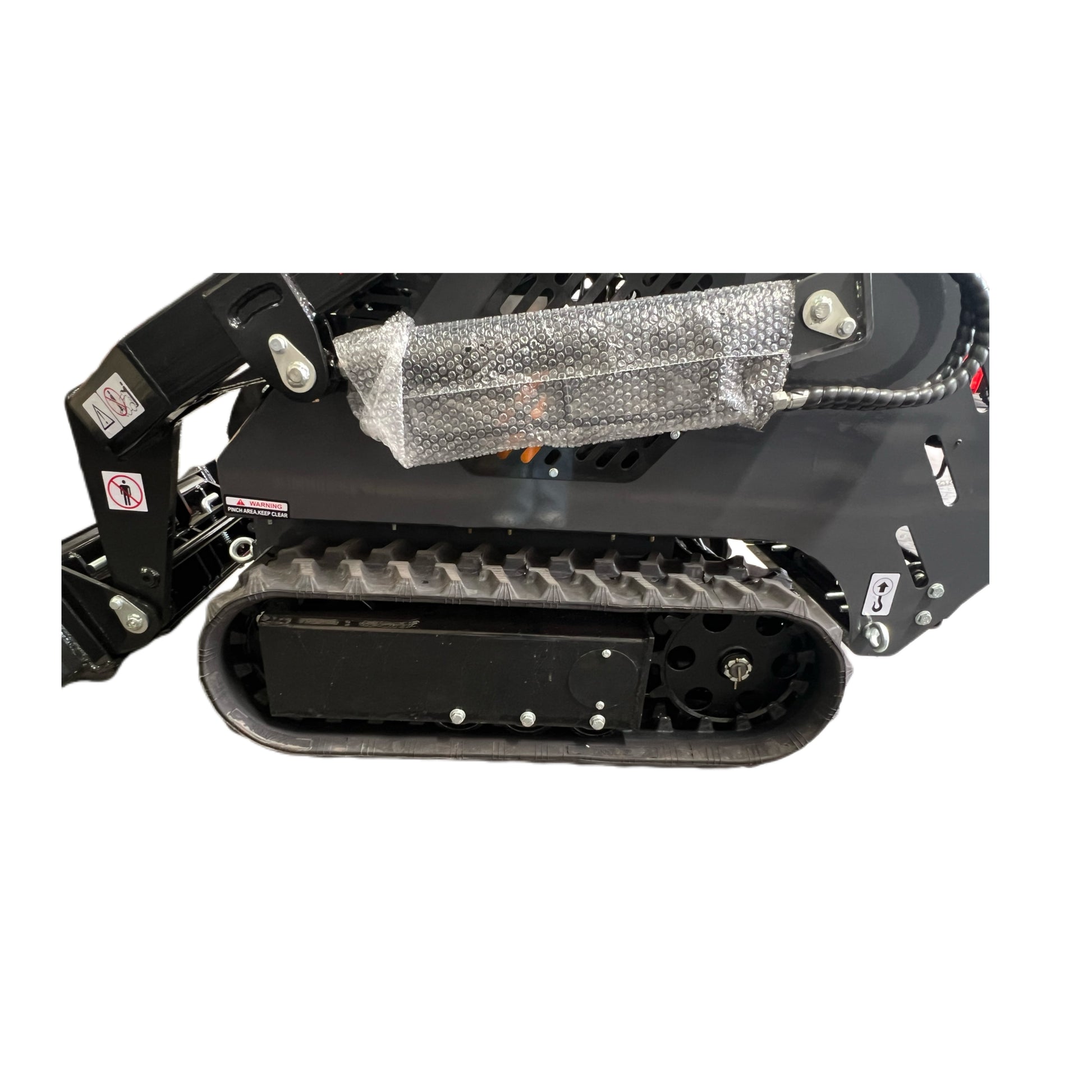

Tracks
△-Rubber (bandwidth * pitch * number of sections)	200×72×32
Fuel Tank
Fuel tank (L)	18
Hydraulic oil tank (L)	30
