SKU:MX15-(B)

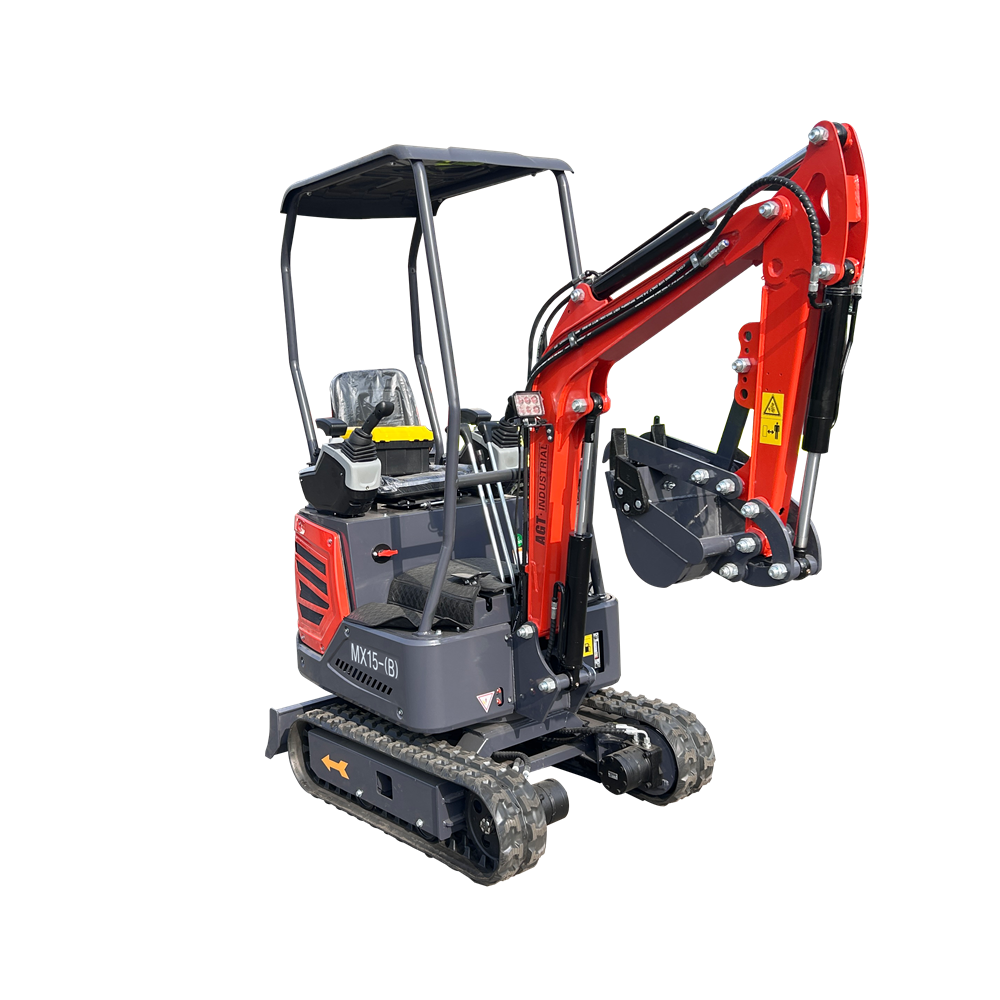

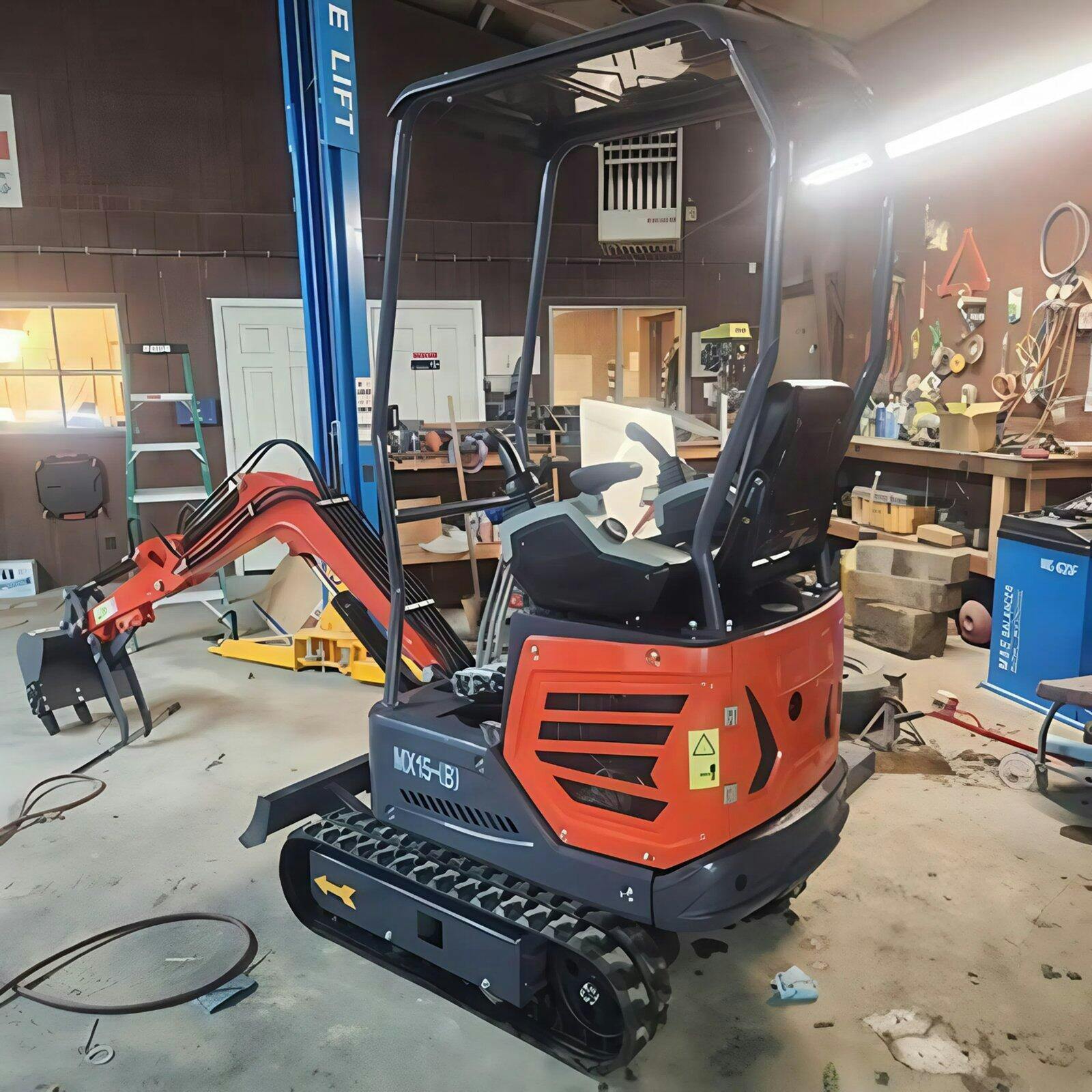

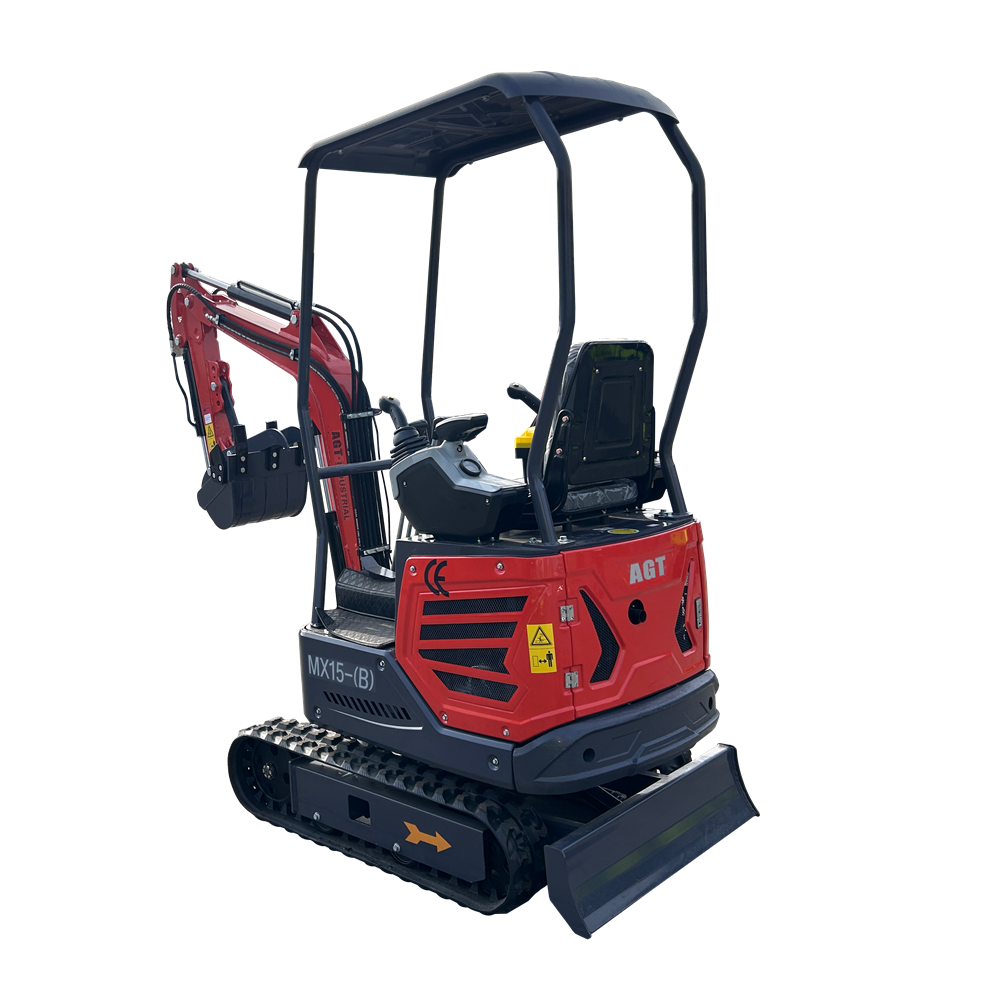

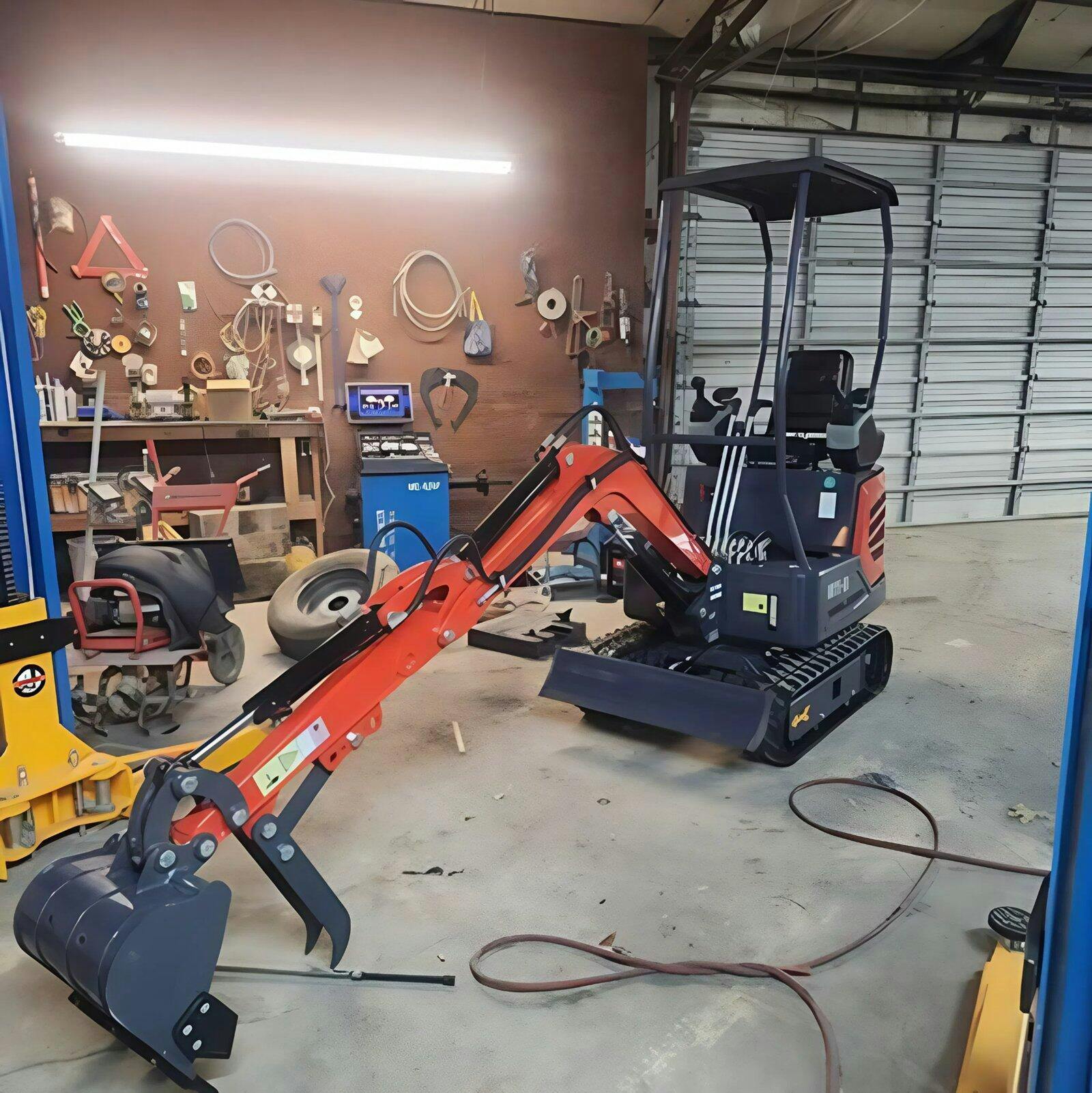

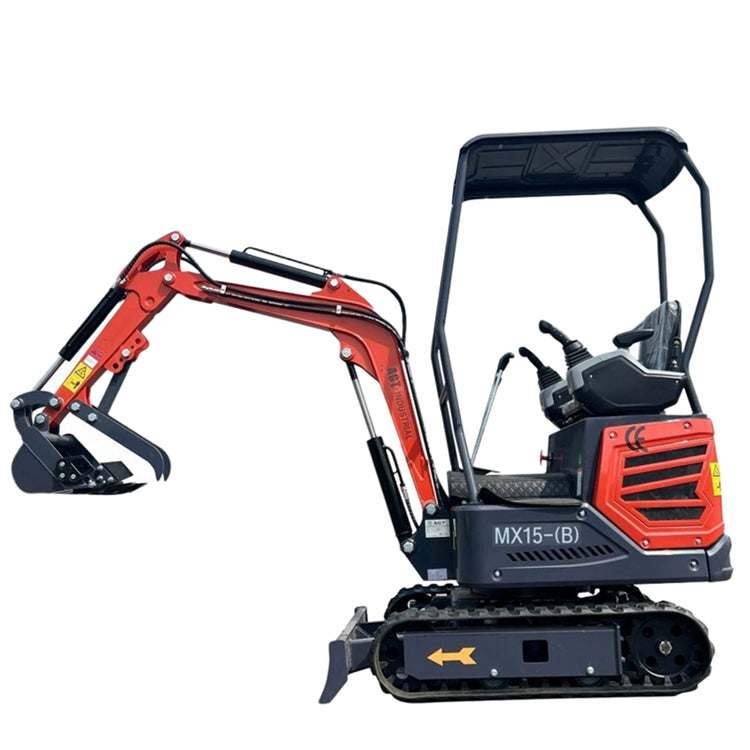

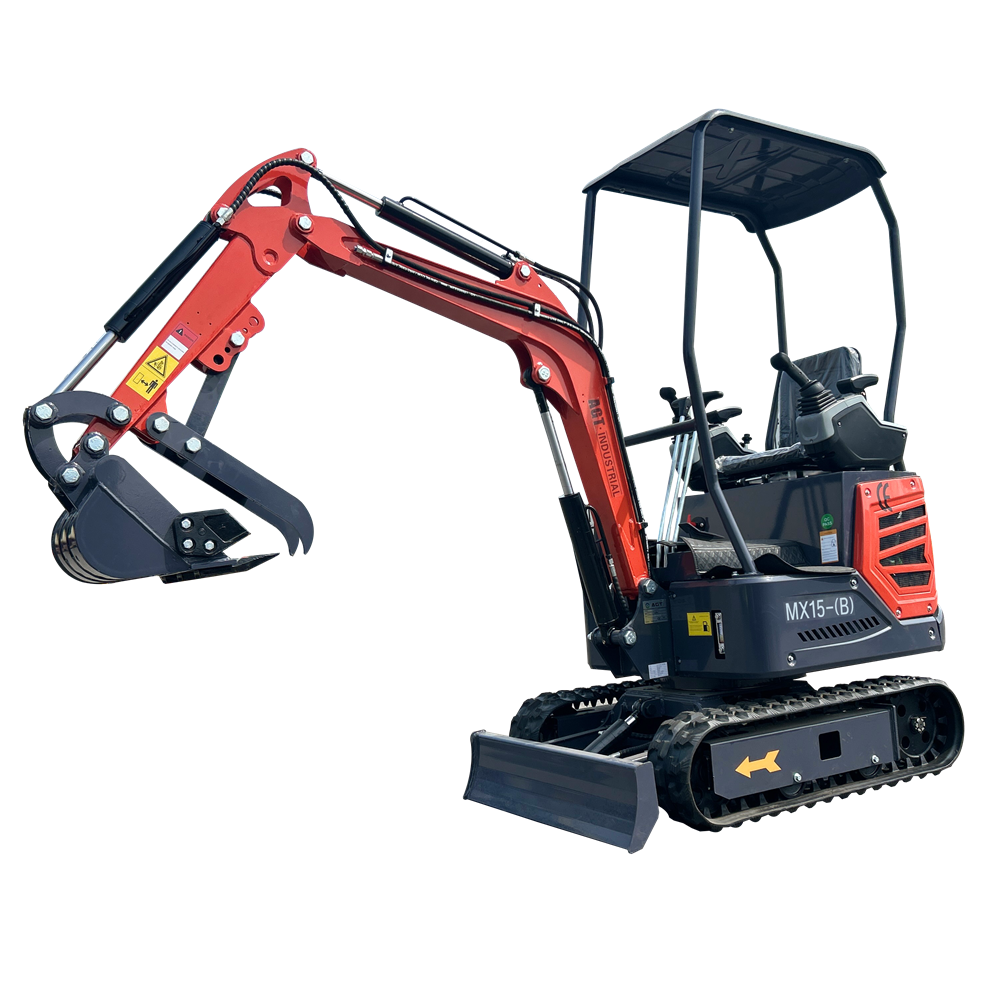

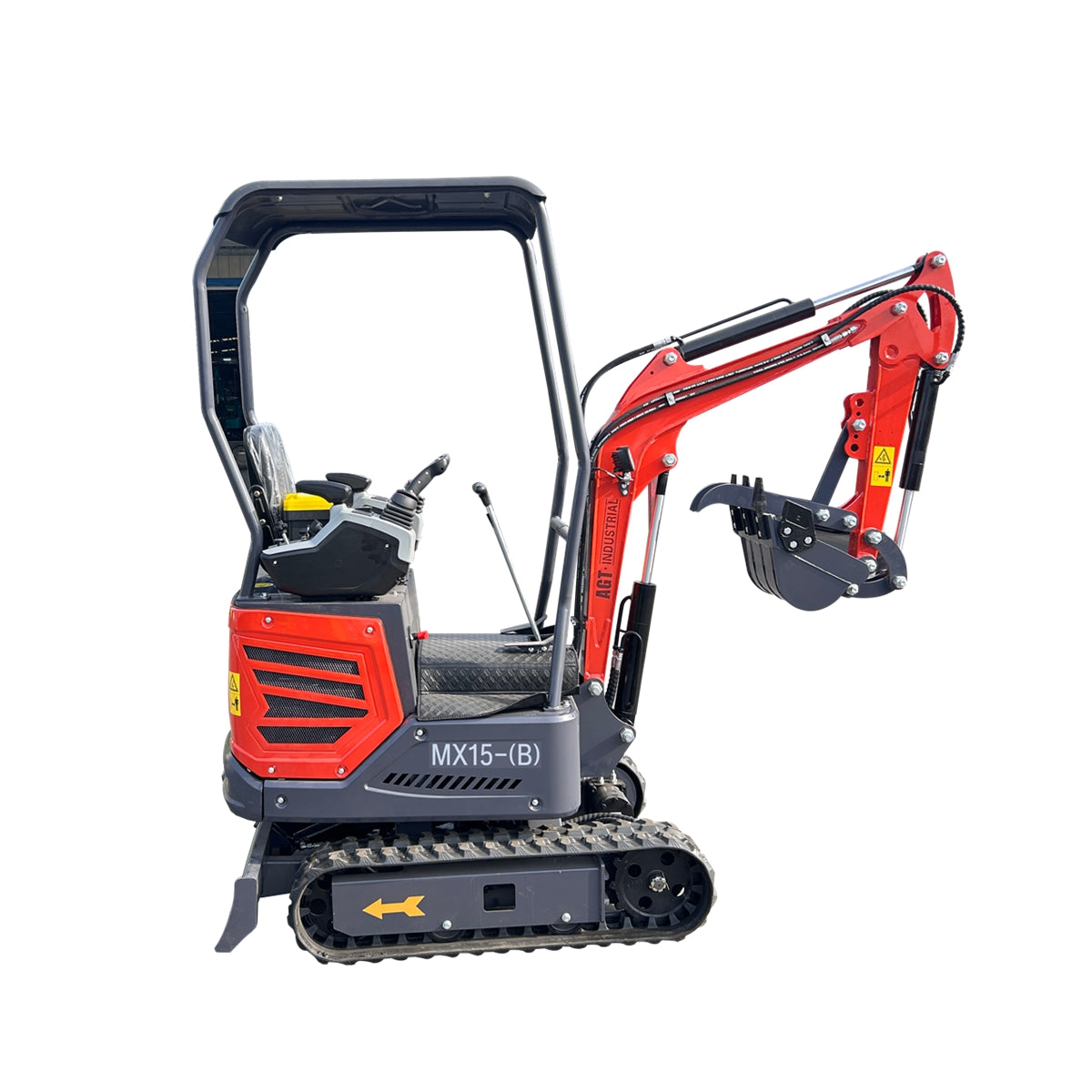

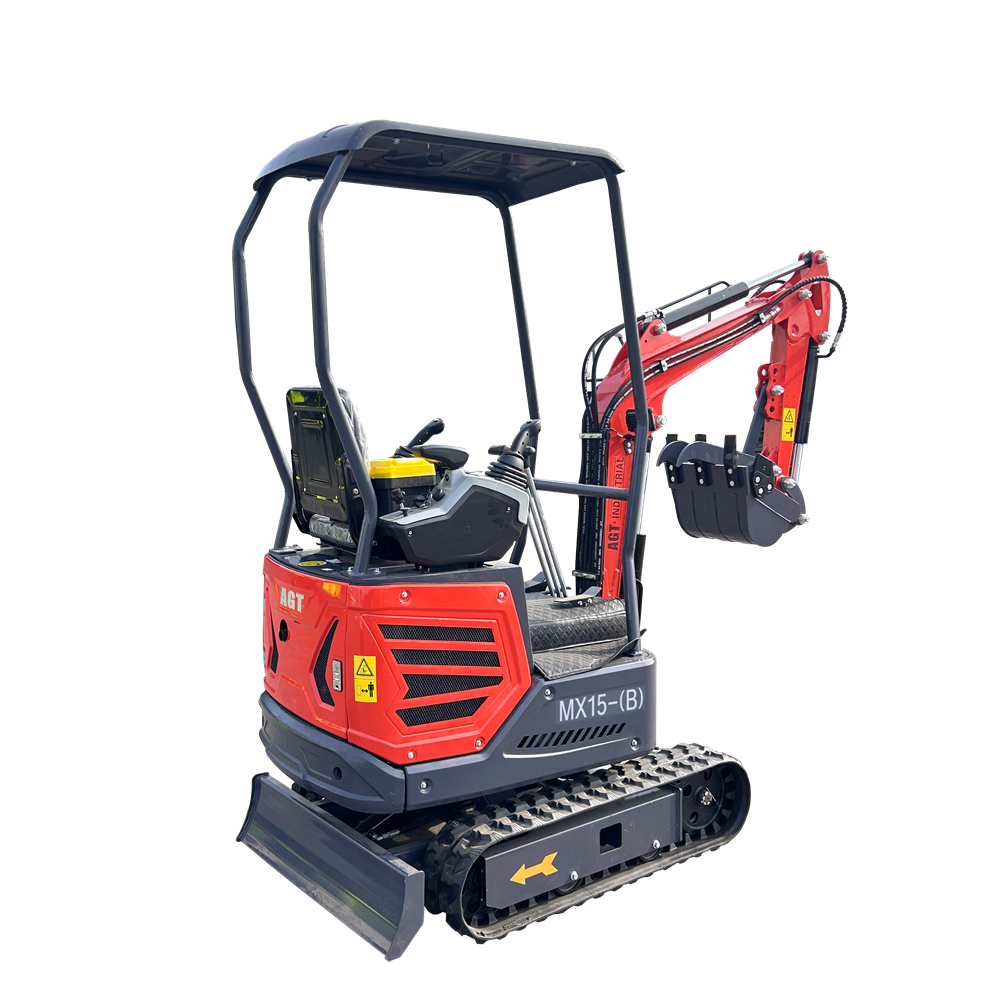

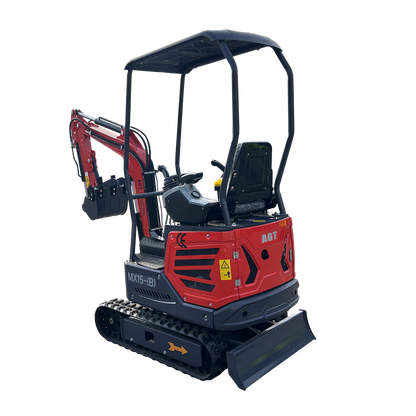

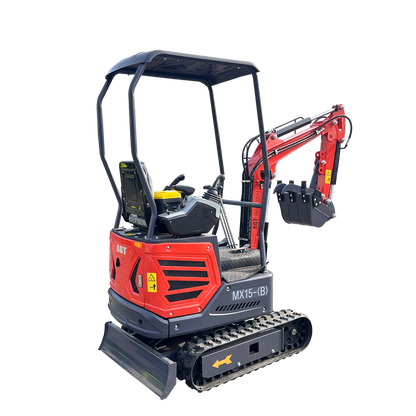

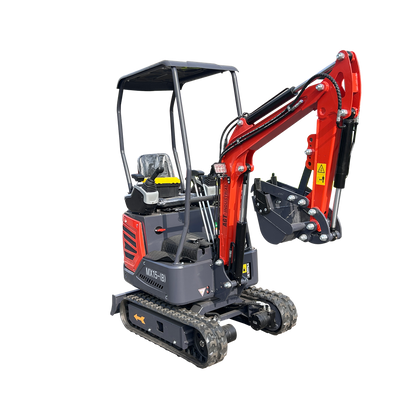

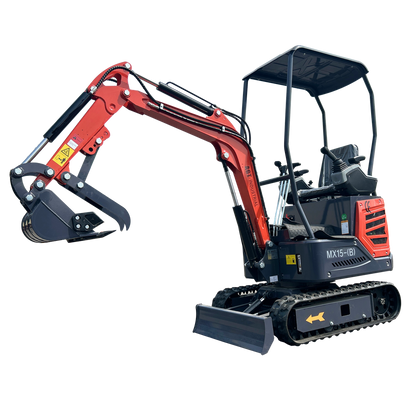

1 Ton 13.5HP B&S Engine Mini Excavator W/Pilot Control MX15-B

Name: 1 Ton 13.5HP B&S Engine Mini Excavator W/Pilot Control MX15-B
Brand: Kelis Machinery
SKU: MX15-(B)
Price: 5813.05 USD
Availability: InStock

1 7

$5,813.05

~~$7,000.00~~ Save$1,186.95 Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

832-993-8676Sales Contact Number

yuanxin01@cfgindustrial.comSales Contact Email

View full details

Product Overview

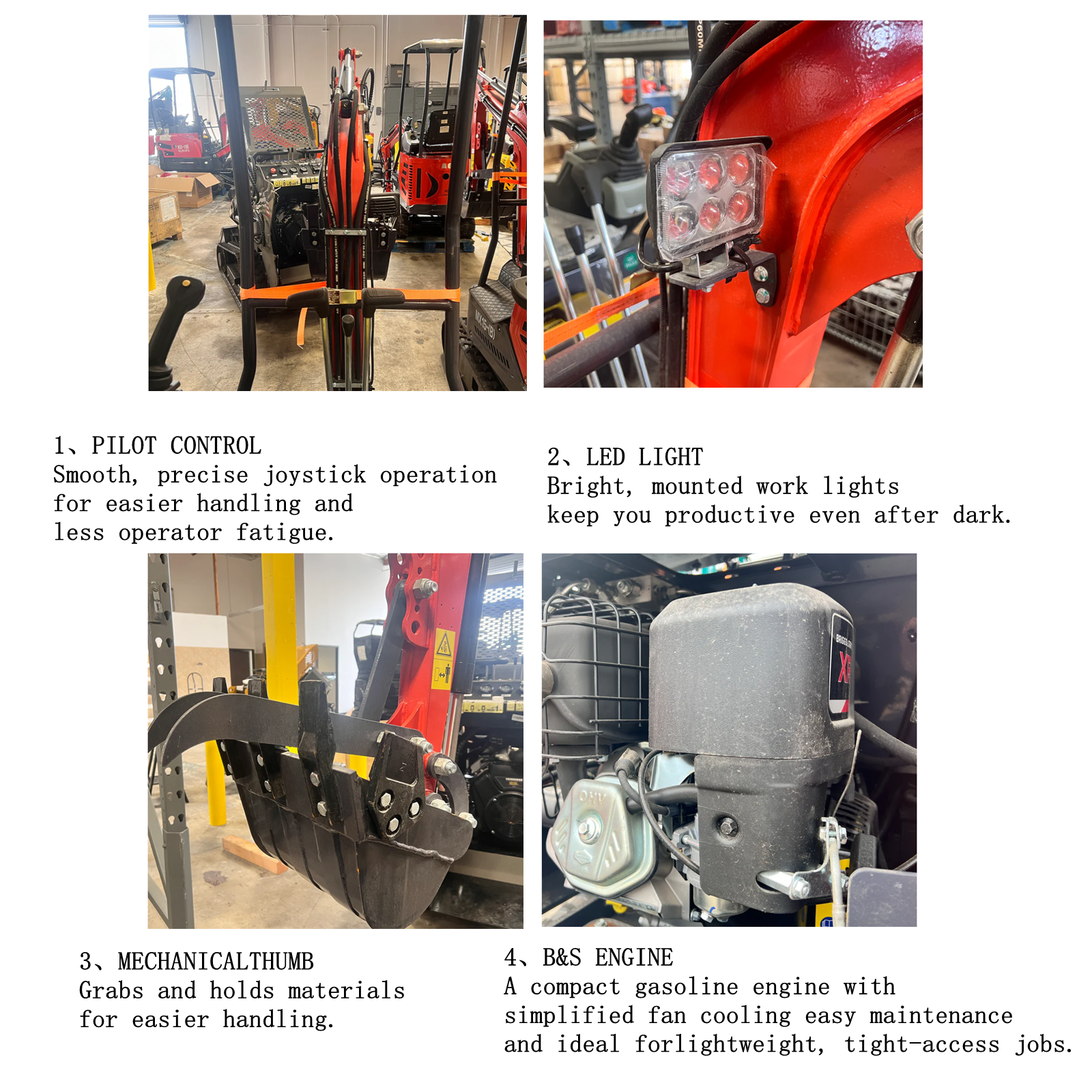

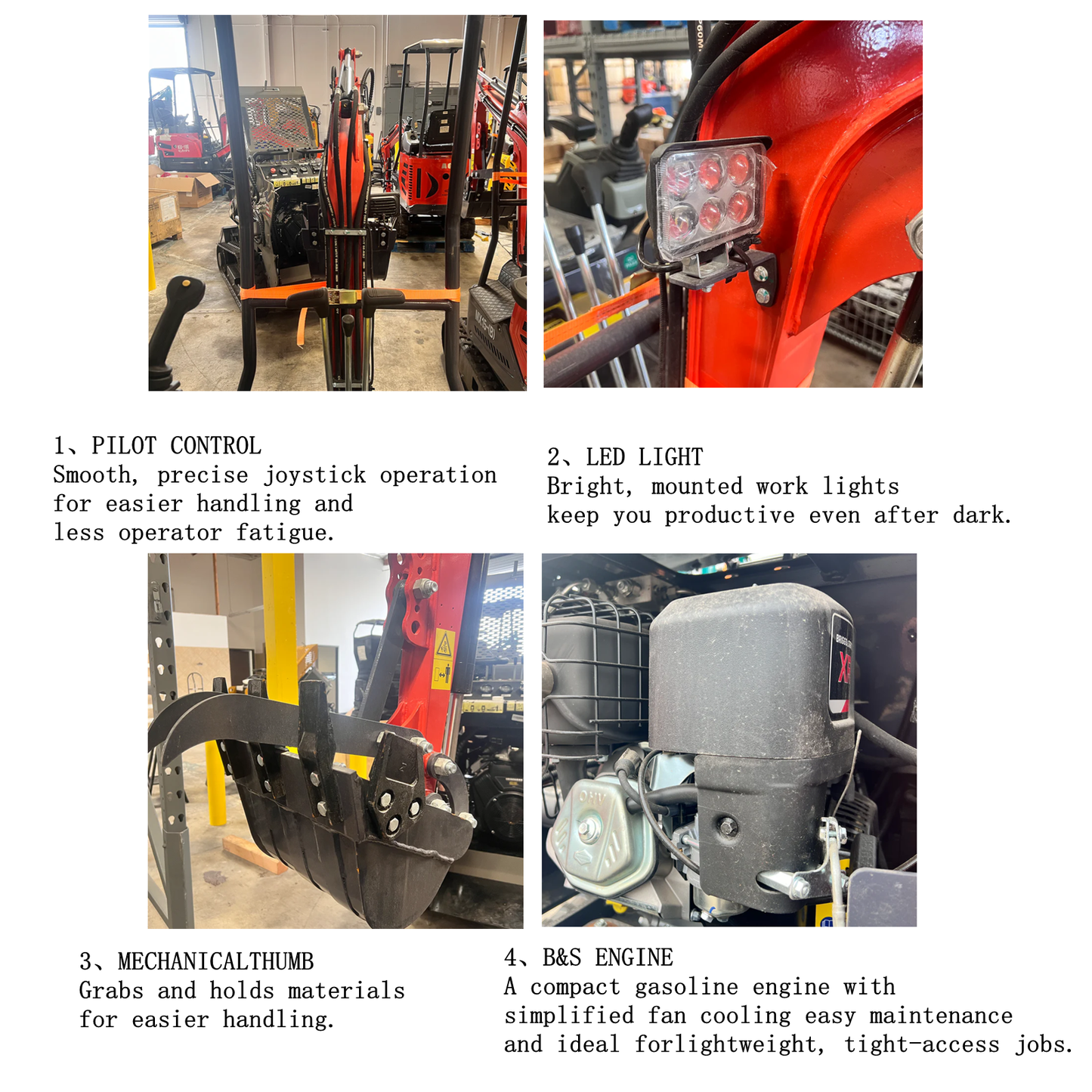

Briggs & Stratton XR2100/Pilot/Mechanical Thumb Clamp/Drive Canopy/12" Lower Frame/12" Boom Stick

Excavators are provided with excavating, crushing, ditch cleaning, drilling and bulldozing, with their attachments quick hitched and thus its utilization up greatly. In addition, they are easy to operate and transport and flexible to work at narrow site.

Excavators, hydraulic type with single bucket：This type of excavators are mainly applied to: farming, landscaping, ditching and fertilization in garden, vegetable greenhouse, agricultural transformation, indoor demolition, small earthwork, civil engieering, road recovery.basement and indoor construction, concrete breaking, burying of cable, laying of water supply line, garden cultivation,desilting and others.

The excavator are equipped with RATO/KOOP/KUBOTA/CHANGCHAI Diesel Engine or BRIGGS & STRATTONGasoline Engine.

Excavators are able to equipped with multiple work equipment, such as quick hitch, log grapple, ripper, levelingbucket, auger and narrow bucket, as well as optional roof, radiator and others, so as to meet your needing

Product manual (PDF) MX15-_B.pdf

Product Features

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Excavator type information
Configuration status	MX15-(B)
Basic performance parameters
The working weight of the whole machine (kg)	900
Bucket capacity (m³)	0.025
Walking speed low/high speed (Km/h)	0–2
Climbing ability (%)	30
Slewing speed (r/min)	10
Maximum digging force of the bucket (KN)	6
Maximum digging force of the stick (KN)	4
A Maximum digging height (mm)	2583
B Maximum unloading height (mm)	1742
C Maximum digging depth (mm)	1769
D Maximum vertical digging depth (mm)	1638
E Maximum digging radius (mm)	3041
F Minimum slewing radius (mm)	1440
G Minimum tail slewing radius (mm)	828
H Maximum lift height of the dozer blade	162
I Maximum digging height of the dozer blade	196
Side swing	/
Side swing angle (left/right)	/
Chassis telescoping	/
Body
J Total length (mm)	2882
K Total width (mm)	962
L Total height (mm)	2219
M Track gauge (mm)	900
N Rail gauge (mm)	762
Dozer blade width/height (mm)	907 / 200
Engine
Engine brand	Briggs & Stratton
Engine model	XR2100
Maximum horsepower (ps)	13.5
Maximum power (kW)	9.8
Maximum speed (rpm)	3600
Number of cylinders	1
Cooling method	Air-cooled
Engine oil change volume (L)	1.1
Fuel type	Gasoline
Fuel grade	92#
Theoretical fuel consumption (L/h)	/
Hydraulic system
Main pump type/model	6+3
Main pump brand	6+3
Rated set pressure (Mpa)	16
Maximum flow rate of the main pump (L/min)	21.6
Multi-way valve	8-way semi-hydraulic control multi-way valve
Multi-way valve brand	8-way semi-hydraulic control
Rated set pressure (Mpa)	16
Travel hydraulic motor type	BMER3-350
Travel motor brand	Hydraulic
Motor displacement	350
Slewing hydraulic motor type	BMI-315
Displacement	315
Crawler
O – Rubber (width × pitch × number of links)	180×72×37
O – Steel (width × pitch × number of links)	-
Rubber block	-
Configuration
Cab	●
Roof	●
Armrest	●
Quick-change	○
Rake	○
Log grapple	○
Ripper	○
Hydraulic breaker	○
Thumb clamp	Mechanical thumb clamp
Counterweight	●
Tensioning form	Mechanical tensioning
Air conditioner	-
Fuel tank
Fuel tank (L)	6.6
Hydraulic oil tank (L)	15.8
