SKU:MX15RX

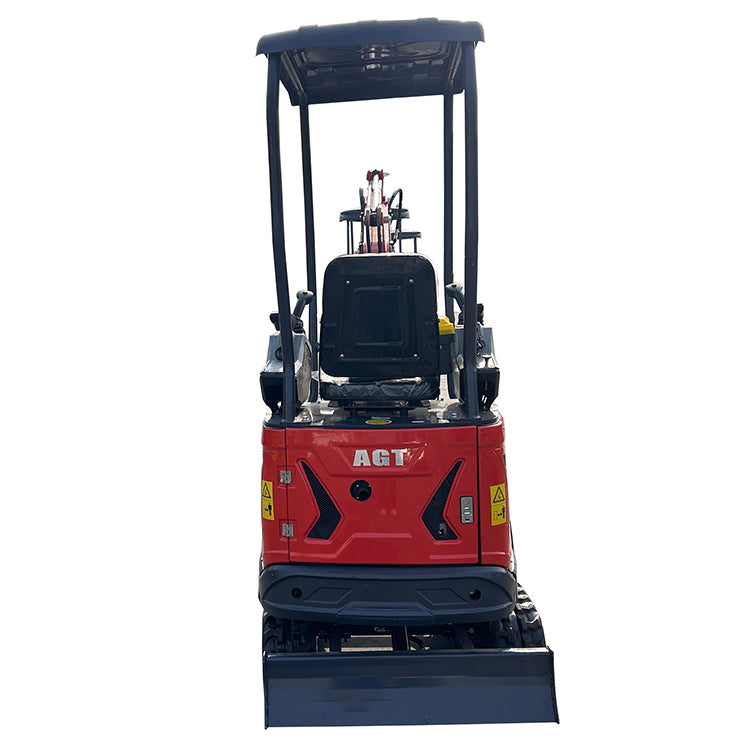

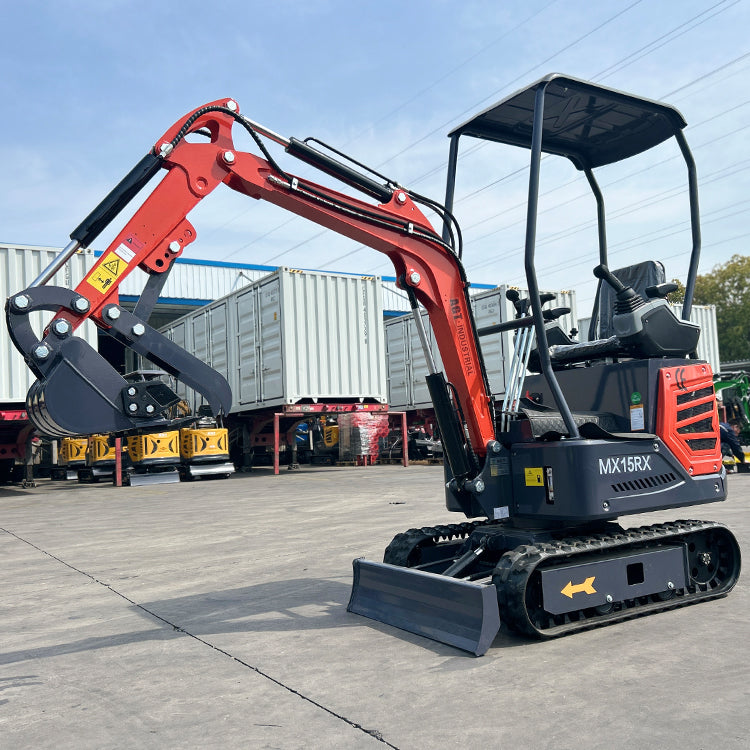

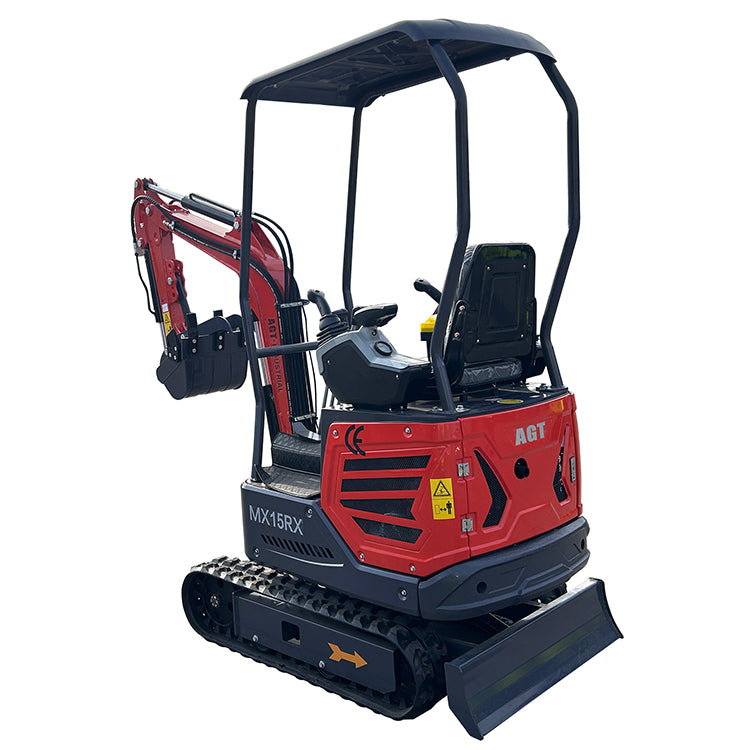

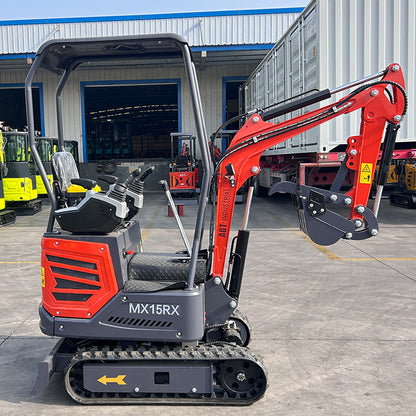

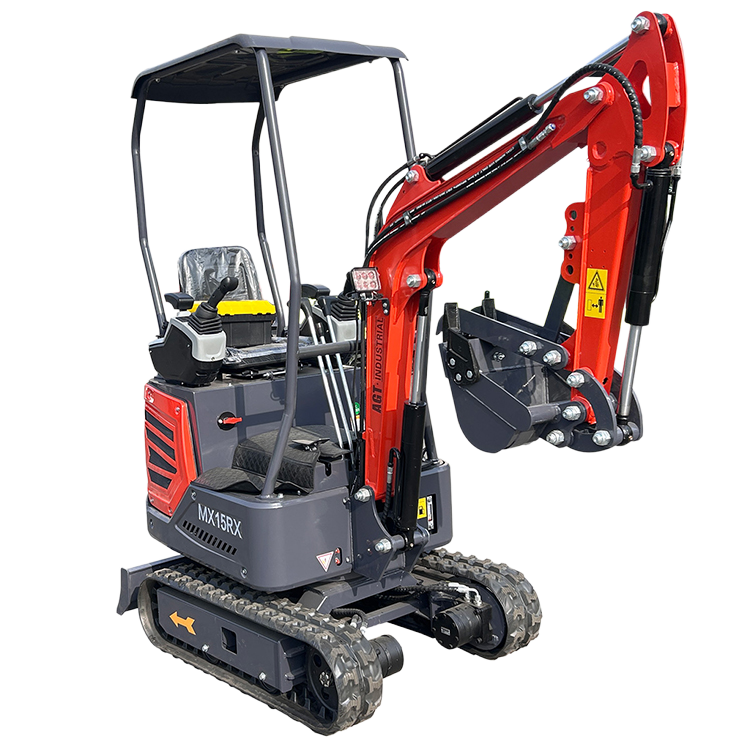

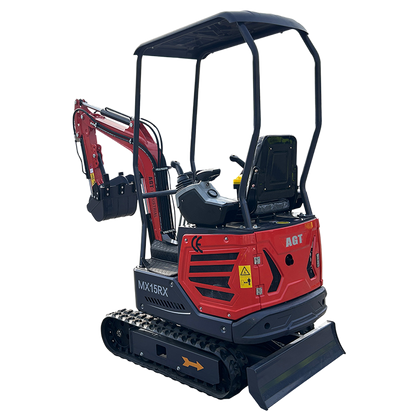

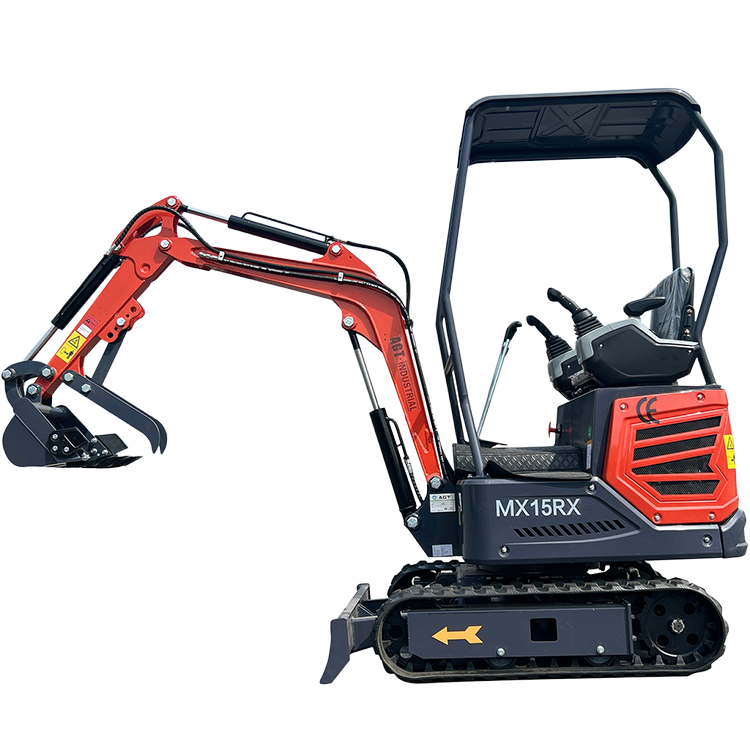

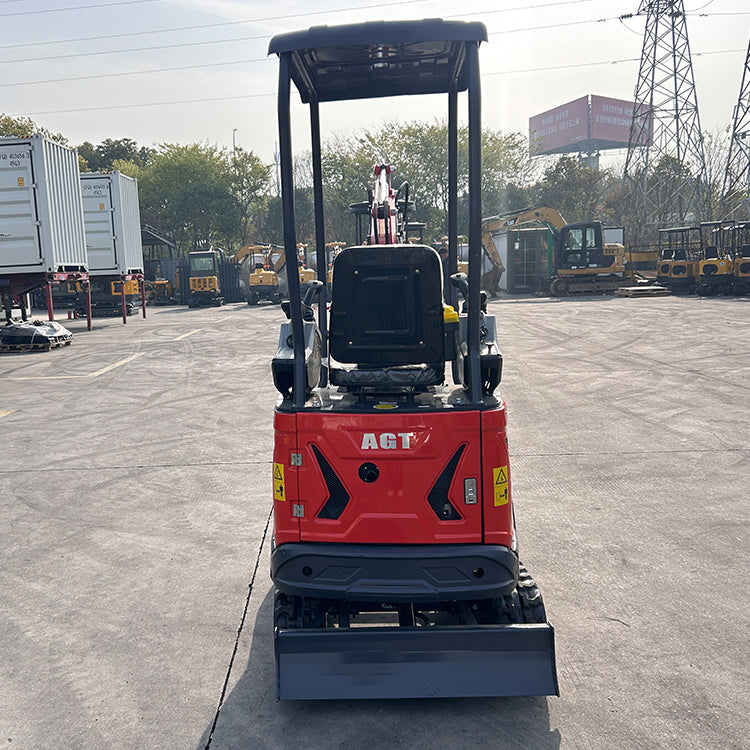

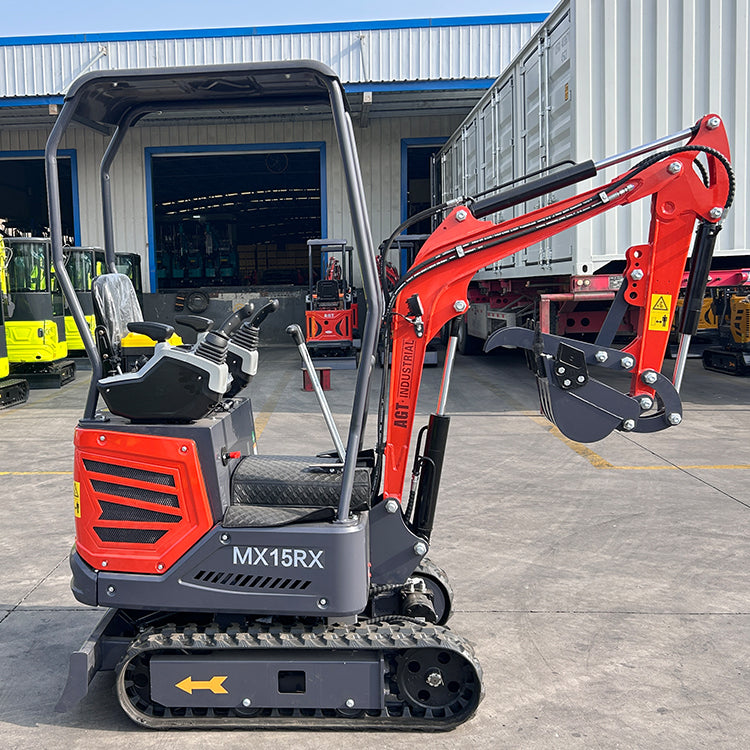

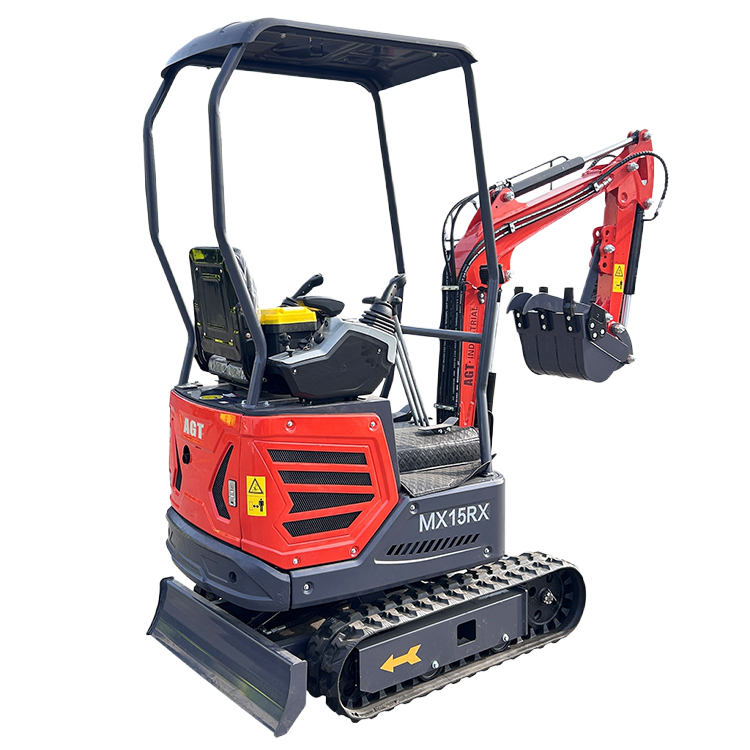

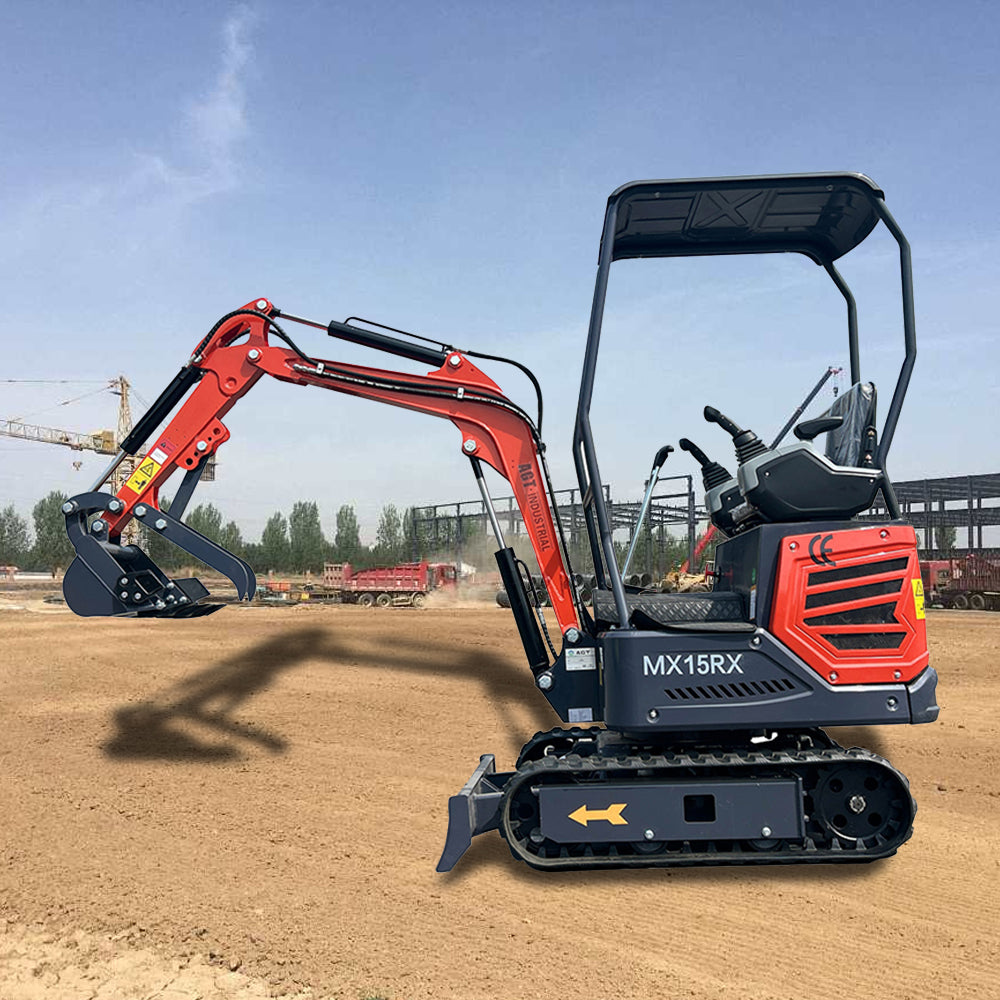

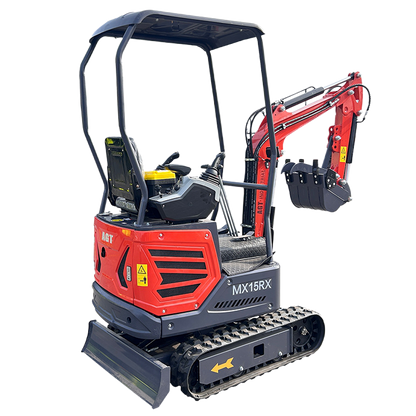

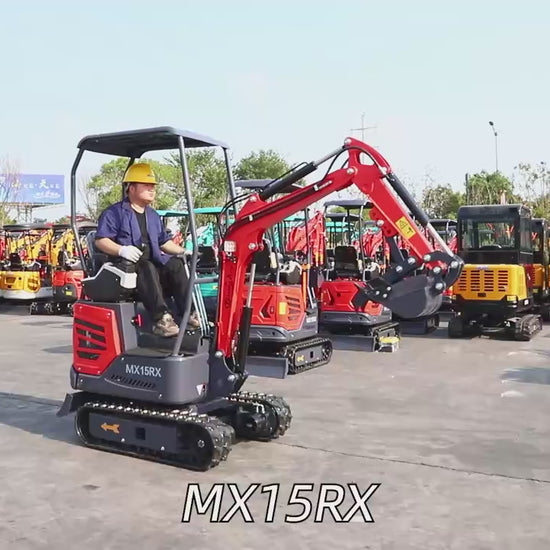

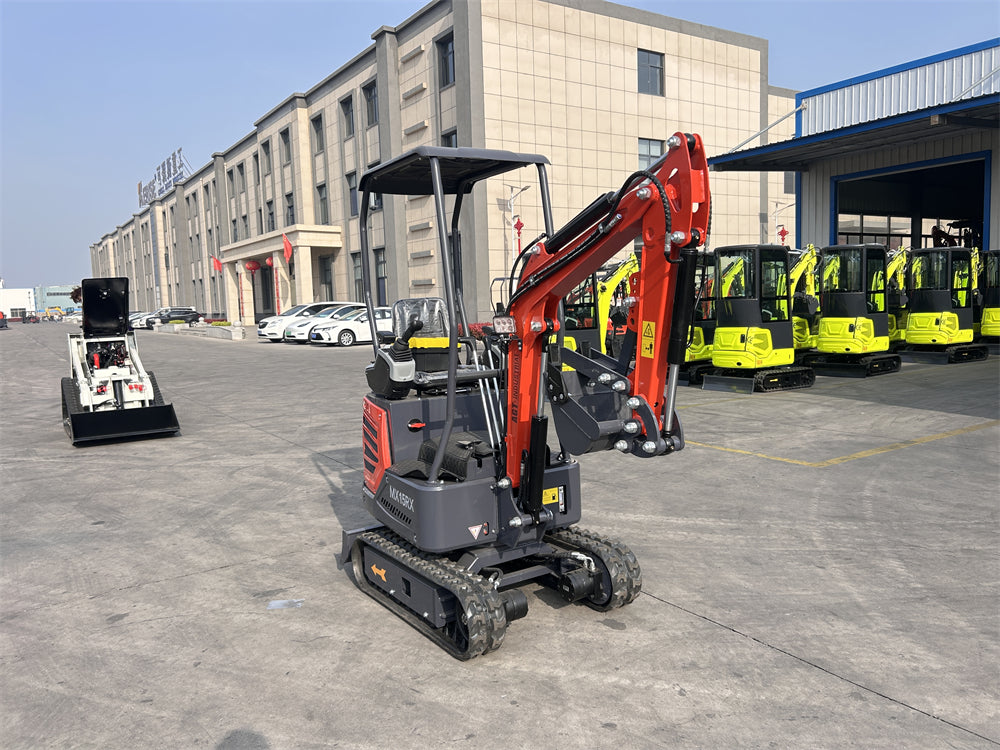

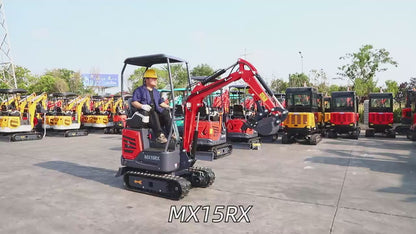

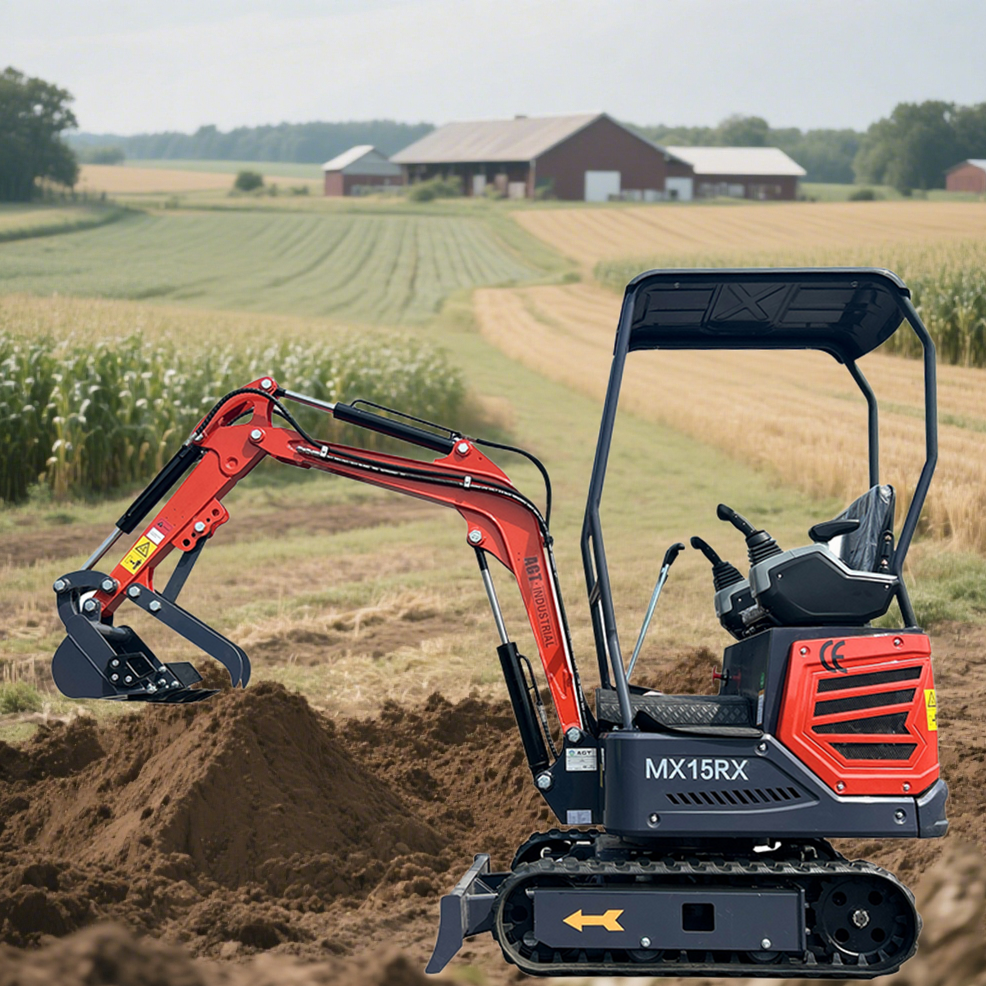

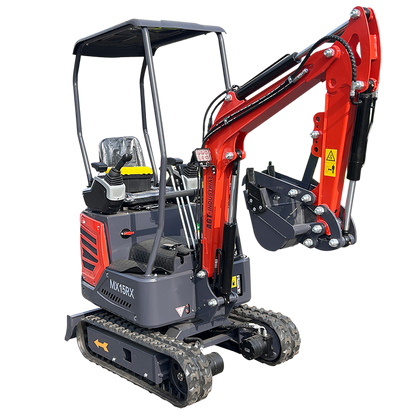

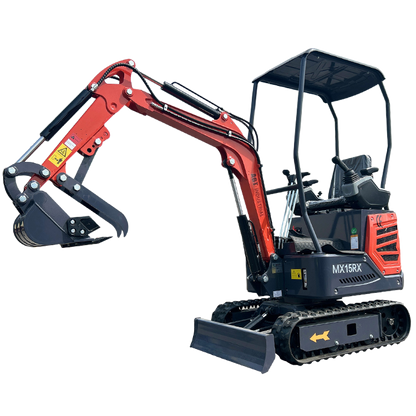

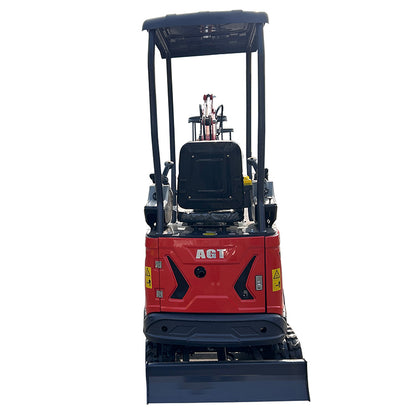

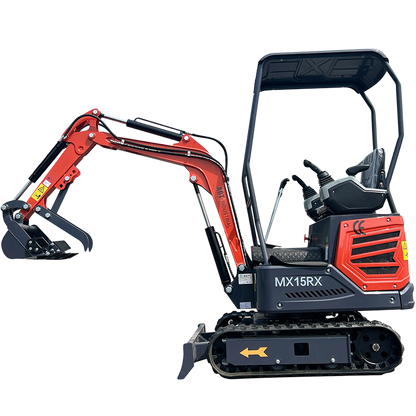

1 Ton 13.5 HP Mini Excavator with Rato R420D Gas Engine EPA MX15RX

Name: 1 Ton 13.5 HP Mini Excavator with Rato R420D Gas Engine EPA MX15RX
Brand: Kelis Machinery
SKU: MX15RX
Price: 6800.00 USD
Availability: InStock

1 19

$6,800.00

~~$10,461.54~~ Save$3,661.54 Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

832-993-8676Sales Contact Number

yuanxin01@cfgindustrial.comSales Contact Email

View full details

Product Overview

Runtong R420D/Pilot/Mechanical Thumb Clamp/Drive Canopy/12mm Lower Frame/12mm Boom Stick

Excavators are provided with excavating, crushing, ditch cleaning, drilling and bulldozing, with their attachments quick hitched and thus its utilization up greatly. In addition, they are easy to operate and transport and flexible to work at narrow site.
Excavators, hydraulic type with single bucket：This type of excavators are mainly applied to: farming, landscaping, ditching and fertilization in garden, vegetable greenhouse, agricultural transformation, indoor demolition, small earthwork, civil engieering, road recovery.basement and indoor construction, concrete breaking, burying of cable, laying of water supply line, garden cultivation,desilting and others.
The excavator are equipped with RATO/KOOP/KUBOTA/CHANGCHAI Diesel Engine or BRIGGS & STRATTONGasoline Engine.
Excavators are able to equipped with multiple work equipment, such as quick hitch, log grapple, ripper, levelingbucket, auger and narrow bucket, as well as optional roof, radiator and others, so as to meet your needing

Product Features

Fectures

Runtong R420D/Pilot/Mechanical Thumb Clamp/Drive Canopy/12mm Lower Frame/12mm Boom Stick

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Model Information
Configuration Status	√ Standard, △ Optional, × None
Model	MX15RX
Basic Performance Parameters
Weight (kg)	940
Bucket capacity (m³)	0.025
Walking speed Low/High speed (Km/h)	0–1.8
Gradeability (%)	30
Speed of gyration (r/min)	10
Maximum digging force of the bucket (KN)	6
Maximum digging force of boom (KN)	4
A Maximum excavation height (mm)	2583
B Maximum unloading height (mm)	1742
C Maximum digging depth (mm)	1769
D Maximum vertical excavation depth (mm)	1638
E Maximum digging radius (mm)	3041
F Minimum radius of gyration (mm)	1440
G Minimum gyration radius of the tail (mm)	828
H Maximum lifting height of bulldozer	162
I Maximum digging height of bulldozer	196
Size
J Total length (mm)	2882
K Total width (mm)	962
L Total height (mm)	2219
M Tread width (mm)	900
N Track gauge (mm)	762
Bulldozer width/height (mm)	907 / 200
Engine
Engine Brand	RATO
Engine model	R420D
Max Horsepower (ps)	13.5
Maximum power (kW)	9.8
Maximum Rotation Speed (rpm)	3600
Number of cylinders	1
Cooling method	Forced air cooling
Engine oil change volume (L)	1.1
Fuel type	Gasoline
Fuel label	92#
Hydraulic System
Main pump type/model	6＋3
Main pump brand	Tianjin Walking
Rated set pressure (Mpa)	16
Max. flow rate of main pump (L/min)	21.6
Multi-way valve	8-way semi hydraulic control multi way valve
Multi-way valve brand	Boxin
Rated set pressure (Mpa)	16
Walking hydraulic motor type	BMER3-350
Walking motor brand	Orbit motor
Motor displacement	350
Rotary hydraulic motor type	BM1-315
Displacement	315
Track
〇-Rubber (track width × pitch × number of sections)	180×72×37
Configuration
Cab	—
Ceiling	●
Armrest	●
Thumb clip	●
Counterweight	●
Tensioning form	Mechanical tensioning
Tank
Fuel tank (L)	6.6
Hydraulic tank (L)	15.8
