Product Overview

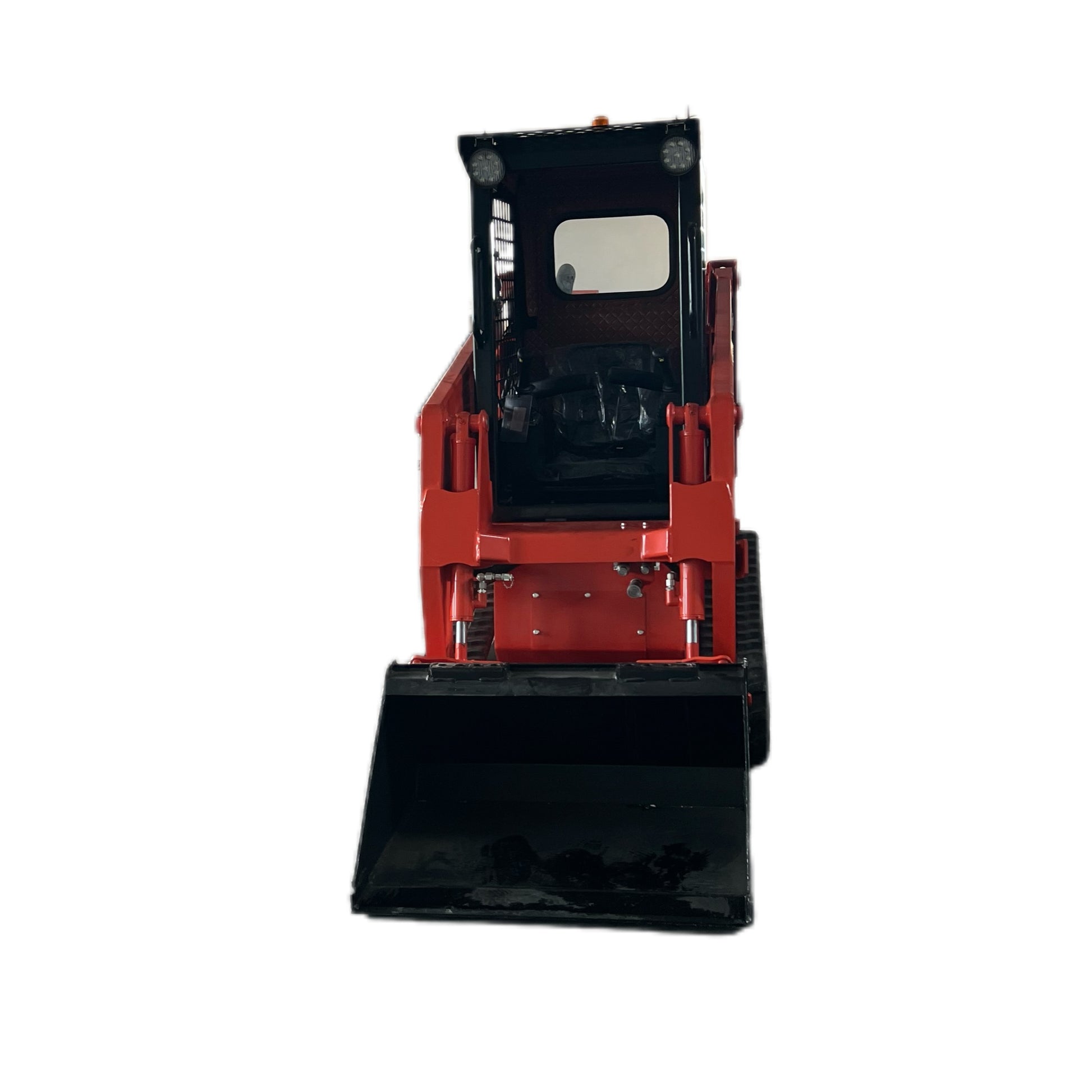

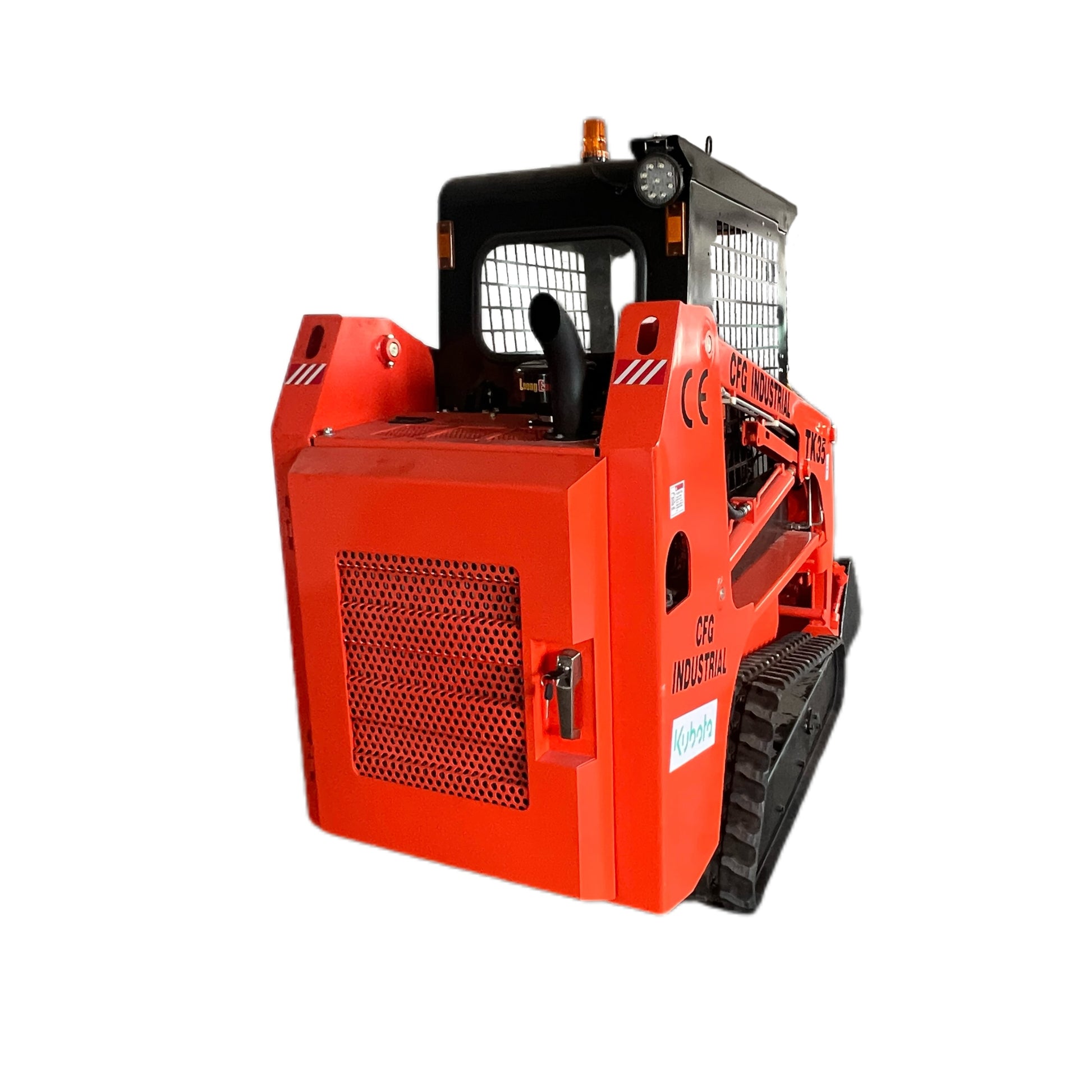

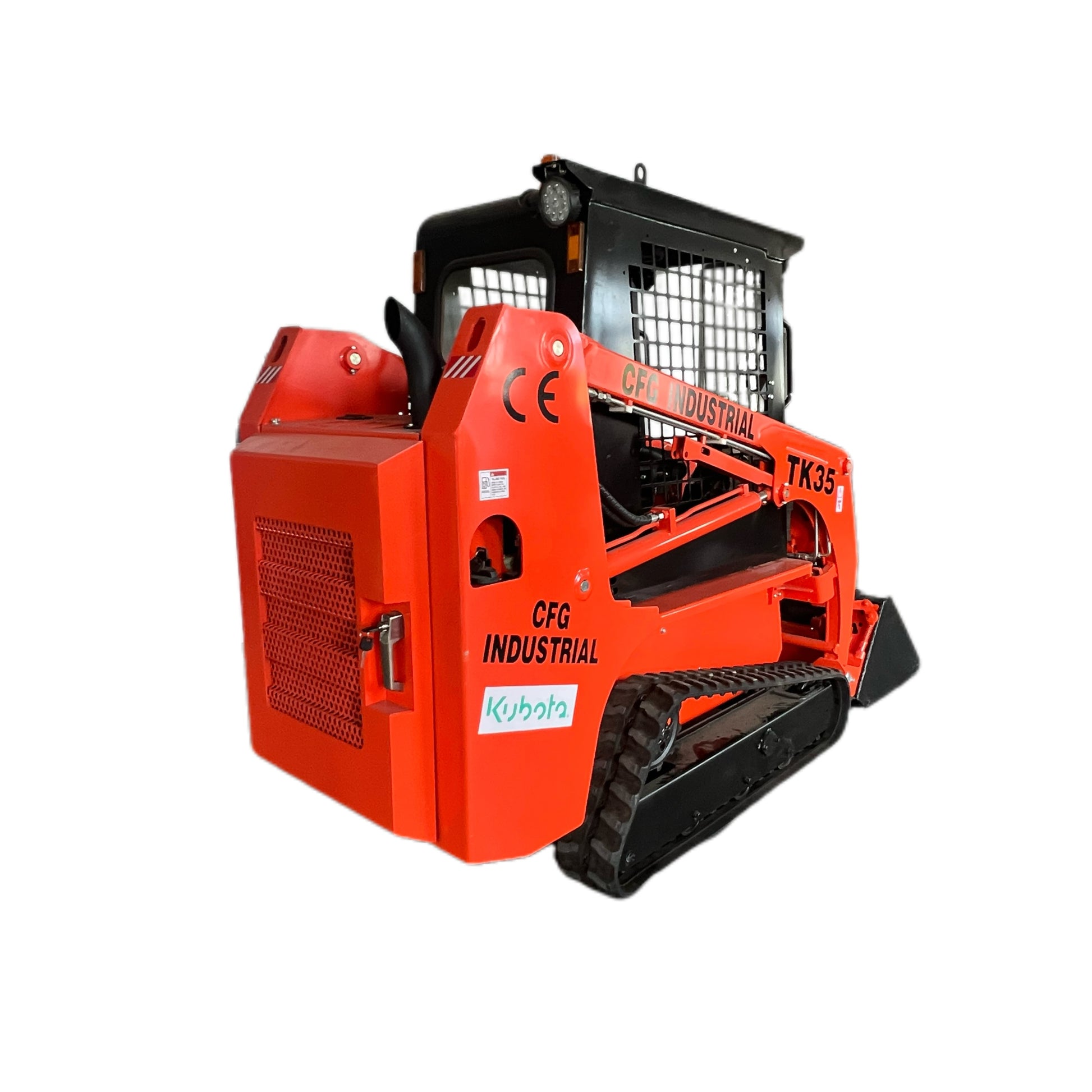

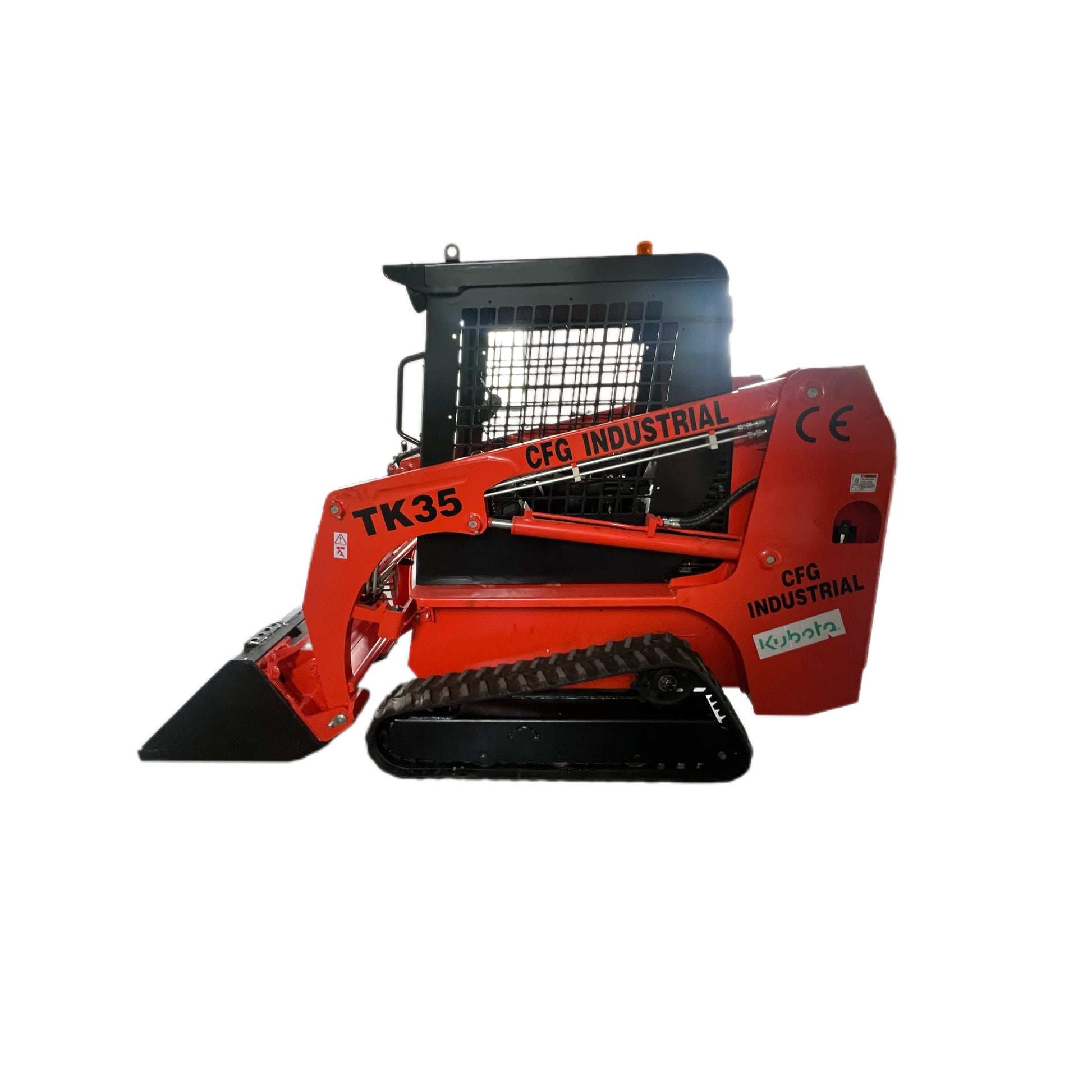

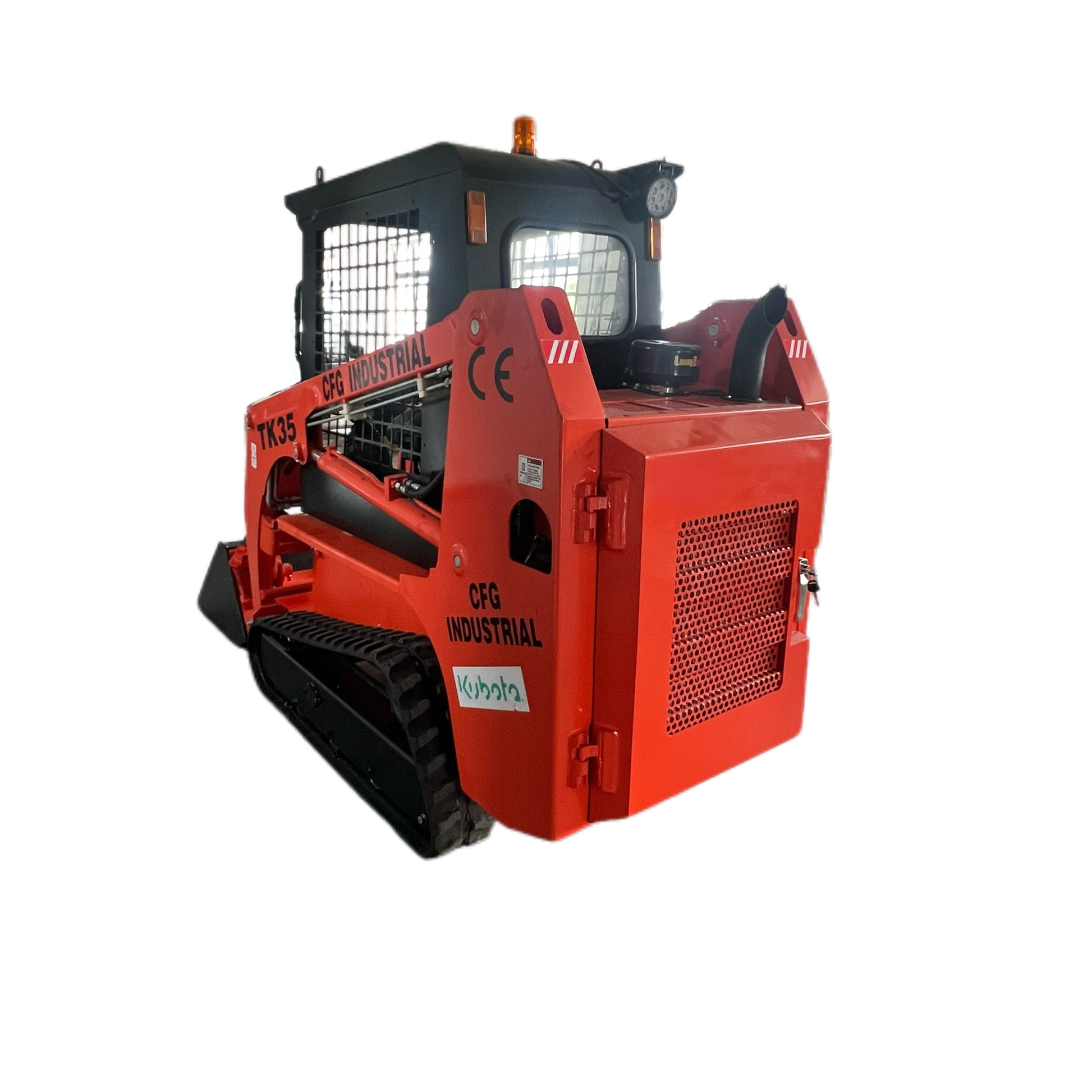

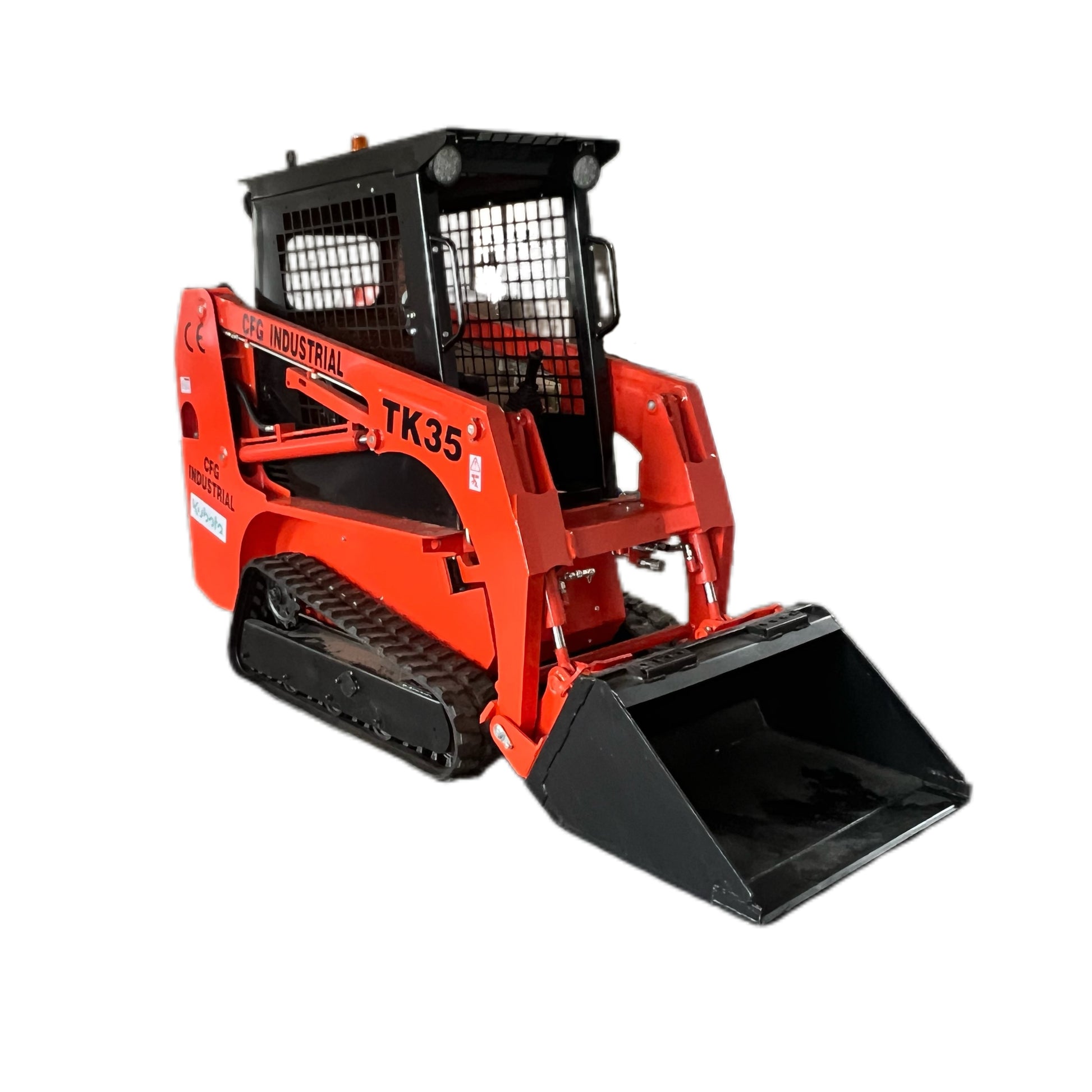

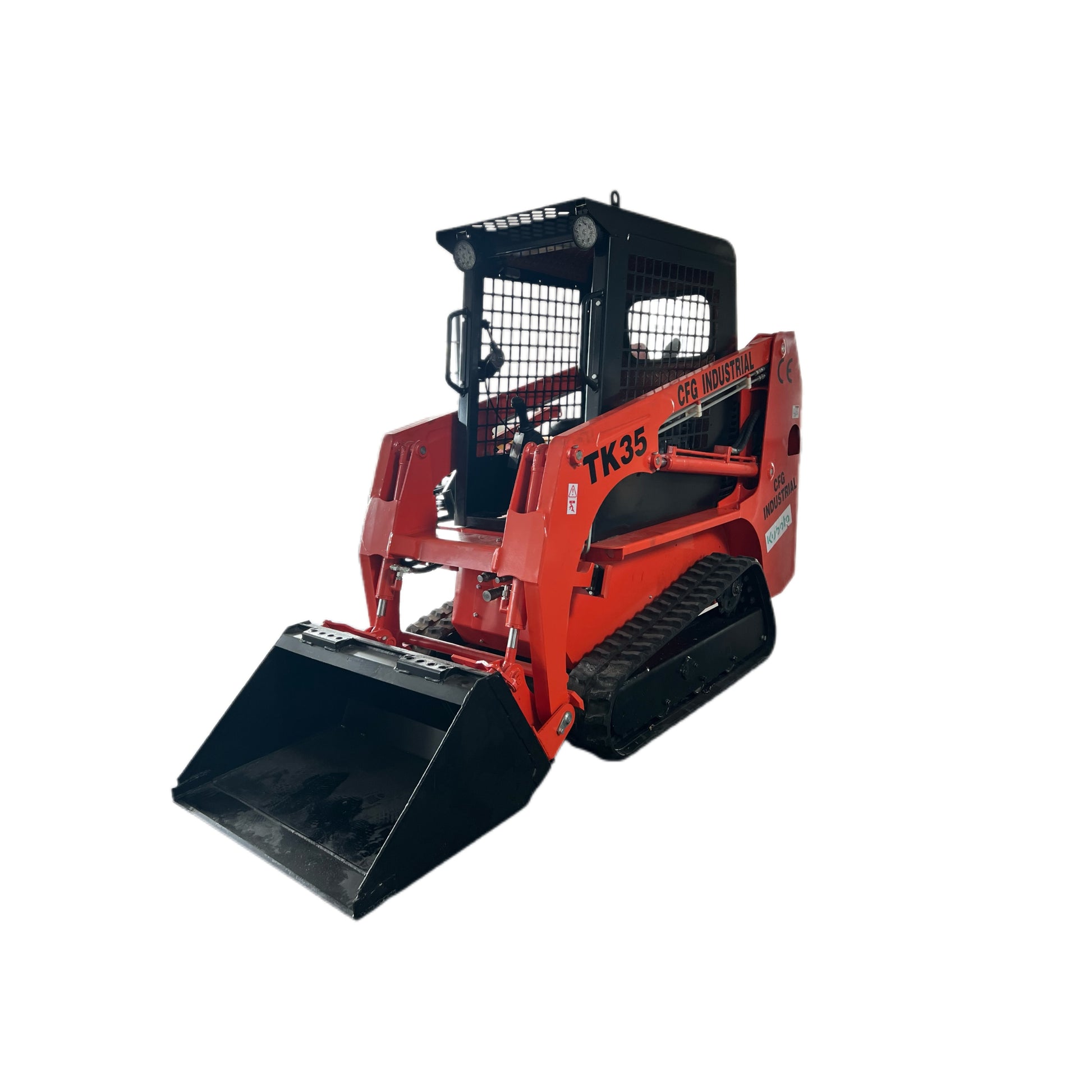

The TK35 is a versatile 1.4-ton class skid steer loader featuring an open cab design for easy operator access and excellent visibility. Powered by a rugged Kubota diesel engine, this machine is built for durability, maneuverability, and reliable performance across a wide range of jobs.
KEY FEATURES:
1.4 ton (= 3,000 lb) rated operating capacity
Kubota diesel engine known for efficiency and longevity Open cabin (roll-over protection) for excellent operator sight lines Universal quick-attach plate for compatibility with standard attachments Robust hydraulic system to drive attachments effectively Heavy-duty steel frame construction for durability
BENEFITS:
ldeal balance of size and power for tight job sites
Easy access to engine and maintenance points
,Versatility through compatibility with buckets, augers, grapples, trenchers, hammers, etc Cost-effective for contractors needing a compact utility loader Lower overall weight simplifies transport and reduces ground disturbance
APPLICATIONS:
General construction, landscaping, material handling
Utility work, site prep, trenching, backfill
Farms, nurseries, and property maintenance
Product Warranty
Specifications
| DIMENSION | ||
|---|---|---|
| Operating Weight | 1.5 Ton | 3,307 lb |
| Overall Length | 2,911 mm | 114.5 in |
| Overall Width | 912 mm | 36 in |
| Overall Height | 910 mm | 36 in |
| Bucket Width | 914 mm | 36 in |
| Bucket Capacity | 200 L | 52.8 gal |
| Tracks Size | 200*72*45 (W*P*L) | |
| WORKING RANGE | ||
| Max Working Height | 3,686 mm | 145 in |
| Max Unloading Height | 1,933 mm | 76 in |
| Max Lifting Force | 380 kg | 838 lb |
| Max Travel Speed | 9 km/h | 5.6 mph |
| FEATURES | ||
| Kubota Diesel Engine | ||
| ENGINE | ||
| Brand / Model | Kubota D1105 | |
| Fuel Type | Diesel | |
| Max Power | 18.2 kW | 24.4 HP |
| Displacement | 1100 cc | |
| Fuel Tank Capacity | 28 L | 7.4 gal |
