SKU:AGT-DM20

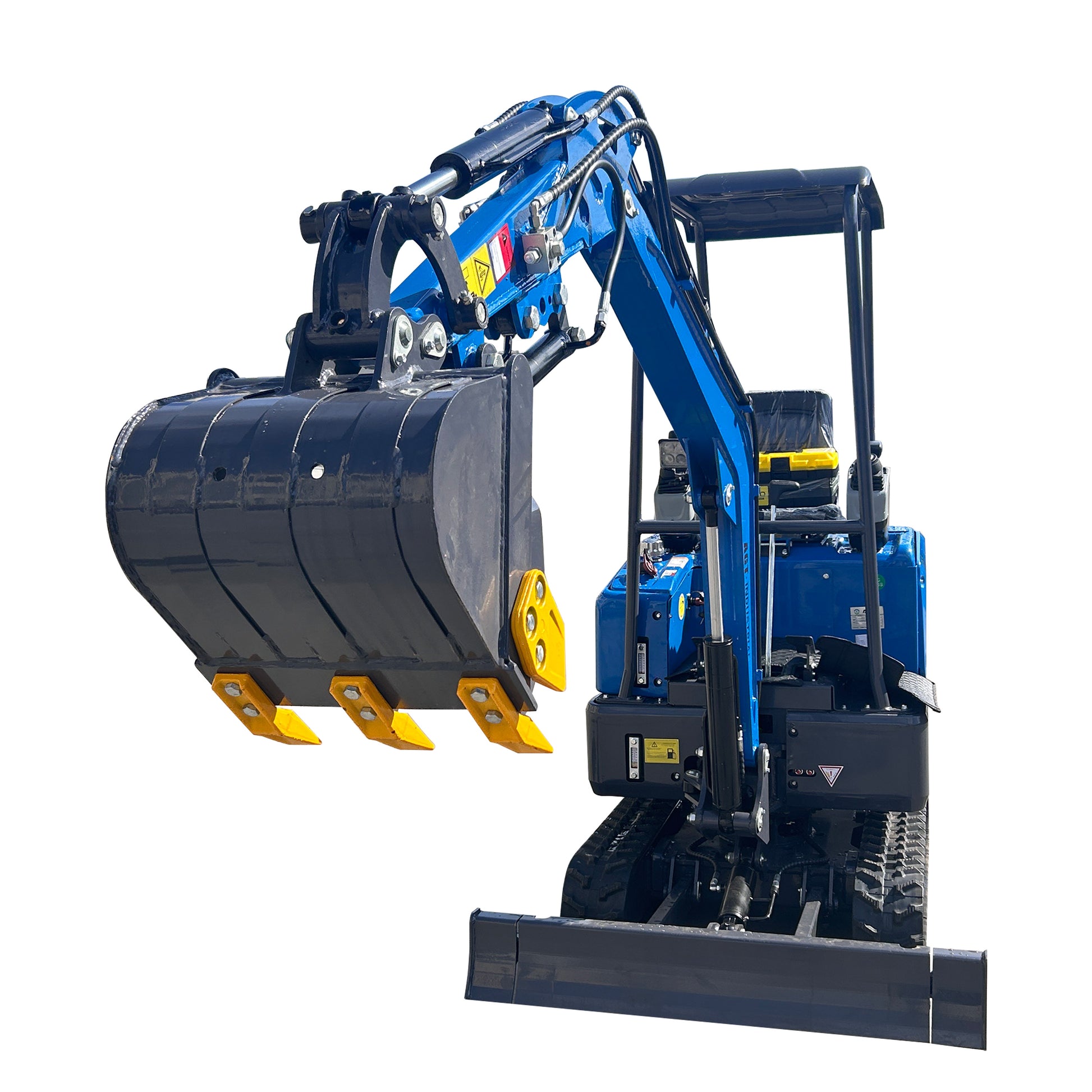

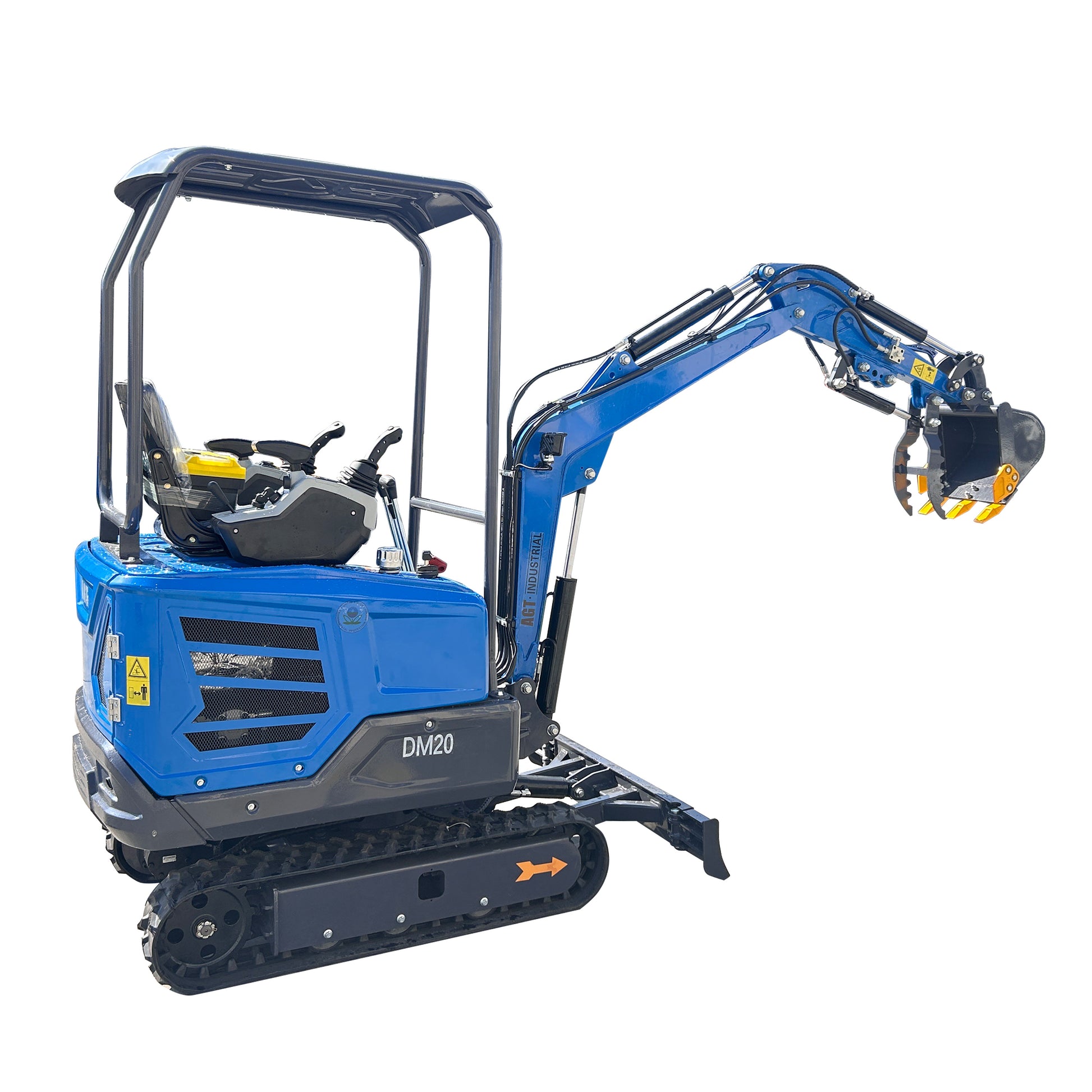

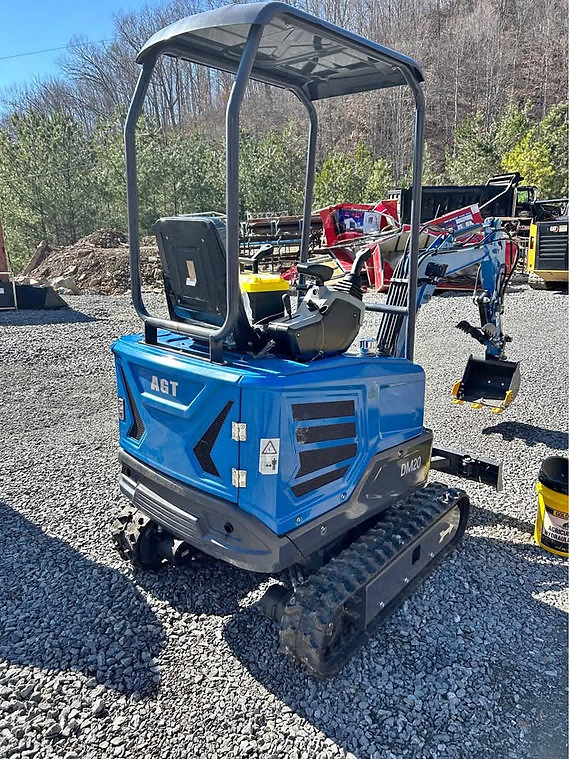

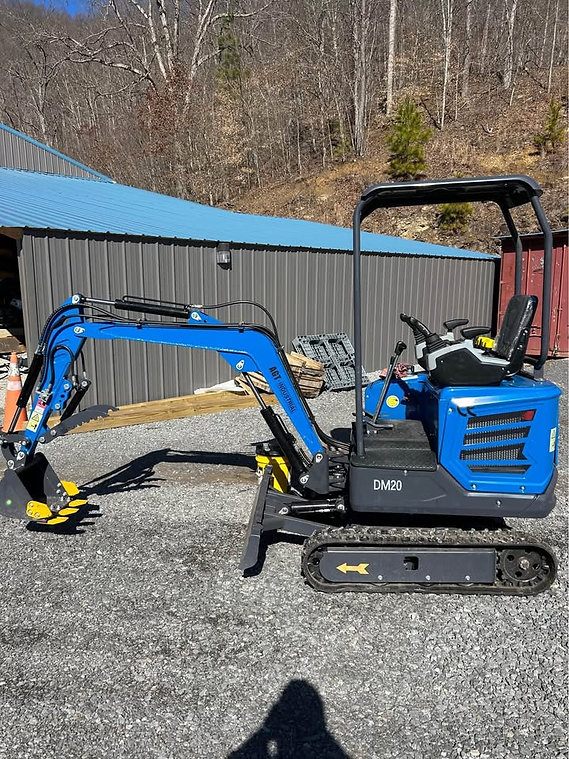

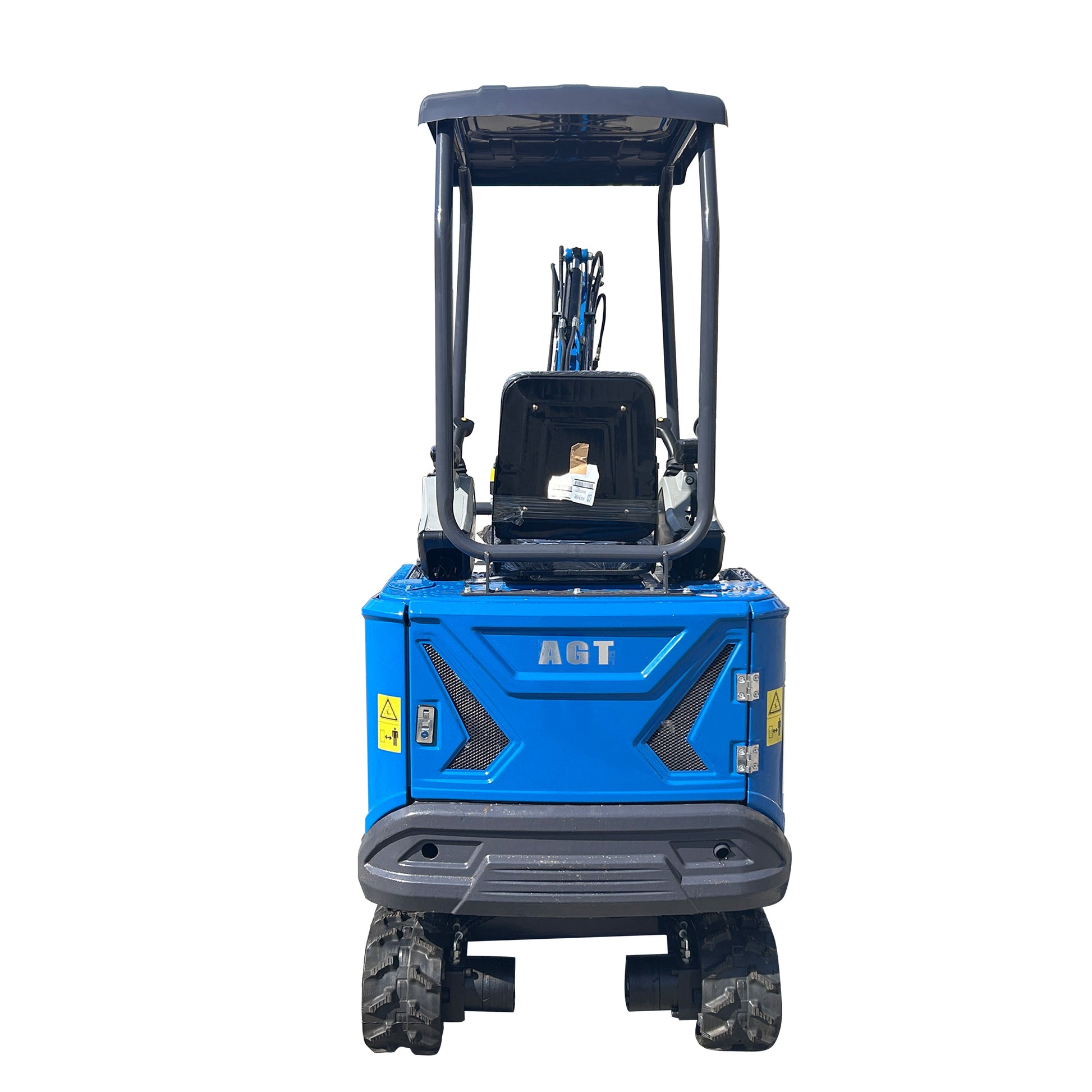

1.3Ton 13.7HP Mini Excavator Digger Diesel Kubota EPA Engine Crawler DM20

1.3Ton 13.7HP Mini Excavator Digger Diesel Kubota EPA Engine Crawler DM20

1 25
$13,500.00
Sold out
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Delivery in 5 - 15 Business Days
Details

Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Payment:
832-993-8676Sales Contact Number
yuanxin01@cfgindustrial.comSales Contact Email
View full details

Product Overview

Designed for medium-sized projects.

With a compact design, 1.3-ton operating weightand a digging depth of 7.4 feet, the AGT DM20 delivers reliable power and efficiency intight workspaces like farms, gardens, orchards, and construction sites.

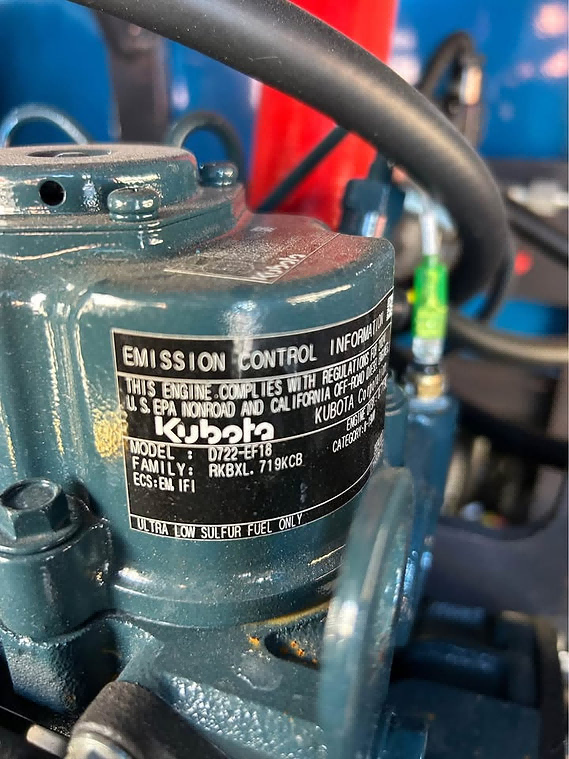

Powered by a Kubota D722 diesel engine, the DM20 features a 3-cylinder water-cooled system,expandable tracks, and a reinforced structure built for daily use.

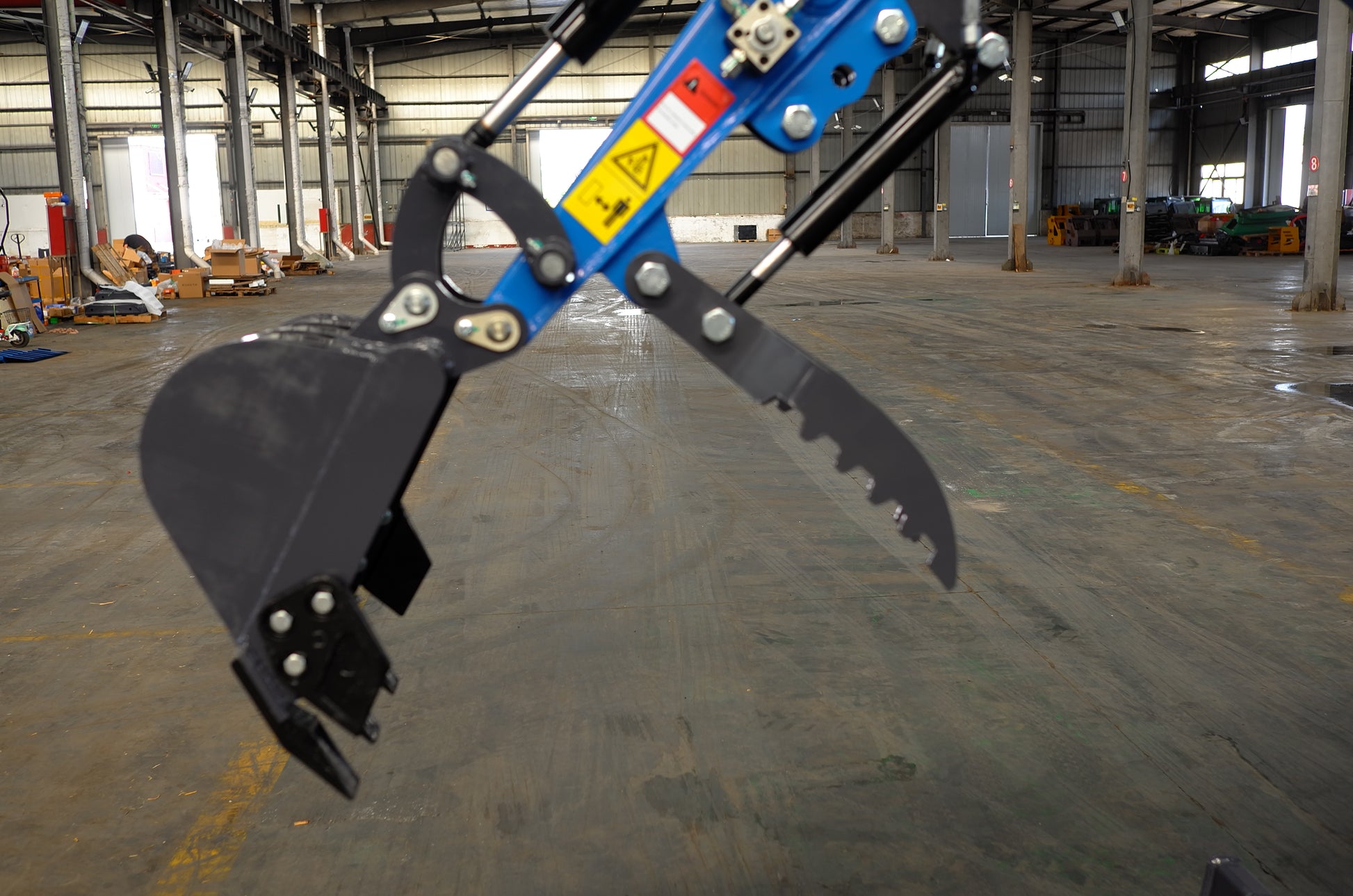

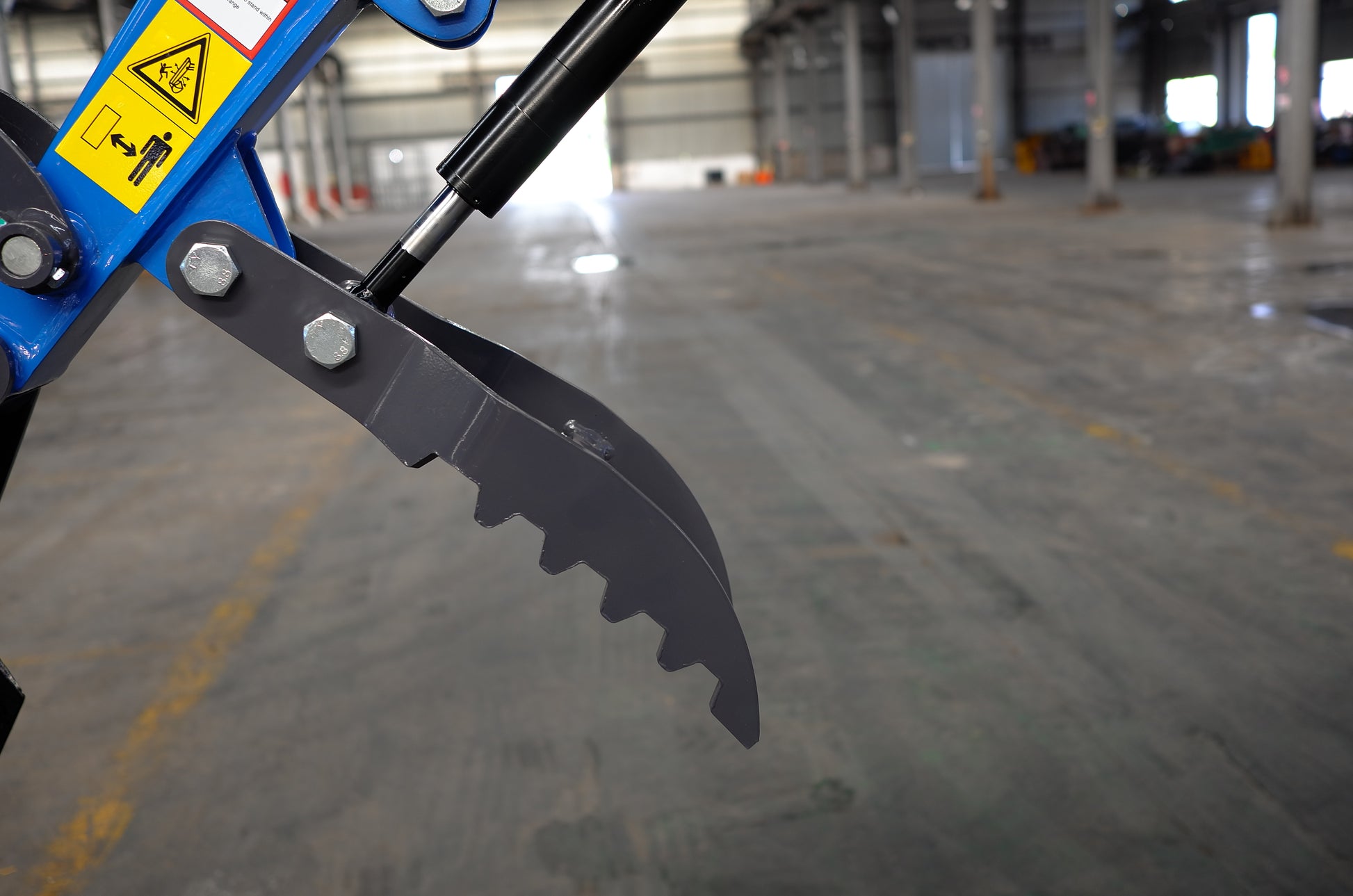

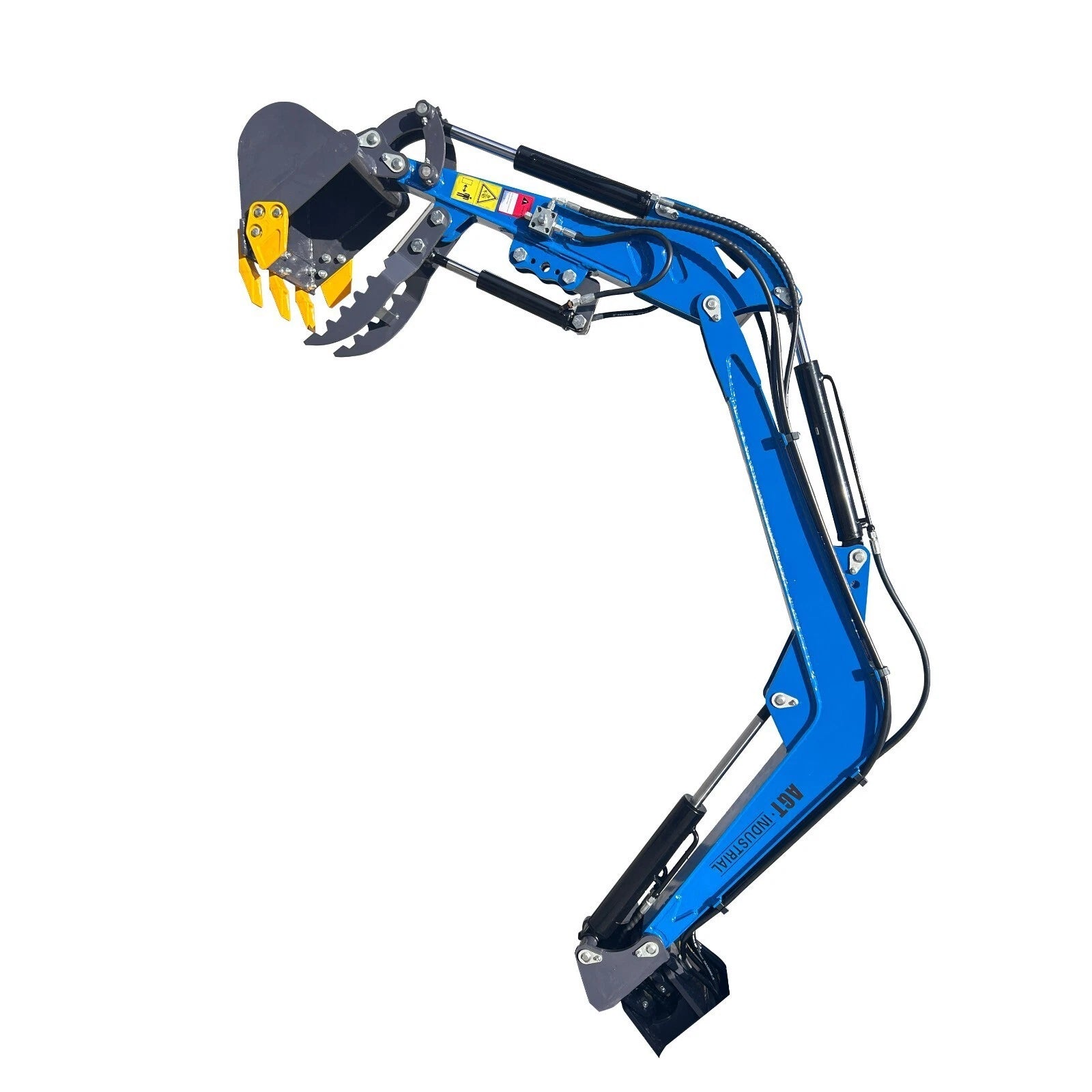

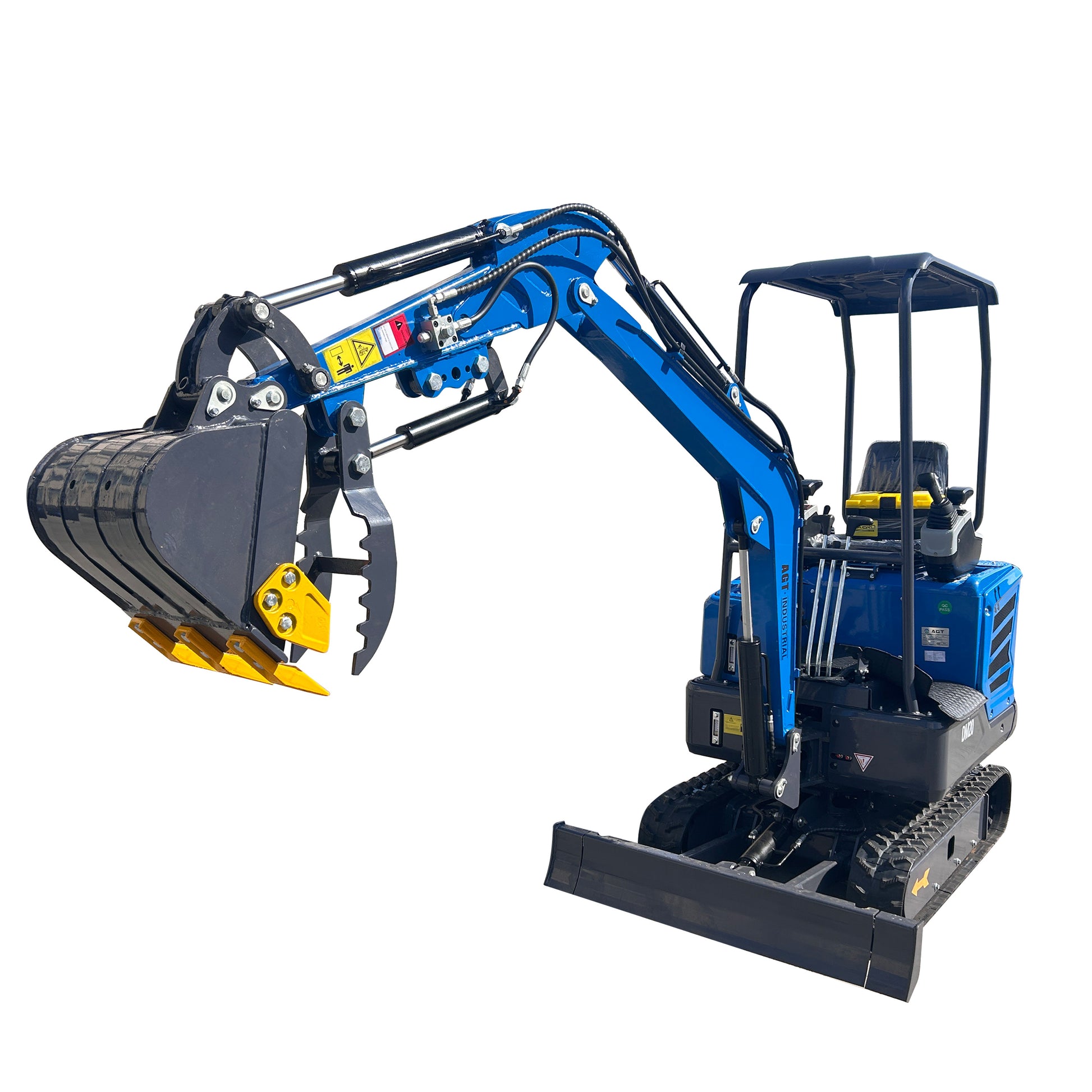

The hydraulic blade and side-swing boom provide versatility, while the factory-installed hydraulic thumb and auxiliary line make it attachment-ready. ldeal for augers.rakes, tilt buckets, grapples, and more.

Product Features

Product Warranty

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Model Information
Configuration Status√ Standard, △ Optional, × None
ModelDM20
Basic Performance Parameters
Working Weight (kg)1300
Bucket capacity (m³)0.03
Travel speed low/high speed (Km/h)0–2
Climbing ability (%)30
Turn speed (r/min)10
A: Maximum Digging Height (mm)2890
B: Maximum Unloading Height (mm)1958
C: Maximum Digging Depth (mm)2257
D: Maximum Vertical Excavation Depth (mm)2090
E: Maximum Excavation Radius (mm)3305
F: Minimum radius of Gyration (mm)1584
G: Minimum tail radius of Gyration (mm)849
H: Maximum Lifting height of Bulldozer288
I: Maximum Digging height of Bulldozer146
Equipment Body
J: Overall Length (mm)3200
K: Overall Width (mm)936
L: Overall Height (mm)2210
Bulldozer Width/Height (mm)1000 / 180
Engine
Engine BrandKubota
Engine modelD722
Maximum horsepower (ps)13.7
Maximum power (kW)10.2
Maximum speed (rpm)2500
Number of cylinders3
Cooling methodWater cooling
Engine oil replacement (L)3.8
Fuel typeDiesel
Fuel Label92#

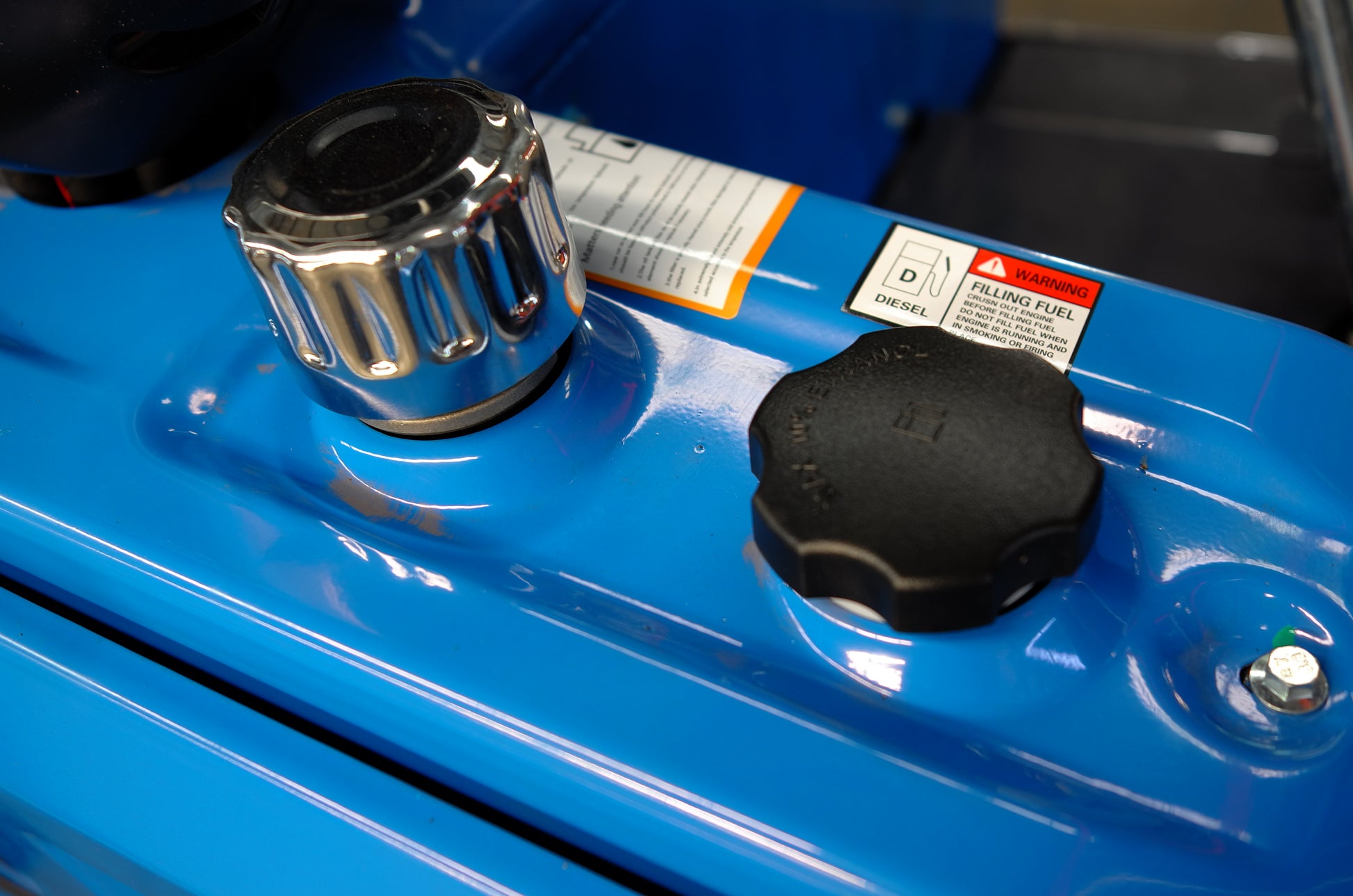

Fuel Tank
Fuel tank (L)8.7
Hydraulic oil tank (L)14.2
